HP Vectra VL6 8 Istruzioni per l'installazione

HP Vectra VL 8

Replacing Hardware Components

For information about upgrading your PC and installing accessories,

refer to the Upgrade and Maintenance Guide, available on HP’s web

site at www.hp.com/go/vectrasupport.

CD-ROM Drive

Floppy Disk Drive

Hard Disk Drive

System Board

Power Supply

Accessory Board(s)

Main Memory

CD-ROM Drive

Floppy Disk Drive

Hard Disk Drive(s)

System Board

Power Supply

Accessory Board(s)

Main Memory

en-tif.fb4 Page 1 Monday, June 7, 1999 2:35 PM

HP Vectra VL 8 Replacing Hardware Components

Before Starting

2English

Before Starting

Read this section before replacing any components.

WARNING For your safety, never remove the PC’s cover without first removing

the power cord from the power outlet and any connection to a

telecommunication network. Always replace the cover before

switching the PC on again.

CAUTION Static electricity can damage electronic components.

Turn all equipment OFF. Don’t let your clothes touch the accessory.

To equalize the static electricity, rest the accessory bag on top of the PC while

you are removing the accessory from the bag. Handle the accessory as little as

possible and with care.

WARNING There is a danger of explosion if the battery is incorrectly installed. For

your safety, never attempt to recharge, disassemble, or burn the old

battery. Replace the battery only with the same or equivalent type

recommended by the manufacturer. The battery in this PC is a lithium

battery which does not contain heavy metals, nevertheless, in order to

protect the environment, do not dispose of batteries in household

waste. Please return used batteries to the shop from which you bought

them, or to the dealer from which you purchased your PC, or to HP, so

that they can either be recycled or disposed of in an environmentally

sound way. Returned used batteries will be accepted free of charge.

en-tif.fb4 Page 2 Monday, June 7, 1999 2:35 PM

English 3

HP Vectra VL 8 Replacing Hardware Components

Removing and Replacing the Cover

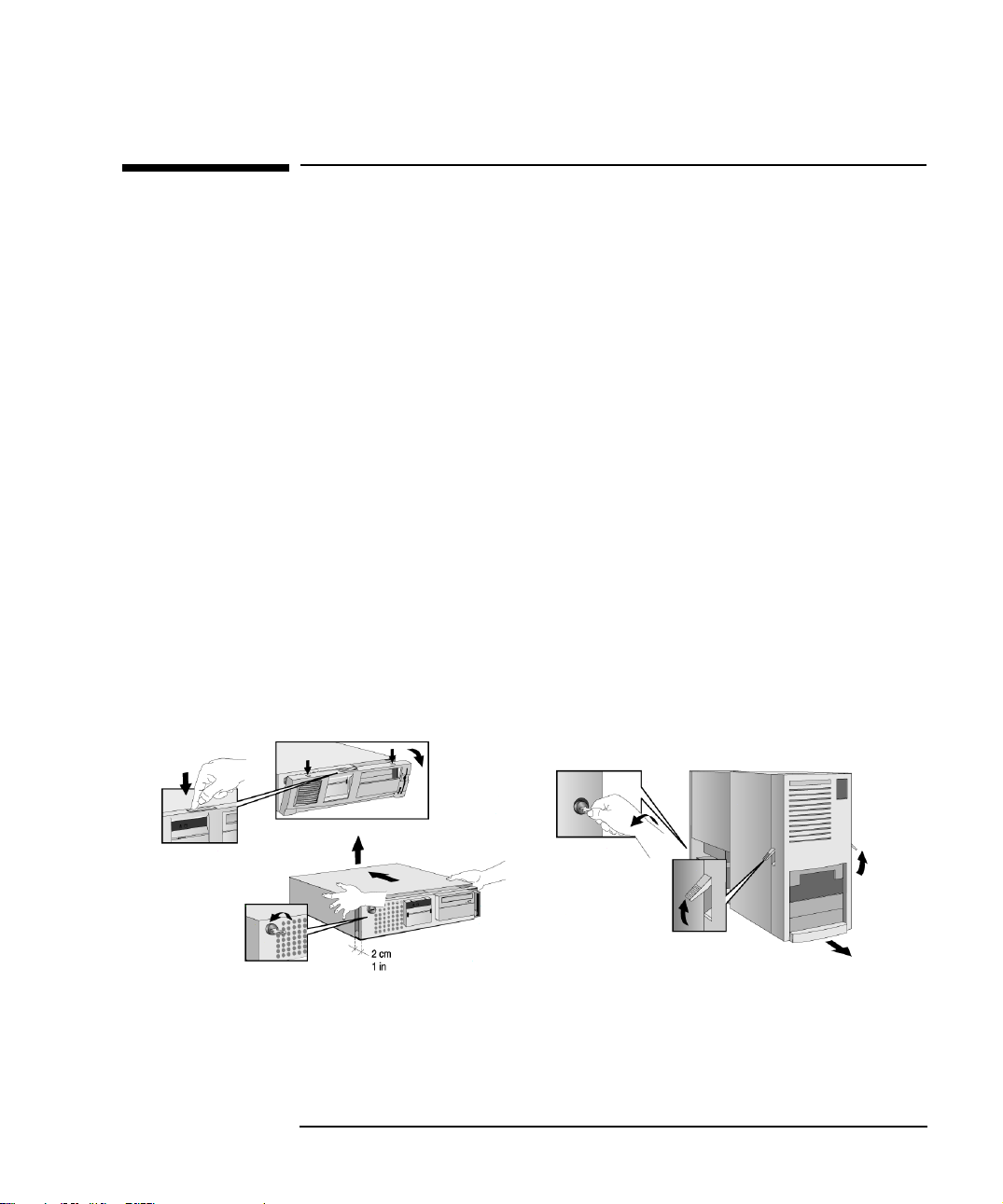

Removing the Cover

1Switch off the monitor and PC, disconnect all power cords and any

telecommunication cables.

2Desktop

aPress the central latch down to release the front panel.

bRemove the front panel by pressing the two tabs down, pivoting

the front panel downward, and lifting it off.

cIf necessary, unlock the cover using the key provided with the PC.

dPlacing your hands on the sides of the cover, push the cover

forward by about 2 cm (about 1 inch) and lift it off.

Minitower

aIf necessary, unlock the cover using the key provided with the PC.

bLift the two latches on the sides of the PC upwards.

cSlide the cover forwards and off the PC.

en-tif.fb4 Page 3 Monday, June 7, 1999 2:35 PM

HP Vectra VL 8 Replacing Hardware Components

Removing and Replacing the Cover

4English

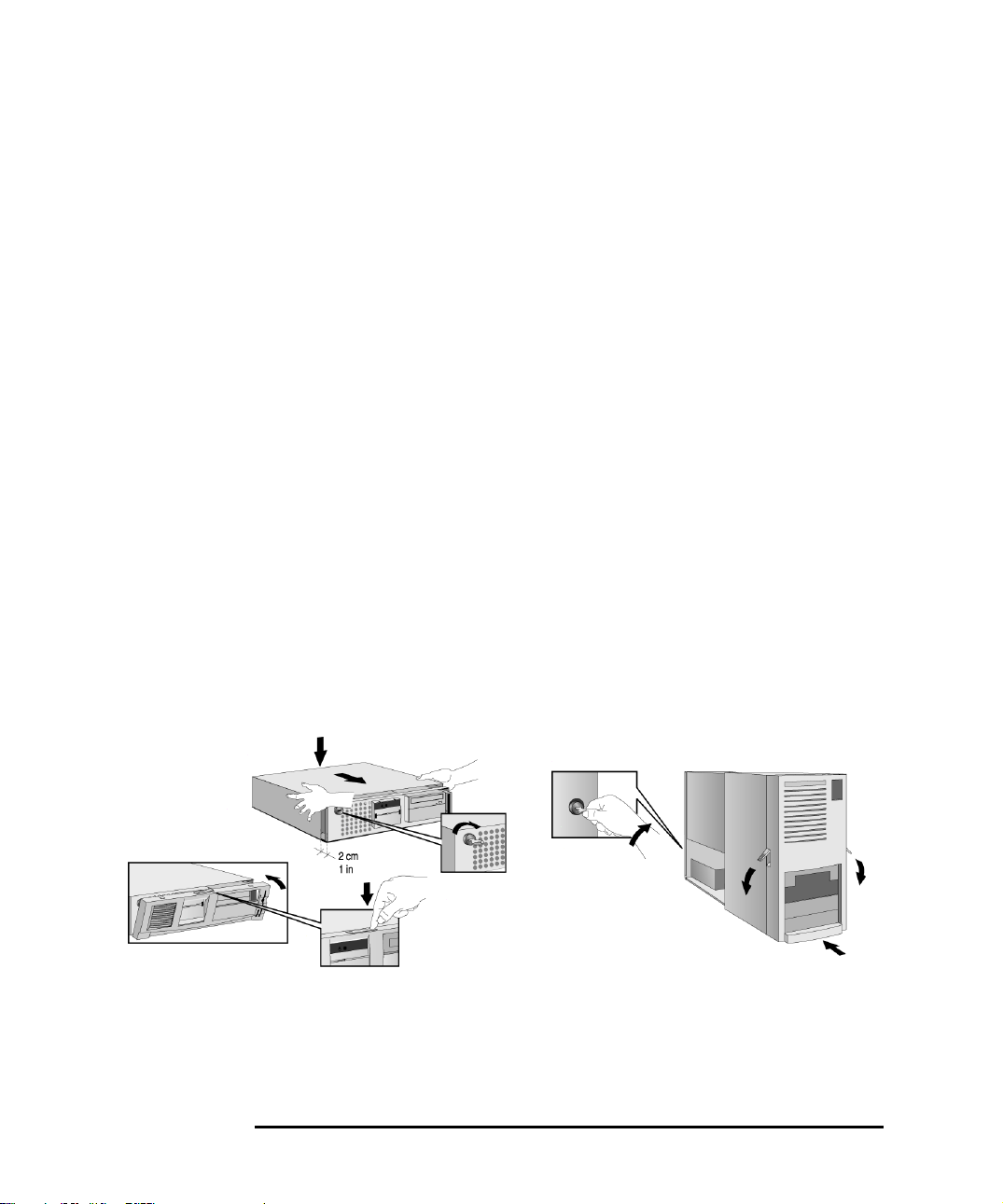

Replacing the Cover

1Ensure that all internal cables are properly connected and safely

routed.

2Ensure that the cover lock is unlocked.

3Desktop

aLower the cover onto the computer (aligning the front of the

cover with the inner front edge of the computer frame), and

firmly slide it forwards into position.

bIf required, lock the cover using the key.

cReplace the front panel by first inserting the two lower hinges

then pivoting it upwards into place. The two tabs will click into

place.

dClose the central latch on top of the front panel.

Minitower

aEnsure that the two latches on the sides of the cover are up, and

that the lock is unlocked.

bSlide the cover onto the computer, making sure that the two

guides at the bottom of the case slide into the rails at the base of

the computer. Firmly slide the cover backwards into position.

cLower the two latches on the sides of the cover.

dIf required, lock the cover using the key.

4Reconnect all cables and power cords.

en-tif.fb4 Page 4 Monday, June 7, 1999 2:35 PM

English 5

HP Vectra VL 8 Replacing Hardware Components

Replacing the Airflow Guide (Minitower Only)

1Remove the computer’s cover (described in this chapter).

2Before removing the airflow guide, disconnect the cable from the

backplane.

3Lift the front of the airflow guide and slide it out of the PC.

4First insert the rear of the new airflow guide to engage the hinges,

then lower it into place.

5Reconnect the airflow guide cable to the backplane.

6Replace the cover (described in this chapter).

Step 2

Step 3

en-tif.fb4 Page 5 Monday, June 7, 1999 2:35 PM

HP Vectra VL 8 Replacing Hardware Components

Replacing the Power Supply

6English

Replacing the Power Supply

WARNING To avoid electric shock, do not open the power supply. There are no user-

serviceable parts inside.

1Remove the computer’s cover (described in this chapter).

2Remove all internal power supply connectors.

In the Desktop

1Lift the front of the power supply to free the two side catches then

slide it horizontally out and remove it.

Hard drive(s) DVD/CD-ROM

drive(s)

Floppy drive Main power

(located on backplane near

power supply)

Hard drives

en-tif.fb4 Page 6 Monday, June 7, 1999 2:35 PM

English 7

HP Vectra VL 8 Replacing Hardware Components

Replacing the Power Supply

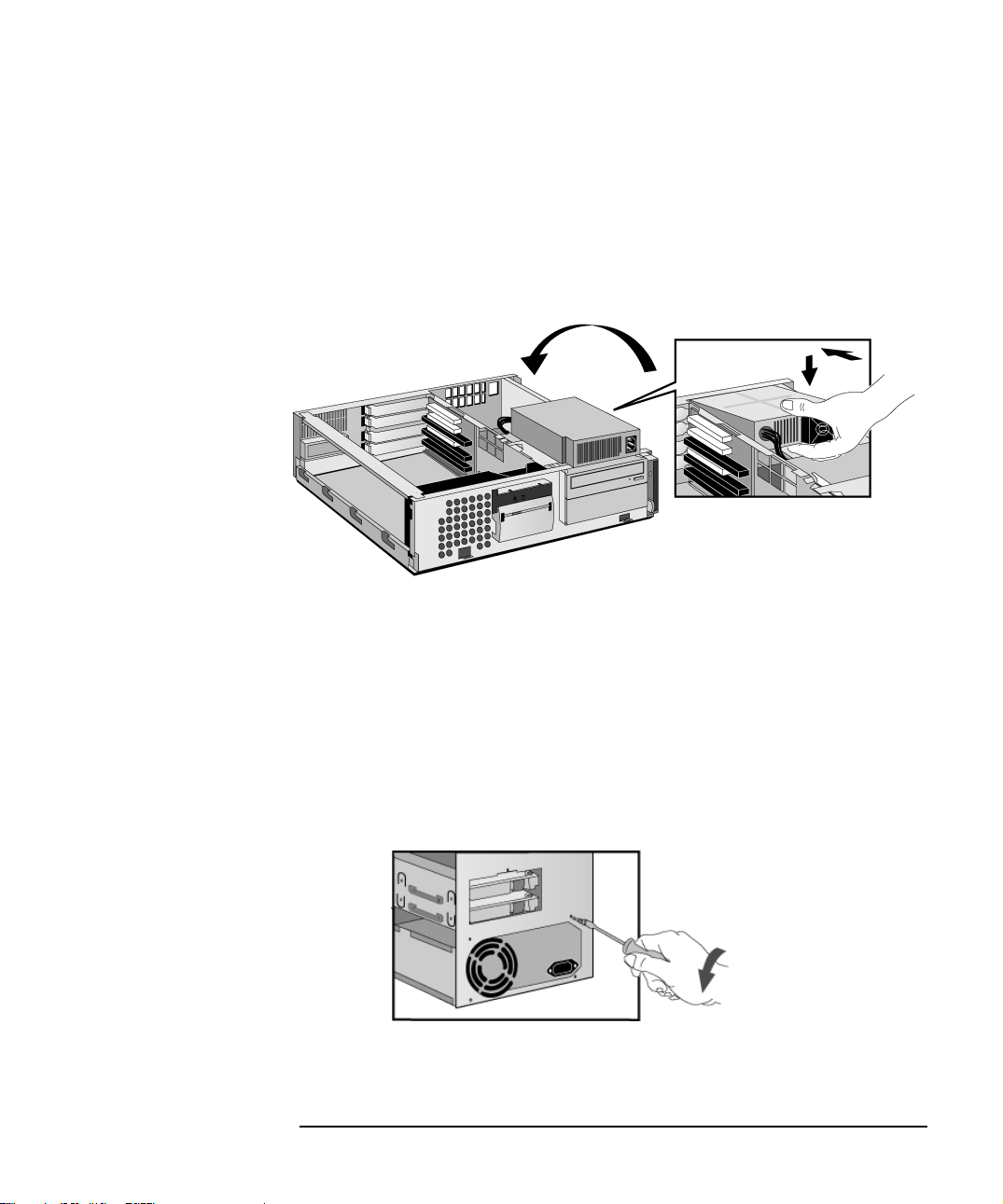

2Insert the new power supply by lowering the front of the power

supply (the fan end) into the PC, and sliding it backwards into

position. Ensure that the hinge on the back of the power supply

engages the notch on the chassis. Then lower the front of the power

supply so that the catch on either side slides into place.

3Reconnect all internal power supply connectors.

4Replace the cover (described in this chapter).

5Select the correct voltage setting for your country, if required.

In the Minitower

1Remove the four screws securing the power supply.

en-tif.fb4 Page 7 Monday, June 7, 1999 2:35 PM

HP Vectra VL 8 Replacing Hardware Components

Replacing the Power Supply

8English

2Slide the old power supply forwards and rotate it out of the PC.

3Insert the new power supply into the PC and ensure it is correctly

positioned.

4Fasten the four screws on the rear of the PC to secure the power

supply in place.

5Reconnect all internal power supply connectors.

6Replace the cover (described in this chapter).

7Select the correct voltage setting for your country, if required.

en-tif.fb4 Page 8 Monday, June 7, 1999 2:35 PM

English 9

HP Vectra VL 8 Replacing Hardware Components

Replacing a Memory Module

1Remove the PC’s cover (described in this chapter).

2If you have a minitower, lay it on its side.

3Open the two tabs and remove the old memory module (if required).

4Line up the two side notches correctly and insert the new memory

module. (You can use either slot.)

5Replace the cover (described in this chapter).

en-tif.fb4 Page 9 Monday, June 7, 1999 2:35 PM

HP Vectra VL 8 Replacing Hardware Components

Replacing an Accessory Board

10 English

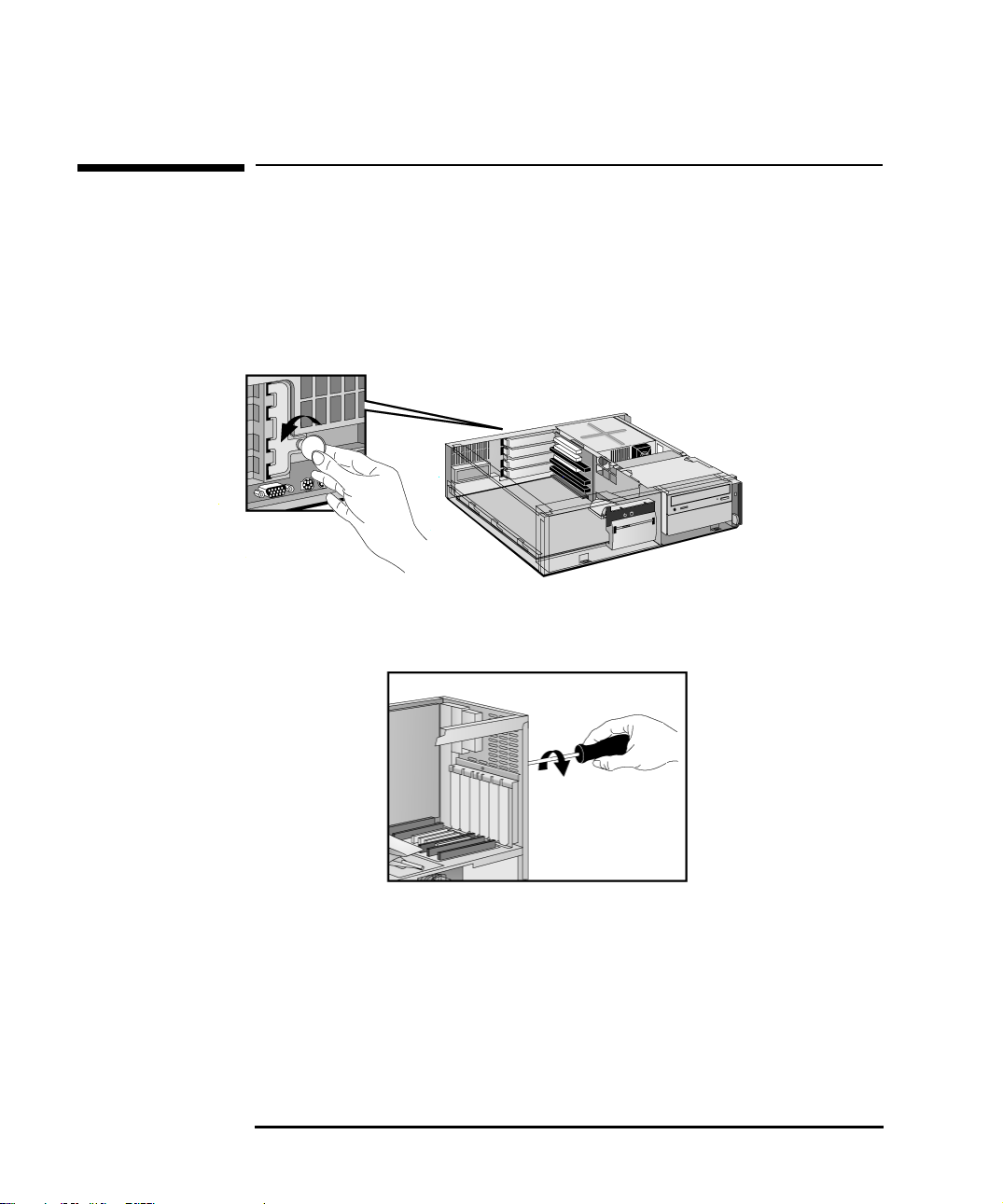

Replacing an Accessory Board

1Remove the computer’s cover (described in this chapter).

2Remove the airflow guide if necessary.

3Remove the retaining bracket.

Desktop

Minitower

en-tif.fb4 Page 10 Monday, June 7, 1999 2:35 PM
