Familiarization Guide

HP Vectra XW

HP Vectra XW PC Workstation Family

This guide is for experienced technicians who have already

completed the HP Vectra computer family training course.

In particular, it assumes that the reader is already familiar

with the HP Vectra XU 6/xxx PC, upon which the

HP Vectra XW PC Workstations are based.

This document serves as a self-paced training guide,

designed to train you for repair of the computer, and only

contains repair-specific information. For information on the

installation of accessories, see the User’s Guide and the

online documents that are supplied with the computer.

1book.bk : 1bookf.fb4 Page 1 Friday, May 2, 1997 4:50 PM

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental

or consequential damages in connection with the furnishing, performance, or use

of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written consent

of Hewlett-Packard Company.

Centronics® is a registered trademark of Centronics Data Computer

Corporation.

Microsoft®, Windows® and MS-DOS® are registered trademarks of the

Microsoft Corporation.

Novell® and Netware® are registered trademarks of Novell Inc.

PentiumTM is a trademark of Intel Corporation.

SoundBlasterTM is a trademark of Creative Technology Limited.

Hewlett-Packard France

Performance Desktop Computing Operation

38053 Grenoble Cedex 9

France

1997 Hewlett-Packard Company

1book.bk : 1bookf.fb4 Page 2 Friday, May 2, 1997 4:50 PM

New Features and Overview

The HP Vectra XW PC Workstations are based upon the HP Vectra XU 6/

xxx PC. The main new features are:

Family Overview

3D Graphics

Controller Board

all models HP Integrated OpenGL Interface Board installed in a PCI

accessory slot. This can be an AccelGraphics AccelPro or

AccelEclipse, depending on model (see the table below).

16 ✕CD-ROM Drive some models See the table below.

Windows NT 4.0 WS

Operating System

preloaded on

some models

See the table below.

CPL

Graphics Controller

Board installed in a PCI

Accessory Slot

Version of the

Windows NT

Operating System

CD-ROM

Drive

HP Vectra XW 10/96 AccelPro 3.51 WS on CD-ROM 8 ✕IDE

HP Vectra XW Series U1 5/97 AccelPro 4.0 WS preloaded 16 ✕IDE

HP Vectra XW Series W1 5/97 AccelEclipse 4.0 WS preloaded 16 ✕IDE

1book.bk : 1ch01.fb4 Page 1 Friday, May 2, 1997 4:50 PM

External Features

System Board Connectors and Switches

The same system board is used on each member of the HP Vectra XW PC

Workstation family as was used on the HP Vectra XU 6/xxx PC.

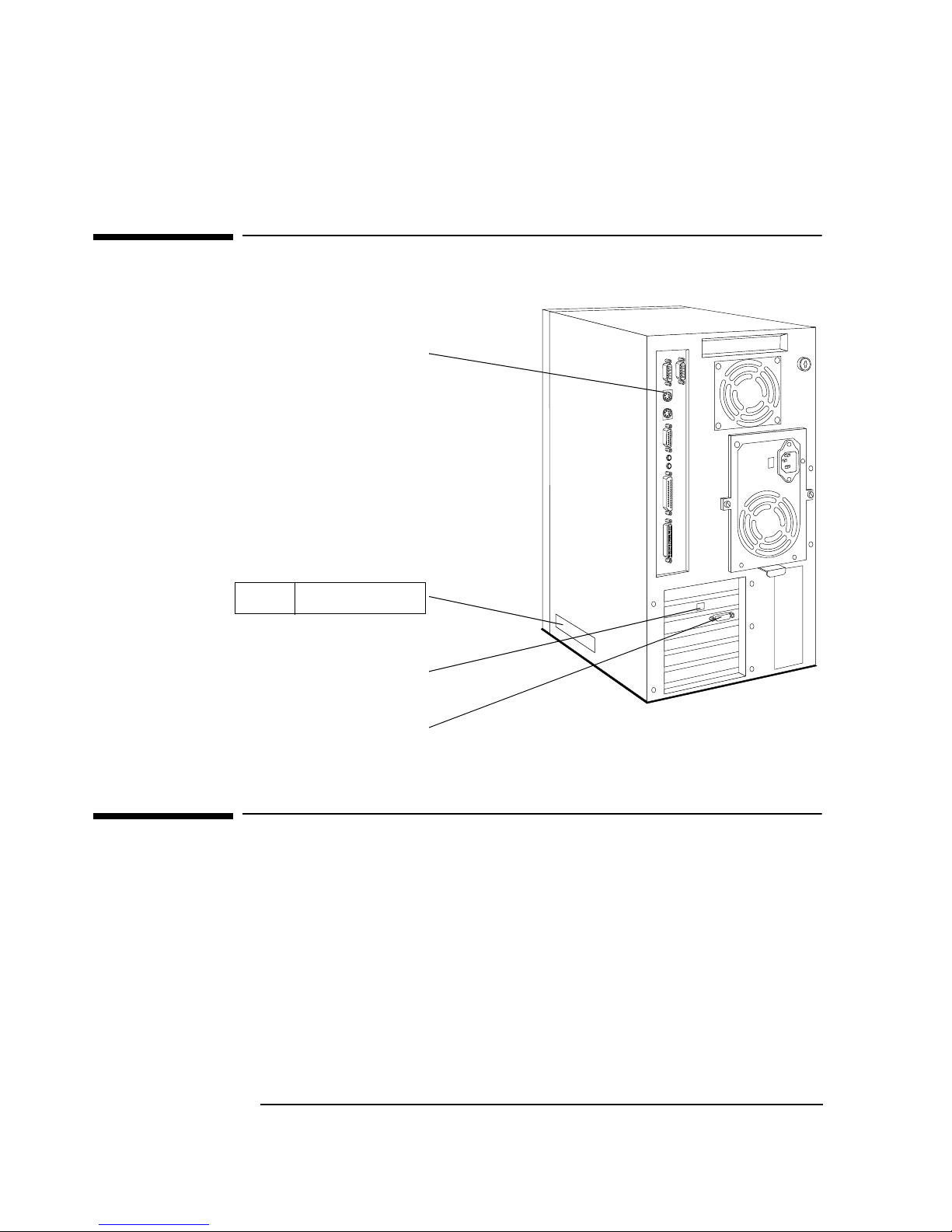

Connector for the 3-button mouse

HP PCI Integrated 10/100 BT

Interface RJ-45 connector

Display connector on AccelGraph-

ics 3D graphics board

Wty: WBK@

Sup: SAB@

Model XW 6/2x200 Series W1

Prod: D5210N #ABA

S/N: FR63412345

The top line, on the label on the

right hand side panel, gives the

number of processors installed,

the processor speed and the

series number.

1book.bk : 1ch01.fb4 Page 2 Friday, May 2, 1997 4:50 PM

HP Integrated OpenGL Interface Board

OpenGL is a graphics language for describing three-dimensional objects.

The HP Integrated OpenGL Interface board has a processor that executes

OpenGL 3D graphics instructions autonomously of the main processor.

• The graphics controllers cannot be upgraded or reconfigured by the user,

or by HP personnel.

• Changes to the configuration are not supported. Make sure that the

jumpers and daughter board are configured as set by the manufacturer.





BIOS

...

......

...

... ...

...

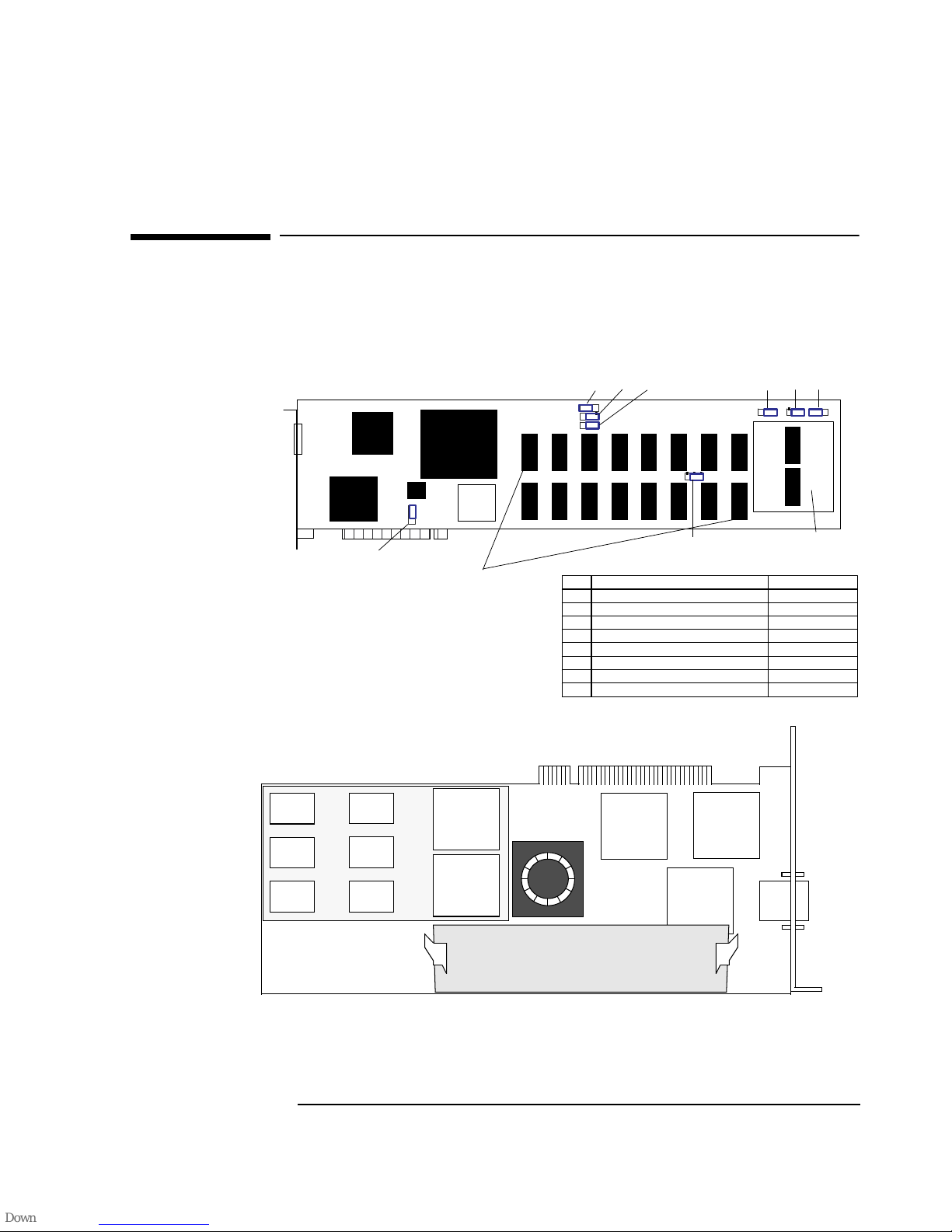

H3 H5 H1

H0 H4 H6

Function Default Setting

H0 EPROM Address 1-2

H1 Local Buffer Visible Region 1-2

H2 Frame Buffer Visible Region 2-3 (8 MB)

H3 Local Buffer Width 2-3 (8 MB)

H4 Local Buffer Width 2-3 (8 MB)

H5 Local Buffer visible Region 2-3

H6 Local Buffer visible Region 2-3

H7 on-board VGA enable/disable 1-2 (enable)

3DLabs

Glint 500 TX

Avance Logic

VGA

3DLabs

Delta

RAMDAC

All jumper settings

are factory-set to the

default setting, and must

NOT be changed.

VRAM -frame buffer- memory

chips on front and back

make total of 8MB

DRAM -local buffer- memory

chips on and under daughter boar

make total of 8MB

* Neither the frame buffer nor the local buffer can be upgraded

AccelPRO

installed on the

HP Vectra XW 6/xxx

and

HP Vectra XW 6/xxx

Series U1

AccelEclipse

installed on the

HP Vectra XW 6/xxx

Series W1

Daughter board

Cooling fan

PCI bus connector

Display connector

1book.bk : 1ch01.fb4 Page 3 Friday, May 2, 1997 4:50 PM

OpenGL Drivers

Every operating system and applications program needs specific drivers.

Without these, the HP Integrated OpenGL Interface Board operates only in

standard VGA mode, and hardware 3D acceleration will not be usable.

Online Help and Online

Diagnostics

Online help for installing and configuring the drivers is found by running

\opengl\doc\hpopengl.hp on the HP Vectra XW/XU Drivers and

Documentation CD-ROM, or from the hard disk on models in which the

operating system is preloaded.

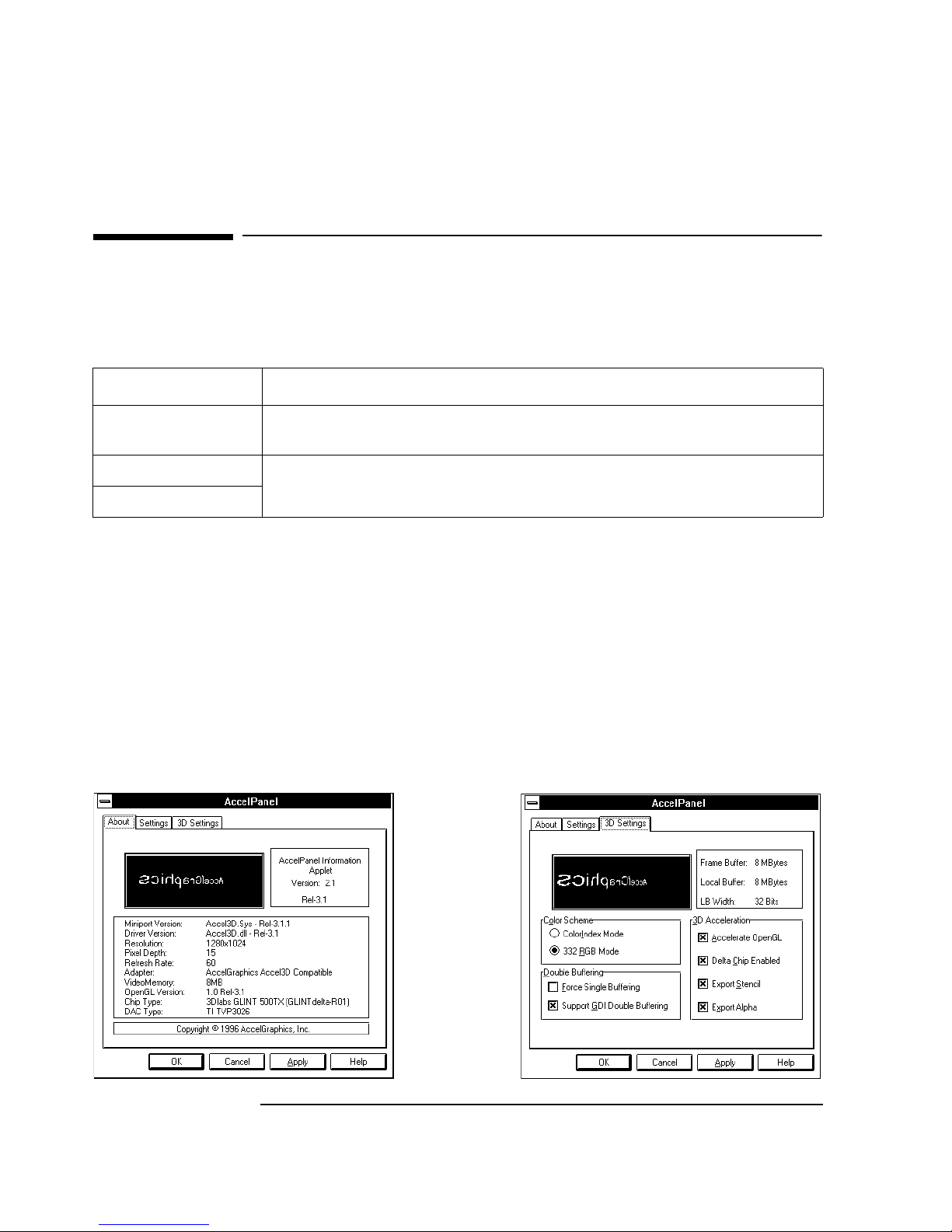

There is no specific diagnostic tool. However, for the HP Vectra XW 6/xxx

and HP Vectra XW 6/xxx Series U1, the configuration can be checked on

the AccelPanel. This is recommended as the first step in any trouble-

shooting. This panel is normally placed in the AccelGraphics Group, though

the user may have chosen to install it somewhere else.

Platform Operating System and Drivers

HP Vectra XW 6/xxx The OpenGL interface drivers for Windows NT 3.51 must be installed, from the HP Vectra XW/XU Drivers and

Documentation CD-ROM, when the operating system is installed.

HP Vectra XW 6/xxx Series U1 The Windows NT 4.0 WS operating system is preloaded, and the OpenGL drivers are preloaded with it.

HP Vectra XW 6/xxx Series W1

1book.bk : 1ch01.fb4 Page 4 Friday, May 2, 1997 4:50 PM

OpenGL Drivers

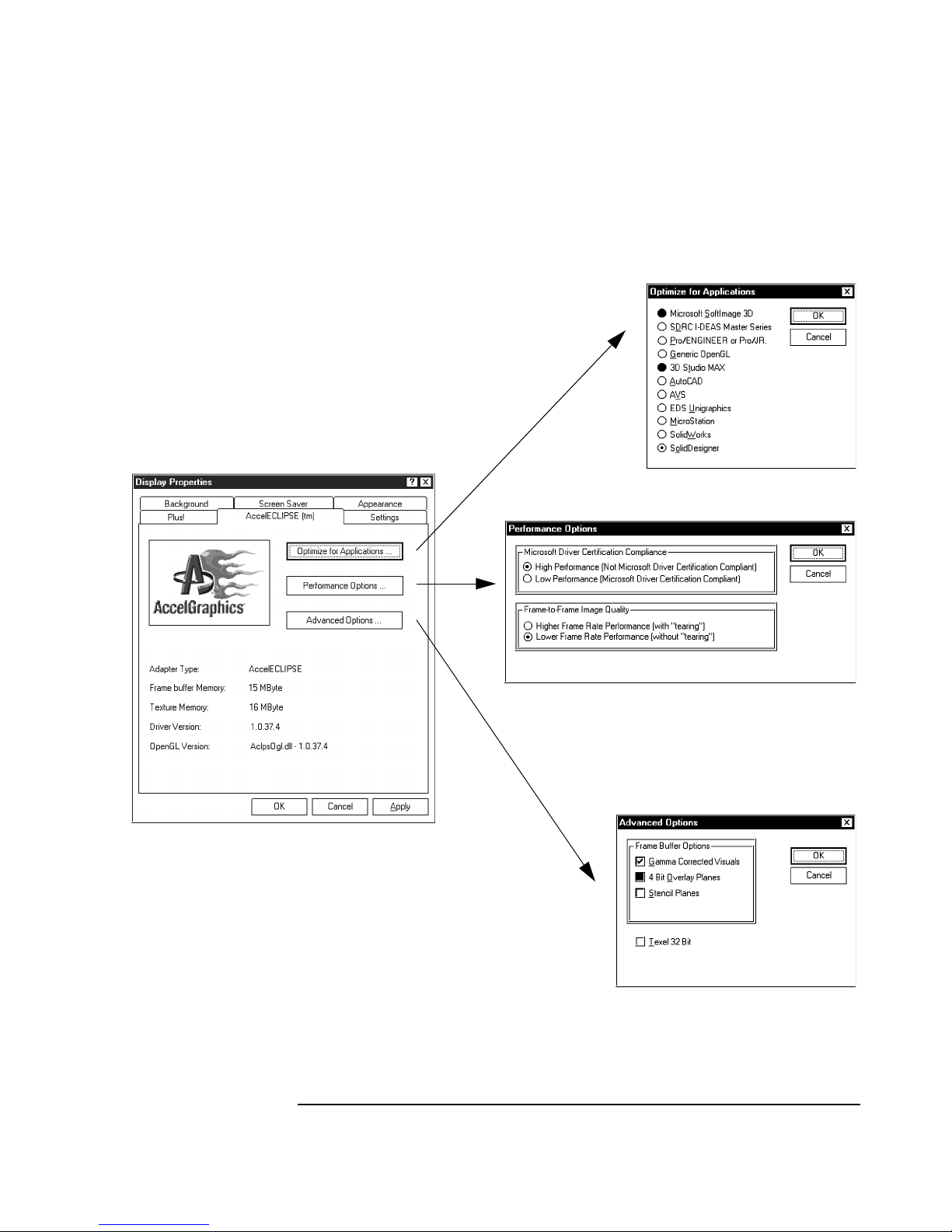

For the HP Vectra XW Series W1, the configuration can be checked on the

NT display properties menu.

1book.bk : 1ch01.fb4 Page 5 Friday, May 2, 1997 4:50 PM

Installing Dual Processors

• When installing a second processor, in models that are supplied with a

single processor, make sure that it is of the same type as the first.

• The processors are bound to be of the same speed since HP only offers

200 MHz Pentium Pro processors for use in these models.

• HP does not support models in which the user has installed non-HP

processor kits.

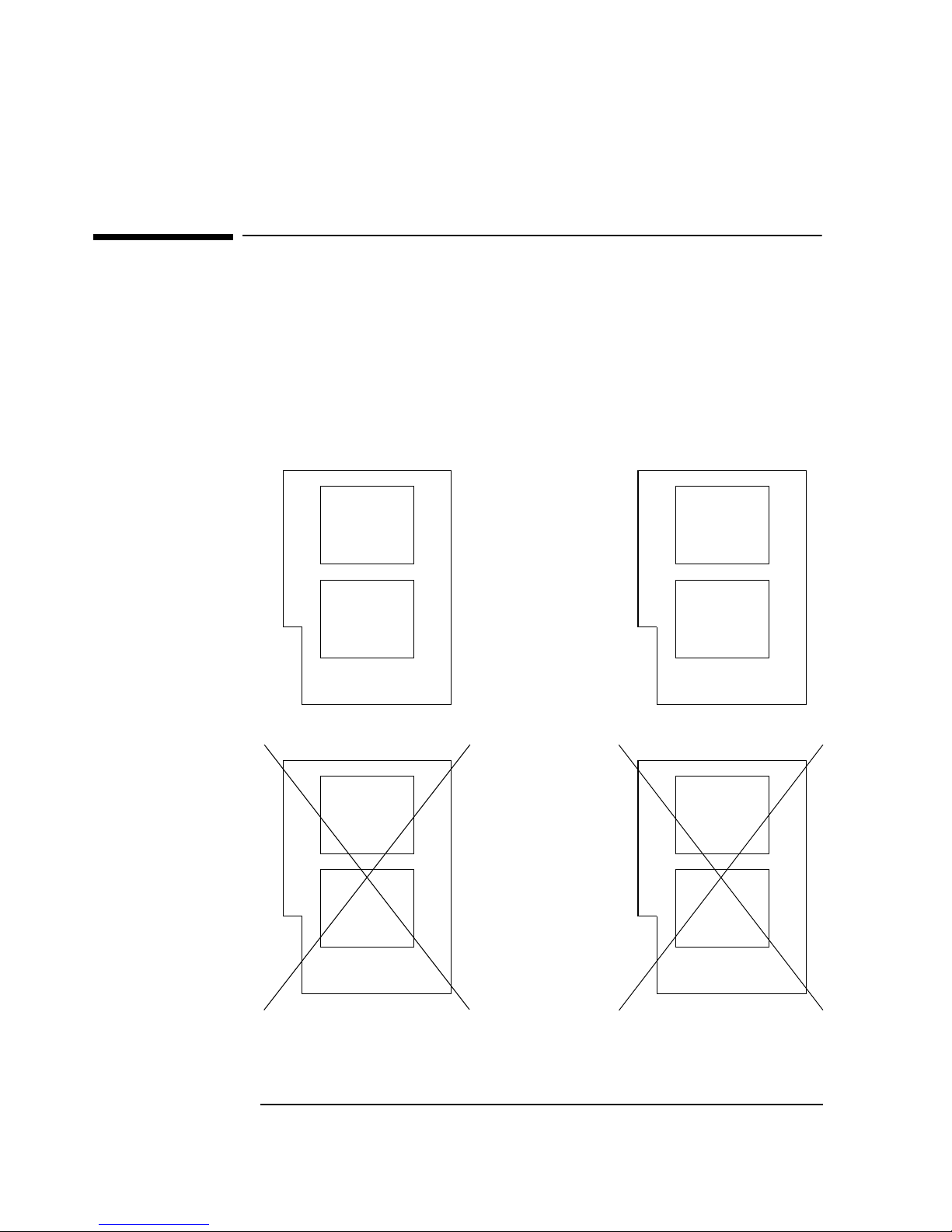

These configurations are

correct. A second processor

has been fitted, of the same

speed and cache memory

capacity as the first.

Pentium Pro

200 MHz

256 KB L2 cache

Pentium Pro

200 MHz

512 KB L2 cache

Pentium Pro

200 MHz

256 KB L2 cache

Pentium Pro

200 MHz

512 KB L2 cache

These configurations are

wrong. A second processor

has been fitted, with a

different cache memory

capacity than the first.

These configurations will

work, but the performance

gain is not optimal.

Pentium Pro

200 MHz

256 KB L2 cache

Pentium Pro

200 MHz

512 KB L2 cache

Pentium Pro

200 MHz

512 KB L2 cache

Pentium Pro

200 MHz

256 KB L2 cache

1book.bk : 1ch01.fb4 Page 6 Friday, May 2, 1997 4:50 PM

Installing Main Memory Modules

• The four memory banks (A, B, C, D) may be filled in any order (with the

exception that Bank A must always be filled).

• Memory can be upgraded in increments of 32 MB, 64 MB or 128 MB (by

installing pairs of 16 MB, 32 MB or 64 MB modules).

• Always install a pair of identical modules.

• HP does not support models in which the user has installed non-HP

memory modules.

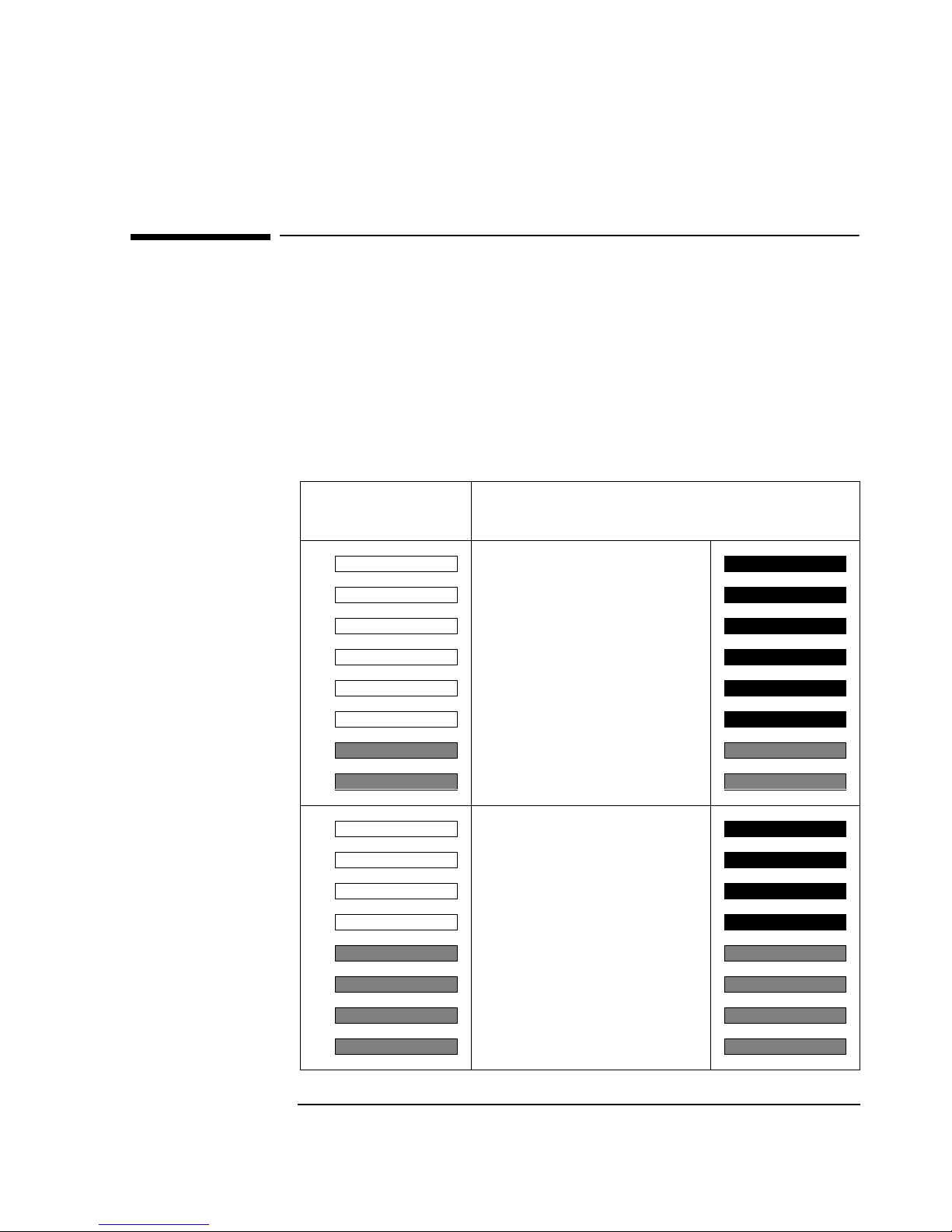

Initial Configuration Example Upgrade Paths

Models that are supplied with 64 MB of

main memory have a pair of 32 MB, 60 ns,

fast page mode (FPM), 72-bit, error

correcting code (ECC) memory modules.

This can be extended to 448 MB by installing

a further three pairs of 64 MB memory

modules.

This can be further extended to 512 MB by

removing the original pair of modules, and

replacing the with a pair of 64 MB modules.

Models that are supplied with 128 MB of

main memory have two pairs of 32 MB,

60 ns, fast page mode (FPM), 72-bit, error

correcting code (ECC) memory modules.

This can be extended to 384 MB by installing

a further two pairs of 64 MB memory

modules.

This can be further extended to 512 MB by

removing the original pairs of modules, and

replacing the with two pairs of 64 MB

modules.

1book.bk : 1ch01.fb4 Page 7 Friday, May 2, 1997 4:50 PM

Installing Main Memory Modules

Banks may be filled in any order.

Any banks which are occupied must always

be filled with a pair of modules of

identical capacity, type and speed.

Different banks can be occupied by different

capacities of modules, such as a pair of

64 MB modules, a pair of 16 MB modules,

an empty bank, and a bank of 32 MB

modules.

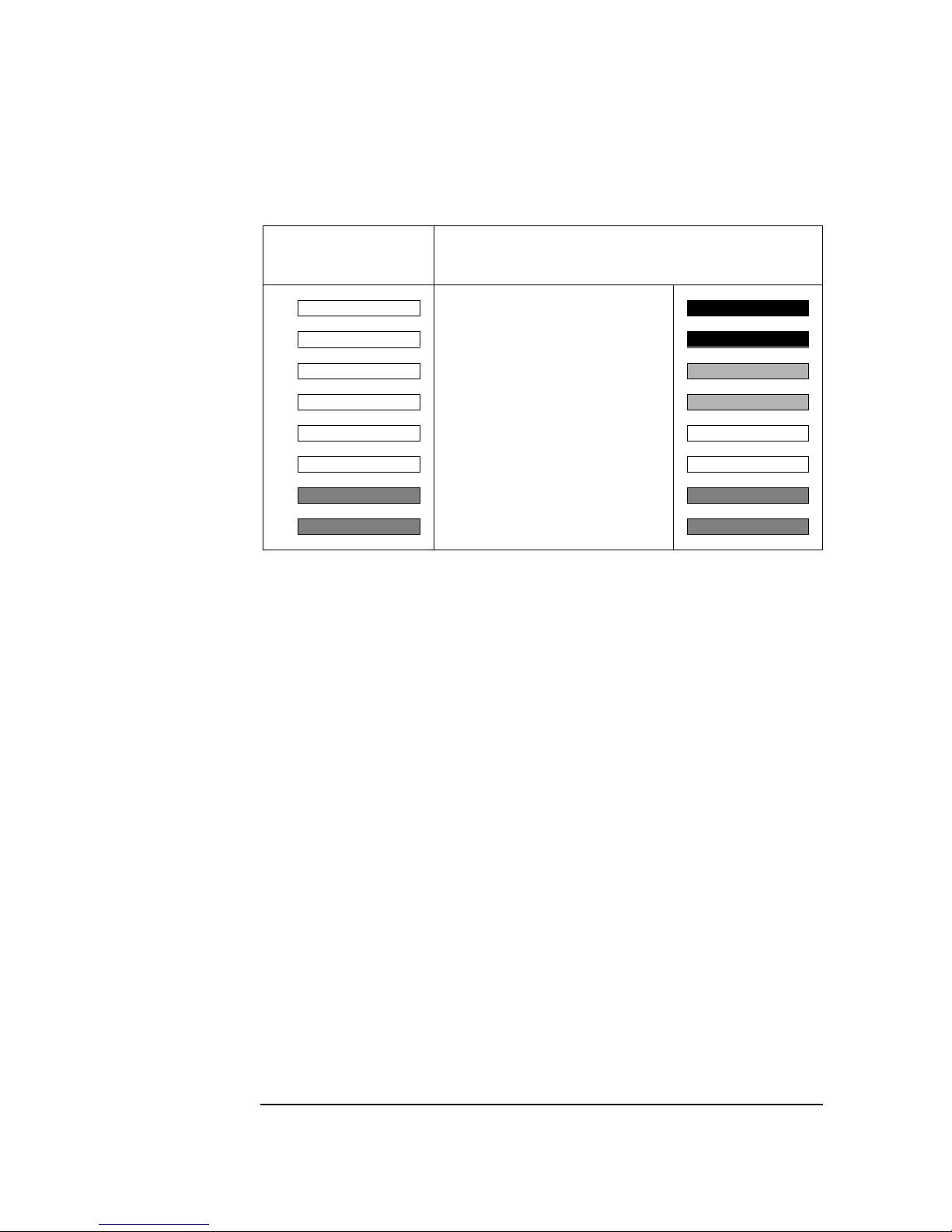

Initial Configuration Example Upgrade Paths

1book.bk : 1ch01.fb4 Page 8 Friday, May 2, 1997 4:50 PM

Altri manuali per VECTRA XW

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP Model 712/100 - Workstation Manuale del prodotto

HP s3020n - Pavilion - Slimline Manuale d'uso e manutenzione

HP Pavilion w5100 Manuale utente

HP Pavilion t600 - Desktop PC Manuale utente

HP dc7700 - Convertible Minitower PC Manuale tecnico

HP ProDesk 680 G4 PCI Microtower Business Istruzioni per l'installazione

HP TouchSmart 9300 Manuale operativo e di manutenzione

HP Invent XW6200 Manuale utente

HP ENVY Istruzioni per l'installazione

HP TouchSmart 420-1100 Manuale utente

HP Workstation x2000 Manuale

HP ProDesk 680 G4 PCI Microtower Business Manuale

HP Vectra VE 5/xxx - 2 Manuale utente

HP Pavilion t200 - Desktop PC Manuale utente

HP Neoware e90 - Thin Client Manuale utente

HP Xw4200 - Workstation - 1 GB RAM Manuale utente

HP TouchSmart 420-1000 Manuale utente

HP s7600n - Pavilion Media Center Manuale utente

HP Workstation xw3100 Manuale per l'uso e la cura

HP Compaq Presario Manuale utente

HP dx5150 Manuale utente

HP Pro 3000 Series Guida all'installazione

HP Pavilion 23-a000 Manuale utente

HP ENVY 23-d000 Manuale utente

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
