Finding Graphics Driver Information in Windows XP

At times, in may be necessary to find information about your system’s graphics

card, such as the driver version, video BIOS version, and the bus interface. This

document explains how to locate this information about your ATI or NVIDIA

graphics card through your system’s Windows XP operating system in a

workstation environment.

Finding information for graphics cards from other vendors is not covered; please

visit the graphics card manufacturer’s website for help finding additional

information.

The illustrations in this document are for reference only and may not necessarily

reflect the graphics card or driver in your system.

The driver information is found differently for ATI and NVIDIA drivers, but the

starting commands are the same.

1. Right-click on the Windows Desktop and select Properties.

2. Click the Settings tab and then click the Advanced button from the

Display Properties window.

OR

1. Click Start > Control Panel.

2. Depending on your Control Panel view,

a. for Category View, click the Appearance and Themes > Display >

Settings (tab) > Advanced (button).

b. for Classic View, click Display > Settings (tab) > Advanced

(button).

If an ATI device is installed, tabs with the red ATI logo are displayed.

If an NVIDIA device is installed, tabs with the green NVIDIA logo are

displayed.

ATI

The window that displays the ATI device properties will have a title such as, “Plug

and Play Monitor and ATI FireGL V5100 Properties.” This title varies according to

the graphics card installed and the number and type of monitors connected.

Example:Device Name: ATI FireGL V5100

1. Click the ATI Options tab to display and set the options for the graphics

device.

2. The Packaging Version identifies the driver version. The first group of

digits 1is the version number, in this case, 8.06.2. The next group 2is

the build date, in this case, 2004/08/19, or August 19, 2004. The final

group 3is an internal identification number.

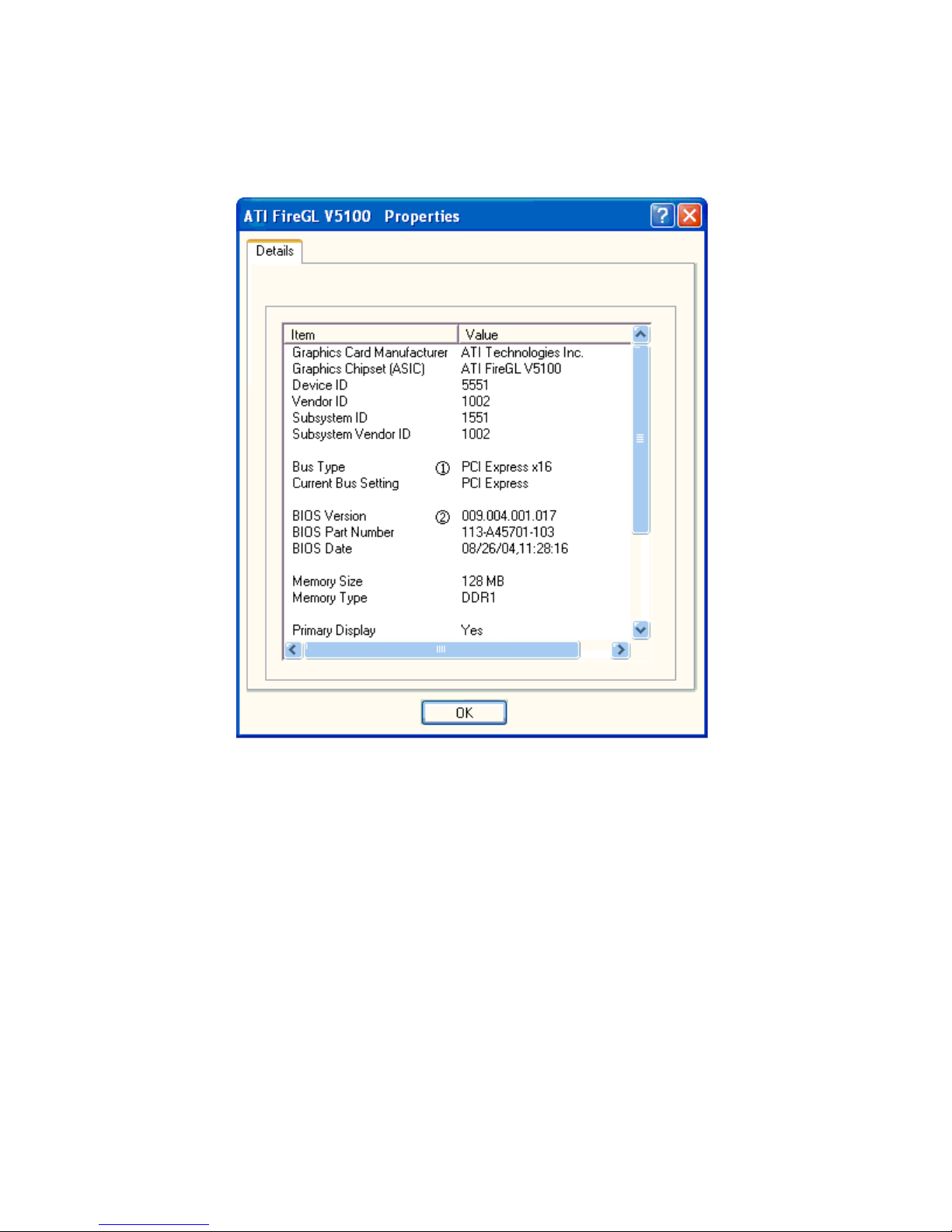

3. From the Options page, click the Details button to view other graphics

hardware and driver information, such as, in this case, Bus Type: PCI

Express x16 1and BIOS Version: 009.004.001.017 2.

NVIDIA

The window that displays the NVIDIA device properties will have a title such as,

“Plug and Play Monitor and NVIDIA Quadro FX 3400 Properties.” This title varies

according to the graphics card installed and the number and type of monitors

connected.

Example:Device Name: NVIDIA Quadro FX 3400

1. Click the Quadro FX 3400 tab (varies by device installed).

2. The Driver version number is the last 4 digits of the file version, in the form

vv.xx, in this case 66.70 1.

3. Other information, like BIOS Version and Bus Type are also displayed, in

this case, BIOS: 5.40.02.17.04 2and Bus: PCI Express x16 3.

For more information, please review your system’s Getting Started Guide and the

Technical Reference Guide. For the latest information and updates, check the

HP Workstations Technical Support http://www.hp.com/support/workstations

website.
