Sliding Rack Mount Kit Installation

HP xw6200 Workstation

This document describes how to install the sliding rack mount kit on an HP xw6200 Workstation and how

to install the workstation into a rack.

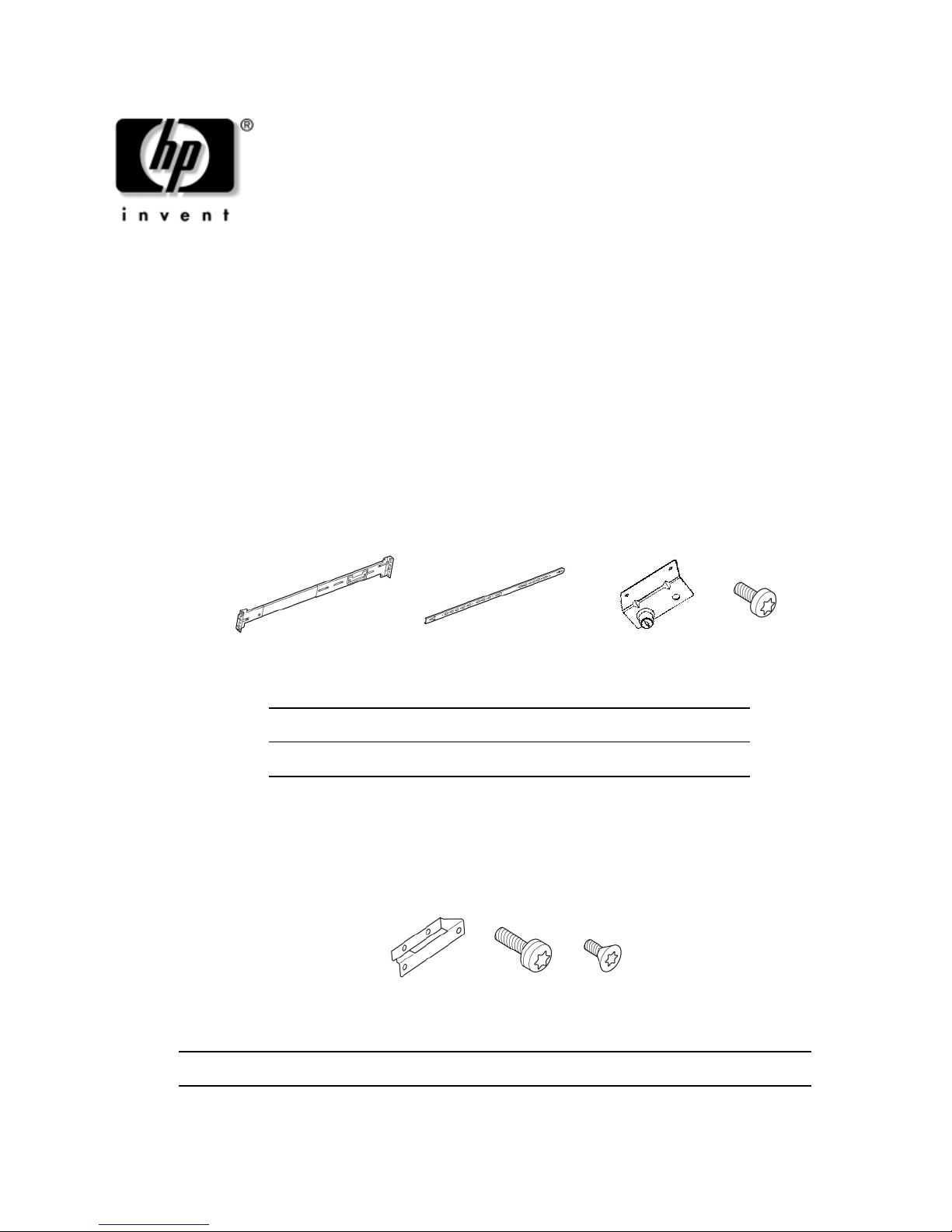

Kit Contents

This product is shipped with the necessary supplies for installing the sliding rack kit on an HP xw6200

Workstation in HP round hole and square hole racks, earlier HP racks, and some third-party racks

including some with threaded holes. The following list describes all of the included parts. Not all parts are

used with every application.

Earlier HP Racks

Parts for installing the sliding rack mount in HP legacy racks are sold separately in adapter kit part number

5064-9677. This adapter includes these parts:

AOuter slide assembly (x2) CFlanges (x2)

BInner slide assembly (x2) DM4 screws (x8)

B.C.

A.D.

AA Front bracket (x2) BB M5x16mm screw (x4) CC M6 flat head screw (x2)

AA.BB.CC.

Sliding Rack Mount Kit Installation

Page 2 of 20

Tools Required

Round Hole and Square Hole Racks

■T-15 Torx driver

■Flat blade driver

Threaded Hole Racks

■T-15 Torx driver

■Flat blade driver

■Cross-tip driver

Earlier HP racks include E3660B, E3661B, E3662B, J1450B, J1487A,B.

■T-15 Torx driver

■T-25 Torx driver

■M10 socket

■Flat blade driver

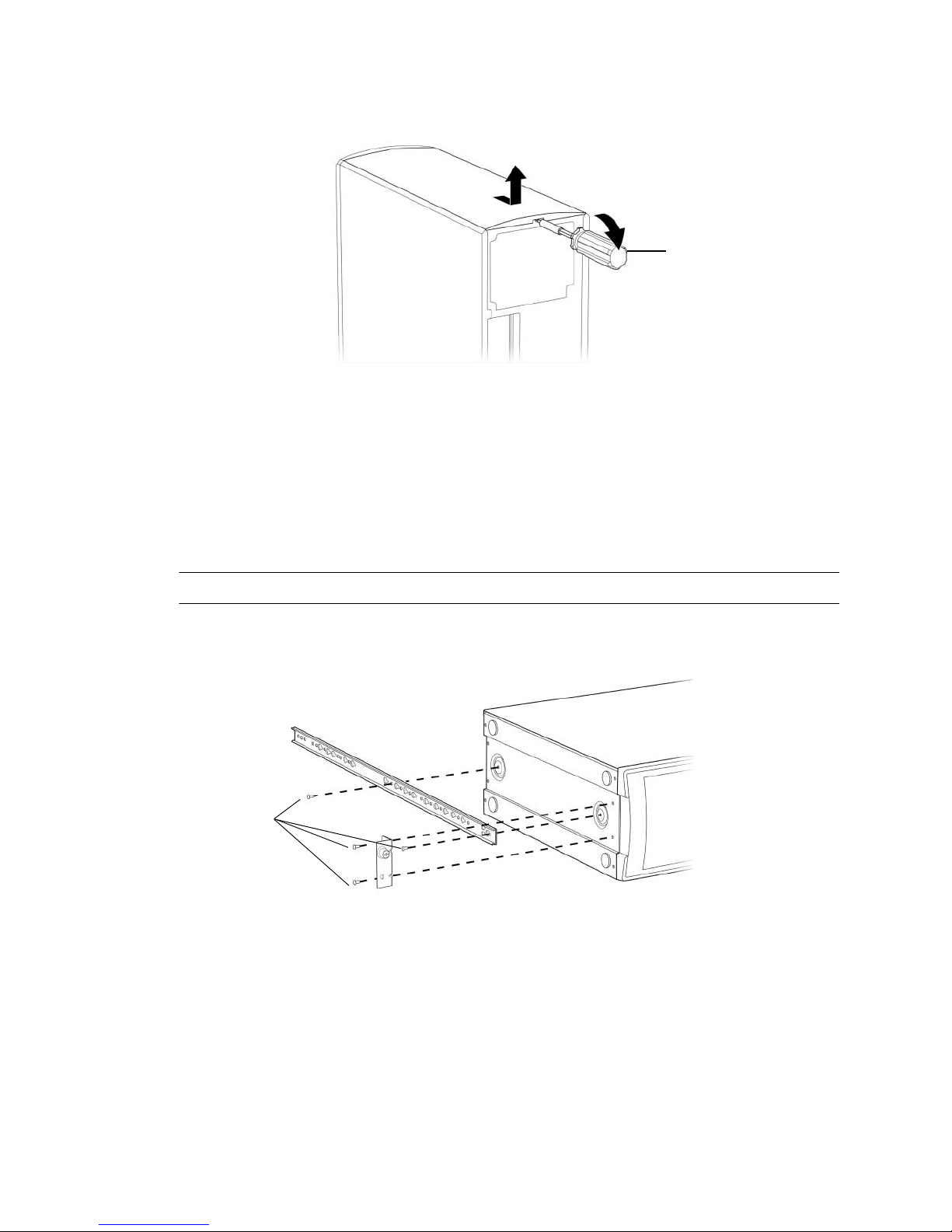

Remove the Top Cover

1. Turn off the system and disconnect the power cable and all other cables from the back of the system.

2. Remove the top cover by pushing a flat screw driver into the slot 1on the rear of the chassis and

gently pry the cover upward while pushing the top cover toward the rear of the workstation and lift it

off.

NOTE: If the top cover is difficult to remove, open the access panel and remove the front bezel. This will

allow you to get a better grip on the top cover and push it toward the rear. Be sure to the replace access

panel and front bezel after removing the top cover. For information on these tasks, refer to the Service and

Technical Reference Guide for your HP Workstation at:

http://www.hp.com/support/workstation_manuals.

For product-specific information, refer to the Service and Technical Reference Guide for your HP

Workstation at http://www.hp.com/support/workstation_manuals.

Sliding Rack Mount Kit Installation

Page 3 of 20

Install the Rails and Flanges

1. Align the left bracket with the screw holes on the left side (bottom) of the chassis 1.

2. Use a Torx driver and two screws to attach the flange 2.

3. Align the inner slide with the two screw holes on the left side (bottom) of the chassis 3.

NOTE: Front inner slide mounting hole is keyhole shaped.

4. Use a Torx driver and two screws to attach the slide 4.

5. Repeat this process for the right side (top) of the chassis.

Sliding Rack Mount Kit Installation

Page 4 of 20

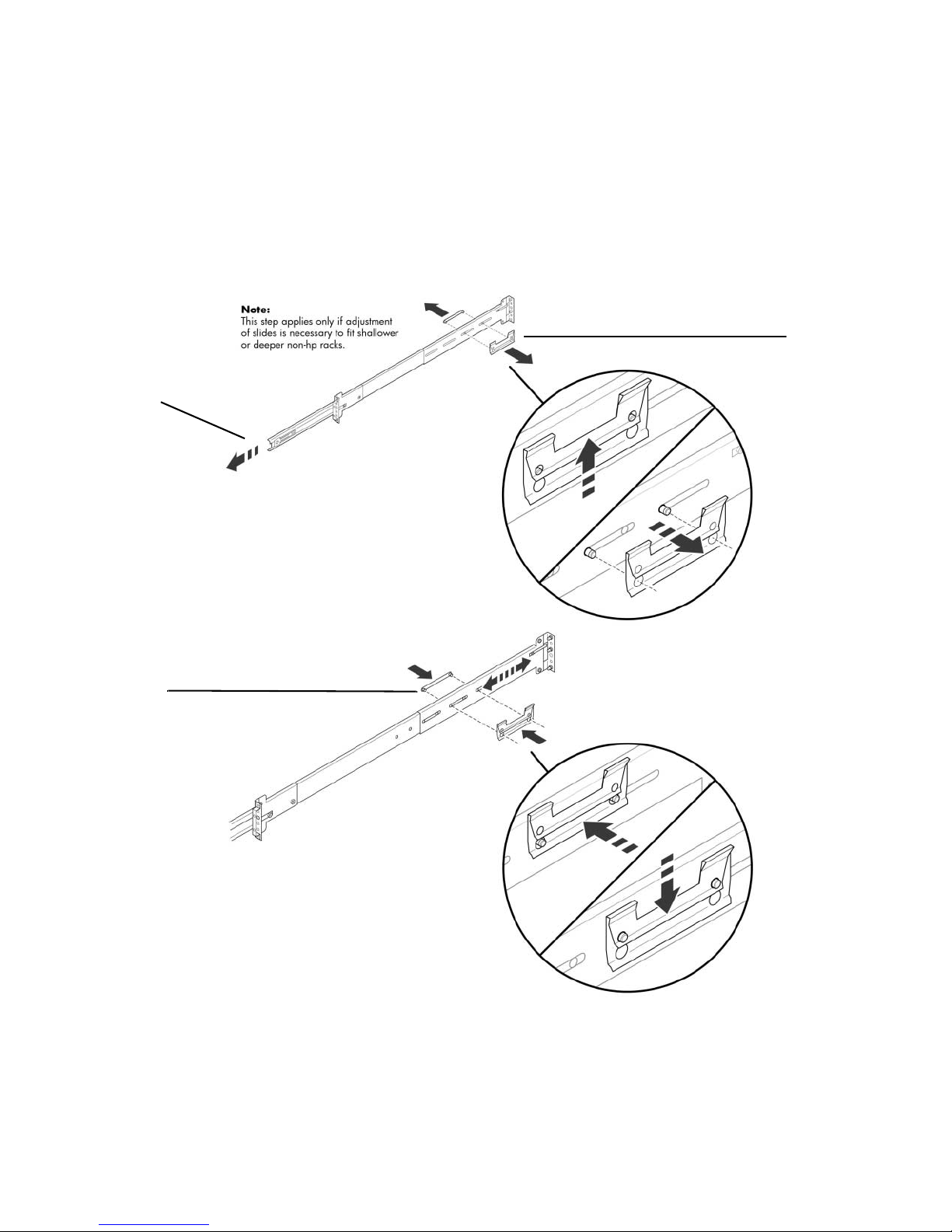

Install the Rails to the Rack

To adjust slides (only necessary to fit shallower or deeper non-HP racks)

1. Remove the slide adjustment attachment 1.

2. Adjust the rail to the desired length 2.

3. Insert the slide adjustment attachment 3.

Sliding Rack Mount Kit Installation

Page 5 of 20

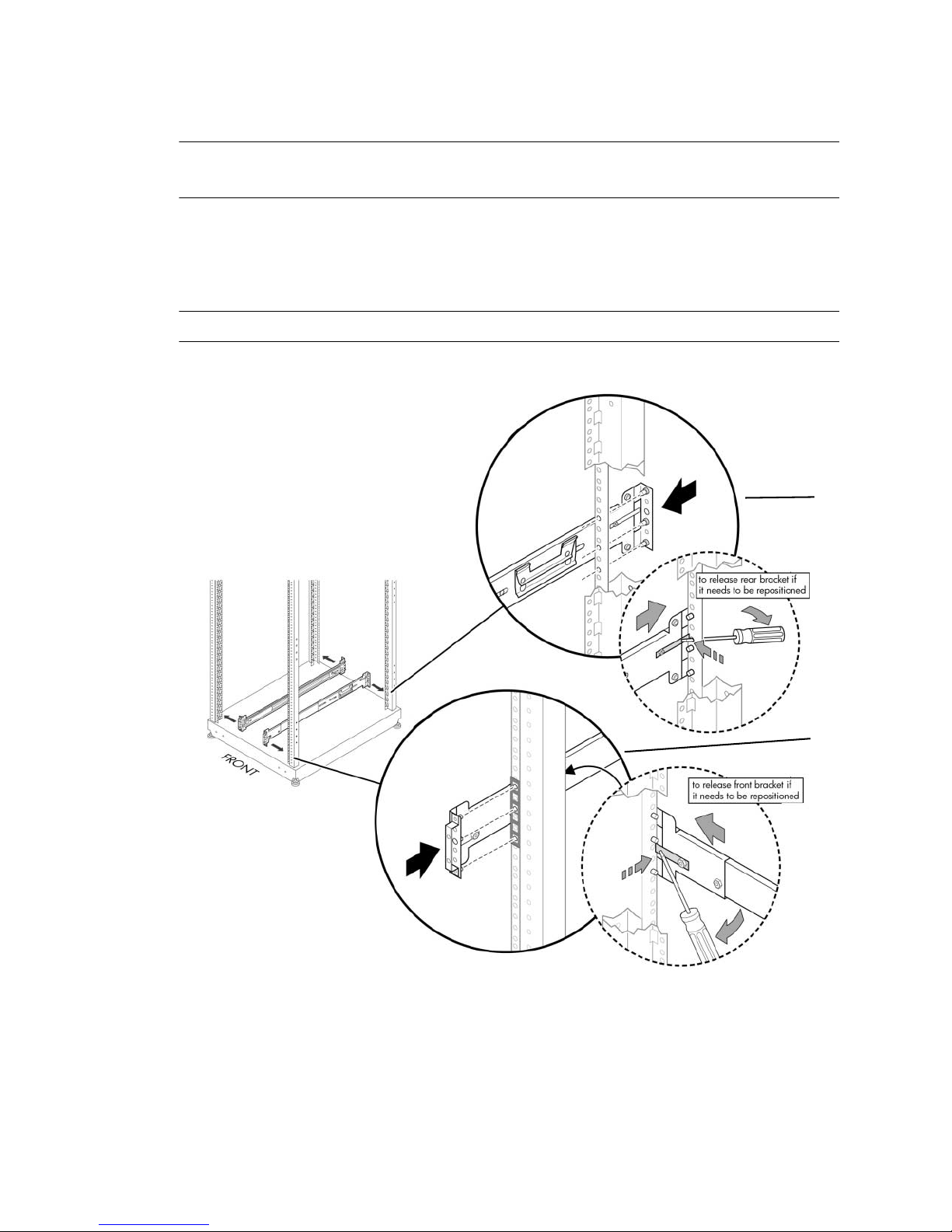

Installing on Round Hole and Square Hole Racks

NOTE: This product must be mounted in the middle of a 4U space. Use the mounting aid at the end of this

document to determine a 4U space and mark the center.

1. Engage the three pins on the rear slide mounting bracket in the holes in the rear rack column; slide

forward to lock in place 1.

2. Engage the three pins on the front slide mounting bracket in the holes in the front rack column; slide

rearward to lock in place 2.

NOTE: Slide telescopes to accomplish this.

Repeat this procedure for the second slide.

Sliding Rack Mount Kit Installation

Page 6 of 20

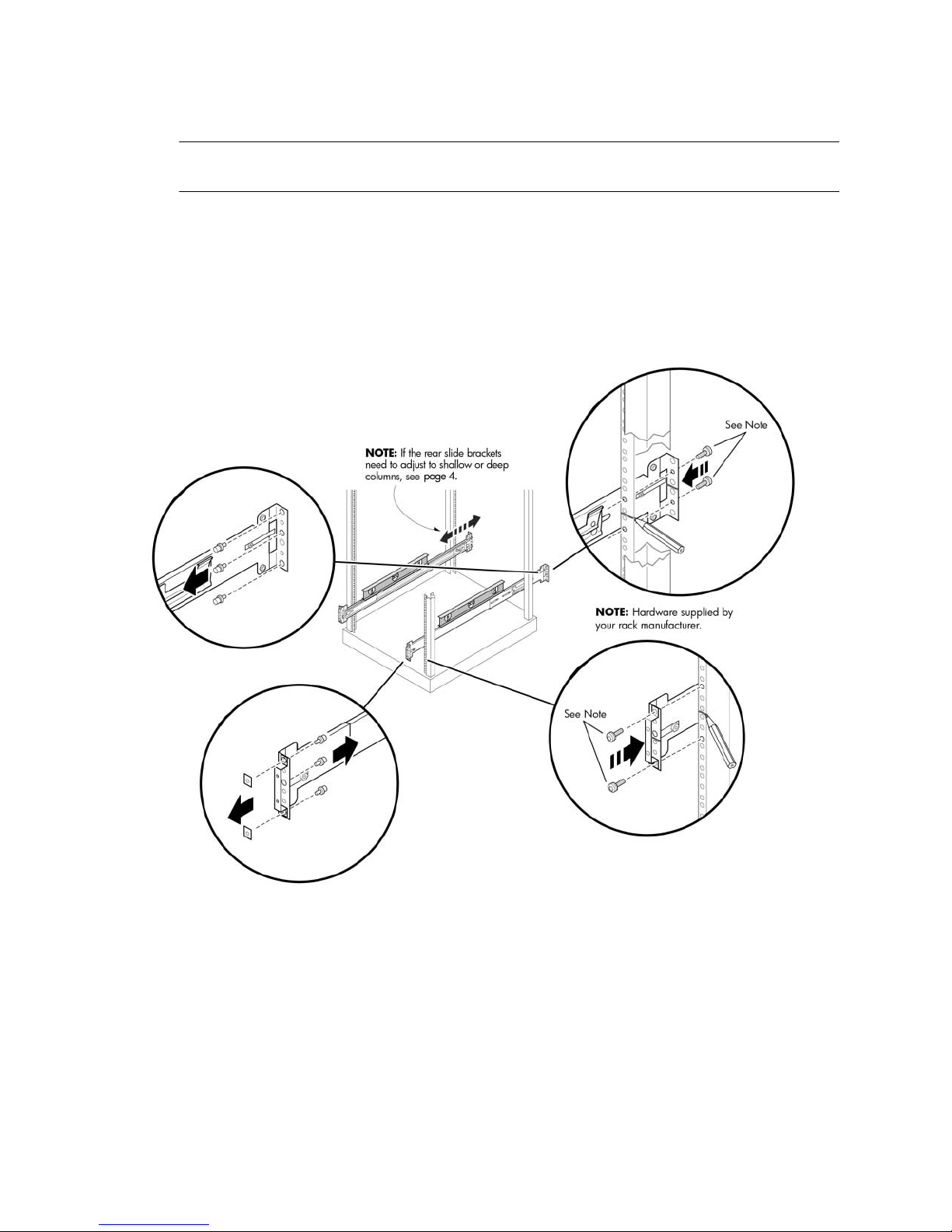

Installing on Threaded Hole Racks

NOTE: This product must be mounted in the middle of a 4U space. Use the mounting aid at the end of this

document to determine a 4U space and mark the center.

1. Remove the three pins from the rear slide mounting bracket using a flat blade screwdriver 1.

2. Remove the three pins and two nuts from the front slide mounting bracket 2.

3. Attach the rear slide mounting bracket to the rear rack column (screws provided by your rack

manufacturer) 3.

4. Attach the front slide mounting bracket to the front rack column (screws provided by your rack

manufacturer) 4.

Sliding Rack Mount Kit Installation

Page 7 of 20

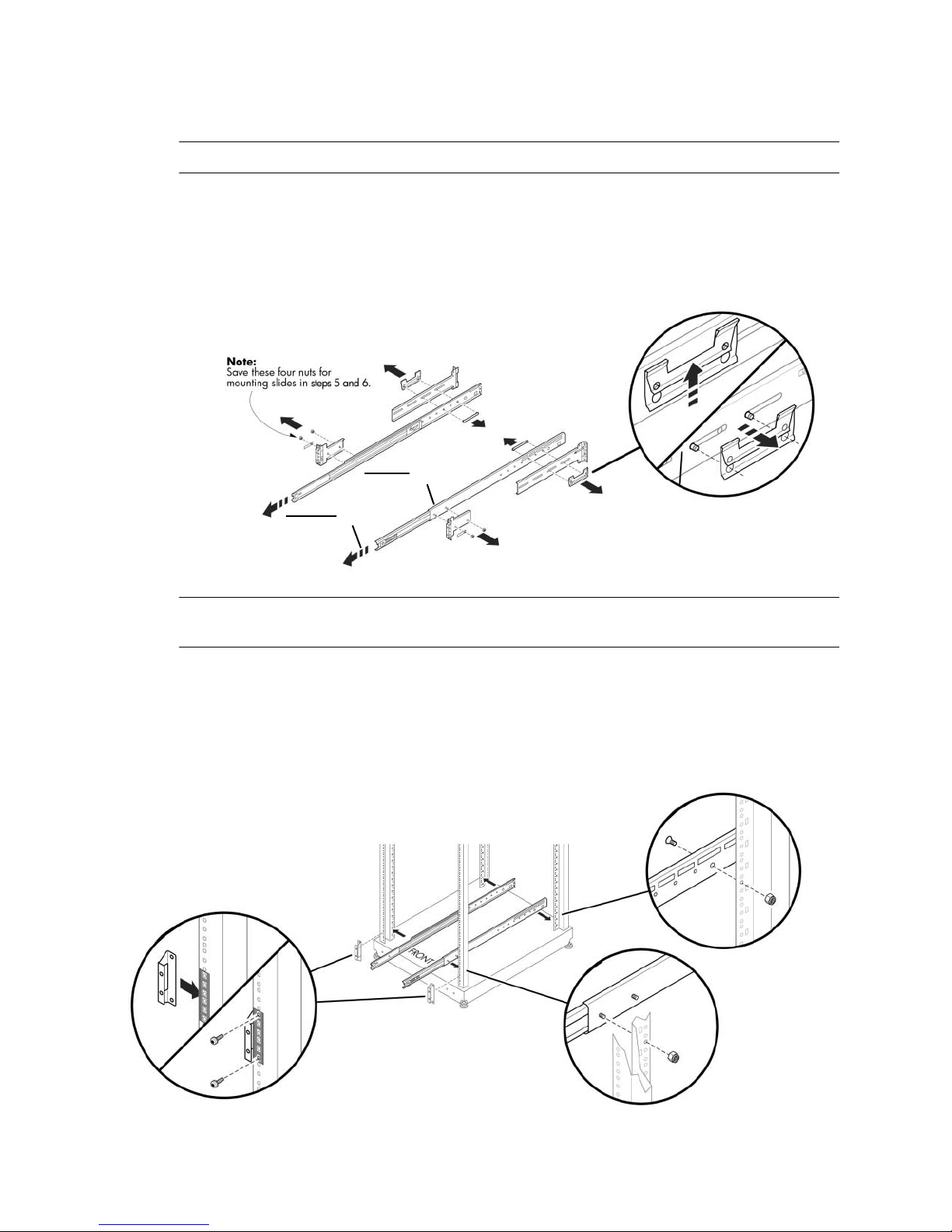

Installing on Earlier HP Racks

NOTE: The parts for this procedure are available separately in adapter kit number 5064-9677.

1. Remove the rear mounting brackets from the outer slides 1.

2. Remove the front mounting brackets from the outer slides 2. Save the nuts for use in steps 5and 6

below.

3. Extend the rails 3.

NOTE: This product must be mounted in the middle of a 4U space. Use the mounting aid at the end of this

document to determine a 4U space and mark the center.

4. Attach the front bracket with the two M5x16 screws 4.

5. Attach the slide to the rear of the rack as shown using an M6 Flathead screw and a nut saved from

step 2 5.

6. Attach the slide to the front of the rack as shown using an M6 Flathead screw and a nut saved from

step 2 6.

Sliding Rack Mount Kit Installation

Page 8 of 20

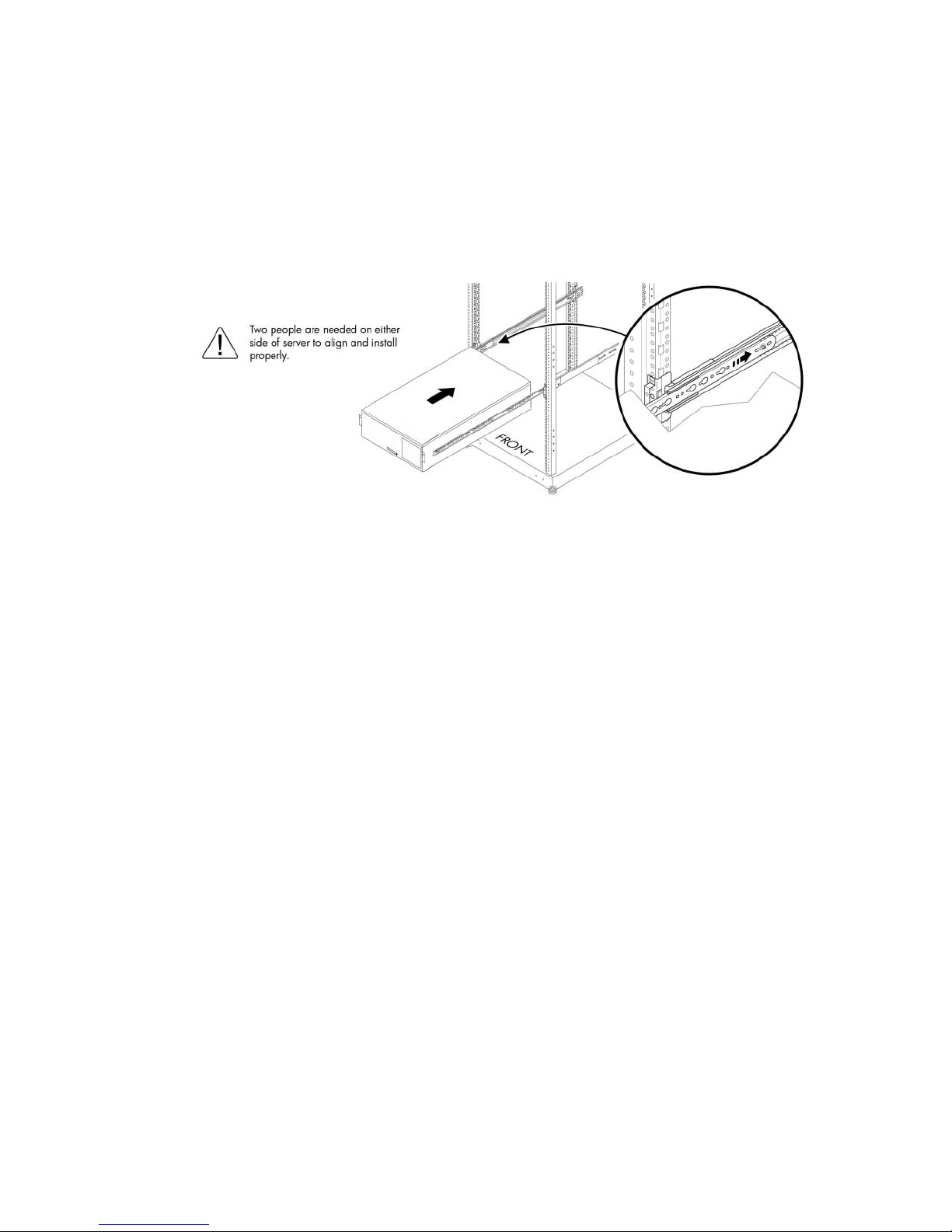

Mount into Rack

1. Insert the inner rails into the outer rails.

2. Push the workstation to slide it all the way into the rack.

3. Secure the workstation in the rack by tightening the thumb screws on the mounting flanges.

Mounting Aid

1. Place the next page on the bottom of the rack (or on top of an already installed unit in a rack).

2. Align the circles with the rack holes to determine a 4U space.

3. The 4U space will be the top of the workstation after it is installed.

4. Mark the center at 2U. This will be the center line of the slides.

Sliding Rack Mount Kit Installation

Page 9 of 20

Sliding Rack Mount Kit Installation

Page 10 of 20
