HP xw9300 Workstation Storage Options

Mini White Paper

Introduction......................................................................................................................................... 2

Key Product Features............................................................................................................................ 2

RAID .................................................................................................................................................. 3

Cabling.............................................................................................................................................. 3

Summary ............................................................................................................................................ 3

Additional Resources............................................................................................................................ 3

Introduction

The HP xw9300 Workstation offers flexible storage options and supports integrated SATA RAID and

integrated U320 SCSI RAID.

Key Product Features

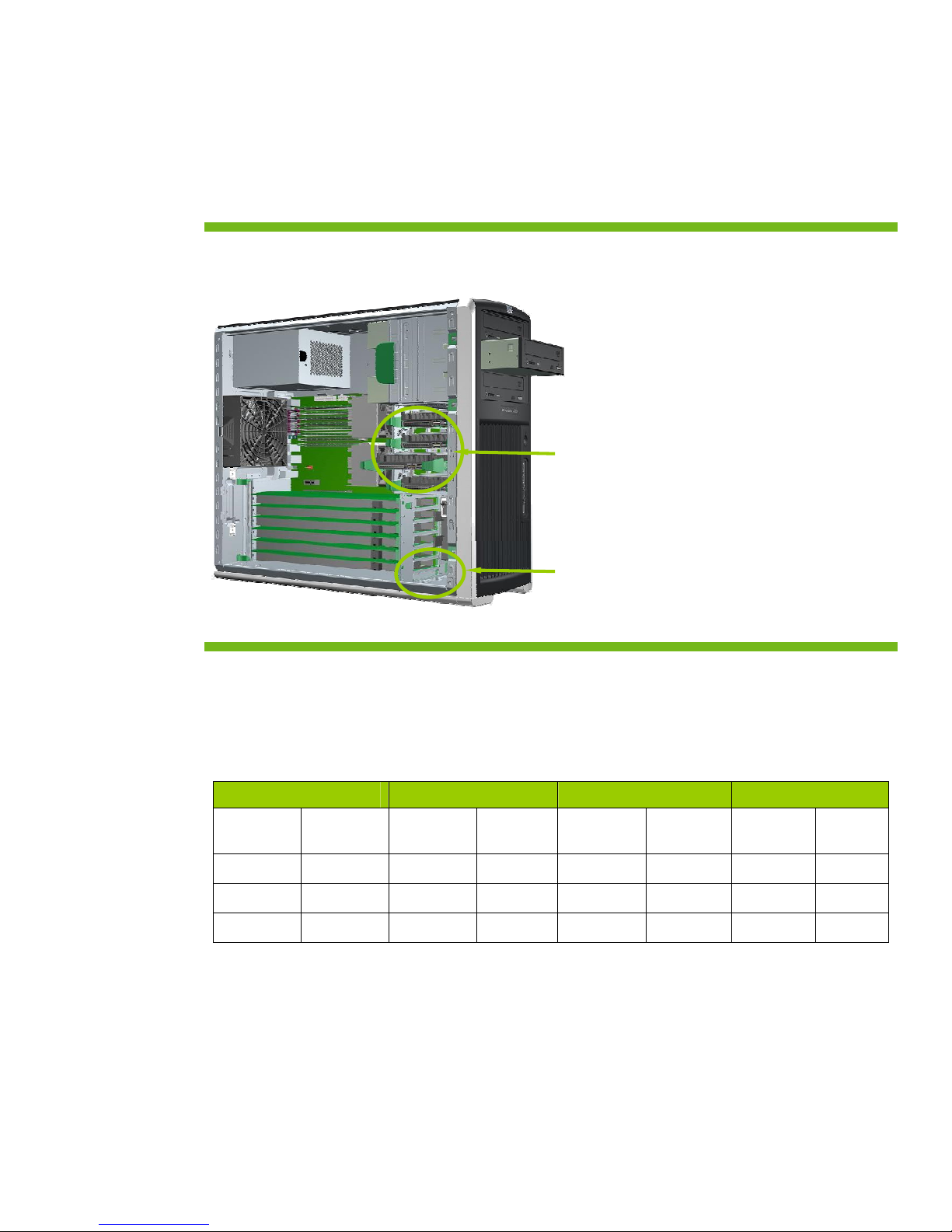

Figure 1. HP xw8200 Workstation Components

(4) Tool-less 1.0”

3.5” Drive Bays

(1) Tool-required 1.0”

3.5” bay (3 screws)

The xw9300 supports (4) tool-less and (1) tool-required internal 1” HDD slots. The xw9300 can

support up to 2.0TB of SATA storage. The onboard SCSI controllers support up to 5 disks allowing up

to 1.5TB of SCSI storage.

•The current HDD choices are shown below:

SATA 7200 SATA 10K SCSI 10K (U320) SCSI 15K (U320)

1st/2nd

Drive

3rd/4th

Drive

1st/2nd

Drive

3rd/4th

Drive

1st/2nd/3rd

Drive

4th/5th

Drive

1st/2nd/3rd

Drive

4th/5th

Drive

80 GB 80 GB 74 GB 74 GB 73 GB 146 GB 36 GB 146 GB

250 GB 250 GB 146 GB 300 GB 73 GB

500 GB 500 GB 300 GB 146 GB

The xw9300 supports many combinations of SATA and SCSI drives for both factory integrated and

After Market Optional (AMO) storage. The supported choices are shown in the flowchart, starting

with the selection of SATA or SCSI for the first drive. Note that if the first drive selected is a SCSI

drive, all subsequent drives must be SCSI drives.

There are no restrictions on the number of drives in the xw9300 with factory-ordered configurations.

However, when configuring the system with dual high end graphics cards not supplied by HP (which

can draw up to 150W each) there may be restrictions on the number of disk drives, amount of

memory, or number of CPUs that can be supported. Please contact the xw9300 Product Marketing

Manager for more details.

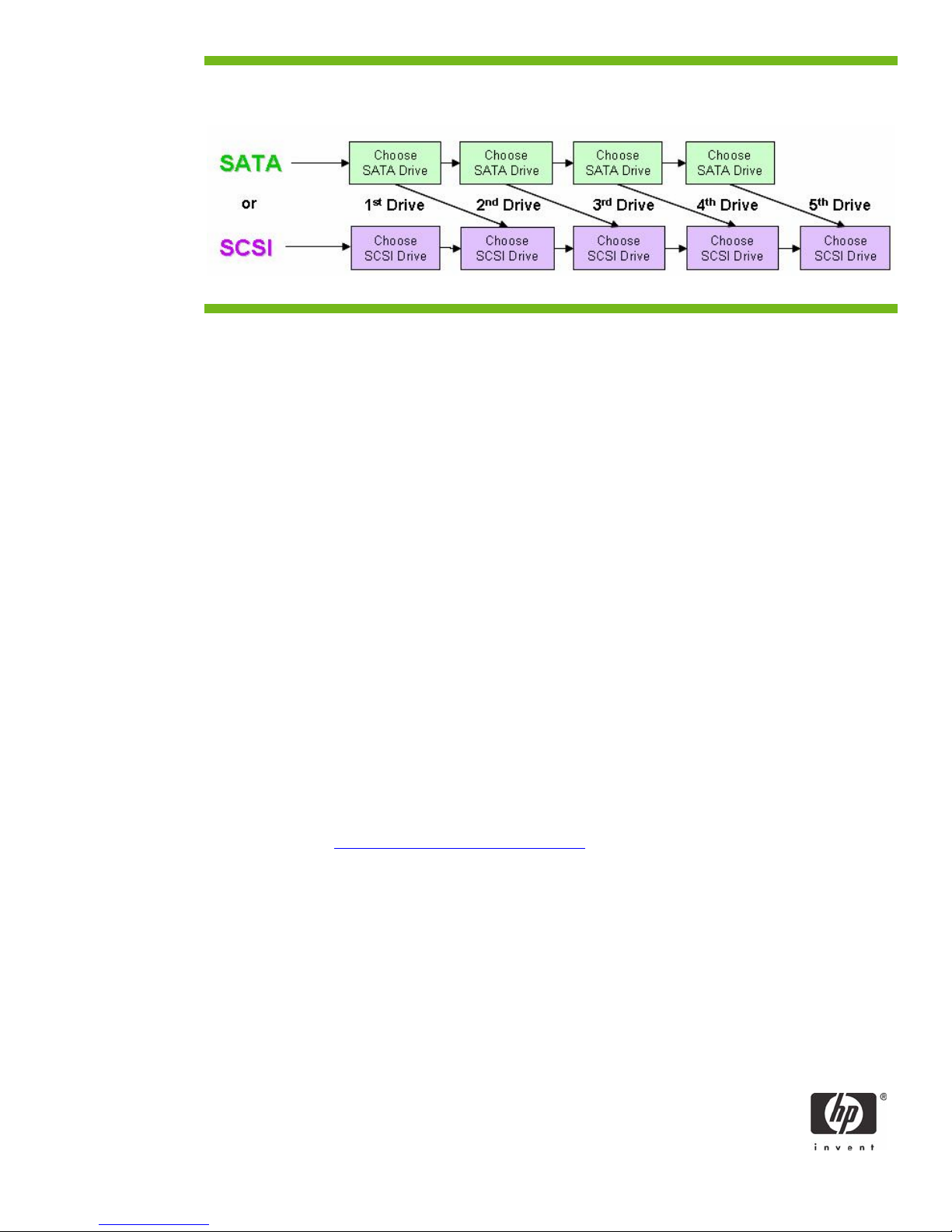

Figure 2. Supported Drive Combinations

RAID

The xw9300 supports SCSI RAID with the addition of a PP574AV card. That card supports RAID 0

(Striping, for performance) and RAID 1 (Mirroring for fault tolerance). The supported RAID

configurations require two or four SCSI drives, and in all cases disks being RAIDed must be identical.

Also note that using RAID 1 halves the amount of available storage. More details on the personal

Workstation RAID solutions can be found in the Personal Workstation RAID Solutions white paper.

Cabling

For Factory-integrated storage, all required cabling is provided. For xw9300 AMO storage, the

AA818A 5-Port SCSI cable should be ordered with the PP574AV RAID controller. The AA658A

U320 SCSI Back Panel cable kit allows external SCSI devices to be connected. For those customers

who desire to install their own EIDE drive(s) the DY660A EIDE Cable Kit is provided as an AMO item.

Summary

The xw9300 provides a large amount of highly-configurable storage.

Additional Resources

The following documents also provide additional information about RAID configurations and can be

located by visiting www.hp.com/support/xw9300_manuals and selecting the White papers quick

jump link.

•Setting up SATA RAID on the xw9300 Mini White Paper

•Workstation RAID Primer Mini White Paper

herein is subject to change without notice. The only warranties for HP products and

services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an

additional warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

439270-001, October 2006
