HP PW550 Manuale utente

PW550

Digital Camera

Quick Start Guide

1

1

For more details about the camera operation and troubleshooting, please

read the User Manual located on the CDROM disc included with your

camera or visit http://www.hp.com/support and download it for the camera

support page.

1

1

English

Getting Started

Attaching the Wrist Strap

Follow these instructions to attach the wrist strap to your camera to better

protect your new camera:

1. Insert the smaller loop of the strap in

the strap eyelet.

2. Thread the larger loop of the strap

though the short loop and pull tight to

attach the strap to the camera.

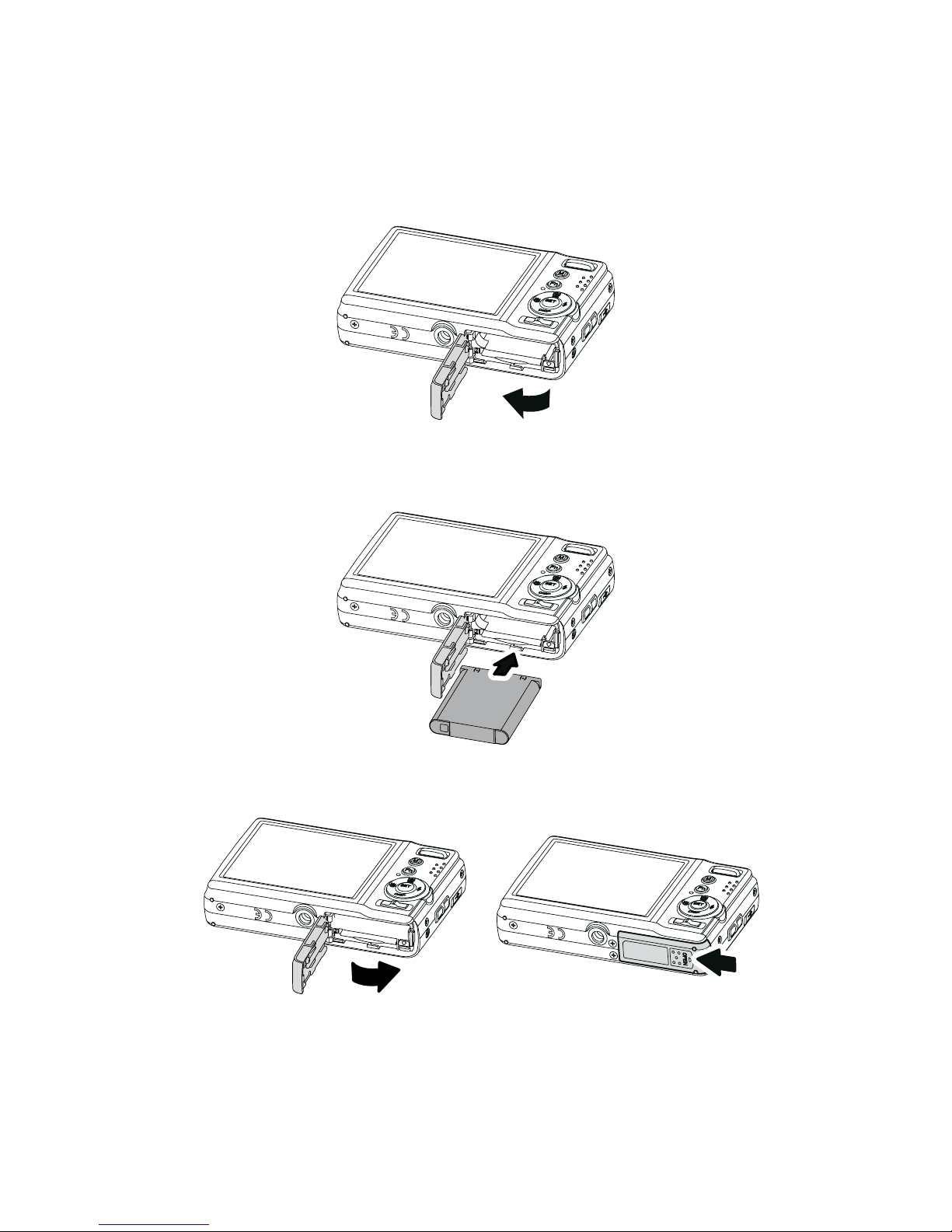

Inserting the Battery

Follow these instructions to insert the NP45 Lithium-ion (Li-ion) battery into

the battery compartment. If the battery is already installed, make sure to

power off the camera before removing and inserting a recharged or new

battery. Please read “Battery Information” before inserting/removing battery.

1. If the battery is already installed, make sure to power off the camera

before removing and inserting a recharged or new battery.

2. Open the battery compartment at the bottom of the camera.

2

2

3 3

3. Insert the battery into the compartment with the terminal facing inside

the camera.

4. Close the battery compartment.

2 2

3

3

English

Inserting an SD/SDHC Memory Card

Expand your camera’s storage by using SD or SDHC memory cards.

1. Open the SD card compartment at the bottom of the camera.

2. Insert the SD/SDHC card into the memory card slot with the metallic

contacts facing the front side of the camera.

3. Push the SD/SDHC card into the memory slot until it clicks into place.

4. Close the SD card compartment.

4

4

5 5

- To remove the SD/SDHC card

1. Open the battery compartment.

2. Gently push the card until it clicks and pops out.

3. Pull out the card carefully.

4 4

5

5

English

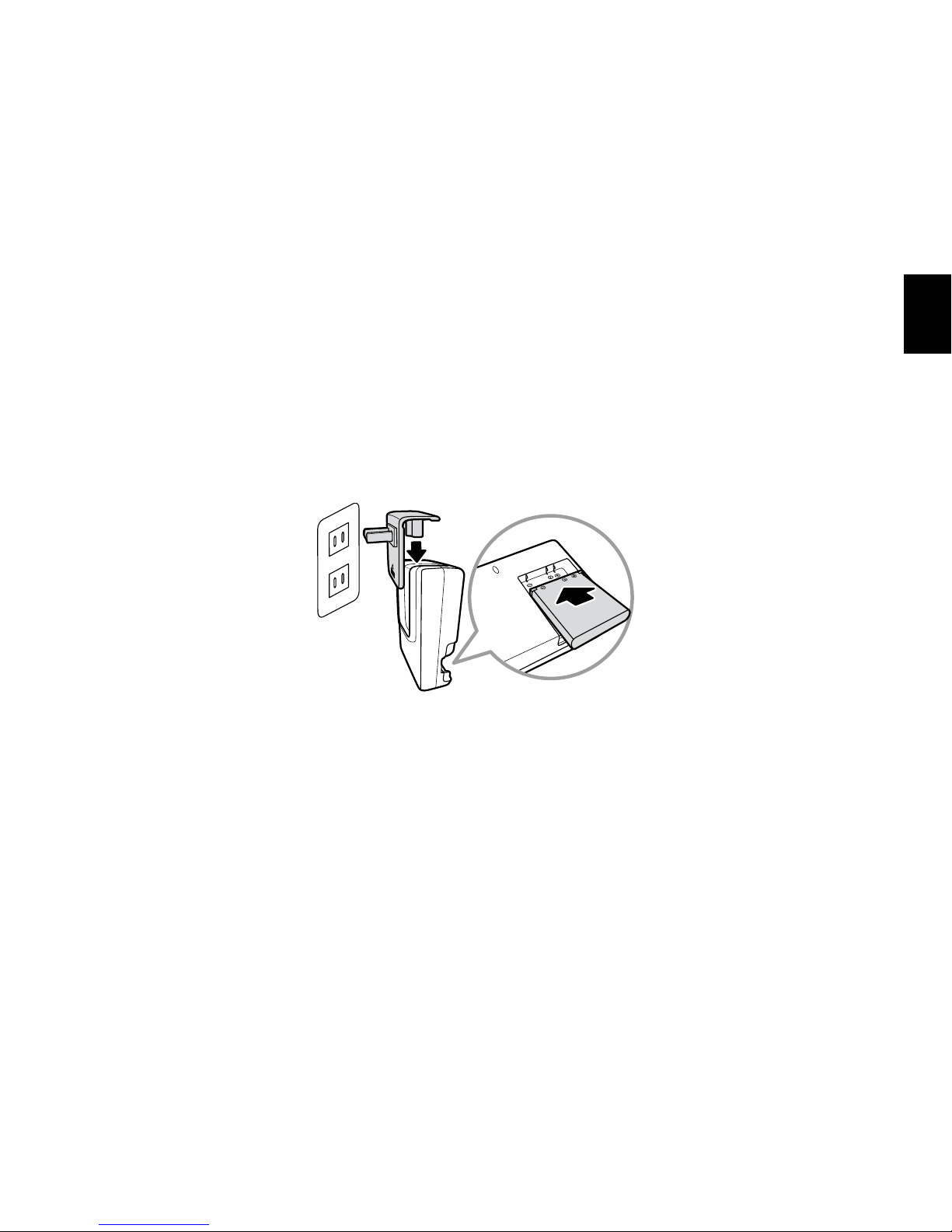

Charging the battery

The battery that comes along with your package is not fully charged. You

need to charge the battery before using the camera.

1. Insert the battery into the battery charger.

2. Connect the battery charger to the adaptor.

3. Plug the adaptor to the main outlet.

CHARGE

Please charge the battery at least 2.5 hours for the initial use. Beyond

the initial use, please charge your battery until the LED indicator on your

charger turns green.

6

6

7 7

Camera Views

Front View

Flash Self-Timer LED / AF Assist Lamp

Zoom Lens

Microphone

Back View

Func / Delete

Shooting / Video Record /

Playback

LCD screen

Zoom buttons

Menu

Operation Lamp

SET /

4-way navigation control

6 6

7

7

English

Top View

Shutter button

Power button

Bottom View

Battery / SD card

compartment

Left/Right View

Strap ring

USB

8

8

9 9

Initial Settings

You will be prompted to set up the language and the date and time when

the camera is turned on for the rst time.

Setting the Language

1. Press , , or to move through the selection.

2. Select a language, and then press to apply.
