HP IPAQ hx2000 Series Manuale utente

366425-021.book Page i 5:11 PMWednesday, September 1, 2004

Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are

trademarks of Microsoft Corporation in the U.S. and other countries.

HP iPAQ products are Powered by Windows MobileTM 2003 software for

the Pocket PC.

Getting started

HP iPAQ hx2000 series

First Edition (August 2004)

Document Part Number: 366425-021

366425-021.book Page ii 5:11 PMWednesday, September 1, 2004

Contents

Getting started

HP iPAQ hx2000 series .......................

Sådan kommer du i gang

HP iPAQ hx2000-serien............................

Aan de slag

HP iPAQ hx2000 Series ...........................

Komme i gang

HP iPAQ hx2000 ...................................

Aloitusopas

HP iPAQ hx2000 -sarja ............................

Komma igång

HP iPAQ hx2000-serien............................

366425-021.book Page 1 5:11 PMWednesday, September 1, 2004

Congratulations on purchasing an HP iPAQ Pocket PC. This

Getting started guide will help you set up your iPAQ Pocket PC

and familiarize you with how it works.

Do not connect the Pocket PC to your computer until you

have finished installing ActiveSync on your computer.

1. Install the battery

Getting started 1

366425-021.book Page 2 5:11 PMWednesday, September 1, 2004

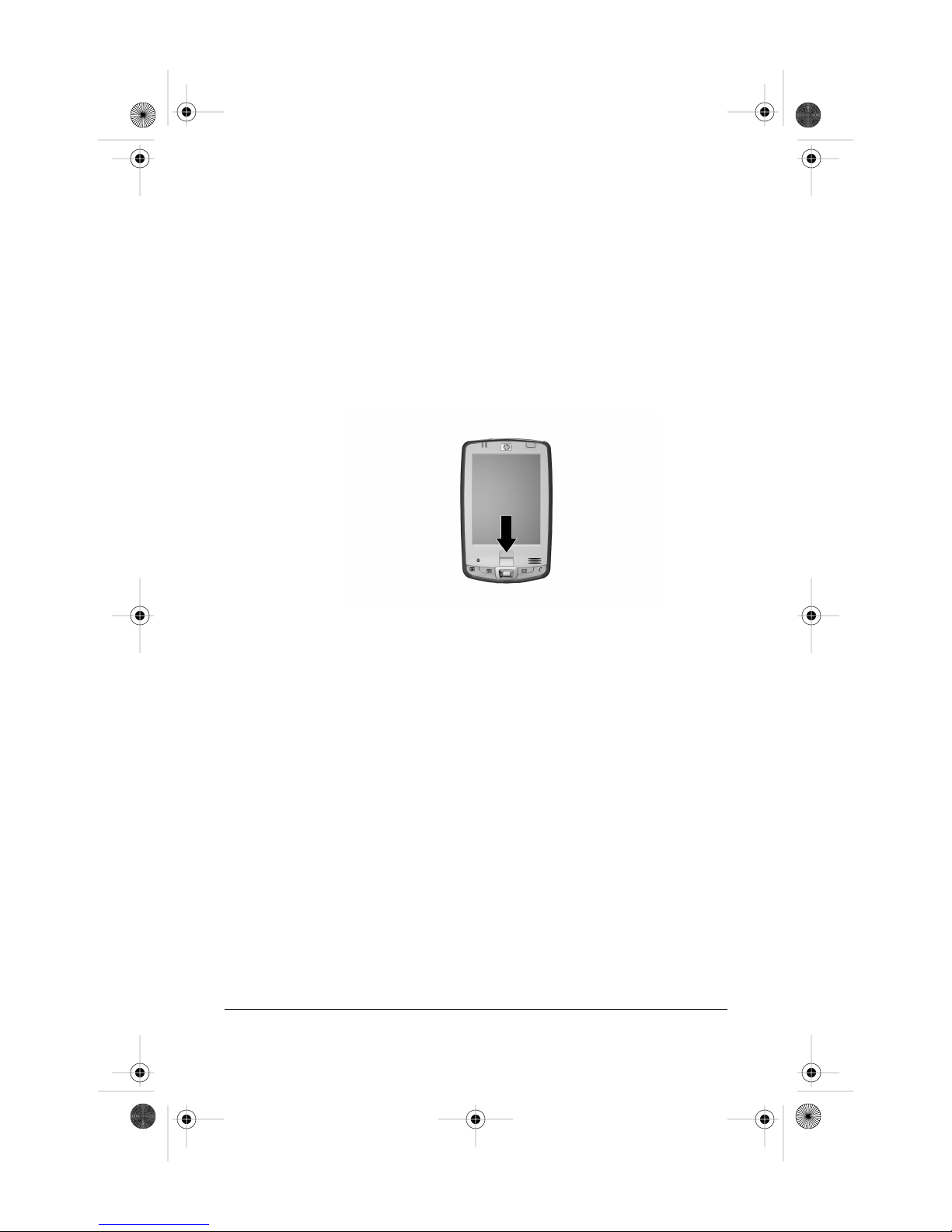

2. Charge the Pocket PC

Do not connect the Pocket PC to the computer at this time.

NOTE: It can take up to four hours to fully charge the battery.

Gettingstarted2

366425-021.book Page 3 5:11 PMWednesday, September 1, 2004

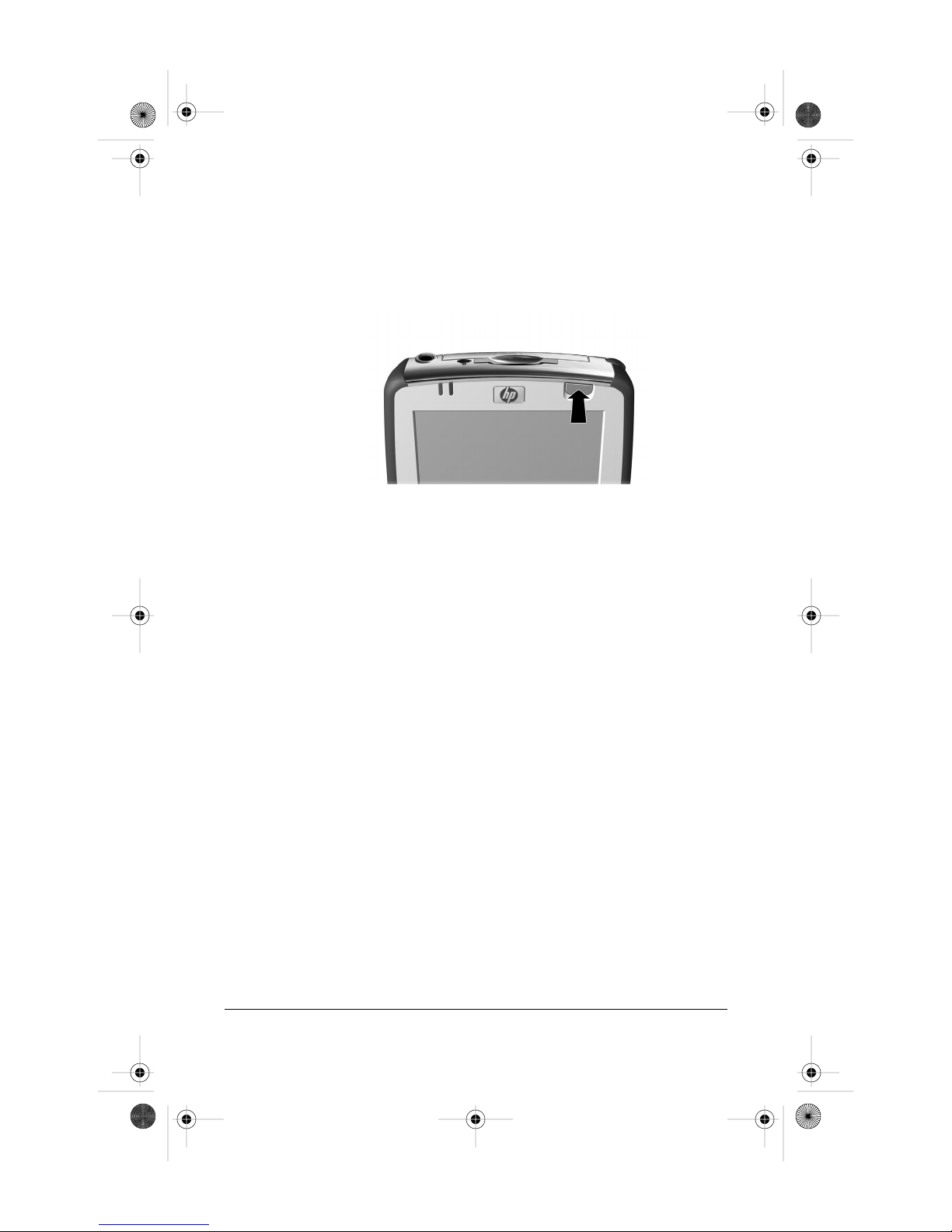

3. Power on

Press the Power button to turn on the unit.

4. Set up the device

When the Windows Mobile screen displays, lift the removable

flip cover, tap anywhere on the screen, then follow the on-screen

instructions until setup is complete.

5. Insert the Companion CD into the

computer

Insert the Companion CD into your computer. Click Start Here.

Follow the on-screen instructions.

The Setup Wizard installs:

 ActiveSync 3.7.1 (or greater)

 Microsoft Outlook

 Other optional software applications

Getting started 3

366425-021.book Page 4 5:11 PMWednesday, September 1, 2004

6. Connect the Pocket PC to computer when

instructed by Setup Wizard on the

computer

7. Establish a partnership

Follow the on-screen ActiveSync instructions to establish a

connection between your Pocket PC and your computer.

Use ActiveSync to synchronize your calendar, tasks, contacts,

e-mail messages, and favorite Web content between the

Pocket PC and computer.

Click on the Microsoft ActiveSync icon on the computer desktop to view

Help Topics and the ActiveSync Troubleshooter.

Gettingstarted4

366425-021.book Page 5 5:11 PMWednesday, September 1, 2004

Helpful Hints

Power Saving

 Leave your device connected to AC power at all times when

not using it.

 Dim the backlight. On the Today screen, in the TodayPanel

Lite, use your stylus to adjust the Backlight Brightness

Level slider, located under the Light bulb icon, halfway

across to the middle position.

 Turn off the backlight. On the Today screen, tap the Light

bulb icon > Battery Power tab; then set the backlight to turn

off soon after you stop using the device.

 Leave the device set to turn off after not being used for a short

period of time. On the Today screen, tap the Battery icon >

Advanced tab. On battery power, set the device to power off

in the shortest acceptable time.

 Turn off Wi-Fi and Bluetooth power when not in use. Tap

Start > iPAQ Wireless > ALL OFF button.

 Set the device to receive incoming infrared beams manually.

On the Today screen, in the TodayPanel Lite, tap the

Battery icon > Adjust beam settings to conserve power,

then uncheck Receive all incoming beams.

 Assign a program button to turn off the screen display while

listening to music. Tap Start > Programs > Windows Media

> Tools > Settings > Buttons. From the Select Function

dropdown list, tap Screen Toggle. Press a program button

and tap OK. Then, when listening to music, press that

program button to turn off the screen display.

 Tap Start > ActiveSync > Tools > Options > Mobile

Schedule tab. Select Manually for both Peak times and

Off-peak times. Selecting automatic synchronization can

cause your iPAQ Pocket PC to “wake up” regularly causing

your battery to drain.

Getting started 5

366425-021.book Page 6 5:11 PMWednesday, September 1, 2004

Fingerprint Reader (not available on all

models)

 Maintain a firm, consistent pressure against the sensor when

swiping a finger. One way to do this is to press your thumb

against the bottom of the iPAQ Pocket PC while swiping your

index finger.

 For best results, refer to “How Do I Use the Fingerprint

Reader on my Pocket PC?” in the printed How Do I...? guide.

Gettingstarted6

366425-021.book Page 7 5:11 PMWednesday, September 1, 2004

NOTE: Not all models or features available in all regions.

Front panel components

1 Flip cover: Lift the flip cover before tapping on the screen

2 Power button: Turns unit on and off

3 Speaker: Listen to notes or music

4 iTask button: Open, close, and switch between applications, run utilities, and change

settings

5 Messaging button: Access your Inbox for sending and receiving e-mail

iPAQ Wireless*: Launches iPAQ Wireless application

6 5-Way Navigation button: Scroll through a list and push to select (similar to using a

joystick)

7 Contacts button: Display a list of your contacts from the category you select

HP ProtectTools*: Launch security application

(Continued)

Getting started 7

366425-021.book Page 8 5:11 PMWednesday, September 1, 2004

Front panel components (Continued)

Calendar button: Schedule appointments, set reminders, or view your calendar

Landscape/Portrait*: Switch between landscape and portrait display modes

Microphone: Speak into the microphone to record notes

10 Biometric Fingerprint Reader: Authenticate access to your device

11 Charge/Notification LED indicator:

LED off = not charging or no notifications

Amber flash = charging

Green flash = one or more notification events have occurred

Amber solid = charging complete

12 Wireless LED indicator:

LED off = Wi-Fi and Bluetooth are both off

Blue flash = Wi-Fi and/or Bluetooth are on

* To access this function, press and hold for two seconds.

Gettingstarted8
