1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start >Computer >System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Windows online Help for more information.
1
2 Components
2 Chapter 2 Components
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
Top components

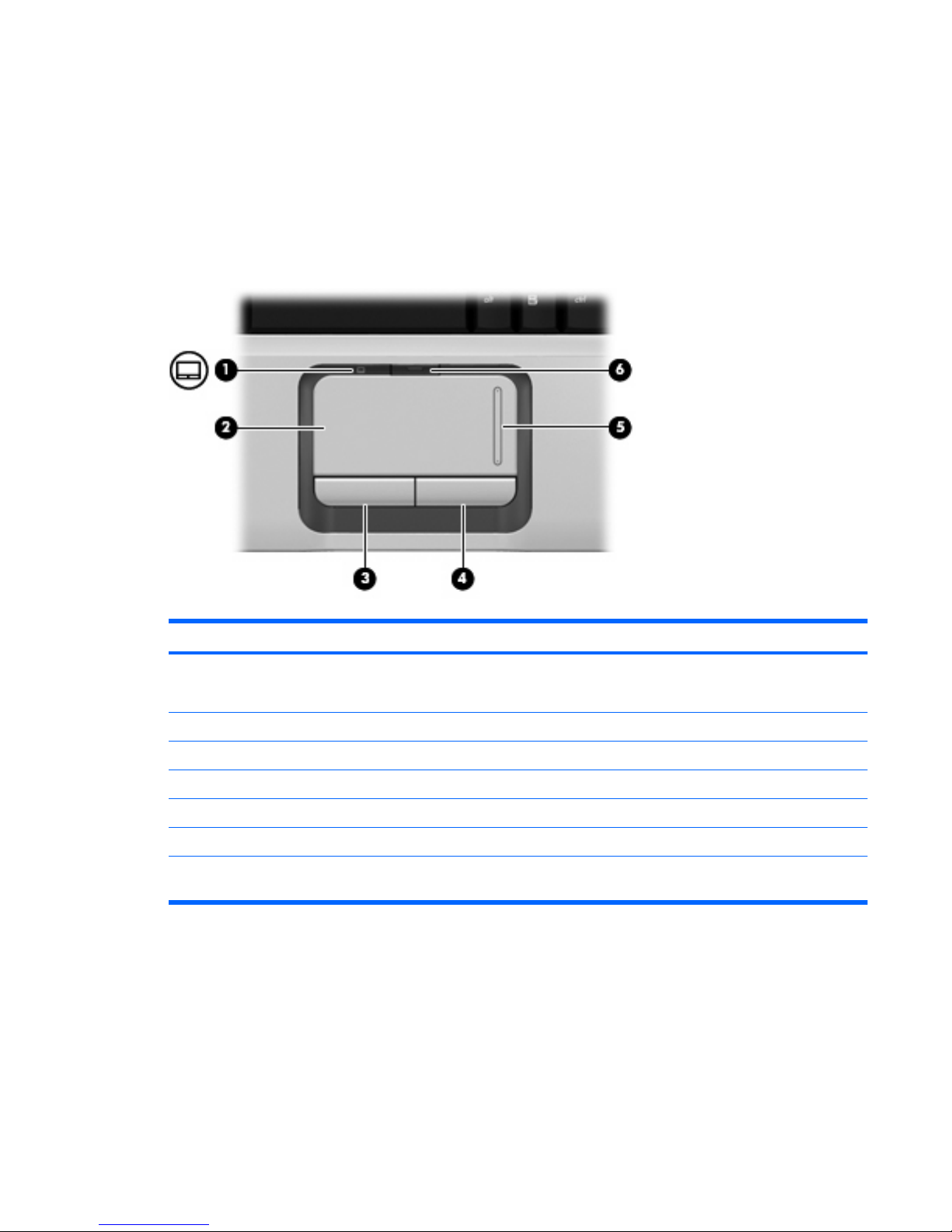

TouchPad
Component Description
(1) TouchPad light ●Blue: TouchPad is enabled.
●Amber: TouchPad is disabled.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left TouchPad button* Functions like the left button on an external mouse.
(4) Right TouchPad button* Functions like the right button on an external mouse.
(5) TouchPad scroll zone* Scrolls up or down.
(6) TouchPad on/off button Enables/disables the TouchPad.
*This table describes factory settings. To view and change pointing device preferences, select Start >Control Panel >
Hardware and Sound >Mouse.
Product notice 3

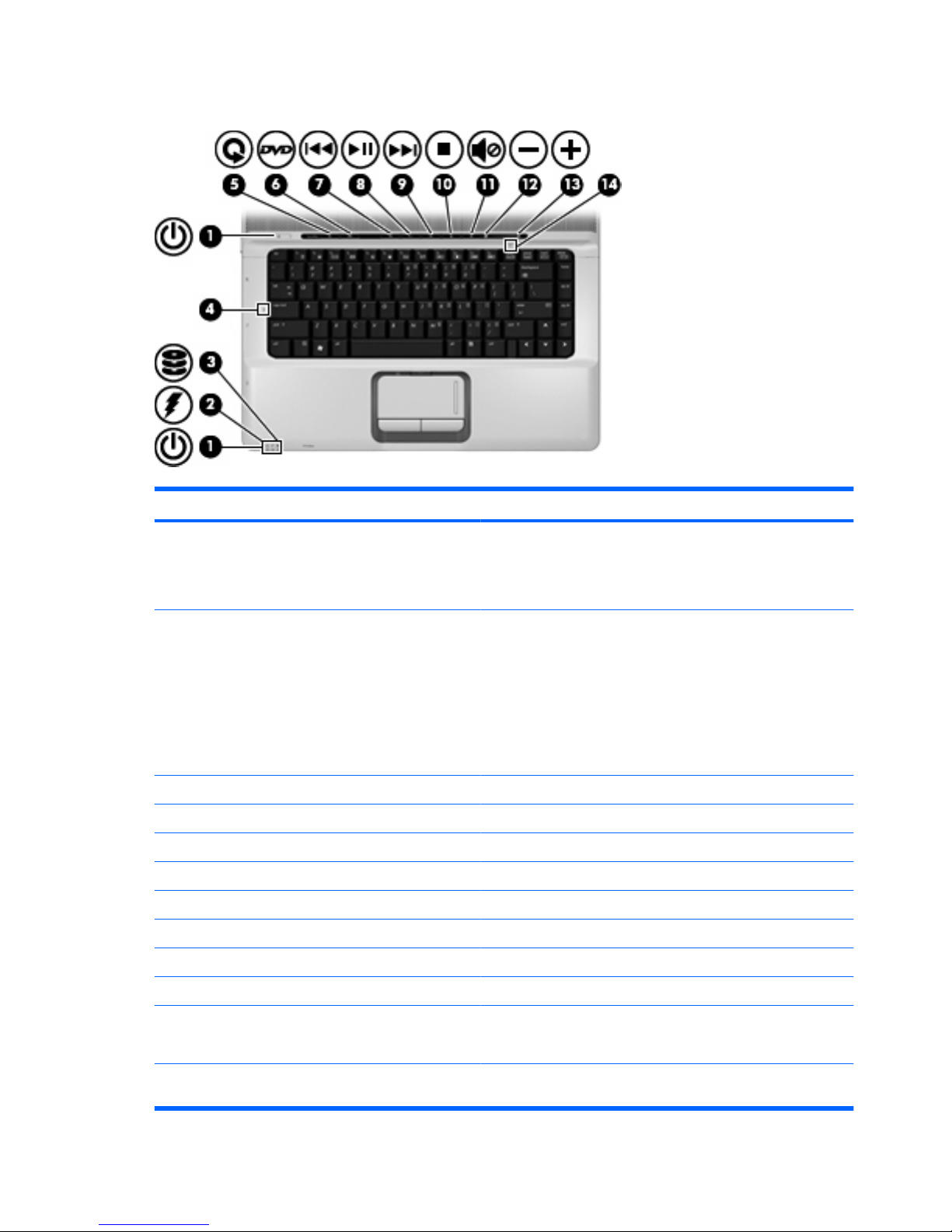

Lights
Component Description
(1) Power lights (2)* ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Battery light ●On: A battery is charging.
●Blinking: A battery that is the only available power source has
reached a low battery level or a critical battery level.
●Off: If the computer is plugged into an external power source,
the light is turned off when all batteries in the computer are
fully charged. If the computer is not plugged into an external
power source, the light stays off until the battery reaches a
low battery level.
(3) Drive light Blinking: The hard drive or optical drive is being accessed.
(4) Caps lock light On: Caps lock is on.
(5) Media button light Turns on when the media button is pressed.
(6) DVD button light Turns on when the DVD button is pressed.
(7) Previous/rewind light Turns on when the previous/rewind button is pressed.
(8) Play/pause light Turns on when the play/pause button is pressed.
(9) Next/fast forward light Turns on when the next/fast forward button is pressed.
(10) Stop light Turns on when the stop button is pressed.
(11) Volume mute light ●Blue: Computer sound is turned on.
●Amber: Computer sound is turned off.
(12) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
4 Chapter 2 Components
