HP Pavilion S70 Manuale utente
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 1 of 28 Printed: 05/13/99 11:33 AM
S70 Monitor Guide
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 2 of 28 Printed: 05/13/99 11:33 AM
The information contained in this document is subject to change without notice.
Hewlett-Packard® Company makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
HP shall not be liable for errors contained herein or for incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
This document contains proprietary information that is protected by copyright. All rights are reserved. No part
of this document may be photocopied, reproduced, or translated to another language without the prior written
consent of HP.
Hewlett-Packard Company
Home Products Division
P.O. Box 4010
Cupertino, CA 95015-4010
Printed in the USA.
© Copyright Hewlett-Packard Company, 1999. All rights reserved.
Hewlett-Packard is a registered trademark of Hewlett-Packard Company in the United States of America and
other countries.
The ENERGY STAR name is a U.S. Registered mark of the U.S. Environmental Protection Agency.
Other brand or product names are trademarks of their respective holders.
Contents iii
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 3 of 28 Printed: 05/13/99 11:33 AM
Introduction ........................................................ 1
Precautions ........................................................ 2
Features .............................................................. 4
Specifications .....................................................5
Control Locations and Functions ..................7
Controls and Adjustments............................. 8
Connections ..................................................... 12
Pin Assignments and Signal Levels ........... 14
Timing Charts .................................................. 15
Troubleshooting.............................................. 18
Automatic Power Saving Description......... 19
Contents
Introduction 1
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 1 of 28 Printed: 05/13/99 11:33 AM
Congratulations on your purchase of a Hewlett-
Packard Multi-Frequency monitor. One of the
most versatile monitors available today, the S70
automatically adjusts its vertical and horizontal
scanning frequencies to those of your computer’s
graphics adapter. The S70 provides crisp text
and vivid color graphic displays when used with
Multi-Frequency and compatible graphics adapters
(see specifications).
Introduction
2S70 Monitor Guide
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 2 of 28 Printed: 05/13/99 11:33 AM
To prevent electric shock do not remove screws
or back cover.
There are no user-serviceable parts inside the
monitor. Refer servicing to qualified service
personnel.
DO NOT REMOVE THE TILT/SWIVEL BASE!
The input power source:
The monitor is designed to be Full Range from
AC 100V to AC 240V.
Warning: This appliance should be grounded.
Always connect the display to a grounded,
three-prong power outlet. Use only the factory-
supplied power cord.
Do not put the monitor or other heavy objects
on the power supply cord. A damaged power
cord may cause fire or electric shock.
Do not insert objects into the monitor. They may
cause fire or failure.
Do not allow liquids to fall into the cabinet.
Precautions
Precautions 3
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 3 of 28 Printed: 05/13/99 11:33 AM
1To reduce eye fatigue, avoid using the display
in direct sunlight or other bright lights.
2Do not operate the monitor beyond the
specified temperature and humidity range
(see specifications).
3For proper operation, keep the monitor
adequately ventilated.
4Keep the monitor away from transformers,
motors, fans or strong magnetic fields.
5If the monitor does not operate properly, turn off
the power switch and then unplug the monitor.
6When an irregular supply is applied, a protection
circuit will turn off the monitor (the power
indicator will also be turned off). If this happens,
turn off the power switch and wait at least
30 seconds before turning it on again.
4S70 Monitor Guide
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 4 of 28 Printed: 05/13/99 11:33 AM
1Automatically scans horizontal frequencies
ranged from 30kHz to 70kHz and vertical
frequencies ranged from 50Hz to 100Hz.
2Meets DPMS and NUTEK power-saving standards.
3All functions can be controlled by On-Screen
Display.
4Plug-and-play compatibility.
5Full-scan display–15.9-inch diagonal viewable
image size.
6Rotation (tilt control).
7Self-test–When you disconnect the signal cable
from the PC, the display will produce as below:
8Color temperature selection–9300K / 6550K /
user adjustable.
Features
NO SIGNAL
PLEASE CHECK
SIGNAL CABLE
SELF-TEST PATTERN
Specifications 5
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 5 of 28 Printed: 05/13/99 11:33 AM
Power Source AC 100—240V, 50/60Hz
(Full Range)
Power
Consumption 1Normal: 100W Max.
2Stand-by Mode: <15W
3Suspend Mode: <15W
4Off Mode: <5W
Picture Tube 90° deflection,
0.27mm dot pitch
15.9" Diagonal (viewable)
low radiation, nonglare
Antistatic. Light
transmission 53%, MPR II
Maximum
Resolution 1280 x 1024 at 60Hz
refresh rate
Input Signals
Video Analog 0.7 Vp-p /
75 ohm positive
Separate Sync positive / negative
Synchronization
Horizontal 30KHz to 70KHz
Vertical 50Hz to 120Hz
Active Display
Area
Horizontal 306mm typical
Vertical 230mm typical
Safety Standard UL / CSA / TÜV
EMI Standard FCC Class B, EN50082-1,
EN55022
Specifications
6S70 Monitor Guide
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 6 of 28 Printed: 05/13/99 11:33 AM
Environmental
Conditions
Operating
Temperature 0° ~ 40°
Operating
Humidity 10% ~ 80%
(non-condensing)
Storage
Temperature —40° ~ +65°
Storage
Humidity 5% ~ 95%
High Voltage 26KV
Dimensions
(W x H x D) 416mm x 443mm x
455mm
Weight (Net) 17.1 kg

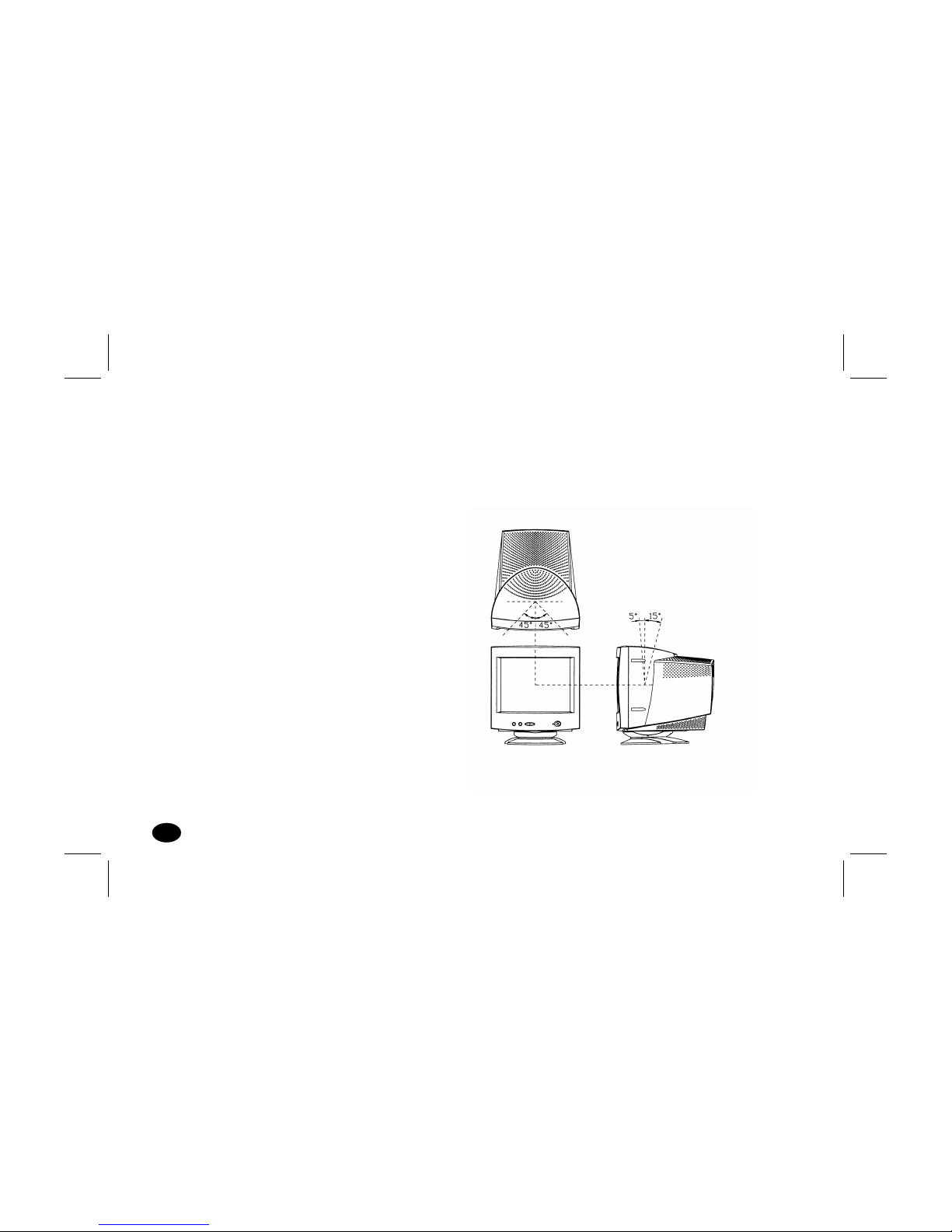

Tilt and Swivel Operation:
The swivel range is normally limited to 45 degrees
to the right and the left of the front position (marked
by a small molded pip on the top front of the base).
The tilt range is normally limited at an angle of
—5 degrees forwards and +15 degrees backwards.
This allows you to set the screen angle to the
viewing position most comfortable to you.
Control Locations and Functions 7
Filename: S70naug.doc Title: S70 Monitor
Template: HP-Print.dot Author: WASSER, Inc. Last Saved By: WASSER, Inc.
Revision #: 6 Page: 7 of 28 Printed: 05/13/99 11:33 AM
Note: Locations of display controls are shown below.
Operation of controls is explained in the following
pages.
FRONT
REAR
Control Locations and Functions
POWER SWITCH
POWER INDICATOR
Color
Select
-DOWN
+UP
Power Supply Connector Signal Cable
