HP ML370 - ProLiant - G3 Manuale utente

Hewlett-Packard Company makes no warranty of any kind with regard to

this material, including, but not limited to, the implied warranties of merchantability

and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with the

furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No

part of this document may be photocopied, reproduced, or translated into another

language without the prior written consent of Hewlett-Packard. The information

contained in this document is subject to change without notice.

Hewlett-Packard Company shall not be liable for technical or editorial errors or

omissions contained herein. The information is provided “as is” without warranty of

any kind and is subject to change without notice. The warranties for Hewlett-Packard

Company products are set forth in the express limited warranty statements accompa-

nying such products. Nothing herein should be construed as constituting an

additional warranty.

Printed in the U.S.A.

hp ProLiant

ML370 Storage Server

Installation

Instructions

HP ProLiant ML370 Storage Server

Installation Instructions

First Edition (September 2004)

Part Number: 378137-001

Operating system

The HP ProLiant ML370 Storage Server is preloaded with the

Windows®Storage Server 2003 operating system. Prior to power

up, deployment instructions found in the “Installation Guide”

should be followed to enable the successful configuration of the

storage server in addition to the guidelines found below.

Required Items:

Installation Guide

Administration Guide

To begin the first-time startup procedure:

Be sure that the server is safely installed in an adequate

environment.

Be sure that the power cables and peripheral devices are

plugged in and AC power is supplied to the server.

Refer to the Installation Guide prior to powering up the server.

This document is for the person who installs, administers, and

troubleshoots servers and storage systems. HP assumes you are

qualified in servicing computer equipment and trained in

recognizing hazards in products with hazardous energy levels.

Product documentation

Installation Instructions

Rack template tool used during rack installation

contains:

Administration Guide

Installation Guide

HP Warranty fulfillment

document

provides instructions to obtain a printed

warranty

HP Important Safety

Information booklet

Safety information for HP storage, power,

networking and rack products

Documentation CD

requirements and configuration optionsInstallation Guide

rack installation poster

Administration Guide provides administrative and proce-

dural instructions to manage the

storage server

To register your product visit the HP Registration web site at:

http://www.register.hp.com

Rack option

A separate rack mount kit is required to install this storage server

into a rack. For information download the HP ProLiant ML370 G4

Server Reference and Troubleshooting Guide at:

http://www.docs.hp.com

378137- 001

Item Description

1x4 PCI Express expansion slot

2100-MHz PCI-X expansion slots

3Unit ID LED

4Ethernet 10/100/1000 port

5iLO management port

6Parallel connector

7Video connector

8T-15 Torx screwdriver

9Auxillary VHDCI SCSI blank

-Mouse connector

qKeyboard connector

wSerial connector B

eSerial connector A

rUSB connectors

tPrimary hot-plug power supply

yRedundant hot-plug power supply

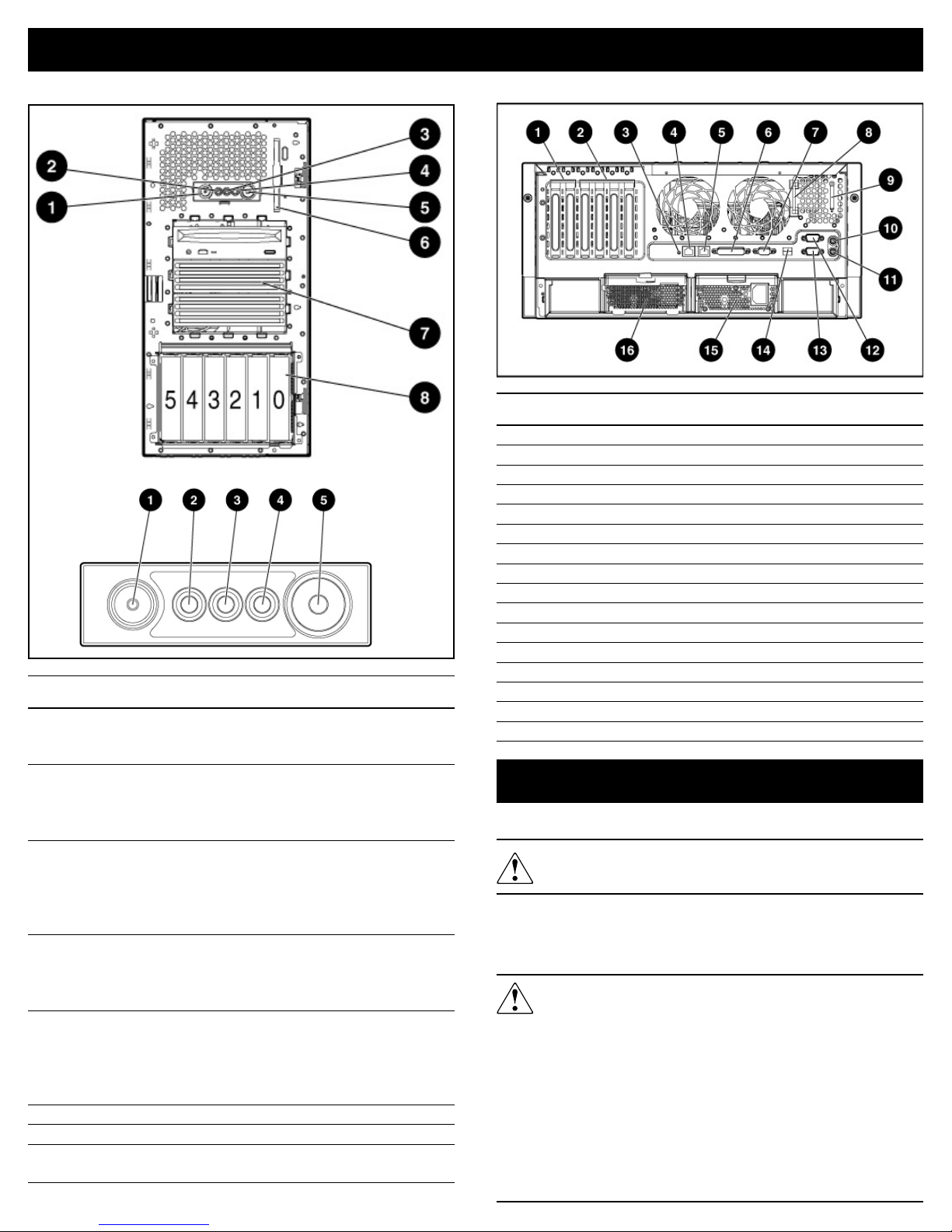

Callouts

Front panel Rear panel

Follow the steps in this section to set up a tower model server.

WARNING: To reduce the risk of electric shock, fire, or

damage to the equipment, do not plug telephone or

telecommunications connectors into RJ-45 connectors.

1. Connect network cable and any peripheral devices to the server.

2. Connect the power cord to the back of the server.

3. Connect the power cord to the AC power source.

WARNING: To reduce the risk of personal injury or damage

to the equipment:

• Do not disable the power cord grounding plug. The

grounding plug is an important safety feature.

• Plug the power cord into a grounded (earthed) electrical

outlet that is easily accessible at all times.

• Unplug the power cord from the power supply to disconnect

power to the equipment.

• Do not route the power cord where it can be walked on

or pinched by items placed against it. Pay particular

attention to the plug, electrical outlet, and the point where

the cord extends from the server.

Installing a storage server (tower)

Item Description

1UID switch and LED Blue = Activated

Flashing = System managed remotely

Off = Deactivated

2Int system health LED Green = Normal (system on)

Amber = System health is degraded

Red = System health is critical

Off = Normal (system off)

3Ext system health LED Green = Normal (system on)

Amber = Redundant power supply failure

Red = Power supply failure.

No operational power supplies.

Off = Normal (system off)

4NIC link/activity LED Green = Linked to network

Flashing green = Linked with activity

on the network

Off = No network connection

5Power on/Standby Amber = System has AC power

button/LED and is in standby mode

Green = System has AC power

and is turned on

Off = System has no AC power

6Diskette drive*

7Removable media bays

8Hot-plug SCSI hd bays

(SCSI IDs 0 through 5)
