HP Xw8600 - Workstation Istruzioni operative

HP 1050W 80 Plus Power Supply

Site Preparation Guide

Development Company, L.P.

Warranty

Hewlett-Packard Company shall not be liable

for technical or editorial errors or omissions

contained herein or for incidental or

consequential damages in connection with

the furnishing, performance, or use of this

material. The information in this document is

provided “as is” without warranty of any kind,

including, but not limited to, the implied

warranties of merchantability and fitness for

a particular purpose, and is subject to

change without notice. The warranties for HP

products are set forth in the express limited

warranty statements accompanying such

products.

Nothing herein should be construed as

constituting and additional warranty.

This document contains proprietary

information that is protected by copyright. No

part of this document may be photocopied,

reproduced, or translated to another

language without the prior written consent of

Hewlett-Packard Company.

454178-001

First Edition, December 2007

Table of contents

Power consumption and cooling

Introduction ........................................................................................................................................... 1

Power consumption and cooling considerations .................................................................................. 1

Power consumption limitations ............................................................................................................. 2

Input current calculation ....................................................................................................................... 3

Power dissipation ................................................................................................................................. 3

Cooling considerations ......................................................................................................................... 4

ENWW iii

iv ENWW

Power consumption and cooling

Introduction

This document presents power consumption and cooling considerations and limitations when using a

1050W 80 Plus power supply in an HP workstation in a typical office environment.

Power consumption and cooling considerations

An HP workstation with a 1050W 80 Plus power supply might require more power than the typical office

environment can supply. Consider the following issues:

●A fully loaded configuration might draw up to 15 amps of 110-volt power, leaving no power for other

accessories. A typical office has one, or maybe two, 15-amp circuits.

●An office air conditioning system must accommodate the extra heat generated by fully-loaded

workstation configurations.

●Some environments might have power conditioning problems that prevent the reliable use of high

end workstation configurations.

ENWW Introduction 1

Power consumption limitations

●IMPORTANT—The power supply is capable of continuously supplying 1050 watts output power

when the input voltage is greater than 90 volts. If the input voltage is less than 90 volts for any

reason (for example, a brown out or a line sag), the maximum power that can be drawn is 900

watts.

●When you use a fully loaded workstation configuration in a poor power grid area, use an

uninterruptible power supply (UPS). The UPS must be rated for at least 2 KVA. Without line

conditioning to guarantee greater than 90 volts, the maximum power that can be drawn is 900

watts.

●To reduce the risk of overload:

◦Do not exceed the rated load of any single power distribution unit (PDU).

◦Do not load a single National Electrical Manufacturers Association (NEMA) 5–15 receptacle

with more than 15 amps.

◦Do not load a single International Electrotechnical Commission (IEC) 320-1/C13 receptacle

with more than 10 amps.

◦In general, verify that each power source circuit can safely provide the current required by

equipment drawing power from it.

2 Power consumption and cooling ENWW

Input current calculation

The 1050W power supply can provide 1050 watts in a 15-amp circuit by using this input current

calculation:

Input Current = Output Power / (Voltage x Power Factor x Efficiency)

where:

Output Power = 1050 watts

Voltage = 90 volts

Power Factor = 0.998

Efficiency = 0.8

In this formula, the voltage (90 volts) includes all power line variations—line voltage sag, brown out

conditions, power grid characteristics, and so on.

CAUTION: Check with your power provider to see if your facility is exposed to 90-volt power. If 90

volts cannot be guaranteed to your workstation, the input voltage source might blow the fuse in the

power supply or trip the breaker.

For reliable workstation operation under heavy loading, use an uninterruptible power supply (UPS)

because it provides reliable voltage levels.

Power dissipation

The following table contains typical system configurations for an HP xw8600 Workstation.

Table 1 Typical HP xw8600 Workstation system configurations

Configuration CPU DIMM Graphics HDD ODD PCI Power Consumption*

12 x 80W 8 x 4GB 667 MHz Two FX5600 5 2 0 825W

22 x 80W 16 x 4GB 667 MHz Two FX5600 5 2 0 920W

32 x 120W 8 x 4GB 667 MHz Two FX5600 5 2 0 915W

42 x 120W 16 x 4GB 667 MHz Two FX1700 5 2 0 760W

52 x 120W 16 x 4GB 667 MHz Two FX3700 5 2 0 875W

62 x 120W 16 x GB 667 MHz Two FX4600 5 2 0 950W

72 x 120W 16 x 4GB 667 MHz Two FX5600 5 2 0 1000W

8 2 x 150W 16 x 2GB 800 MHz 2 x FX4600 2 2 0 1025W

* Power consumption is highly dependent on software use. The table values represent examples of maximum power

consumption per configuration, and may not represent actual usage.

ENWW Input current calculation 3

Cooling considerations

To ensure proper ventilation and cooling for your workstation, observe the following guidelines.

●Keep your workstation in an area where the airflow is not obstructed.

●Keep the workstation off from surfaces where dust can gather.

●Remove dust on the front panel (vent area) and the rear fans with a small vacuum, compressed

air, or dust rag.

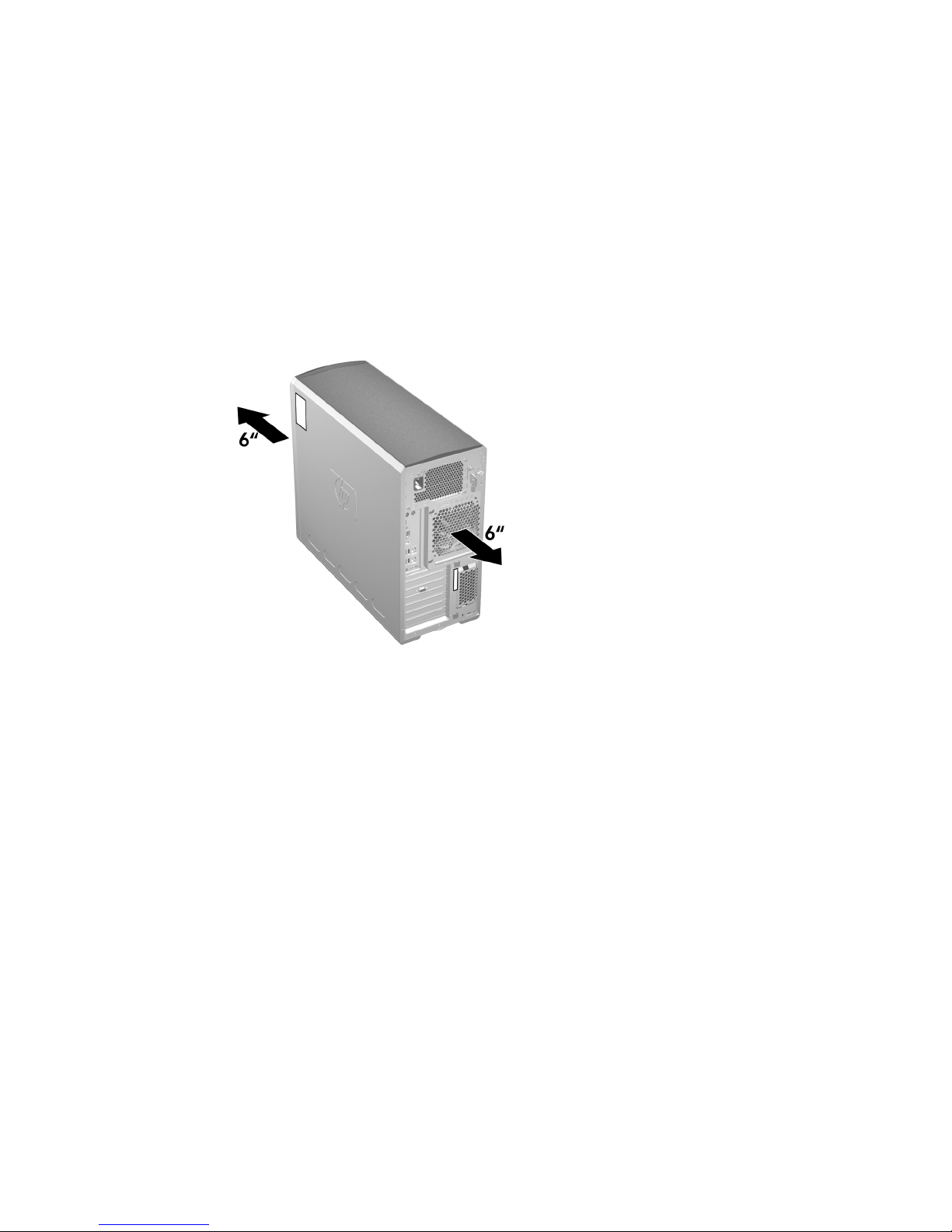

●Keep the front and back of the workstation at least 0.15 m (6 in.) away from a wall or other

obstruction, as shown:

Figure 1 Maintain proper clearance

4 Power consumption and cooling ENWW
