hp StorageWorks

MSA1500 cs/MSA20

Power Supply

MSA1500 cs/MSA20 Power Supply Replacement Instructions

First Edition (April 2004)

Part Number: 361699-001

If the product in which this part is being replaced is still under HP

warranty, then the replacement part(s) referred to in these Replacement

Instructions is provided under the terms and conditions of the

Hewlett-Packard Company Limited Warranty for that product. A copy of

this Limited Warranty may be viewed at:

http://h18006.www1.hp.com/products/storageworks/warranty.html

If this is a trade sale part (product out of warranty), then the replacement

part(s) referred to in these Replacement Instructions is provided under HP’s

express limited warranty statement, which may be viewed at:

http://customerops.corp.hp.com/1sw/pdm_om/warranty_support/policies/

2330100.doc

The replacement part takes on either the Limited Warranty Period of the

part being replaced or a ninety-day period that begins upon installation

of the replacement part, whichever is greater.

The information contained on these replacement instructions is subject to

change without notice. The only warranty for this replacement product is

as noted above. Nothing in these replacement instructions should be

construed as constituting an additional warranty. The information

provided in these replacement instructions is provided “AS IS” and HP is

not liable for technical or editorial errors or omissions contained herein.

Please note that this document is protected by federal copyright law and

that no part of this document may be copied, reproduced or translated

without the prior written consent of Hewlett-Packard Development

Company, L.P.

Printed in Singapore.

Replacement

Instructions

These instructions apply to the MSA1500 cs

and MSA20 product families. The part may

also be used in other HP products. Please

refer to documentation for your specific

product for detailed replacement

instructions.

361699- 001

About this document

This document details the procedures for replacing a failed

power supply in an MSA1500 cs or MSA20 storage product.

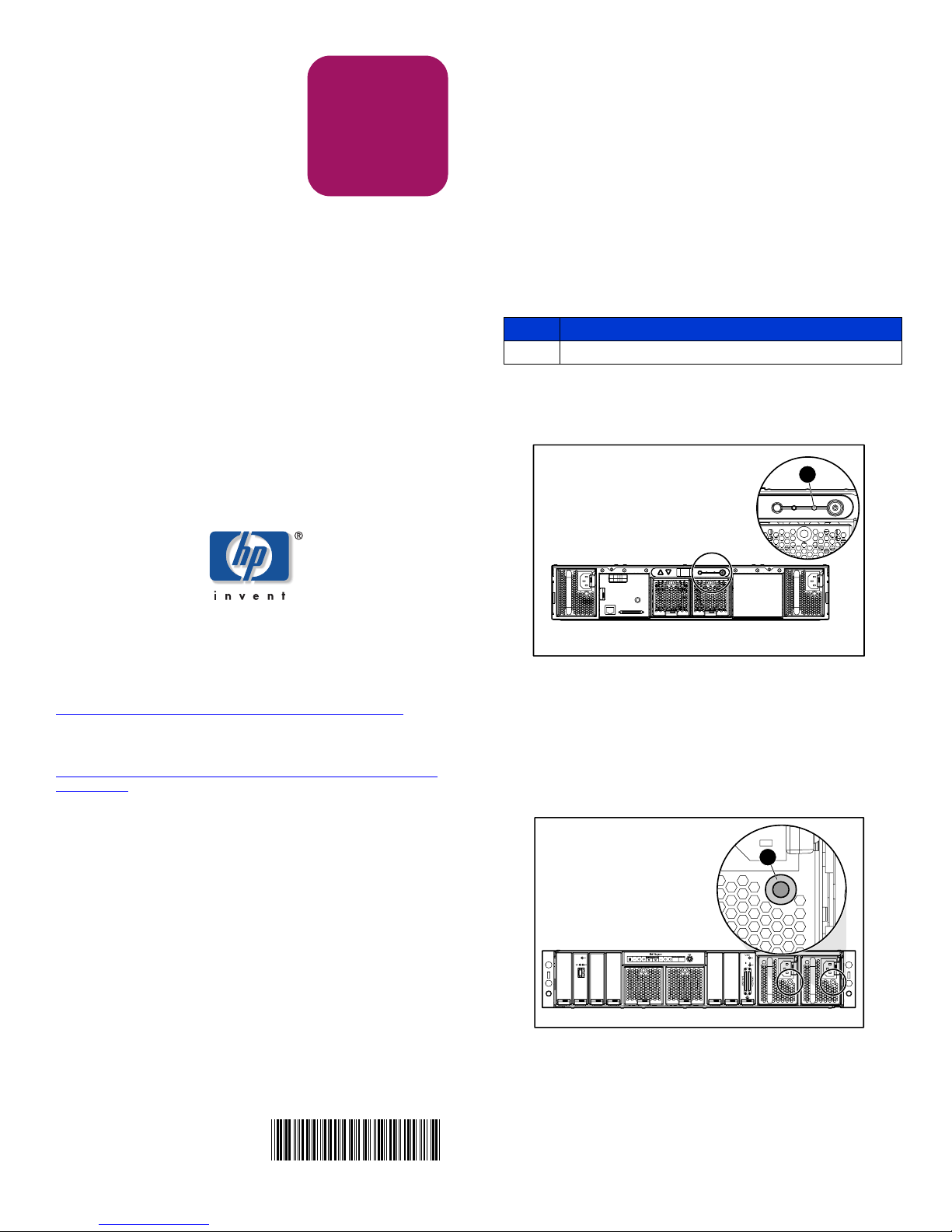

Verifying component failure

Before replacing the power supply, use the following methods

to verify the component failure.

MSA1500 cs

■Check the controller LCD for the error message listed in

Table 1.

MSA20

■The enclosure fault indicator is amber 1.

Figure 1: MSA20 enclosure fault indicator

MSA1500 cs and MSA20

■The power supply indicator on the rear of the module is

flashing amber. 1

■The system has power but the power supply indicator on

the rear of the module is off 1.

Figure 2: Power supply indicator

Table 1: LCD Error Message

No. Message

409 STORAGE BOX #<n> POWER SUPPLY FAILED

Before you begin

Read the following cautions and information before beginning

removal and replacement procedures.

Caution: Be sure the replacement part is available before

removing the failed component. Removing a component

impacts cooling within the enclosure.

Caution: Parts can be damaged by electrostatic discharge.

Use proper anti-static protection. Refer to the

documentation that shipped with your system for additional

information.

Caution: It is important to follow these instructions when

replacing components in the MSA. If the procedure is done

improperly, it is possible to lose data or damage

equipment.

Caution: Before replacing this hot-pluggable component

ensure that steps have been taken to prevent loss of data.

Note: Some of the illustrations in this document may show a

different unit. However, the replacement instructions are the same

for all units in the MSA family using this component.

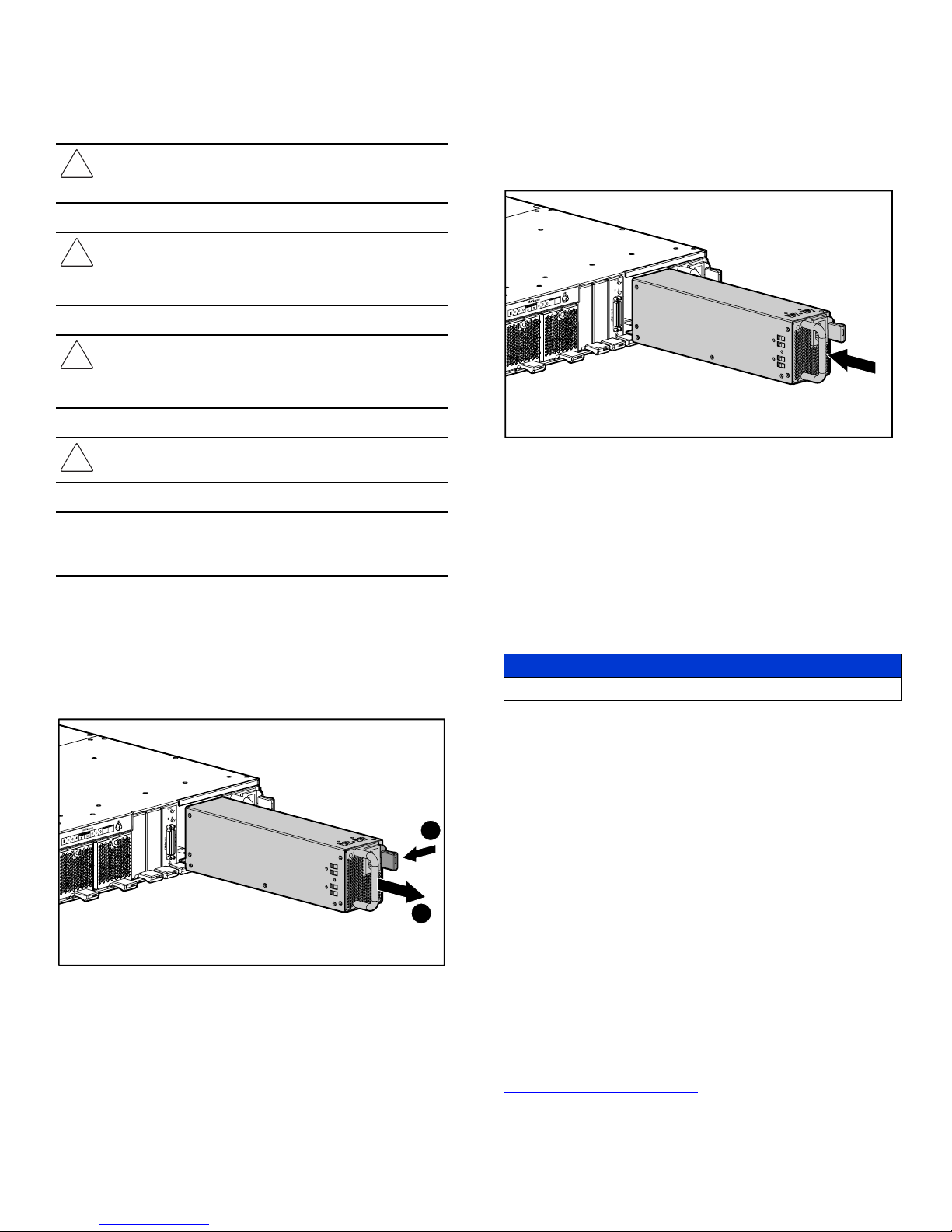

Step 1: Removing the power supply

1. Disconnect the AC power cord from the failed power

supply.

2. While pushing the power supply port-colored module latch

1, pull the power supply out of the enclosure 2.

Figure 3: Removing the power supply

Step 2: Installing the power supply

1. Remove any connector protector that may be covering the

power connector on the front of the new power supply.

2. Install the replacement power supply by pushing the power

supply module latch to the left and pushing in the base until

the assembly is fully seated in the enclosure.

Figure 4: Installing the replacement power supply

3. Connect the AC power cord to the new power supply.

Verifying the replacement

After replacing the failed power supply, verify that:

MSA1500 cs

■Check the controller LCD for the message listed in Table 2.

MSA20

■The MSA20 enclosure fault indicator is no longer

illuminated (Figure 1, 1).

MSA1500 cs and MSA20

■The power supply indicator on the rear of the module is

solid green (Figure 2, 1).

Returning the failed component

Please follow the return instructions provided in the

replacement component package.

Additional information

For additional information on the MSA1500 cs, refer to the

MSA technical documents web site at

http://www.hp.com/go/msa1500cs

For additional information on the MSA20, refer to the MSA

technical documents web site at

http://www.hp.com/go/msa20

Table 2: LCD Verification Message

No. Message

408 STORAGE BOX #<n> POWER SUPPLY OK
