HP C1593B - SureStore DAT Tape 5000e Drive Manuale utente

Tape 5000i, DAT8i

DAT24i, DAT40i

Installation

Guide

HP SureStore DAT Internal Tape Drive

HP SureStore DAT

Installation Overview (Internal Drives)

Internal Drives—Installation Overview

Refer to:

Before you start:

Check the packing list inside this guide. Check system prerequisites.

page 1-2

Step 1: Check the Drive’s SCSI ID

Check the tape drive’s SCSI ID. If necessary change it from the default

of 3 by setting jumpers on the back of the drive.

page 1-6

Step 2: Set the Configuration Switches (UNIX Systems Only)

Check the UNIX configuration switches on the bottom of the drive.

Change the switch settings, if necessary.

page 1-10

Step 3: Prepare the Mounting Bay page 1-11

Switch off the computer and remove its outer casing. Remove the cover

plate from an empty, 5¼-inch, half-height bays. (Keep the screws.) If

your computer has 3½ inch bays, fit the supplied 5¼ to 3½ conversion

kit to the drive.

Step 4: Attach Mounting Rails page 1-14

Attach any mounting hardware (rails or tray) necessary for your

computer. In the box you will find mounting rails for use with

HP Kayak/Vectra/Brio/NetServer E-series, a tray for use with HP

NetServer L-series and mounting rails for non-HP systems.

Step 5: Install the Drive page 1-16

Fit the power cable extension and slide the tape drive into the bay. To

aid fitting cables, do not secure the drive with screws yet.

Step 6: Attach Power and SCSI Cables page 1-17

Attach a spare power cable from the computer’s internal power supply.

Attach the drive to a spare connector on the SCSI ribbon cable.

Step 7: Secure the Drive page 1-19

Secure the drive in place with the provided screws. Replace the

computer’s cover and reconnect cables.

On Completion page 1-20

Power on the system and check the tape drive is operational. Insert the

HP SureStore Tape CD-ROM. It contains drivers, backup software and

many useful utilities. Register your tape drive.

Overview

Limited.

The information contained in this document is

subject to change without notice.

This document contains proprietary information

which is protected by copyright. All rights are

reserved. No part of this document may be

photocopied, reproduced or translated to another

language without the prior written consent of

Hewlett-Packard Limited.

Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential

damages (including lost profits) in connection with

the furnishing, performance, or use of this material

whether based on warranty, contract, or other legal

theory.

November 1999

Part Number: C1555-90909

Printed in the UK.

Windows is a U.S. registered trademark of

Microsoft Corp.

UNIX is a registered trademark of X/Open

Company in the U.S. and other countries.

Product Details

Write your tape drive details here so you can find them easily if you need them. You will find the model

number and serial number on the bottom of the drive.

Model (type of drive):

Model (number):

Serial (number):

Date purchased/installed:

SCSI ID:

Dat-int.bk Page ii Wednesday, May 26, 1999 10:46 AM

iii

Contents

Internal Drives—Installation Overview inside front cover

1Installing an “i” Model Drive (internal)

Before You Start: Check the Contents of the Box 1-2

Before You Start: Check System Prerequisites 1-3

SCSI Host Adapter 1-3

SCSI Ribbon Cable 1-3

Half-Height Bay 1-4

Mounting Rails 1-4

Backup Software 1-5

Step 1: Check the Drive’s SCSI ID 1-6

Installing and Using HP TapeAssure 1-8

Step 2: Set the Configuration Switches

(UNIX Systems Only) 1-10

Step 3: Prepare the Mounting Bay 1-11

Using the Conversion Kit 1-12

Step 4: Attach Mounting Rails 1-14

Step 5: Install the Drive 1-16

Step 6: Attach Power and SCSI Cables 1-17

Step 7: Secure the Drive 1-19

On Completion 1-20

Use Correct Media 1-20

Check Drive Operation 1-21

Insert the HP SureStore Tape CD-ROM 1-22

Limited Warranty Statement for USA, Canada, Australia and New

Zealand 1-25

2 Installation Troubleshooting

Save Yourself a Call 2-2

Problems with Your Computer 2-2

Problems with Your Internal Tape Drive 2-3

Other Sources of Information 2-4

HP Tape Tools 2-4

HP SureStore Tape CD-ROM 2-4

HP Web Site 2-4

Dat-int.bk Page iii Wednesday, May 26, 1999 10:46 AM

Index

Regulatory Information

Dat-int.bk Page iv Wednesday, May 26, 1999 10:46 AM

Installing an “i” Model Drive

(internal)

HP SureStore models covered:

• Tape 5000i

•DAT8i

• DAT24i

• DAT40i

Dat-int.bk Page 1 Wednesday, May 26, 1999 10:46 AM

HP SureStore DAT

Installation Guide

1-2

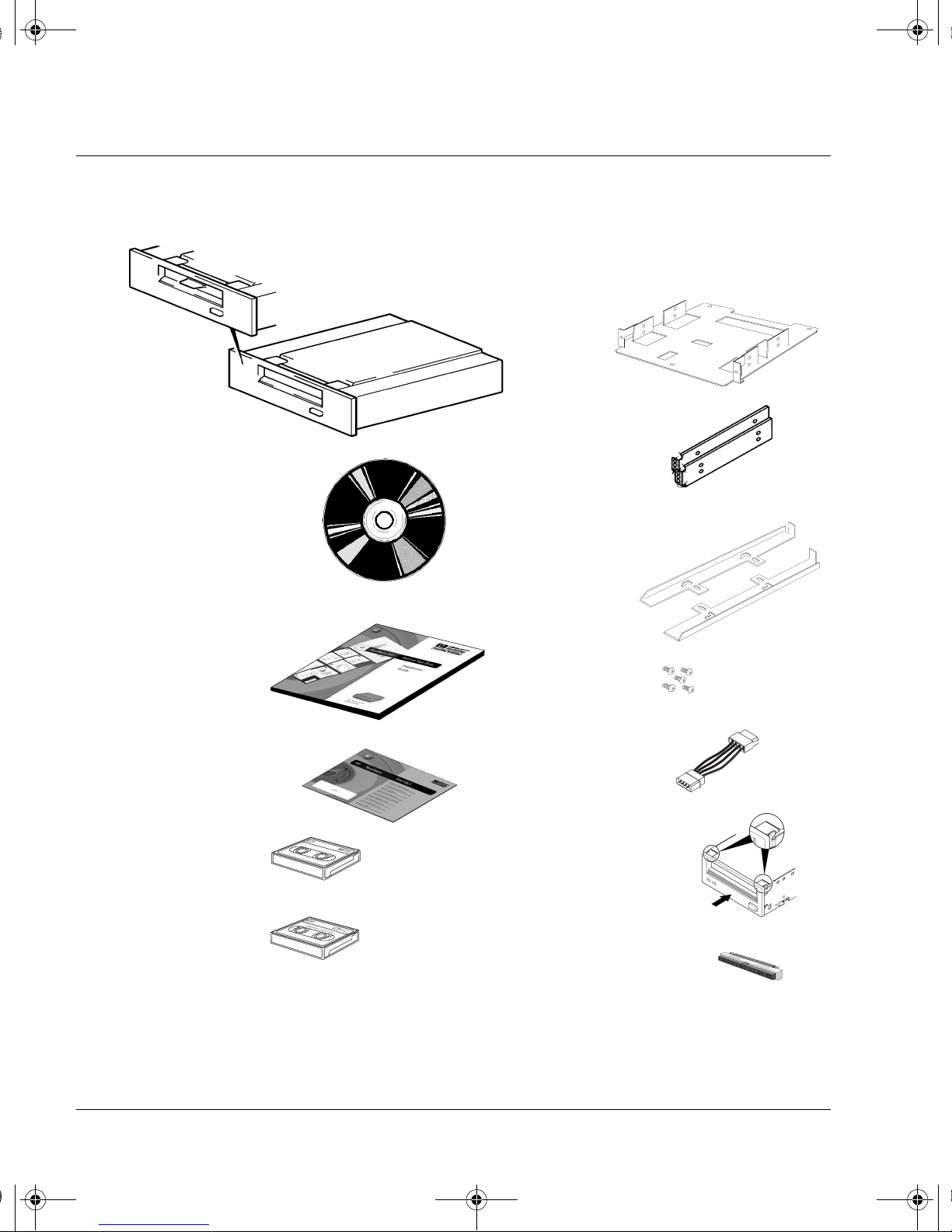

Before You Start: Check the Contents of the Box

The following equipment is supplied with your HP SureStore DAT drive.

If anything is damaged or missing, contact the delivery company or your

supplier. Spare jumpers for the drives’ SCSI ID switch may also be

supplied.

❑HP SureStore

DAT drive

❑HP NetServer

L- s e ri e s

tray

❑Compaq rails

(with DAT8i,

DAT24i and

DAT40i

models only)

❑Cleaning cartridge

❑DDS-format

data cartridge

❑Warranty Registration

Card and label

❑HP Vectra/

Kayak/Brio/

NetServer

E-series rails

❑

Installation Guide

(Please discard

unneeded

languages

in recycling bin.)

❑Set of four

screws (+ one

spare)

❑Power

extension

cable

❑5¼to 3½-inch

conversion kit

❑50-to-68-pin

adapter (not for use

with DAT40 drives)

❑

HP SureStore Tape

CD-ROM containing:

• HP TapeAssure software

• TapeAlert utility

• Drivers

• Backup software

• HP Tape Tools

• Electronic

User’s Guide

• Media and accessories

information

Dat-int.bk Page 2 Wednesday, May 26, 1999 10:46 AM

HP SureStore DAT

Installation Guide

1-3

Before You Start: Check System Prerequisites

To install and use your new tape drive, you will need the following:

• SCSI host adapter

• SCSI ribbon cable

• Available 5¼-inch (or 3½-inch), half-height bay

• Mounting hardware, if required

• Backup software that supports the tape drive

SCSI Host Adapter

You need a properly installed and configured SCSI host adapter or a built-

in SCSI controller on your computer’s motherboard (SCSI-2 or SCSI-3

compliant). Consult your supplier for details.

Ifyouare installingon a Windows®95,Windows98,WindowsNTor Novell

NetWare system, you can use HP TapeAssure to check your computer’s

SCSI configuration, as directed on page 1-6.

HP SureStore DAT Drives and SCSI

AllHPSureStoreDATdrives, apartfromtheHP SureStore DAT40arefast

narrow SCSI devices and should be connected to a single-ended (SE) host

bus adapter.

The HP SureStore DAT40 drive is an ultra wide SCSI device. For optimum

performance it should be connectedtoa low voltagedifferential(LVD)SCSI

host adapter. HP SureStore DAT40 drives may also be connected to SE

(single-ended) SCSI host adapters, but cable length will be restricted to the

SE rather than the LVD specification.

If you would like more information on SCSI specifications and configuring

your SCSI bus, read the “SCSI Background” topic in the “Before You Start”

section of the electronic User’s Guide on the HP SureStore Tape CD-ROM.

SCSI Ribbon Cable

You need a SCSI ribbon cable with the correct termination.

Tape 5000, DAT8 and DAT24 drives have a 50-pin narrow SCSI connector.

If your computer uses wide SCSI, use the supplied 50-to-68-pin adapter to

connect the drive (50 pins) into the wide SCSI bus (68 pins).

Dat-int.bk Page 3 Wednesday, May 26, 1999 10:46 AM

HP SureStore DAT

Installation Guide

1-4

The DAT 40 drive has a 68-pin wide, high-density SCSI connector. If your

computer uses narrow SCSI, use a 68-to-50-pin adapter to connect the

DAT40 drive (68 pins) into the narrow SCSI bus (50 pins). This adapter

must be purchased separately (part number C7423A). See the electronic

DAT Media and Orderable Accessories Guide on the HP SureStore Tape

CD-ROM for ordering information.

Half-Height Bay

Youneeda5¼-inch,half-height bayinwhichto installthetapedrive.Ifyou

have 3½-inch bays, use the supplied 5¼ to 3½-inch conversion kit.

Mounting Rails

For many servers, no tray or rails are required. Devices simply slide into

the computer’s chassis and are fixed with screws.

Some servers require special mounting tray or rails to fix the drive into the

empty bay. The drive comes with mounting hardware for HP NetServer L-

series, E-series, Kayak, Brio and Vectra computers and, for DAT8i, DAT24i

and DAT40i drives only, Compaq servers. (Not all HP NetServer E-series

and Compaq servers require rails.)

Rails for Dell servers may be ordered separately. Different models of server

require different rail kits.

• Order HP accessory C5731A for Dell 2100/2200 servers

• Order HP accessory C5732A for Dell 2300/4100/6100 servers

• Order Dell accessory 86194 for Dell 4300/6300 servers

Other computers use non-standard mounting rails and do not include

spares. If this is the case with your system, you will have to order these

accessories from the computer manufacturer before you can install the tape

drive.

Dat-int.bk Page 4 Wednesday, May 26, 1999 10:46 AM

HP SureStore DAT

Installation Guide

1-5

Backup Software

You need backup software that supports the drive.

Applicationsusuallyrecognizetapedrives bytheirmanufacturers’ internal

identifiers rather than their model numbers, so check the table below for

the appropriate reference for your model.

The HP SureStore Tape CD-ROM contains backup software, as well as

drivers, useful utilities and information about using your tape drive. See

page 1-22 for more information about using the HP SureStore Tape

CD-ROM.

Drive Model Internal Identifier

HP SureStore Tape 5000 HP 35480A

HP SureStore DAT8 HP C1533A

HP SureStore DAT24 HP C1537A

HP SureStore DAT40 HP C5683A

Dat-int.bk Page 5 Wednesday, May 26, 1999 10:46 AM

Altri manuali per C1593B - SureStore DAT Tape 5000e Drive

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Magazzinaggio

HP S700 Pro 2.5 Manuale utente

HP StorageWorks vs80 Manuale utente

HP StorageWorks P4000 Series Manuale utente

HP P9000 Manuale di istruzioni

HP StorageWorks P4000 Series Aggiornamento firmware

HP StorageWorks 8B - FC Entry Switch Manuale utente

HP StorageWorks P4000 Series Manuale utente

HP P9000 Manuale utente

HP Surestore 64 - Director Switch Manuale utente

HP Surestore Disk Array 12h - And FC60 Manuale utente

HP P9000 Manuale utente

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Manuale di istruzioni

HP Surestore 6164 - Switch Manuale utente

HP 6400/8400 Manuale utente

HP P9000 Manuale utente

HP StorageWorks 8B - FC Entry Switch Manuale utente

HP STOREEVER LTO 4 Manuale utente

HP MSA 2040 Manuale di programmazione

HP A5585A - SureStore DLT E Tape Library 4/40 Manuale

HP StorageWorks 2405 - Disk System Manuale elenco delle parti

HP StoreOnce 3100 Guida utente

HP StorageWorks P2000 Manuale utente

HP Surestore XP256 - Disk Array Manuale utente

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente

Dell

Dell PowerVault MD3600f Series Manuale utente

CFI

CFI TERA STOR SATA RAID IV Manuale utente
