HP Surestore 64 - Director Switch Manuale utente

Model A6534A hp surestore director fc-64

Installation Guide

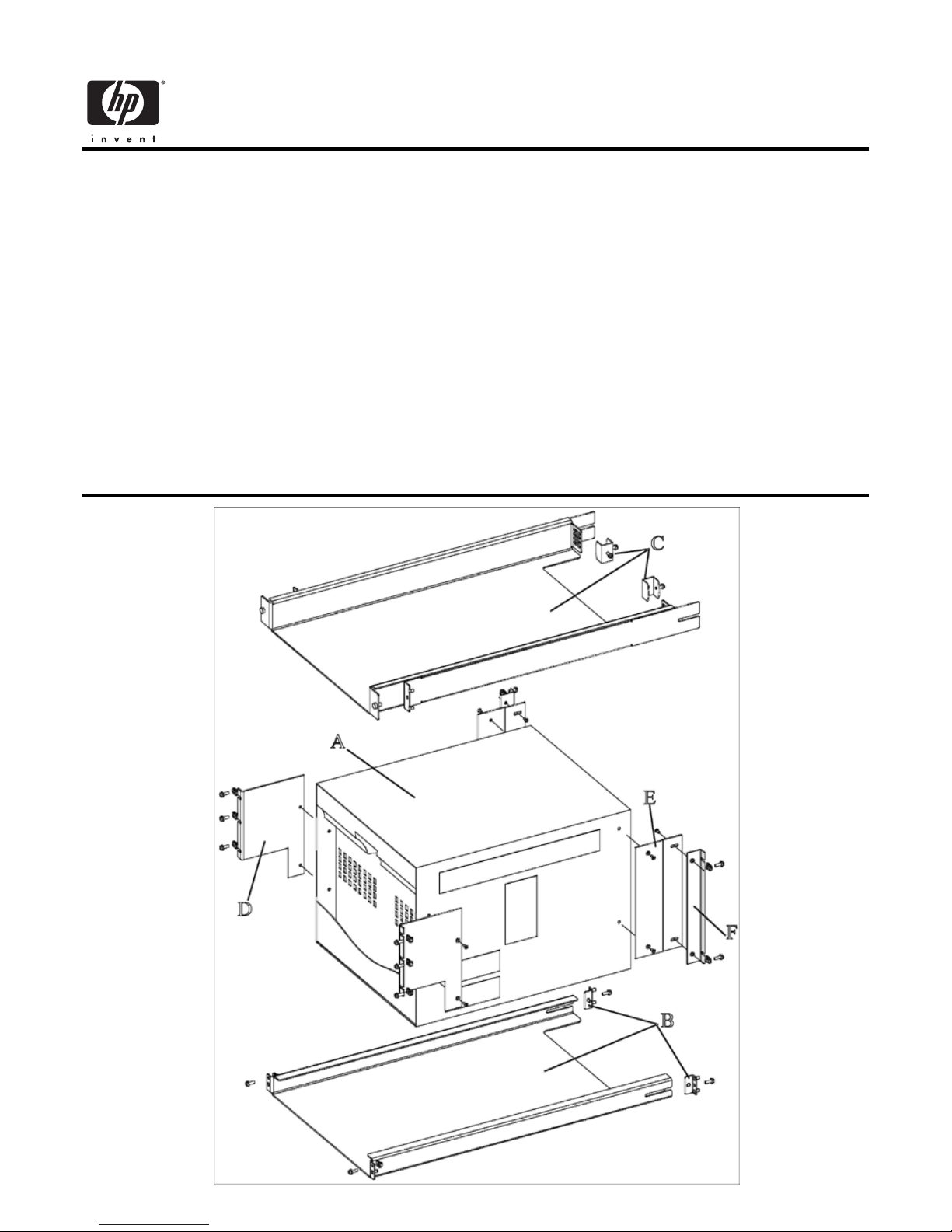

Contents

(A) hp surestore director fc-64 (PN A6534-62001)

(B) Rail Tray Kit (PN A6534-60016):

• Rail tray (1)

• Mounting brackets (2)

• M5 Tinnerman nuts (2)

• Torx T25 16mm M5 SEM screws (4)

Station (PN J1526-60001):

• Shelf with attached rails (1)

• Mounting brackets (2)

• Torx T25 16mm M5 SEM screws (4)

(D, E, & F) Mounting Hardware:

• Rack mount brackets(PN A6534-60014) containing front

mounting brackets (2), rear mounting brackets (2), and

angle brackets (2)

• Switch rack hardware (PN A6534-62002) containing Torx

T25 16mm M5 SEM screws (22, includes extras), sheet

metal nuts (18), and 10-32 flat-head Phillips screws (8,

includes extras)

Tools Needed:

• Phillips head screwdriver, no.2

• Torx head driver T25

General Information: The 15Us used to mount the switch

are called U1 through U15; U1 is the lowest of the 15Us.

Notice

The information contained in this document is subject to change without

notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limit to, the implied warranties of

merchantability and fitness for a particular purpose. Hewlett-Packard shall

not be liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing performance, or use of this

material.

This document contains proprietary information that is protected by

photocopied, reproduced, or translated to another language without the

prior written consent of Hewlett-Packard Company.

H2 of 8

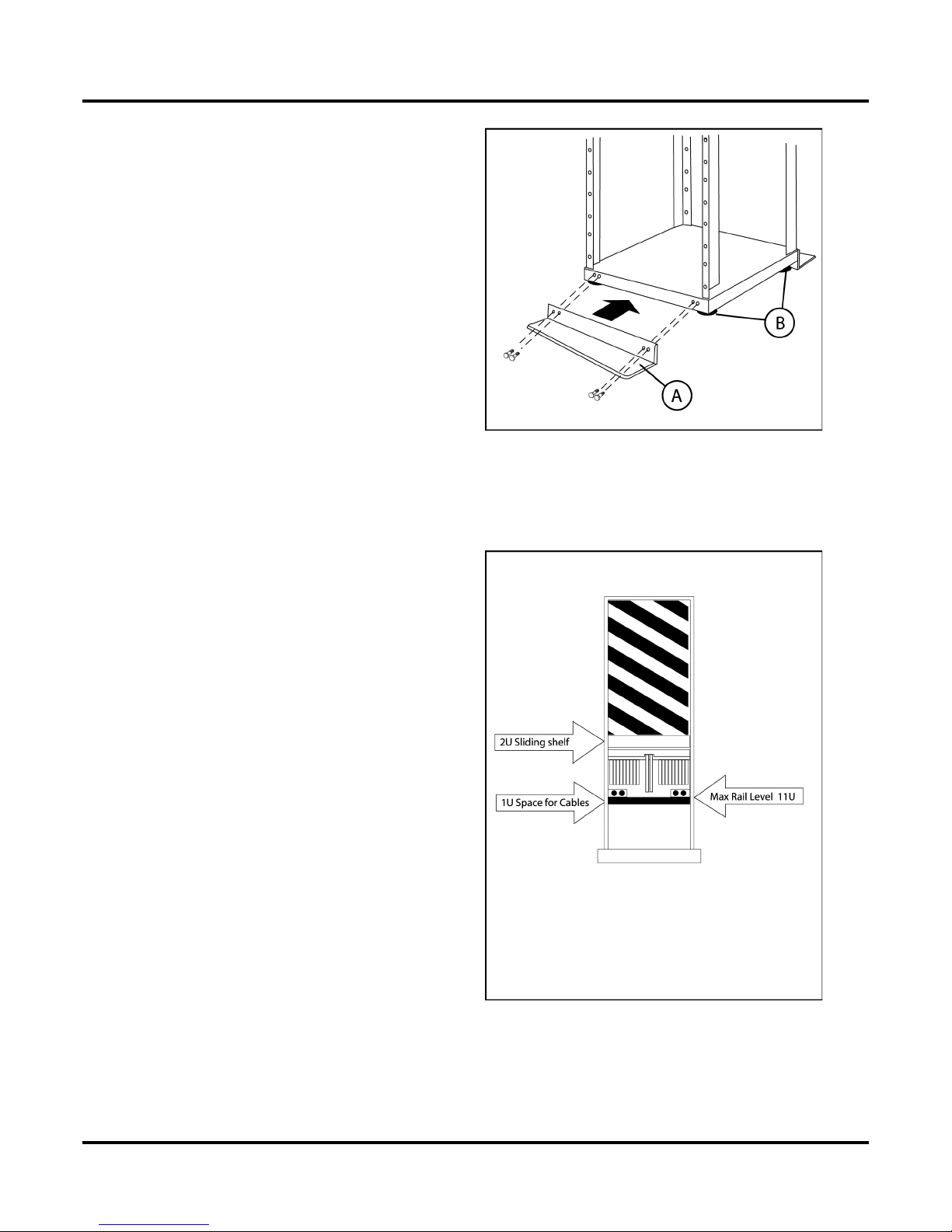

Step 1: Mount the anti-tip feet

(HP Rosebowl II rack only)

Place the anti-tip feet (A) on the front and back of the

rack base. Use the supplied hardware to bolt the feet

to the base of the rack. Be sure to lower the rack feet

(B) until they touch the floor.

Step 2: Select the mounting location for

the rail tray

The rail tray will be mounted 1U below the switch.

Because the switch should be mounted no higher

than U11, the tray should be mounted no higher than

U10. Make sure there are at least 2Us above the top

of the switch empty for the sliding shelf.

3 of 8 H

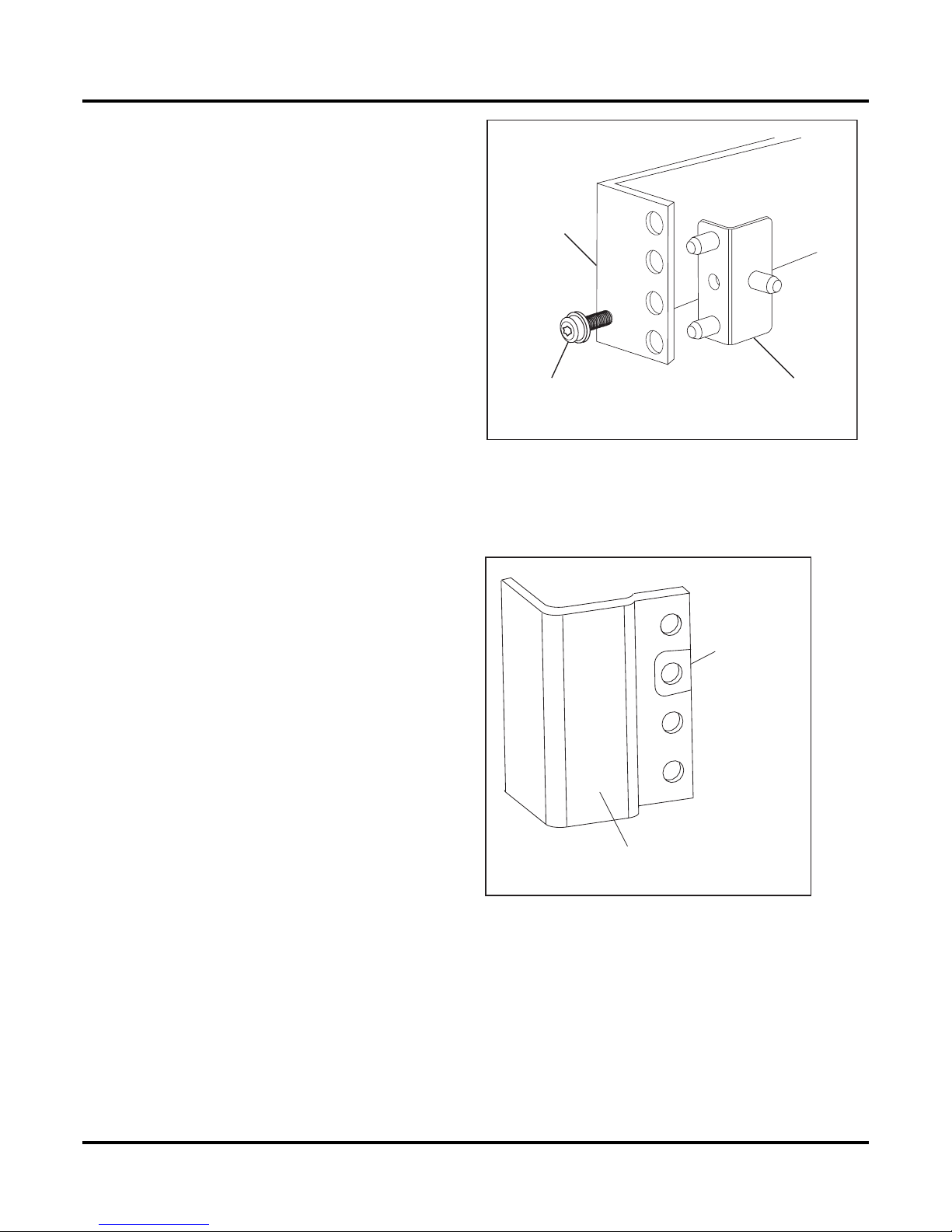

Step 3: Position and attach the rear

brackets

Locate the lowest U of the 15 you chose for mounting

the switch (the lowest being U1). Attach the rear rail-

tray brackets to the rear rack uprights at U1. Use one

M5 Torx screw for each bracket.

Step 4: Install the Tinnerman nuts on the

front uprights

Install the Tinnerman nuts for the top holes of U1 in

both of the rack’s front uprights.

M5 Screw

with attached

lock washer

HP rack

Rear Tray

bracket

Tinnerman

nut

Outer surface of

HP rack

H4 of 8

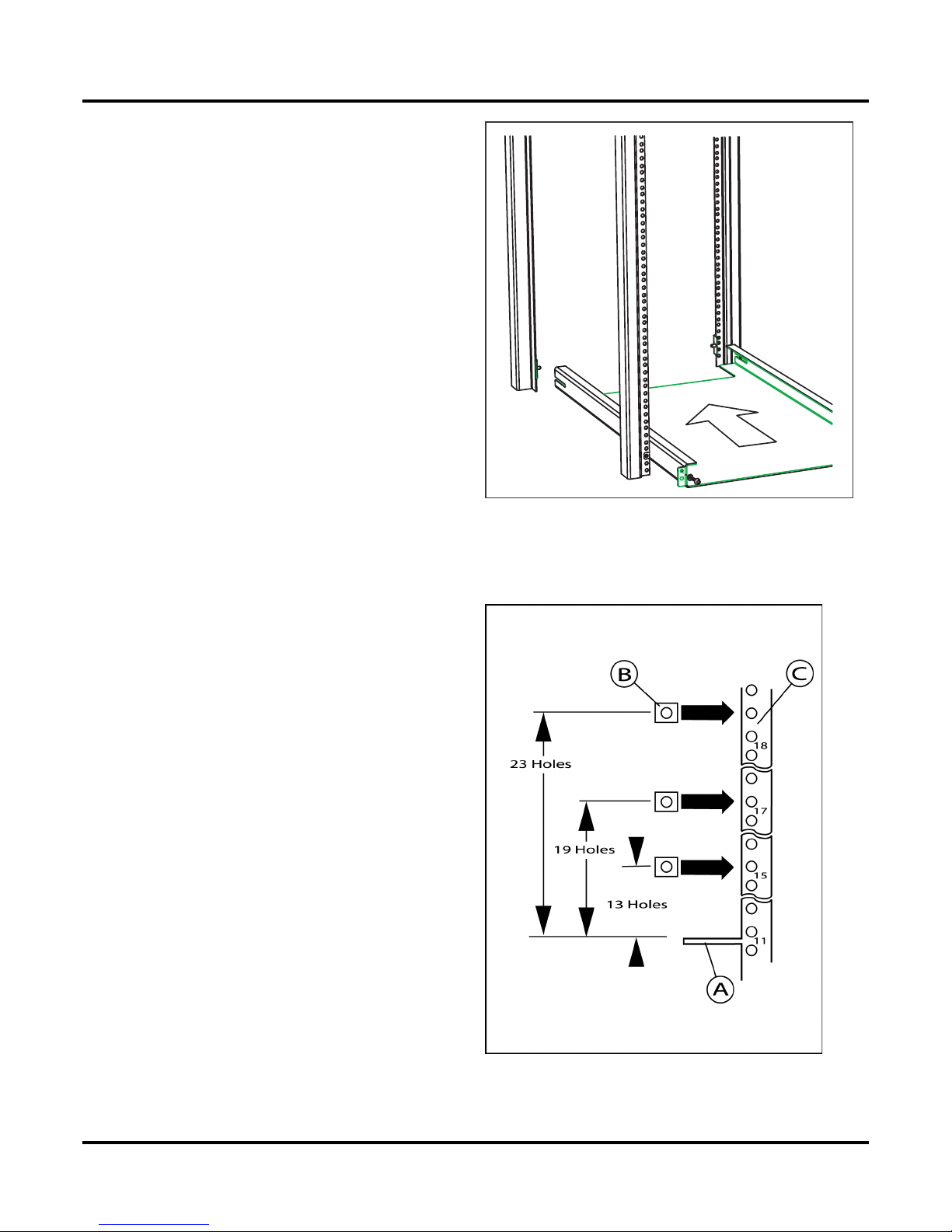

Step 5: Insert the rail tray in the rack

Position the rail tray as shown in the following figure

and insert it into the rack from the front. The slots in

the sides of the rail tray must slide over the posts on

the rear rail-tray brackets, and the posts on the rail

tray’s front mounting flanges must be inserted in the

center holes of U1.

Step 6: Secure the rail tray

Insert the M5 Torx screws through the top holes in

both of the rail tray mounting flanges. The screws

pass through the holes in the rack uprights and

thread into the Tinnerman nuts you installed on the

uprights in Step 4. Tighten the screws.

Step 7: Prepare the front rack columns

Standing at the front of the rack, count up from the

top of the rail tray (A) to the 13th, 19th, and 23rd

holes on the rack's front face.

Slide a sheet metal nut (B) on each of the located

holes. You should have three sheet metal nuts on

each front column face (C).

5 of 8 H

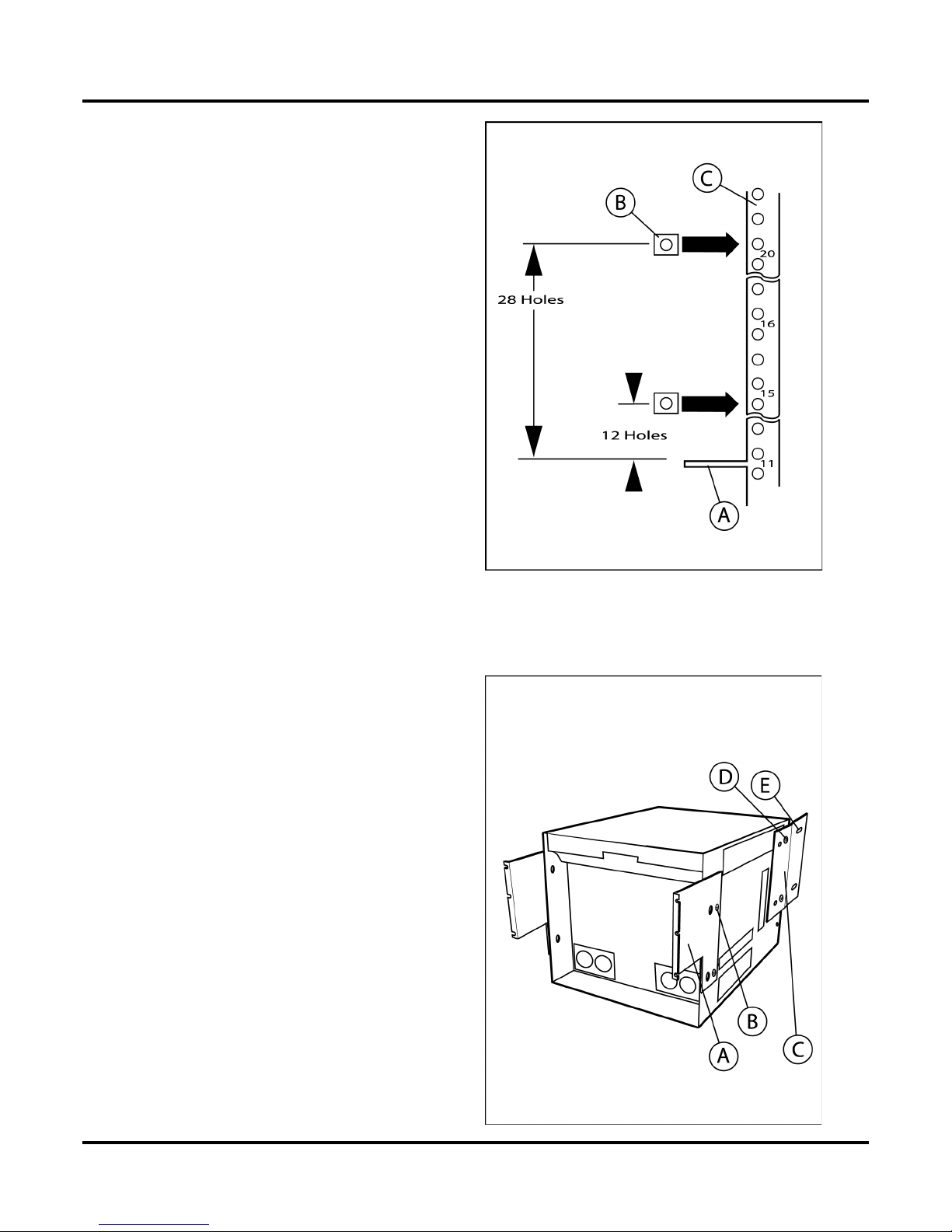

Step 8: Prepare the back rack columns

Standing at the back of the rack, count up from the

the top of the rail tray (A) to 12th and 28th on the

rack’s back face.

Slide a sheet metal nut (B) on each of the located

holes. You should have two sheet metal nuts on each

back column face (C).

Step 9: Install the rack mount kit on the

switch

Position the front mounting bracket (A) so that its

angled side faces out and it is on upper part of

switch's side. Using the two center threaded holes on

the front side of the switch, attach the bracket with

flat-head Phillips screws (B). Attach the front

mounting brackets on both sides of the switch.

Position the rear mounting bracket (C) so that its

center holes (D) line up with the first and third

threaded holes on the back portion of the switch's

side. The slotted end (E) of the bracket should face

towards the back of the switch. Using two flat-head

Phillips screws, attach the rear mounting bracket to

the switch. Attach both rear mounting brackets.

H6 of 8

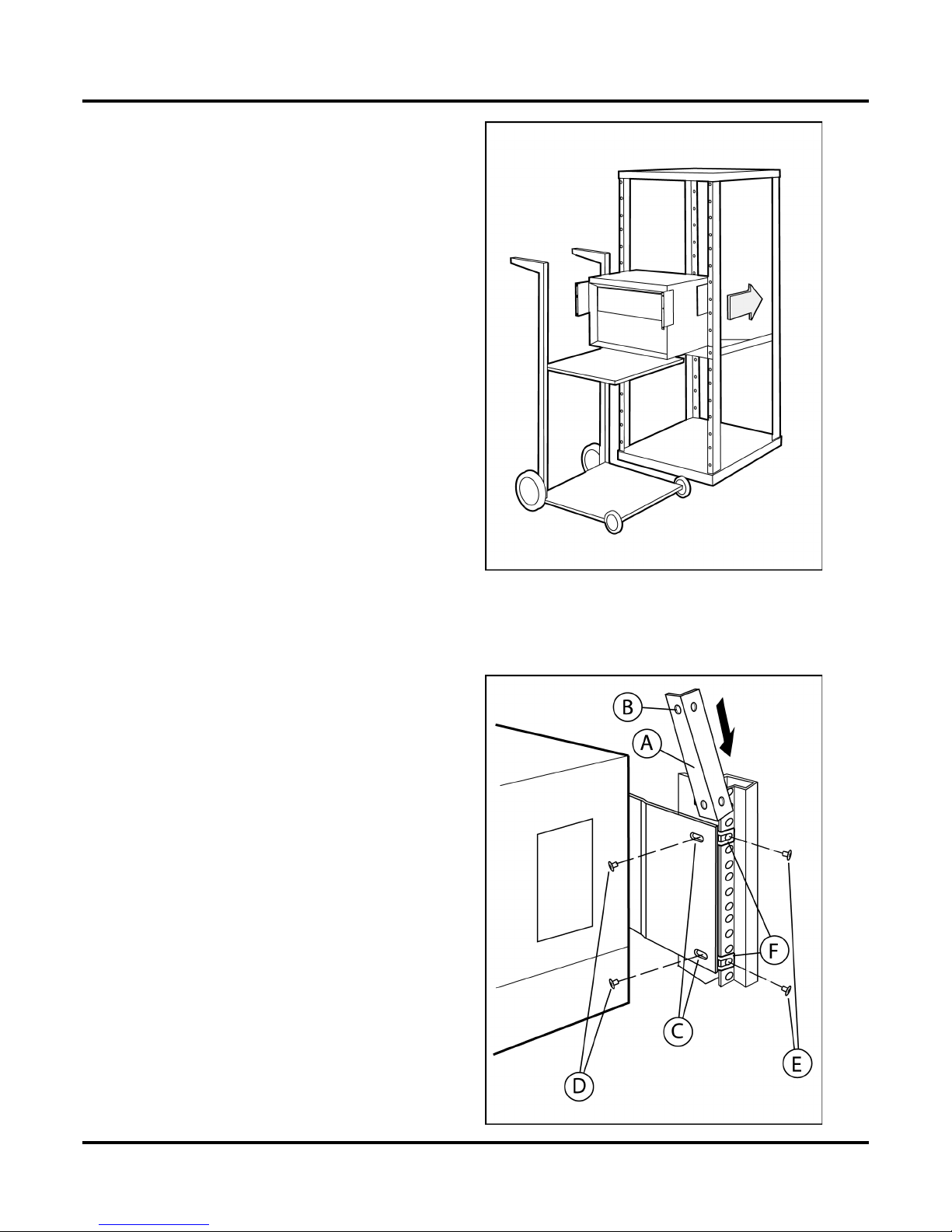

Step 10: Position the switch on the rails

Using a lifting jack, position the switch. Slide the

switch back on the rails until the front mounting

brackets are against the front rack columns.

The use of the Genie Load Lifter is recommended.

Step 11: Mount the switch in the rack

On one side of the back of the switch, position an

angle bracket (A) so that its threaded holes (B) are

against the slots (C) of the rear mounting bracket and

its angled side faces out. Insert the screws (D)

through the rear mounting bracket's slots into the

threaded nuts of the angle bracket. Insert a second

set of screws (E) through the angle bracket and the

rail column into the sheet metal nuts on the back rail

(F).

Repeat the steps above for the other side of the back

of the switch.

At the front of the rack, insert the screws through the

front mounting brackets into the sheet metal nuts that

you installed in the rail columns in Step 7. Tighten the

screws.

7 of 8 H

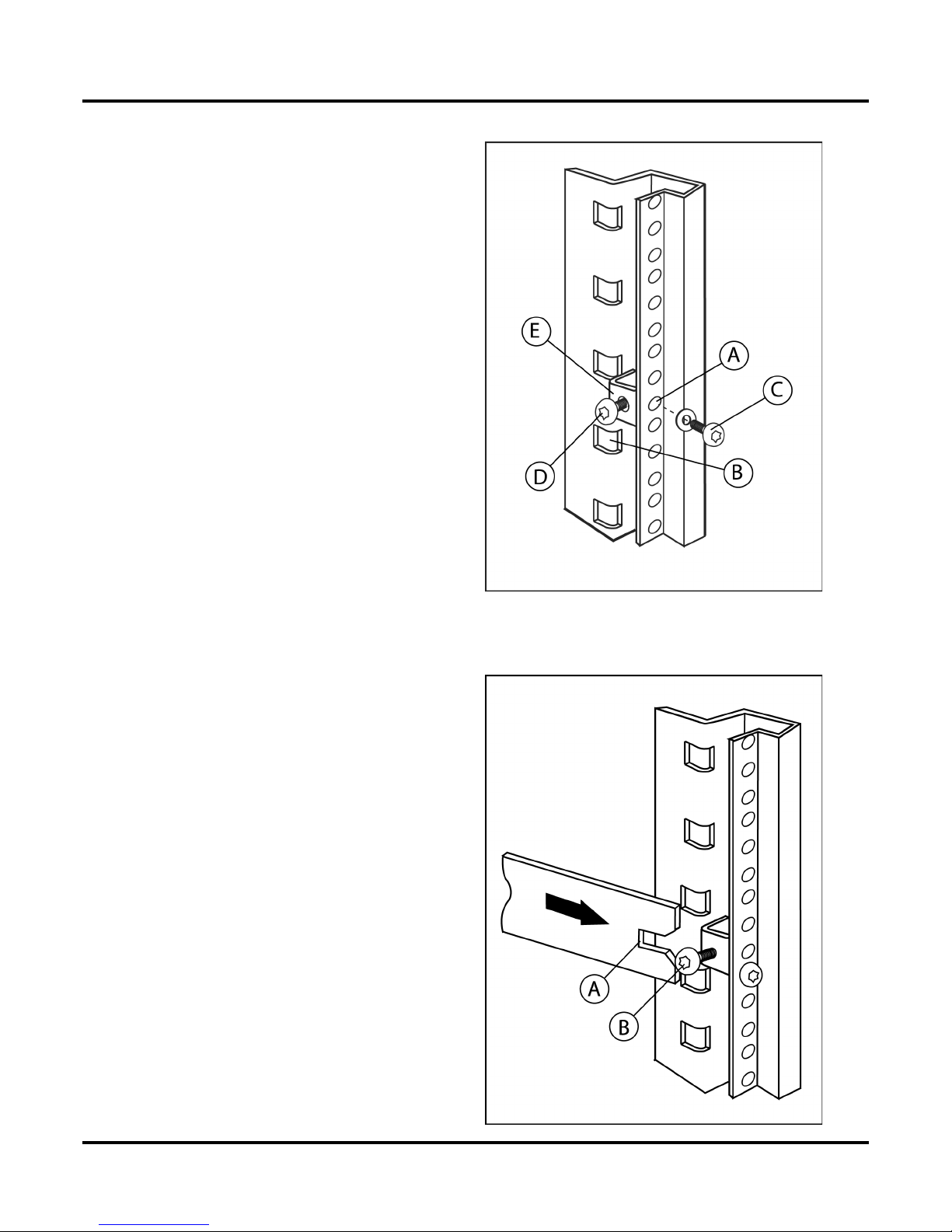

Step 12: Install the sliding shelf brackets

(Management Station only)

Select a U slot above the switch.

On each back column of the rack, locate the hole (A)

that is 2 holes up from the EIA number of the

selected U slot (B). Line up this hole with the

threaded hole on the bracket's side. Using a screw

(C), attach the rack to the bracket. Attach another

screw (D) loosely in the hole on the inside face of the

bracket (E).

Slide the shelf into the rack. Each rail's back slot (A)

should slide over the loose screws (B) on the

brackets' inside faces.

H8 of 8

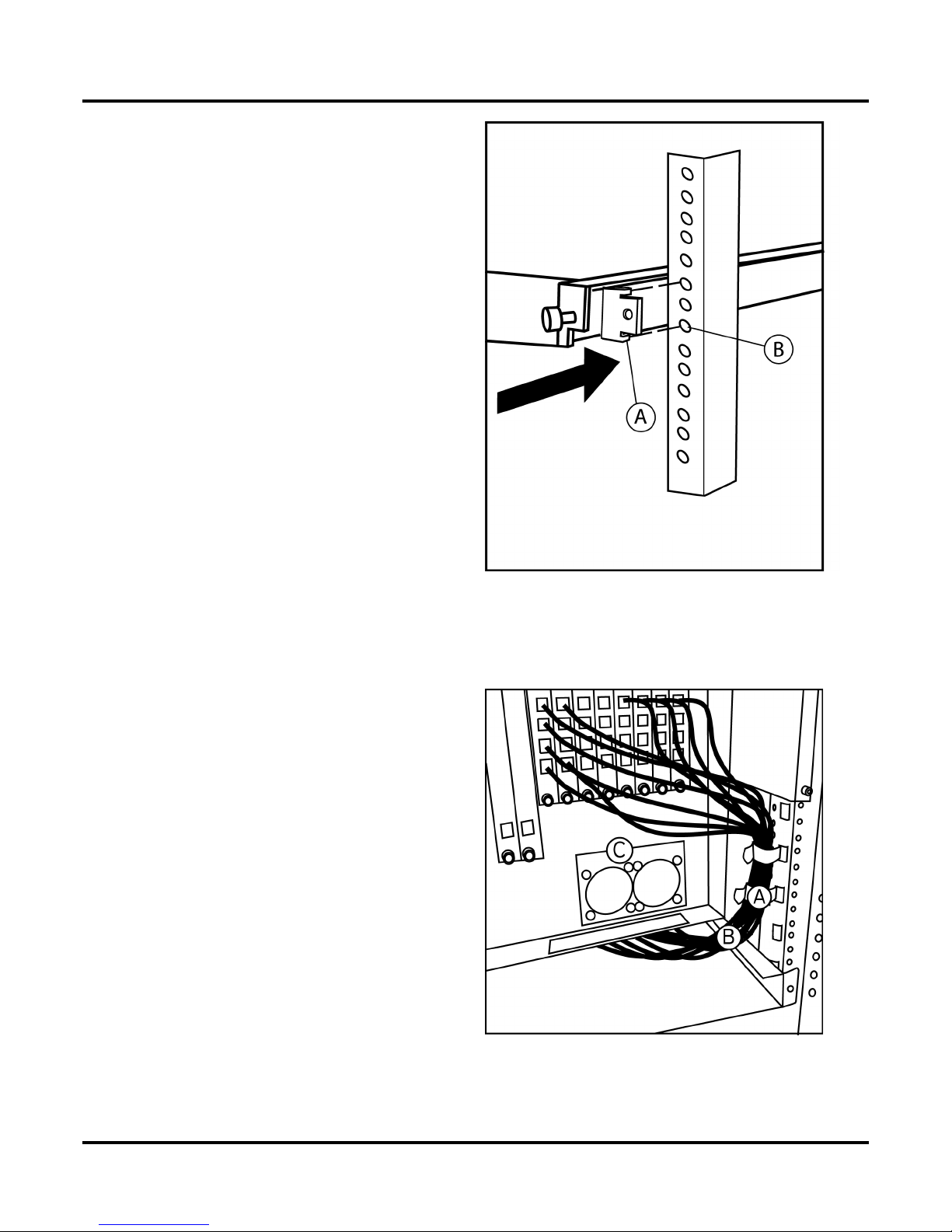

Step 12: Install the sliding shelf brackets

(Management Station only) - continued

Make sure that the shelf and rails are horizontal.

Push the rails' front tabs (A) into the corresponding

holes on the rack columns (B).

At the back of the rack, tighten the screws that attach

the shelf rails to the mounting brackets.

Recommended Cable Management

Perform the following instructions after installating

the switch:

• Install two cable restraints on each side of the

rack (A) in positions that will hold the Fibre

Channel cables away from the power supply.

• Form loose bundles of the installed Fibre

Channel cables (B) on the right and left sides.

• On each side, wrap the cable bundles with the

cable restraints in two positions that maintain

clearance for power supply access (C).

Printed in USA 01/02

A6534-96010

*A6534-960010*
