english

The shredder is designed exclusively for de-

stroying paper. Depending on the cutting type, it

can also handle small quantities of the following

materials:

Shred width (mm) 3.9 5.8 1.9x15 3.9x30

Credit and charge cards ●●●●

CDs ●

Its sturdy drive mechanism is not damaged by

paper clips and staples.

The warranty period for the document shredder

is 2 years. In addition, there is a 10 year guar-

antee on the solid steel blade rollers. This war-

ranty and guarantee exclude wear and damage

caused by improper handling or actions taken

by third parties.

Keep paper shredder out of the

reach of children. Do not let the

shredder run if the person using it

is not present.

Switch the shredder off and dis-

connect it from the mains if it is

damaged, not working correctly or

before relocating or cleaning it.

Service work may only be carried

out by HSM Customer Service or

by the service technicians of our

contractual partners.

• Make sure the mains plug is easily accessi-

ble.

• Before plugging in the mains plug, check

that the voltage and frequency of your local

mains supply correspond to those stated on

the type plate.

• This paper shredder should never be placed

near or over a radiator or heat source. The

ventilation slots must not be blocked or cov-

ered and they must be at a distance of at

least 5 cm away from walls or furniture.

•

Make sure no liquid is spilled on or in the paper

shredder.

• Read the operating instructions before

switching on the document shredder. Save

these instructions for later use.

• Follow all warnings and instructions marked

on the product!

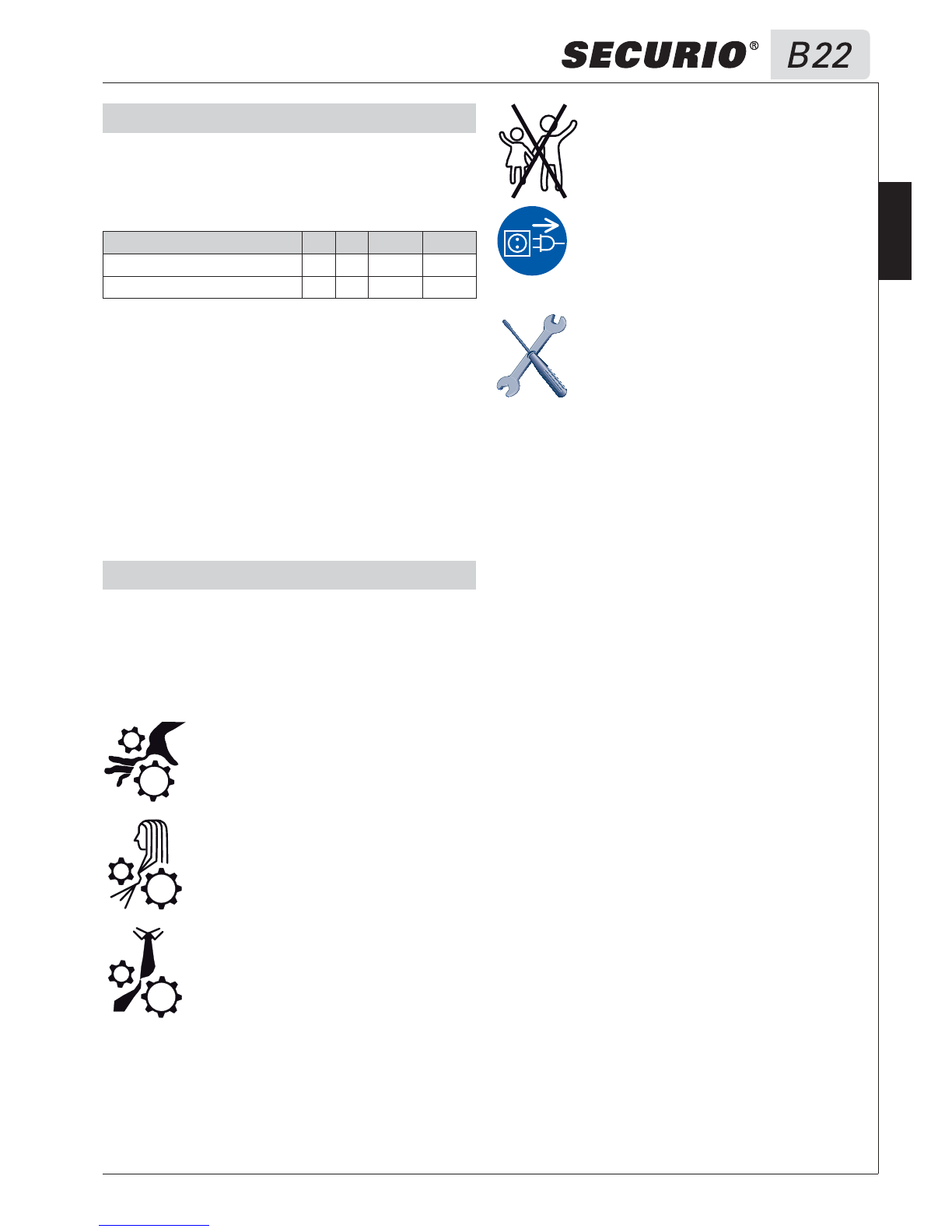

Risk of injury!

Do not reach into the paper feed

slot.

Risk of injury from being pulled

in!

Keep long hair, loose articles of

clothing, ties, scarves, jewellery,

etc. away from feed opening.

Material with the tendency to form

loops, e.g. tapes, strapping mate-

rial, etc. must not be shredded.

Danger of injury by splinters!

Wear protective goggles when

destroying CDs and hard credit

cards.

1 Proper use, warranty

2 Safety instructions

Translation of the original operating instructions

0804 7

http://www.monomachines.com

english

3 Machine components

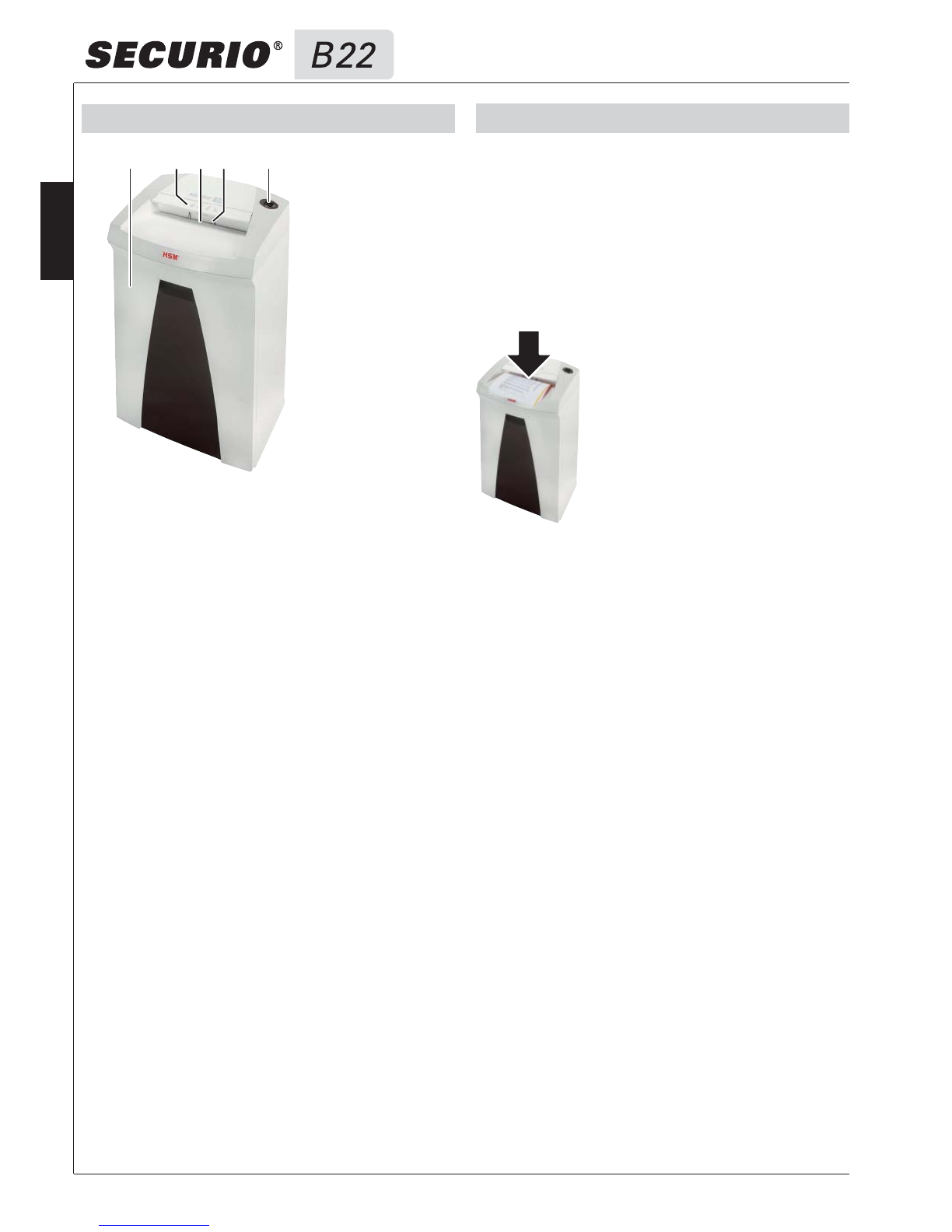

1 2 3 4 5

1 Cut material container

2 Safety instructions

3 Paper feeding opening

4 Automatic start stop control

5 Rocker switch

I: On

R: Off, Reverse

4 Operation

Switching the paper shredder on

• Press rocker switch „I“.

Rocker switch locks in place.

hPaper shredder is ready for op-

eration (standby).

Feed paper

• Insert the paper to be destroyed.

See “Technical data” for sheet

capacity.

hAutomatic start stop control

starts the cutting system auto-

matically.

hPaper is pulled into cutting

system and shredded.

hWhen the paper feeding open-

ing is free again, the cutting sy-

stem automatically switches off

after approx. 3 sec. and returns

to standby.

Switching paper shredder off

• Tap rocker switch „R“.

hSwitch returns to zero position.

8 0804

http://www.monomachines.com

0804 9

Paper jam

You have fed in too much paper.

NOTICE! Do not press rocker switch alter-

nately forwards/backwards („I“

„R“).

Cutting unit could be damaged.

• Press rocker switch „R“.

h Paper is pushed out.

• Separate paper stack.

• Press rocker switch „I“.

• Feed in paper sheets.

Shredded material container full

NOTICE!

Empty the cut material container

immediately, because if it is too full,

malfunctions can occur in the cutting

system.

• Switch equipment off. To do this tap

rocker switch „R“.

• Empty cut material container.

Shredded material container contact

interrupted

hDocument shredder switches off.

• Check whether shredded material

container is correctly inserted in bot-

tom frame.

For all other malfunctions, check whether the

motor was overloaded before contacting our

customer service. Let the shredder cool down

for approx. 15 – 20 mins. before using it again.

5 Troubleshooting

Switch off the shredder and pull out the mains

plug. When cleaning only use a soft cloth and

a mild soap-water solution. However, no water

must enter the equipment.

Oil the cutting unit when

cutting performance de-

creases or the device be-

comes noisy, or every time

you empty the waste con-

tainer (Cross cut only):

• Spray special cutting apparatus oil on to the

cutting rollers along the entire width of the

paper feed opening.

• Run cutting system backwards (pos. “R”)

without feeding paper.

hPaper dust and particles are shaken off.

Note:

Oiling the cutting unit also improves the cutting

performance of devices with strip cut.

6 Cleaning and maintenance

english

http://www.monomachines.com

english

8 Technical data

EC Declaration of Conformity

Machinery directive 98 / 37 / EC

EMC directive 2004 / 108 / EC

Low voltage directive 2006 / 95 / EEC

The manufacturer HSM GmbH + Co. KG, Bahnhofstraße 115, D-88682 Salem, Germany declares herewith, that the

paper shredder SECURIO B22 corresponds with the above mentioned EC Machine Directive including all relevant

modiﬁcations.

Applied standards and technical speciﬁcations:

• EN 55014-1:2000 + A1:2001 + A2:2002 • EN 61000-4-4:1995 + A1:2001 + A2:2001

• EN 55014-2:1997 + A1:2001 • EN 61000-4-5:1995 + A1:2001

• EN 61000-3-2:2000 + A2:2005 • EN 61000-4-6:1996 + A1:2001

• EN 61000-3-3:1995 + A1:2001 • EN 61000-4-11:1994 + A1:2001

• EN 61000-4-2:1995 + A1:1998 + A2:2001 • EN 60950-1:2006

• EN 294:1992

Salem, 02.11.2007

Rolf Gasteier - Technical Manager

Cutting type Strip cut Cross cut

Cut size (mm) 5.8 3.9 3.9 x 30 1.9 x 15

Security level DIN 32757 - 1 2 2 3 4

Cutting capacity (sheets), A4 70 g/m2

80 g/m2

22 - 24

17 - 19

16 - 18

13 - 15

12 - 14

9 - 11

7 - 9

Cutting speed 80 mm/s 90 mm/s

Weight 11 kg 12 kg

Intake width 240 mm

Power supply 230 V, 50 Hz

100 V, 50/60 Hz – 115 V, 60 Hz

Power consumption with max. number of sheets 440 W

Size W x D x H (mm) 375 x 310 x 600

Shredded material container volume 33 l

Noise level (Idle running/ load) 57 dB(A) / 59 dB(A)

• Paper shredder, ready for connection, in car-

ton packing

• 5 Bags for shredded material

• Special cutting block oil 50 ml (cross cut)

• Operating instructions

7 Scope of delivery Accessories:

• Bag for shredded material

order No.: 1.661.995.050

• Special cutting block oil 250 ml

order No.: 1.235.997.403
