G510 UMTS training course

Terminal Service Department

2012-6

HUAWEI TECHNOLOGIES CO., LTD.

Page 2

The main purpose of this course is to conduct a

comprehensive production training for our customers

about G510 UMTS mobile phone, including the

following contents:

•Hardware/Software specifications

•Introduction of features

•Useful Operation skills

•Common Trouble shooting methods

•About Technical Support

HUAWEI TECHNOLOGIES CO., LTD.

Page 3

Content

Chapter 1 G510 UMTS Product Introduction

Chapter 3 Operation skills

Chapter 2 G510 UMTS Main Features

Chapter 4 Definition of Service Level

Chapter 5 About Technical Support

HUAWEI TECHNOLOGIES CO., LTD.

Page 4

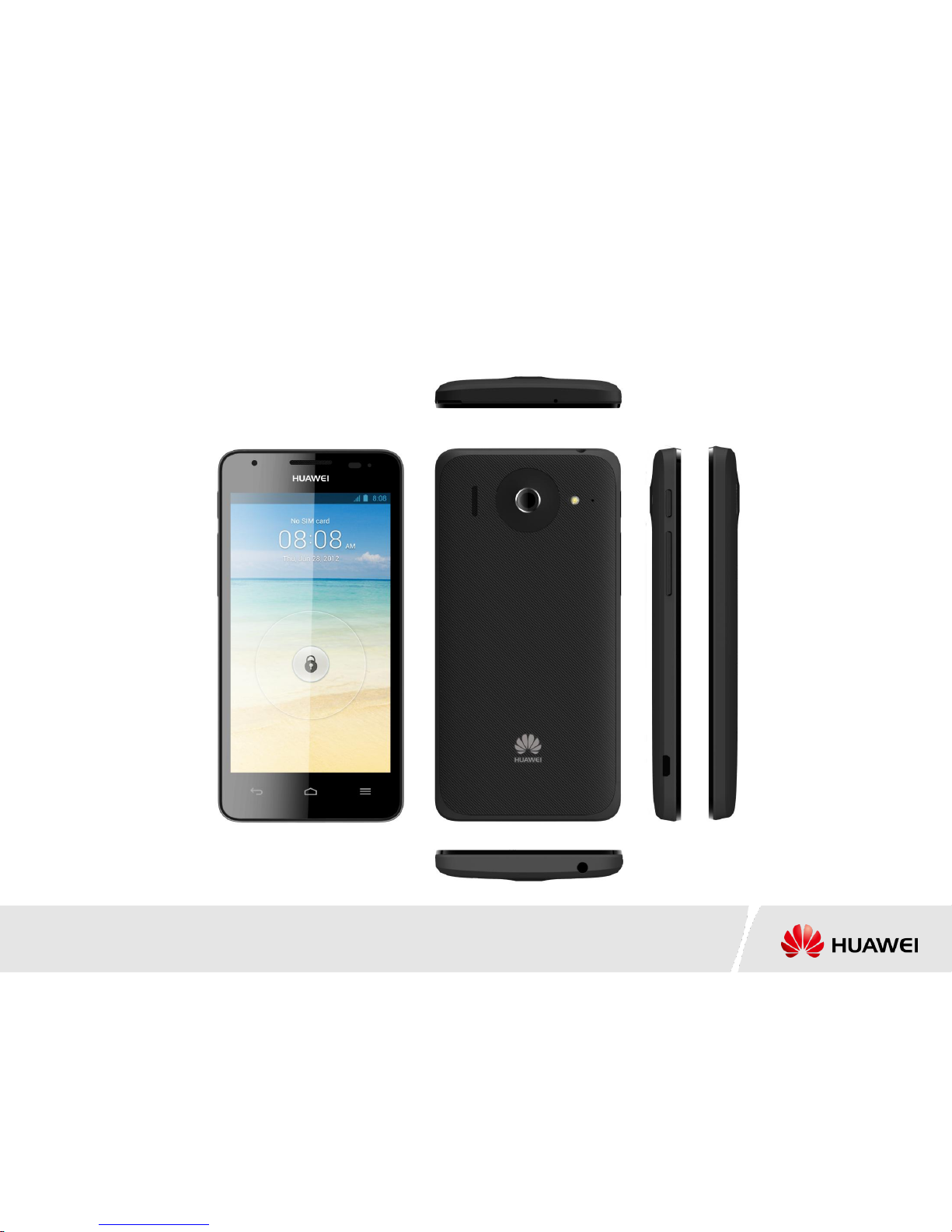

G510 UMTS ID

HUAWEI TECHNOLOGIES CO., LTD.

Page 5

Introduction

HUAWEI G 510 is a smart phone developed by HUAWEI. It is based on Google AndroidTM 4.1 Operating

System. They give you an excellent browsing with the Operating System from Google™, all in a thin touch

phone.

•Android 4.1 (Jelly Bean) + Emotion UI

•4.5-inch touch screen supporting auto rotation

•5 MP auto focus camera with LED flash

•User friendly soft keyboard

•High speed HSDPA/HSUPA network

•Wi-Fi 802.11 b/g/n

•Bluetooth 2.1 A2DP Stereo

•GPS/AGPS

•Active noise cancellation with dual mic

•Abundant Google applications

•G-sensor

•Proximity sensor for auto turn-off

•Ambient light sensor for auto light adjusting

HUAWEI TECHNOLOGIES CO., LTD.

Page 6

Introduction

Internet

•Google Native browser

•Streaming Audio & Video

•Support more markup (XHTML/HTML/WML)

Media

•5.0 Mega pixel Camera

•Video recording and playback

•FM radio

Applications

•GMS (like Google Mail, Google talk, Youtube )

•Google Maps

•Facebook and twitter

•Smart search Local & Internet

•Office & PDF reader: Document to Go

•POP3/IMAP/Exchange supportable

Display

4.5” 854x480 IPS with Capacitive Touch

sotf touch key

Auto rotate (G-sensor)

WiFi 802.11b/g/n /WiFi router

BT 2.1 (A2DP)

Micro USB (High Speed USB)

A-GPS

3.5mm audio jack

Connectivity

Frequency

1750mAh Li-ion battery

Battery

Core Value

1.2GHz CPU , HSDPA 7.2Mbps and

HSUPA: 5.76Mbit/s speed with good

performance

Popular SNS application

Download the product

description from 3MS

for more information

Marketing name:

HUAWEI G510 UMTS

UMTS 850/1900/2100MHz

HSDPA 7.2Mbps

HUAWEI TECHNOLOGIES CO., LTD.

Page 7

Content

Chapter 1 G510 UMTS Product Introduction

Chapter 3 Operation skills

Chapter 2 G510 UMTS Main Features

Chapter 4 Definition of Service Level

Chapter 5 About Technical Support

HUAWEI TECHNOLOGIES CO., LTD.

Page 8

Hardware Specifications

Item

Specifications

Shape

Bar-type

LCD

Size: 4.5 inch

Type: TFT-LCD screen, touch-sensitive screen

Color: 16M(24-bit) colors

Resolution: 854×540

Dimensions

134 mm(L)×67 mm(W)×9.9 mm(T)

Weight

About 150 g (including the battery)

Frequency band

G510 N -1

WCDMA 2100MHz: 1920–1980MHz (UL), 2110–2170MHz (DL)

WCDMA 900MHz: 880–915MHz (UL), 925–960MHz (DL)

GSM 850MHz: 824–849MHz (UL), 869–894MHz (DL)

GSM 900MHz: 880–915MHz (UL), 925–960MHz (DL)

GSM 1800MHz: 1710–1785MHz(UL), 1805–1880MHz(DL)

GSM 1900MHz: 1850–1910MHz (UL), 1930–1990MHz (DL)

G 510 N -51

WCDMA 2100MHz: 1920–1980MHz (UL), 2110–2170MHz (DL)

WCDMA 1900MHz: 1850–1910MHz (UL), 1930–1990MHz (DL)

WCDMA 850MHz: 824–849MHz (UL), 869–894MHz (DL)

GSM 850MHz: 824–849MHz (UL), 869–894MHz (DL)

GSM 900MHz: 880–915MHz (UL), 925–960MHz (DL)

GSM 1800MHz: 1710–1785MHz (UL), 1805–1880MHz (DL)

GSM 1900MHz: 1850–1910MHz (UL), 1930–1990MHz (DL)

HUAWEI TECHNOLOGIES CO., LTD.

Page 9

Hardware Specifications

Maximum transmit

power

WCDMA: +24dBm (Power Class 3)

GSM/GPRS 850/900MHz: +33dBm (Power Class 4)

GSM/GPRS 1800MHz/1900MHz: +30dBm (Power Class 1)

Static sensitivity:

WCDMA 850MHz: better than –104.7dBm/3.84MHz

WCDMA 1900MHz: better than –104.7dBm/3.84MHz

WCDMA 2100MHz: better than –106.7dBm/3.84MHz

GSM 850/900/1800/1900MHz: better than –102dBm/200kHz

Network rate

WCDMA: 384Kbit/s (UL), 384Kbit/s (DL)

HSDPA: 7.2Mbit/s

HSUPA: 5.76Mbit/s

GPRS/EDGE: 118.4Kbit/s (UL), 236.8Kbit/s (DL)

SIM/USIM card interface

Standard 6-pin SIM card interface, supporting the 1.8/3V USIM card

External interface

Standard Micro USB, microSD Card slot, 3.5 mm headset

External memory support

microSD Card (up to 32GB)

Processor

Qualcomm®MSM8225-0, 1G Hz Dual core

HUAWEI TECHNOLOGIES CO., LTD.

Page 10

Hardware Specifications

Memory

ROM: 4GB

RAM: 512MB

ROM User Available: 1GB

Device control:

Illuminated capacitive soft keys with haptic feedback

Physical Power and Volume key

GPS

GPS/AGPS

Temperature

Operating temperature: ~ +

Warehouse temperature: ~ +

Capability: 1750mAh

Standby time (Depends on the user operation and network condition): Up to 320 hours (); Up to 340 hours()

Talking time (Depends on the user operation and network condition): Up to 350 mins (); Up to 320 mins

(3G)

Charging Time: 3 hours from supplied charger

Audio playback: Up to 8 hours

Music playback: Up to 29 hours

Relative humidity

Working: 5% - 95%

Camera

Main camera:5M AF

Secondary camera:0.3M FF
