Huawei U8300 Manuale utente

What's in the Box

Your package includes the following items:

• Mobile phone

• Battery

• Charger

• USB cable

• Headset

• Quick start guide

• Safety Information

Phone at a Glance

Key functions at your fingertips

1Track ball 2MENU key

3Send key 4Alternate key

5Shift key 6Flashlight key

7Space key 8Search key

9Symbol key 10 Enter key

11 Clear key 12 Charging/Data port

13 End key 14 Back key

15 Power key 16 Camera lens

17 Headset jack 18 Volume keys

• Press to power on your mobile phone.

• Press and hold to open the

Phone options

menu.

• Press to lock the screen when your mobile phone is on.

Press to go to the

Call log

screen.

Press to open the menu on an active screen.

• Roll to navigate through selectable items on the screen.

• Press to select a highlighted item or action.

Getting Started with Your Mobile Phone

Installing the SIM Card

Press this key first to type the upper character on any

key.

• Press to return to the previous screen.

• Press to exit the application you are running.

• If onscreen keyboard displayed, press this key to hide

the onscreen keyboard.

Press to insert a space.

Press to active search interface.

• Press to hang up a call.

• Press to return to the Home screen.

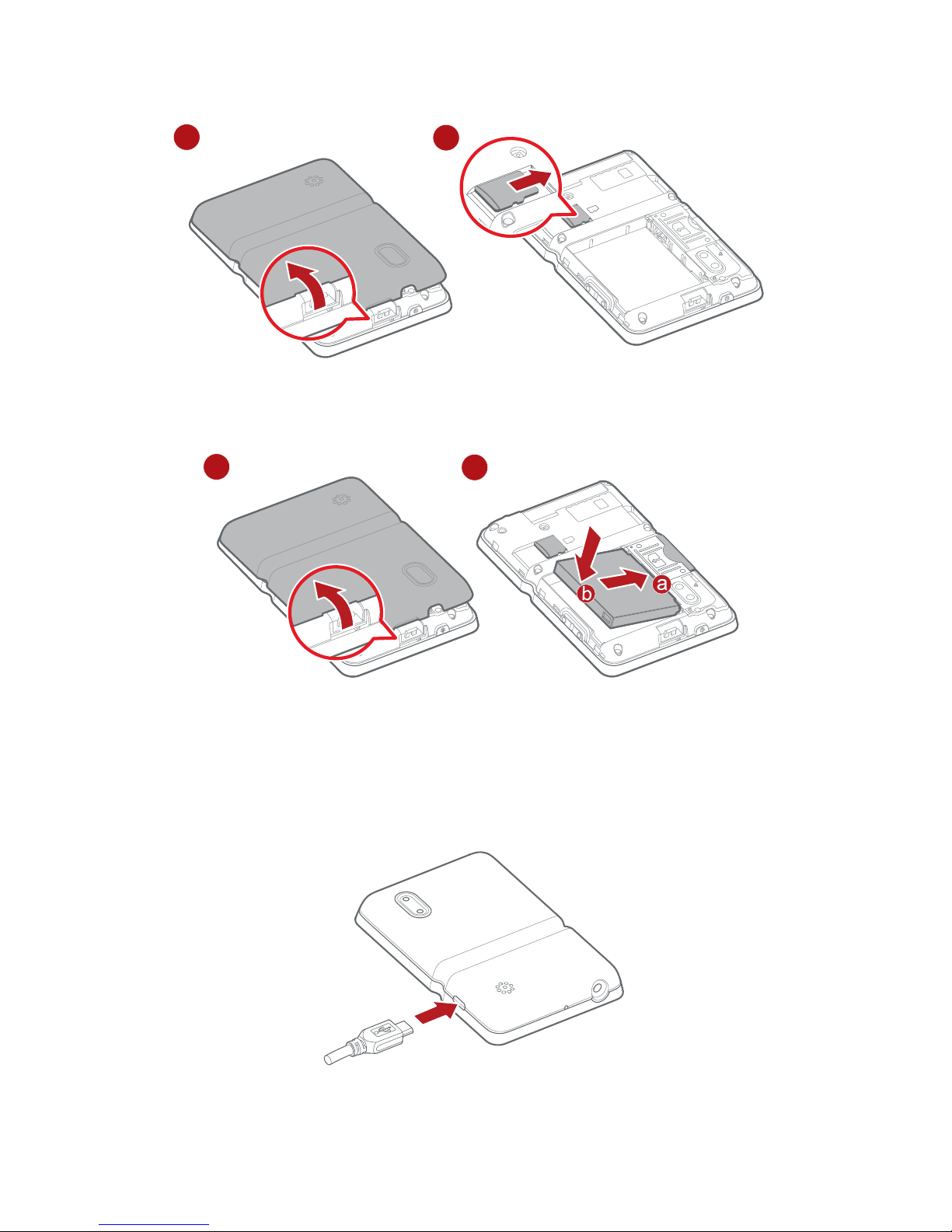

Installing the microSD Card

Installing the Battery

Charging Your Mobile Phone

Before charging the battery, make sure that the battery has been properly

inserted into your mobile phone.

1. Connect your USB cable to your mobile phone.

2. Connect the other end of the cable to the charger.

3. Plug the charger into an electrical outlet.

Powering on Your Mobile Phone

Press the to power on the mobile phone.

The first time you do this, you will be asked to sign in to your account and

set up your mobile phone. Please note you can skip this step to continue to

set up your mobile phone.

Powering off Your Mobile Phone

1. Press and hold to open the

Phone options

menu.

2. Touch

Power off

3. Touch

Touchscreen Actions

•

Touch

: Use the pressure of your fingertip or stylus to select an item,

confirm a selection, or start an application.

•

Touch and hold

: Use the pressure of your fingertip or stylus to select an

item and continue to press until your mobile phone responds. For

example, you can touch and hold an empty area of the screen to open

the options menu of the active screen.

•

Flick

: Move your fingertip or stylus either vertically or horizontally across

the screen. For example, you can flick left and right to switch between

pictures.

•

Drag

: Touch and hold the desired item, Then, you will be able to drag

the item anywhere you desire on the screen. For example, you can drag

an icon on the screen to move or delete it.

Calibrating the screen

Calibrate the screen if it does not respond accurately to touch.

1. On the

Settings

screen, touch

Sound & display

Calibration

2. Touch the target on the screen.

3. After the calibration process, press to quit.

Home Screen

The Home screen allows you to put all the items you need in one place.

Locking the Screen

• When your mobile phone is on, press to lock the screen. While the

screen is locked, you can still receive messages and calls.

• If you leave your mobile phone undisturbed for a while (based on your

settings), the screen will lock automatically.

Unlocking the Screen

10:23

Touch to open Contacts screen.

Touch to open Main Menu screen.

Touch to open Browser.

Notifications bar:

Displays the reminders and status

icons of your phone. Flick down to

open the notifications panel.

Display:

Shows the operation and

display areas of your phone.

Interface switching dots:

Indicate the number of the screens

to the left or right.

1. Press , , , , or to wake up the screen.

2. Drag the lock icon to the right. The last screen you were on opens.

Adding a New Screen Item

1. Touch and hold the blank area on the Home screen until the

Add to

Home screen

menu is displayed.

2. Select an item to add it to the Home screen.

Importing Contacts from a SIM Card

1. Once you are in the contacts list, press , and then touch

Manage contacts

2. Touch

Copy from SIM card

. Wait for the SIM card contents to be

loaded.

3. Select the check box of the contact you want to import.

Touch

Deselect all

Select all

4. Touch

Copy

5. If you have more than one account on your phone, touch the account

into which you want to import the contacts.

Adding a Contact

1. Once you are in the contacts list, press , and then touch

Create

contact

2. If you have more than one account with contacts, touch the account to

which you want to add the contact.

3. Enter the contact's name, and then add any detailed information such

as phone number or address.

4. When you are finished, touch

Done

to save the contact information.

Making a Call

To make a call, you can use the

Dialer

application, or select a number from

Contacts

Call log

When you are on a call, you can press to return to the Home screen and

use other functions. To return to the calling screen, flick the notification bar

down and touch

Current call

Making a Call with the Dialer

1. Touch >

Dialer

to display the dialer.

2. Touch the appropriate numeric keys to enter the phone number.

3. Press to initiate the call.

Answering an Incoming Call

• Press to answer the call.

• Drag the to the right.

Rejecting an Incoming Call

• Press to reject a call.

• Drag the to the left.

Using the Phone Keyboard

■Note:

The following operations are only applicable to Huawei IME input

method.

Press , , and to switch input modes and languages. In different

input modes, the cursor is displayed in different forms, as shown in the

following figures.

Cursor:

•Toenter

one

upper

character of a key,

press first, and

then select a key.

Cursor:

•Toenter

only

the

upper characters of a

key, press twice,

and then select a key.

Press again to change

back.

Cursor:

•Toenter

one

capital

letter, press first,

and then select a key.

Cursor:

•Toenter

only

capital

letters, press

twice, and then select

a key. Press again to

change back.

Choosing an Input Method

1. On the text screen, touch and hold the space where you usually write

your text until the

Edit text

menu is displayed.

2. Touch

Input method

3. Select the input method.

Creating and Sending a Multimedia Message

1. Touch >

Messaging

New message

2. Enter a phone number in the

field, or touch

to select a contact

from

Contacts

3. Touch the composition text box to start entering your message.

4. Press to display the options panel.

• Touch

Add subject

to add the message subject. Your mobile phone

is now in multimedia message mode.

• Touch

Attach

to add a picture, music, or video file.

5. When the message is ready to be sent, touch

Send

Turning on the Data Service

1. Touch >

Settings

2. Touch

Wireless & networks

Mobile networks

3. Select the

Data Service

check box to turn on the data connection.

Turning On Wi-Fi

1. Touch >

Settings

2. Touch

Wireless & networks

, and then select the

Wi-Fi

check box to

turn on Wi-Fi.

• To switch the input

language, press +

, current language

will display on the

notification bar.
