Huawei EchoLife HG510 Manuale utente
EchoLife HG510 Home Gateway
User Manual
HUAWEI TECHNOLOGIES CO., LTD.
Free Communication, Wonderful Life
Thank you for choosing EchoLife HG510 Home Gateway
of Huawei Technologies Co., Ltd.
EchoLife HG510 Home Gateway
User Manual
Issue 02
Product Version V100R001C05
Date 2006-10-14
No. 202012
Copyright © Huawei Technologies Co., Ltd. 2006. All rights
reserved.
No part of this document may be reproduced or transmitted in any
form or by any means without prior written consent of Huawei
Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei
Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are
the property of their respective holders.
Notice
The information in this document is subject to change without notice.
Every effort has been made in the preparation of this document to
ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of
any kind, express or implied.
Caution
The HG510 is used indoors only. Pay attention to the following when
installing and using the HG510.
Basic requirements
zTake waterproof measures during the storage, transportation and
running of the device.
zBefore installing and using the HG510, read this manual carefully.
zIn case of failure, this equipment must be returned to HUAWEI
Authorized Service Station for servicing to ensure compliance
with safety requirements.
zIf not granted by Huawei beforehand, any company or individual
shall not change the HG510 in terms of its structure and safety
design and shall be solely responsible for any effect resulted from
unapproved modification.
Power supply
zThe voltage of the power supply shall meet the requirement of the
input voltage of the power adapter.
zThe equipment only can use the AC/DC adaptor that provided
with the equipment.
zIn the case of thundering, unplug the power adapter and all
cables.
zIf the HG510 is not in use for a long time, unplug the power
adapter.
Huawei Technologies Proprietary
Placement
zPlace the HG510 on a stable table.
zLeave over 10 cm distance around theHG510 for heat dissipation.
Do not place heavy objects on the HG510.
Cleaning
zBefore cleaning the HG510, switch off the power supply.
zClean it using a piece of soft cloth. Do not use liquid or gas
solution.
Note:
The surface of the terminal may become hot if the terminal is used for
a long time. However, this is normal. The terminal can still work
normally.
About This Manual
After reading this manual, you will know the functions, features, and
operations of EchoLife HG510. The whole manual consists of six
chapters.
To know about… See…
Features, network application and
hardware structure of HG510 Chapter 1 Overview
Installation of HG510 Chapter 2 Installation
Operations of HG510 Chapter 3 Using HG510
Configuration of HG510, including quick
setup, and advanced setup Chapter 4 Configuration
Huawei Technologies Proprietary
Huawei Technologies Proprietary
To know about… See…
Routine maintenance and
troubleshooting of HG510 Chapter 5 Maintenance
Technical terms and abbreviations
mentioned in the manual Chapter 6 Appendix
Conventions
Convention Description
Arial Normal paragraphs are in Arial.
Boldface Headings are in Boldface.
Courier New
Terminal Display is in Courier New.
Environmental Protection
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of
this product, national laws and regulations must be observed.
User Manual
EchoLife HG510 Home Gateway Table of Contents
Huawei Technologies Proprietary
i
Table of Contents
Chapter 1 Overview.......................................................................1-1
1.1 System Features................................................................1-1
1.2 Network Application ...........................................................1-1
1.3 Appearance........................................................................1-2
1.3.1 Front Panel..............................................................1-2
1.3.2 Rear Panel...............................................................1-4
Chapter 2 Installation....................................................................2-1
2.1 Unpacking Check...............................................................2-1
2.2 Connecting HG510 ............................................................2-1
Chapter 3 Before Using HG510 ....................................................3-1
3.1 Configuration Preparations................................................3-1
3.2 Establishing the Connection ..............................................3-1
Chapter 4 Configuration................................................................4-1
4.1 Advanced Setup.................................................................4-1
4.1.1 Configuring WAN.....................................................4-1
4.1.2 Configuring LAN......................................................4-2
4.1.3 Configuring NAT......................................................4-3
4.1.4 Configuring Security................................................4-5
4.1.5 Configuring Routing.................................................4-9
4.1.6 Configuring DNS....................................................4-12
4.1.7 Configuring DSL....................................................4-12
4.1.8 Configuring Port Mapping......................................4-13
4.2 Quick Setup......................................................................4-14
User Manual
EchoLife HG510 Home Gateway Table of Contents
Huawei Technologies Proprietary
ii
4.2.1 Configuring PPPoE................................................4-15
4.2.2 Configuring IPoA ...................................................4-20
4.2.3 Configuring Bridge.................................................4-25
4.2.4 Configuring MER...................................................4-29
4.2.5 Configuring PPPoA................................................4-35
Chapter 5 Maintenance .................................................................5-1
5.1 Querying Information .........................................................5-1
5.2 Managing Device Settings.................................................5-2
5.2.1 Backing Settings......................................................5-3
5.2.2 Updating Settings....................................................5-4
5.2.3 Restoring to Factory Defaults..................................5-4
5.3 Configuring Access Control ...............................................5-5
5.3.1 Services...................................................................5-5
5.3.2 IP Address...............................................................5-6
5.3.3 Password.................................................................5-7
5.4 Upgrading Software ...........................................................5-8
5.5 Configuring Diagnostics.....................................................5-9
Chapter 6 Appendix.......................................................................6-1
User Manual
EchoLife HG510 Home Gateway Chapter 1 Overview
Huawei Technologies Proprietary
1-1
Chapter 1 Overview
Thank you for purchasing the EchoLife HG510 Home Gateway
device (hereinafter referred to as HG510). With HG510, you can
access the Internet using your high-speedADSL connection.
This user manual will show you how to install and set up HG510.
1.1 System Features
HG510 provides the following functions:
zInternal ADSL modem for high-speed internet access.
z10/100Base-T Ethernet router to provide Internet
connectivity to all computers on your LAN.
zNetwork Address Translation (NAT) and IP filtering functions
to provide firewall protection for your computers.
zNetwork configuration through DHCP.
zCompliant with ANSI T1.413 Issue 2, ITU-T G.992.1
(G.DMT), G.992.2 (G.Lite), G.992.3 (ADSL 2) and G.992.5
(ADSL 2+).
zSupporting bridging, routing, and PPP modes.
zConfiguration program you access through an HTML
browser.
1.2 Network Application
HG510 is a terminal located at the access layer of the network. It
enables medium- and small-sized enterprise users and home users to
User Manual
EchoLife HG510 Home Gateway Chapter 1 Overview
Huawei Technologies Proprietary
1-2
access the IP network through ADSLports. Figure 1-1 shows a typical
networking scheme.

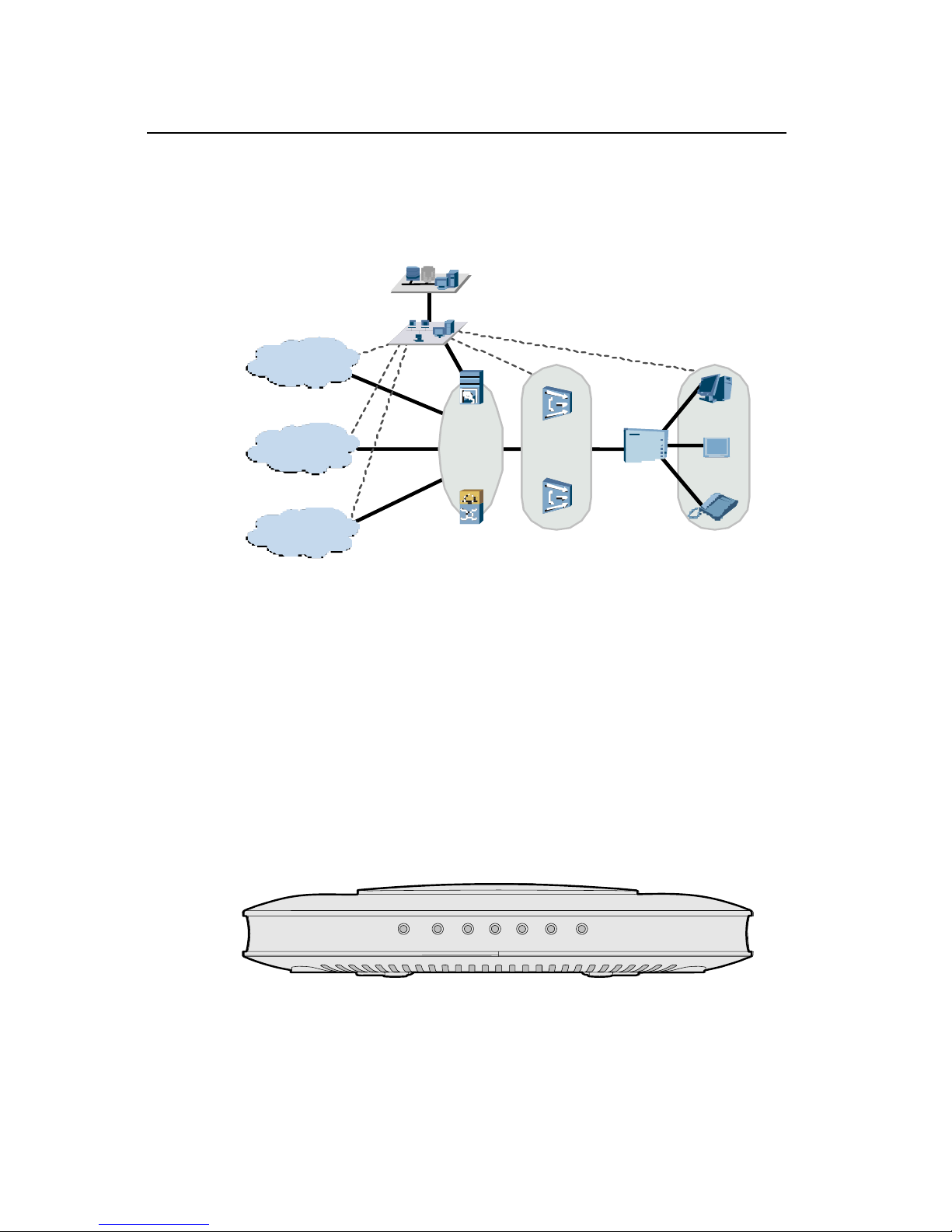

HGW
IPTV
NGN
Internet
Carrier's OSS
IADMS/CPEMSNMS
PC
TV
Ephone
DSLAM
BRAS
CDN
IP
Network
Figure 1-1 Networking of HG510
1.3 Appearance
The following sections describe the front panel and rear panel of
HG510.
1.3.1 Front Panel
POWER LAN1 LAN2 LAN3 LAN4 ADSL INTERNET
Figure 1-2 Front Panel
