Huawei USG6305 Manuale dell'operatore
Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
HUAWEI USG6305/6305-W/6310S/6310S-W/6310S-WL-OVS/6510/6510-WL
V500R001
Quick Start
Issue: 02
Date: 2017-06-15
1
Thank you for using Huawei USG6305/6305-W/6310S/6310S-W/6310S-WL-OVS/6510/6510-WL products. This USG prod-
uct series protects your network against Internet threats. This Quick Start shows the product appearance and provides the
essential information required for installing the device and setting up Internet access. For detailed hardware description and
installation guidelines, refer to the
Hardware Guide
. For detailed configurations, refer to the
Administrator Guide
.
Safety Precautions
Be aware of the following safety precautions when installing the device.
•Deactivatepowerwheneverpossiblebeforeperformingmaintenanceonpowercables.
•Alwayswearaproperly-groundedwriststrapbeforetouchingthedeviceorexpansioncardsinit.

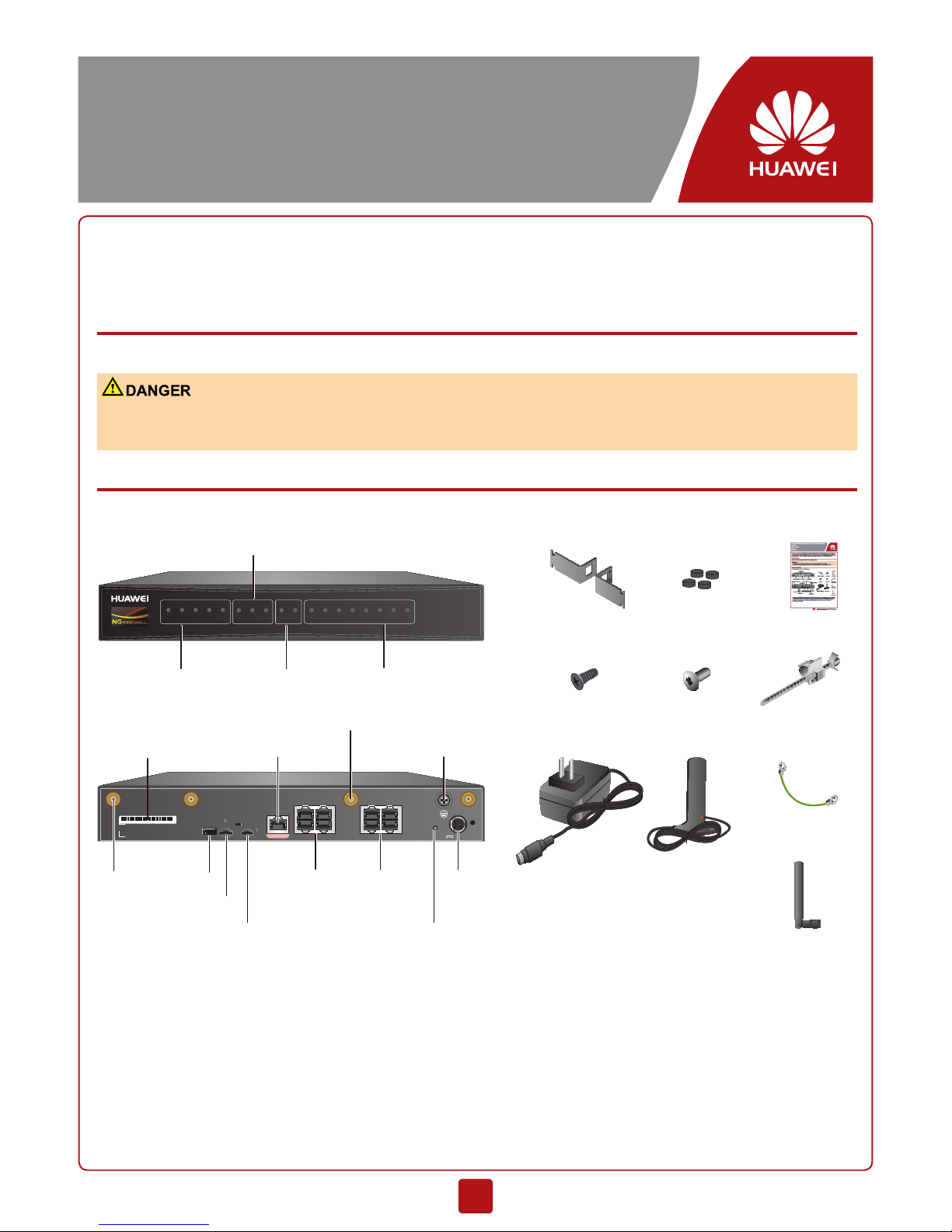

Device and Accessories
Your product package includes the following items:
PGND cable
Power cable
retention clip
Quick start
M4 screw M6 screw
Rack-mounting ears
24W power adapter LTE antenna
WiFi antenna
Rubber feet
PWR SYS ALM USB
micro
SD
Secospace USG6000
0 1 2 3 4 5 6 7
ETH
2.4G
WLAN
5GLTE WWAN3G/2G
Secospace USG6000
0 2
1 3
4 6
5 7
RST
micro
SD
12V ; 2A
CONSOLE
LTE DIV WiFi 0 LTE MAIN
WiFi 1
XXXXXXXXXXXXXXXXXXXXXXXXXXX
WiFi indicators
LTE indicators
WiFi antenna connector
Micro SD card slot
USB
System Indicators Port indicators
Console port Protection ground
terminal
Power
Reset button
10/100/1000M autosensing
Ethernet electrical interface
SIM card slot
SN label (including the
SN and product model)
LTE antenna
connector
•In the figure, the USG6310S-WL-OVS/6510-WL that support Ethernet, WiFi, and LET access are used as an example.
•The USG6305/6310S/6510 support only Ethernet access. The USG6305 has four 10/100/1000M autosensing Ethernet
electrical interfaces, and the USG6310S/6510 have eight Ethernet electrical interfaces.
•The USG6305-W/6310S-W support Ethernet and WiFi access. The USG6305-W has four 10/100/1000M autosensing
Ethernet electrical interfaces, and the USG6310S-W has eight Ethernet electrical interfaces.
•All models support 4G access by inserting a 4G LTE data card in the USB slot.
•The rack-mounting ears are optional.
2
Cabling
•TheUSG6310S-WL-OVSsupports4GLTE,3GUMTS,and2GGSMSIMcards.TheUSG6510-WLsupports4G
FDDLTE/TDDLTE,3GTD-SCDMA/WCDMA,and2GGSMSIMcards.
•SIMcardsarenothotswappable.
•YouareadvisedtoplacetheLTEantennaatleast1.2mawayfromtheWiFiantenna.
1. Connect the ground terminal on the device to the ground bar using a PGND cable.
2. Internet connection: Connect GE0/0/4 to the Internet using a network cable, or install a SIM card and LTE antennas to
connect to the Internet in 4G mode.
3. LAN connection: Connect GE0/0/6 to the wired LAN using a network cable, or install WiFi antennas to connect to the
wireless LAN.
4. Connect the device' interface GE0/0/0 to the administrator PC using a network cable.
5. Insert the cable retention clip into the hole close to the power socket. Insert the 4-pin self-locking plug of the power adapt-
er into the power socket on the device. Then round the clip over the power cable and fix it using the clip. Plug the other
end of the power adapter to the power supply socket.
AsUSGdoesnotprovideapowerswitch,itstartsupimmediatelyafterreceivingpower.WhentheSYSindicatoron
theSPUApanelisblinking(onceeverytwoseconds),thedeviceisrunningandreadyforconfiguration.
Administrator
GE0/0/4 GE0/0/6
GE0/0/0
42
Secospace USG6000
0 2
1 3
4 6
5 7
RST
micro
SD
12V ; 2A
CONSOLE
LTE DIV WiFi 0 LTE MAIN
WiFi 1
XXXXXXXXXXXXXXXXXXXXXXXXXXX
1
Intranet
3
5
SIM card
3
2
Switch
Rear panel
Default Configuration
The following table lists the default configuration.
Item Description
GE0/0/0 The IP address is 192.168.0.1.
Administrator account/password You can use the default account/password (admin/Admin@123) to log in through web or
console.
Connecting to the Internet
Collect the information in the following table based on the WAN mode you use and the IP address plan for the LAN. The un-
derlined red texts in the table are examples for reference only.
3
Item Port Description
WAN GE0/0/4 WAN Mode Static IP IP Address: 1.1.1.1 Request your ISP or
network administrator
to provide the data.
Subnet Mask: 255.255.255.0
Default Gateway: 1.1.1.254
Primary DNS: 2.2.2.2
(Optional) Secondary DNS: 2.2.3.3
PPPoE User name/Password: user/Password123
DHCP -The device functions
as a DHCP client.
Cellular
0/0/0
WAN Mode 4G APN: example Request your ISP or
network administrator
to provide the data.
User name/Password: user01/Admin123
Dial string: *99#
LAN GE0/0/6 LAN Mode Wired
LAN
IP Address: 10.0.0.1 The LAN IP address range
shall be pre-determined.
Subnet Mask: 255.255.255.0
IP address assigned by the DHCP Server:
10.0.0.1 to 10.0.0.254
Wlan-
Radio 0/0/0
LAN Mode WLAN SSID: example The WLAN parameters
shall be pre-determined.
Security Protocol: WPA2
Password: Admin@123
Service VLAN Interface: Vlanif10
IP address assigned by the DHCP Server:
10.1.0.1 to 10.1.0.254
1. Set the IP address to 192.168.0.2 (or any other in the range of 192.168.0.2 to 192.168.0.254) and subnet mask to
255.255.255.0 of the corresponding network interface on the administration PC.
2. Open a web browser and navigate to https://192.168.0.1:8443.
3. Enter the user name (admin) and password (Admin@123) in the login dialog box, and then click Login. You need to
change the user password as instructed after the first login.
4. In the Startup Wizard page that is displayed, click Next to access the Basic Configuration page. Change the device
name and click Next.
IftheStartup Wizardpageisnotdisplayed,clicktheSystemtabandchooseWizard > Startup Wiz-
ardinthenavigationtree.
5. In the Time Settings step, configure the system clock of the device according to your local time zone, and click Next.
6. In the WAN Mode step, select a WAN mode and click Next.
7. In the WAN Settings step, set the parameters and click Next.
4
8. In the LAN Settings step, set the parameters and click Next.
9. (Optional) In the LAN DHCP Settings step, set the parameters and click Next.
5
10. (Optional) In the Configure WLAN step, set the parameters and click Next.
Click New interface in VLAN Interface, create interface VLANIF10, set the interface IP address to 10.1.0.1, and set the
security zone to trust.
11. (Optional) In the Configure DHCP Service on WLAN step, set the parameters and click Next.
12. In the Summary step, confirm the previous settings and click Apply.
13. Click Finish in the Startup Wizard Complete page to complete Internet access configurations. For other settings, refer to
the
Administrator Guide
.
Appendix
•Activating Licenses
More functions of the device will be available after a license is activated. Activate a license as follows:
1. Click the System tab on the web UI, and click License Management in the navigation tree.
2. Select Automatic Online Activation in License Activation Mode.
3. Fill the domain name of the license authorization server in the License Center Domain Name field. You can also
leave the field as default.
4. Find the license authorization code in the license certificate, which is delivered with the device, and enter it in the
License Authorization Code field.
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Industrial Base Bantian Longgang
Shenzhen 518129
People's Republic of China
e.huawei.com
6
5. Click Activate to activate the license.
•Open Source Software Notice
You can access the device web UI and click Open Source Software Notice at the bottom of the UI to view details of the
open source software notice.
•Declaration of Conformity
Hereby, Huawei Technologies Co., Ltd. declares that the radio equipment type is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.huawei.com/en/product-certification
•Obtaining Product Documents and Technical Support
•Log in to http://support.huawei.com/enterprise and select a specif product model and version to find its documentation.
•Log in to http://support.huawei.com/ecommunity and post your questions in the community.
Huawei Enterprise
Technical Support
•Contact your local representative for further information.
Thecontactinformationisavailableathttp://e.huawei.com/en/service-hotline.
