HUAWEI USG6310/6320 Uniﬁed Security Gateway

V100R001

Quick Start

Issue: 04

Part Number: 31507267

Date: 2015-06-18

Thank you for using Huawei USG6310/6320 products. This USG product series protects your network against Internet

threats. This Quick Start shows the product appearance and provides the essential information required for installing the

device and setting up Internet access. For detailed hardware description and installation guidelines, refer to the

Hardware

Guide

. For detailed conﬁgurations, refer to the

Administrator Guide

Safety Precautions

Be aware of the following safety precautions when installing the device.

•Deactivatepowerwheneverpossiblebeforeperformingmaintenanceonpowercables.

•Alwayswearaproperly-groundedwriststrapbeforetouchingthedeviceorexpansioncardsinit.

Device and Accessories

Your product package includes the following items:

PWR SYS ALM USB

Secospace USG6000

1 3 5 7

0 2

ETH

4 6

Secospace USG6000

0 2 4 6

1 3 5 7

RST 12V ; 3A

CONSOLE

XXXXXXXXXXXXXXXXXXXXXXXXXXX

Console port

Protection ground

terminal

Power

PGND cable

Power Cable

retention clip

Quick start

M4 screw M6 screw

Rack-mounting ears

AC power cable 36W power adapter

Reset button

USBPort indicatorsIndicators

Rubber feet

Equipment

Serial Number

10/100/1000M autosensing

Ethernet electrical interface

•The rack-mounting ear is optional.

•AC power cables vary by country or area, and the AC power cable in the figure is used for reference only.

Cabling

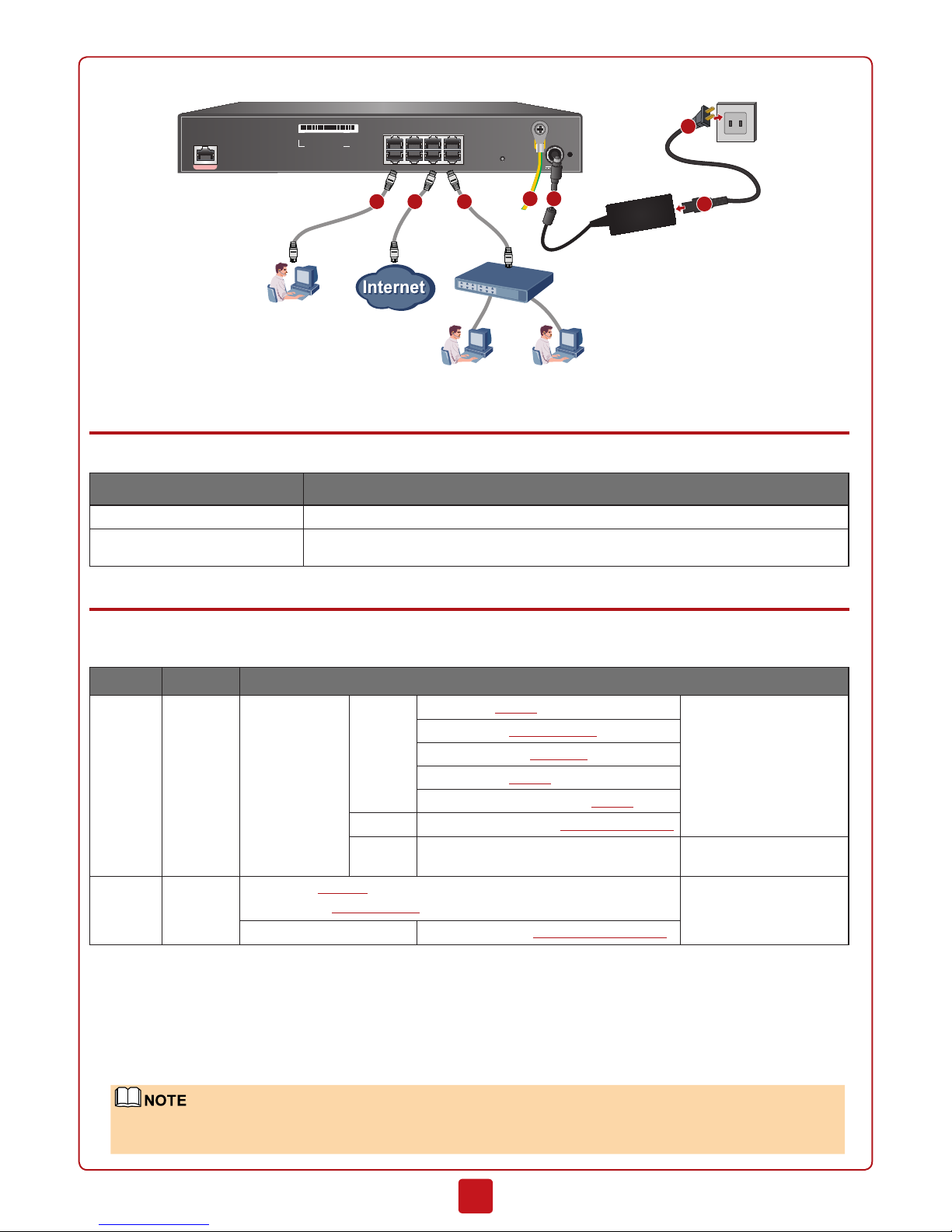

1. Connect the ground terminal on the device to the ground bar using a PGND cable.

2. Connect the device to the WAN and LAN through Ethernet ports (GE0/0/4 and GE0/0/6 in this example, respectively).

3. Connect the device' interface GE0/0/0 to a PC where the NMS client is installed using a network cable.

4. Insert the cable retention clip into the hole close to the power socket. Connect the AC power cable to power adapter, and

insert the 4-pin self-locking plug of the power adapter into the power socket on the device. Then round the clip over the

power cable and ﬁx it using the clip. Insert the AC power cable plug into the power supply socket.

AsUSGdoesnotprovideapowerswitch,itstartsupimmediatelyafterreceivingpower.WhentheSYSindicator

ontheSPUApanelisblinking(onceeverytwoseconds),thedeviceisrunningandreadyforconfiguration.

Secospace USG6000

0 2 4 6

1 3 5 7

RST 12V ; 3A

CONSOLE

XXXXXXXXXXXXXXXXXXXXXXXXXXX

Administrator

Intranet

Rear panel

Switch

GE0/0/4 GE0/0/6GE0/0/0

344

2 2

Default Conﬁguration

The following table lists the default conﬁguration.

Item Description

GE0/0/0 The IP address is 192.168.0.1.

Administrator account/password You can use the default account/password (admin/Admin@123) to log in through web or

console.

Connecting to the Internet

Collect the information in the following table based on the WAN mode you use and the IP address plan for the LAN. The un-

derlined red texts in the table are examples for reference only.

Item Port Description

WAN GE0/0/4 WAN Mode Static IP IP Address: 1.1.1.1 Request your ISP or

network administrator

to provide the data.

Subnet Mask: 255.255.255.0

Default Gateway: 1.1.1.254

Primary DNS: 2.2.2.2

(Optional) Secondary DNS: 2.2.3.3

PPPoE User name/Password: user/Password123

DHCP -The device functions

as a DHCP client.

LAN GE0/0/6 IP Address: 10.0.0.1

Subnet Mask: 255.255.255.0

The LAN IP address range

shall be pre-determined.

DHCP server IP address range: 10.0.0.1 to 10.0.0.254

1. Set the IP address to 192.168.0.2 (or any other in the range of 192.168.0.2 to 192.168.0.254) and subnet mask to

255.255.255.0 of the corresponding network interface on the administration PC.

2. Open a web browser and navigate to https://192.168.0.1:8443.

3. Enter the user name (admin) and password (Admin@123) in the login dialog box, and then click Login. You need to

change the user password as instructed after the first login.

4. In the Startup Wizard page that is displayed, click Next to access the Basic Configuration page. Change the device

name and click Next.

IftheStartup Wizardpageisnotdisplayed,clicktheSystemtabandchooseWizard>Startup Wizardinthe

navigationtree.

5. In the Time Settings step, configure the system clock of the device according to your local time zone, and click Next.

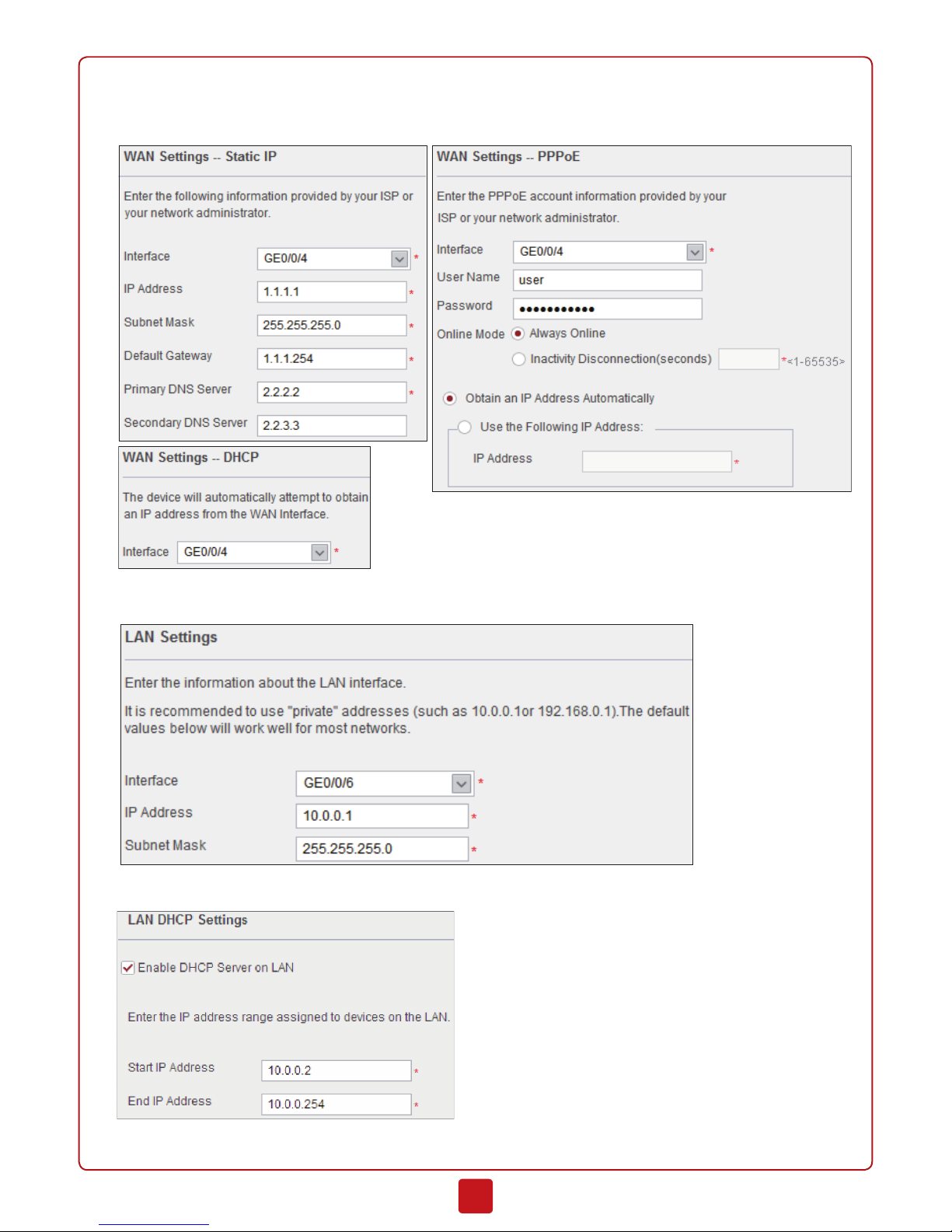

6. In the WAN Mode step, select a WAN mode and click Next.

7. In the WAN Settings step, set the parameters and click Next.

8. In the LAN Settings step, set the parameters and click Next.

9. (Optional) In the LAN DHCP Settings step, set the parameters and click Next.

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Industrial Base Bantian Longgang

Shenzhen 518129

People's Republic of China

enterprise.huawei.com

10. In the Summary step, confirm the previous settings and click Apply.

11. Click Finish in the Startup Wizard Complete page to complete Internet access configurations. For other settings, refer to

the Administrator Guide, which is contained in the CD-ROM delivered with the device.

Appendix

•Activating Licenses

More functions of the device will be available after a license is activated. Activate a license as follows:

1. Click the System tab on the web UI, and click License Management in the navigation tree.

2. Select Automatic Online Activation in License Activation Mode.

3. Fill the domain name of the license authorization server in the License Center Domain Name field. You can also

leave the field as default.

4. Find the license authorization code in the license certificate, which is delivered with the device, and enter it in the

License Authorization Code field.

5. Click Activate to activate the license.

•Obtaining Product Documents

The latest documents of all products are published at the technical support website (http://support.huawei.com/enterprise)

of Huawei Technologies Co., Ltd..

•Obtaining Technical Support

Contact your local representative for further information.

Thecontactinformationisavailableathttp://support.huawei.com/enterprise.
