Huawei SmartGuard 63A-S0 Manuale utente

Issue: 01 Part Number: 31500JHV

文档版本: 01 部件编码:31500JHV

Before installing the equipment, read the user manual carefully to get familiar with product information

and safety precautions. The product warranty does not cover equipment damage caused by failure to

follow the storage, transportation, installation, and usage guidelines specified in this document and the

user manual.

and safety precautions.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

安装设备前请详细阅读用户手册，了解产品信息及安全注意事项。未按照本文档与用户手册的内容存储、搬运、

安装和使用设备而导致设备损坏，不在设备质保范围内。

您可以登录技术支持网站（https://support.huawei.com/enterprise），查阅用户手册和安全注意事项等信息。

由于产品版本升级或其他原因，本文档内容会不定期进行更新。除非另有约定，本文档仅作为使用指导，文档中的所

有陈述、信息和建议不构成任何明示或暗示的担保。

63A-(S0, AUS0)

SmartGuard

Quick Guide

快速指南

Scan for support

扫码获取支持

ZH 打开维护腔

5Opening the Maintenance Compartment

EN ZH 安装保护地线

4Installing a PE Cable

Apply silicone grease or paint for protection.

建议涂抹硅胶或刷漆进行防护。

ZH 准备交流线缆

6Preparing AC Power Cables

ZH 准备备电盒信号线缆

7Preparing SmartGuard Signal Cables

ZH •SmartGuard适用家庭入户总空开≤63A，>63A请勿安装。

•如果备电负载功率超过逆变器的离网输出最大功率，逆变器可能会过载关机，需要关闭一些负载

才能离网运行。

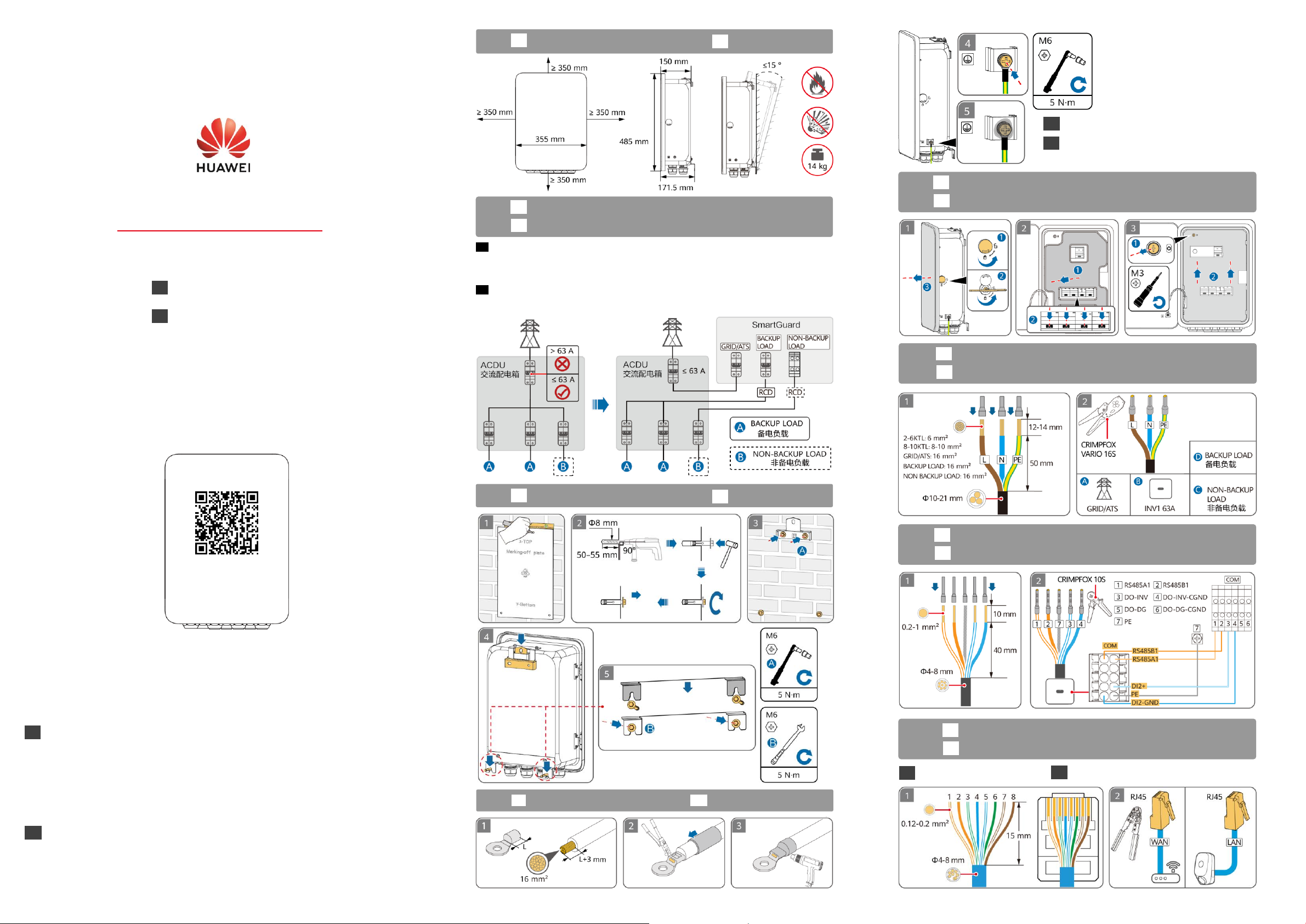

EN ZH 安装要求

1Installation Requirements

ZH 业主确认负载类别

2Confirming Load Types with Owners

EN ZH 安装设备

3Installing the Device

•The SmartGuard applies to a main circuit breaker of less than or equal to 63 A. If the current

is greater than 63 A, do not install the SmartGuard.

•If the power of backup loads exceeds the maximum off-grid output power of the inverter, the

inverter may be shut down due to overload. In this case, you need to shut down some loads.

ZH 准备EMMA信号线缆

8Preparing EMMA Signal Cables

FE通讯线

EN ZH

FE communications cable

Huawei Digital Power Technologies Co., Ltd.

Huawei Digital Power Antuoshan Headquarters

Futian, Shenzhen 518043

People's Republic of China

https://digitalpower.huawei.com

华为数字能源技术有限公司

深圳市福田区华为数字能源安托山基地

邮编：518043

https://digitalpower.huawei.com

14 PIN 端子信号线

EN ZH EN

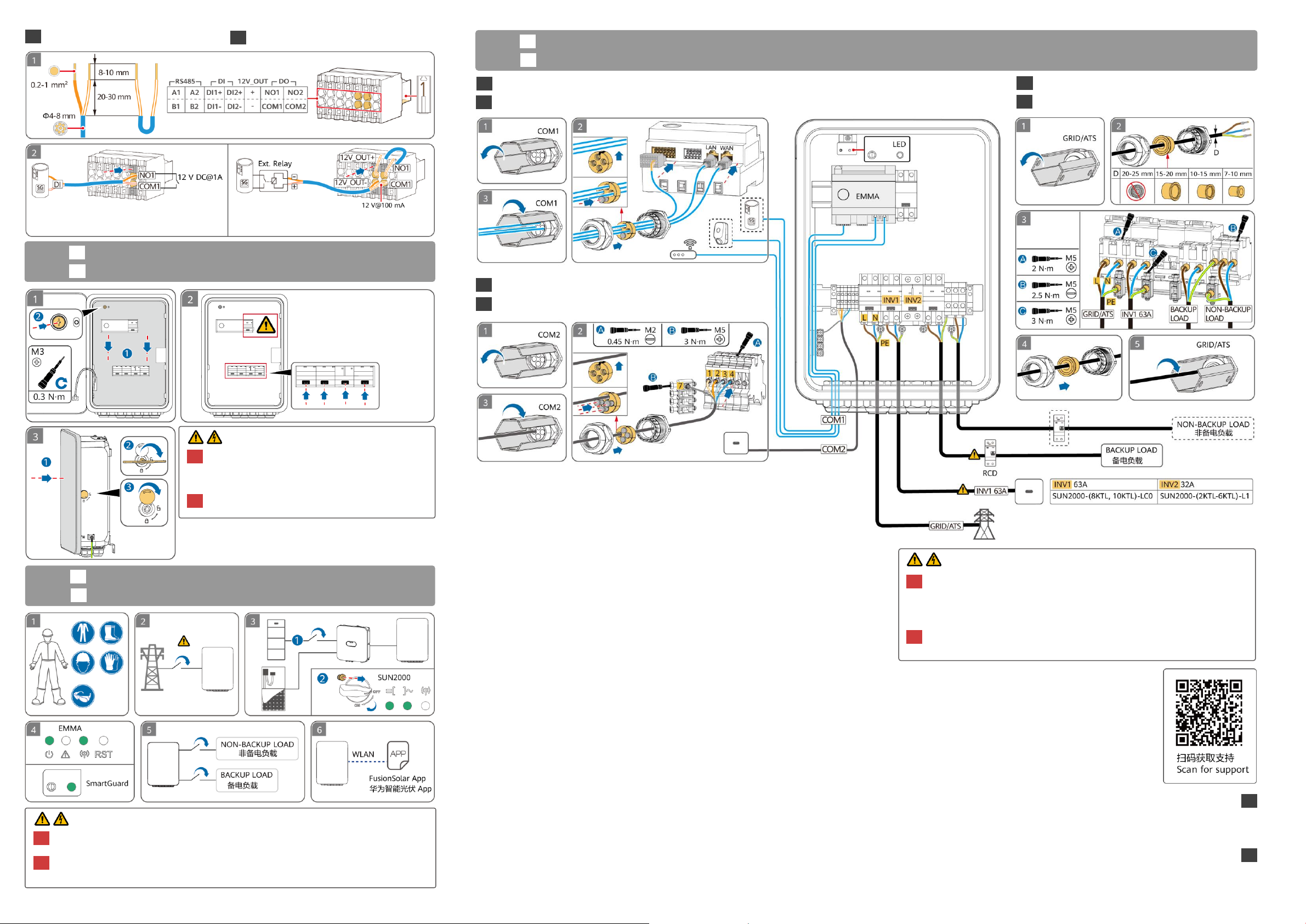

ZH 电气连接

9Electrical Connections

ZH 关闭维护腔

10 Closing the Maintenance Compartment

ZH 并网运行上电调测

11 On-Grid Power-On and Commissioning

•漏电保护开关（RCD）：备电负载前必须安装漏电保护开关，当离网运行时，入户总开关

会失去保护作用，负载发生漏电可能导致电击危险。

•逆变器（INV）：仅支持单台逆变器接入备电盒，根据逆变器型号选择端口。

•RCD: An RCD must be installed before the backup load. During off-grid operation, the

main circuit breaker does not provide protection. Electric leakage on the loads may

result in electric shocks.

•INV: Only one inverter can be connected to the SmartGuard. Select a port based on the

inverter model.

EMMA信号线连接。

备电盒信号线连接。

备电盒交流线连接。

功率DO连接SG Ready热泵。

The power DO is connected to the SG Ready heat pump.

信号DO连接SG Ready热泵。

The signal DO is connected to the SG Ready heat pump.

Signal cable with a 14-pin terminal

Connect the EMMA signal cables.

Connect the SmartGuard signal cable.

Connect the SmartGuard communications cables.

During deployment and normal operation, do not operate the

bypass switch. When the grid is available but the SmartGuard

is abnormal and cannot supply power to loads, set the bypass

switch by referring to the user manual.

ZH 在开局和正常使用时，请勿操作旁路开关。当电网有电，备电盒

异常无法给负载供电，参考用户手册操作旁路开关。

仅闭合下图的4个开关。

离网运行上电调测：保持步骤2入户总开关断开，完成上电调测步骤。待电网恢复供电后，再闭

合步骤2入户总开关。

Off-grid power-on and commissioning: Turn off the main circuit breaker in step 2 to complete the

power-on and commissioning. After the grid recovers, turn on the main circuit breaker in step 2.

Turn on only the four switches

shown in the following figure.
