Huawei IP Phone eSpace 7820

Quick Start

Welcome to Huawei IP Phone eSpace 7820 (eSpace 7820 for short).

The eSpace 7820 is a high-performance network phone that enables you to enjoy

convenient voice communication.

Product appearances and screen shots in this document are for reference only.

For details about eSpace 7820, see the Huawei IP Phone eSpace 7820 User Manual in

the CD-ROM.

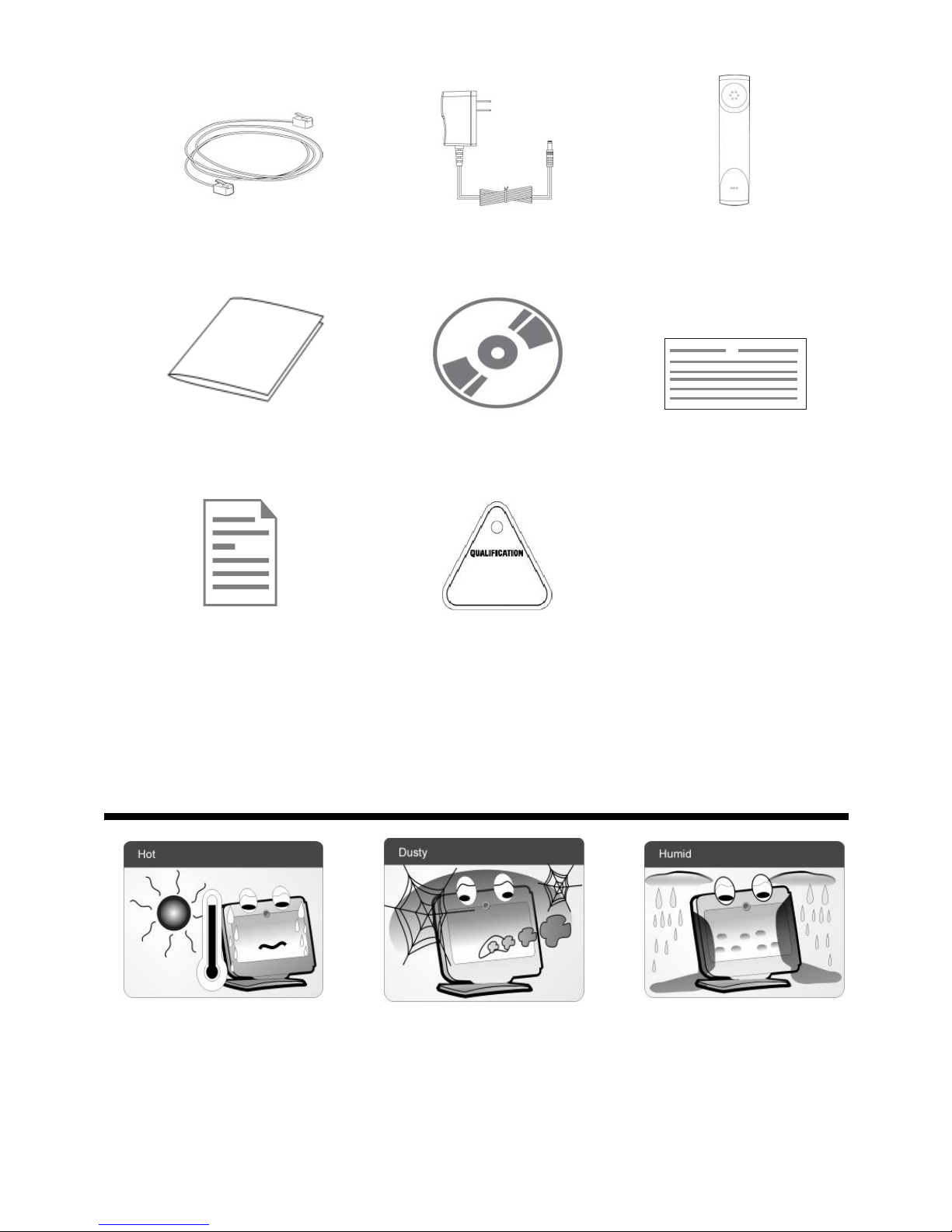

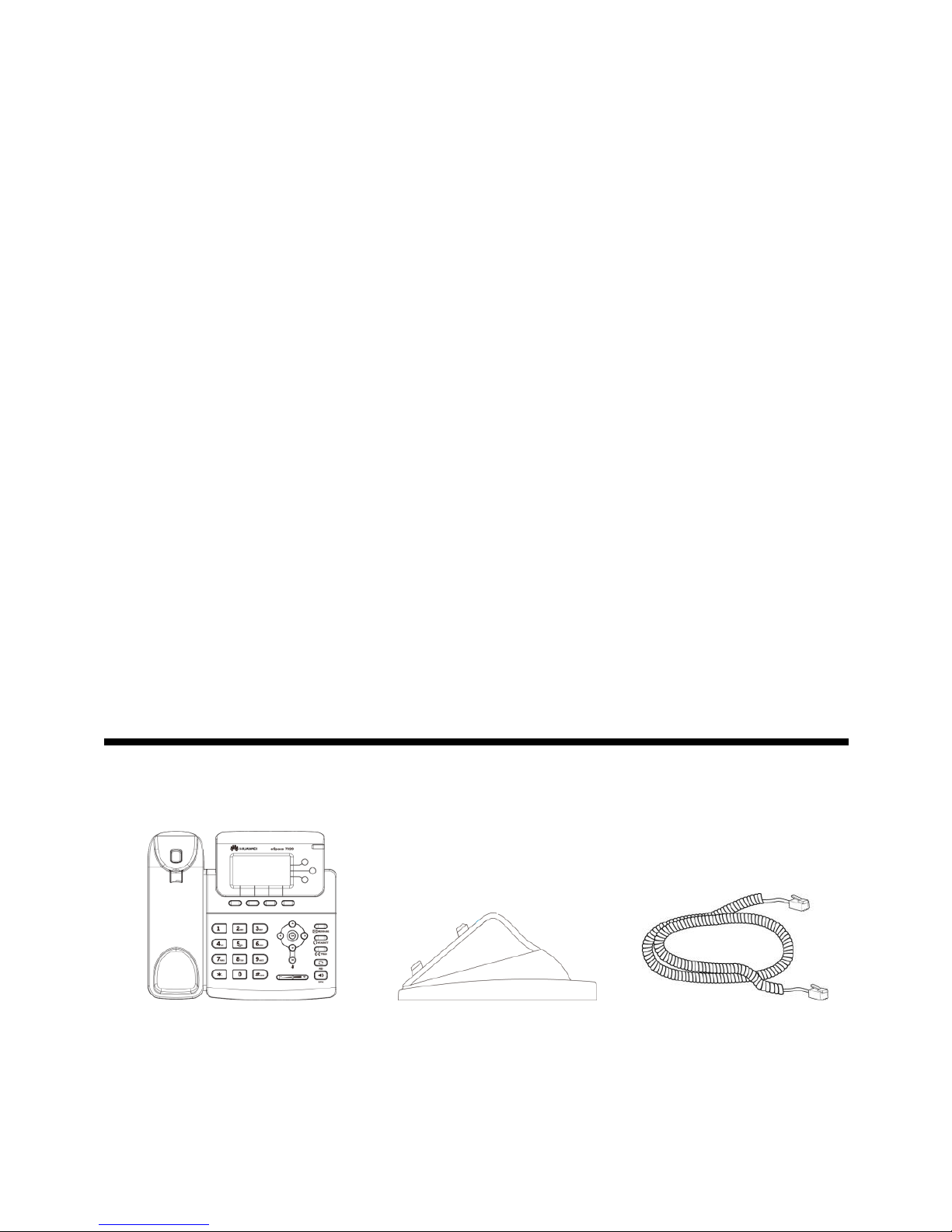

1 Packing List

Verify that the following components are contained in the product package. If any of

them are lost, contact the distributor.

Main case (1)

Phone stand (1)

Handset cord (1)

Straight-through network

cable (1)

Power adapter (1)

Handset (1)

Quick start (1)

CD-ROM (1)

Environment

declaration (1)

Warranty card (1)

Quality certificate (1)

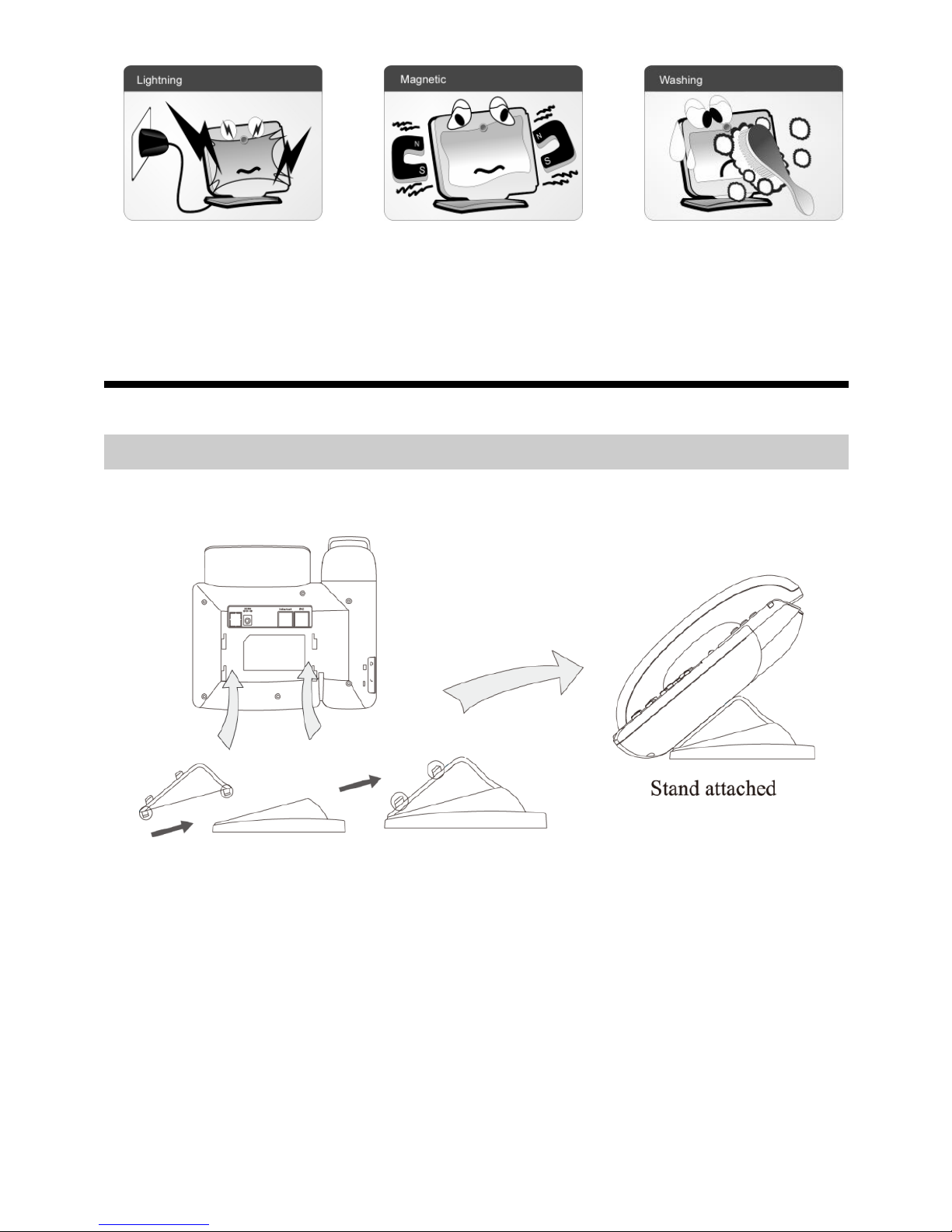

2 Security Precautions

3 Installing the eSpace 7820

Installing the Phone Stand

To place eSpace 7820 on the desktop, install the phone stand in the forward

direction and connect it to related slots on eSpace 7820's back panel.

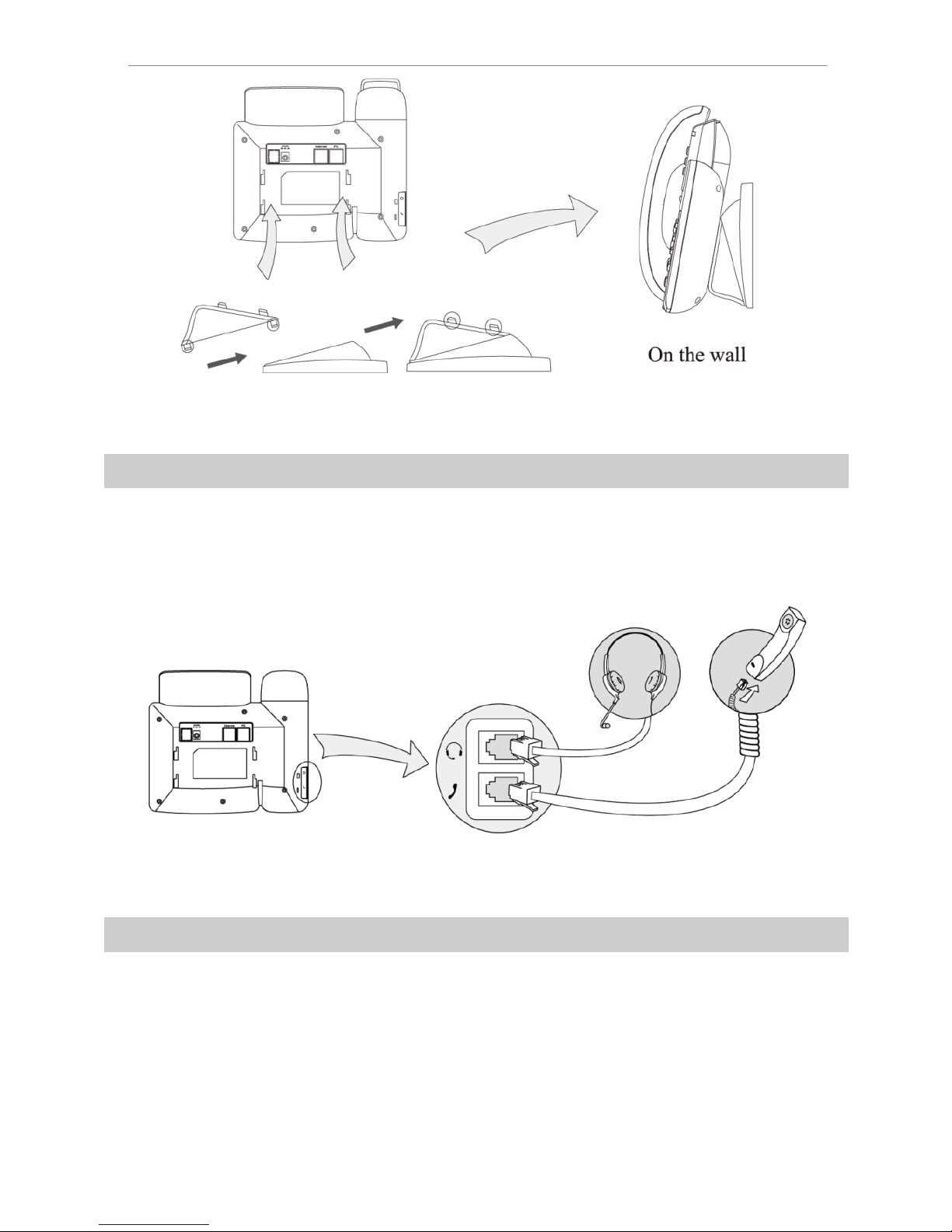

To hang eSpace 7820 on the wall, install the phone stand in the backward direction

and connect it to related slots on eSpace 7820's back panel.

Connecting the Handset and Headset

Connect the handset and headset to related ports on the eSpace 7820.

Note: The headset is not attached to the product package and you can buy one from the

distributor.

Connecting Cables

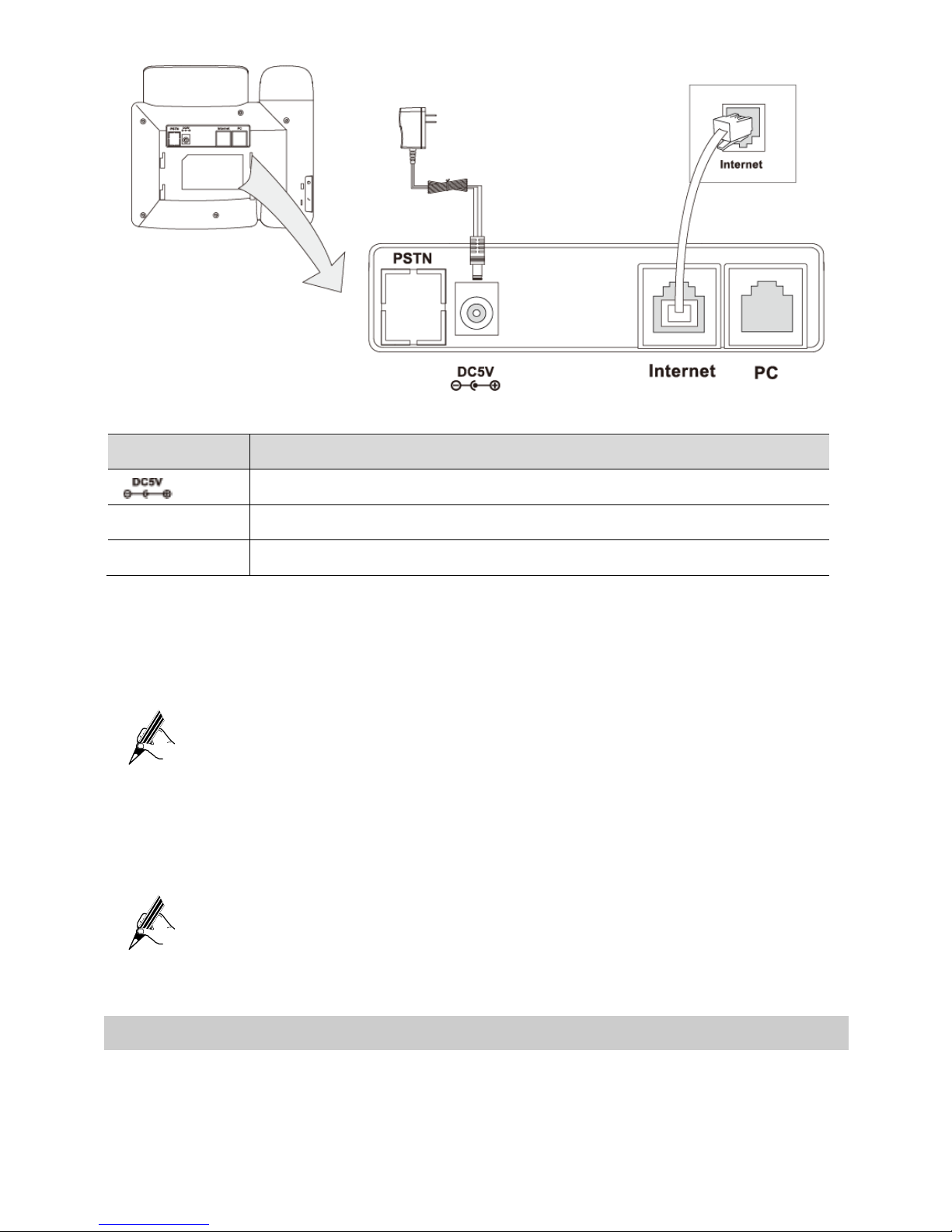

Before powering on the eSpace 7820, connect required external cables. The following

figure shows the typical cable connection.

The following table lists related ports.

Port

Description

Connects the power supply.

Internet

Connects the Local Area Network (LAN) or the public network.

Connects a computer.

To connect required external cables to the eSpace 7820, proceed as follows:

Step 1 Use a straight-through network cable to connect the Internet port on the

eSpace 7820and to an externalnetworkport, for example, the networkport in

office or at home.

If you have only one external network port but want to connect the computer

and eSpace 7820 at the same time, perform Step 1 and use another

straight-through network cable to connect the computer to the PC port on the

eSpace 7820.

Step 2 Connect the power adapter to the power supply port on the eSpace 7820 and

to a power socket.

You must use the power adapter that is intended for the eSpace 7820.

Starting the eSpace 7820

After you power on the eSpace 7820, the power indicator at the upper-right corner is

green.

During the startup of the eSpace 7820, a message is displayed asking you to

perform basic configurations. Click Cancel or waits 5 minutes for the phone

to automatically log in.

4 Registering the eSpace 7820

Registering an Account

If an eSpace 7820 has no account, the Login Wizard screen is displayed after it is

started successfully.

To register an account, proceed as follows:

Step 1 Set Extension, Password, and Server.

The value of Extension and Password are the registration account and

password provided by the system administrator. The value of Server is the IP

address or domain nameof the SIP server. Press the up and down keys to

select parameter.

Step 2 Press the soft key <Log In>.

After the login is successful, the standby screen is displayed, and the account can be

used to make calls.

Checking the Configuration

The icon indicates that the network connection is normal and that the account

The icon indicates that the account is being registered.

The icon indicates that the account failed to be registered. Check whether the

network and account settings of the eSpace 7820 are the same as the settings

provided by the administrator. If they are both correct but the account still failed to

be registered, contact the system administrator.

5 Using the eSpace 7820

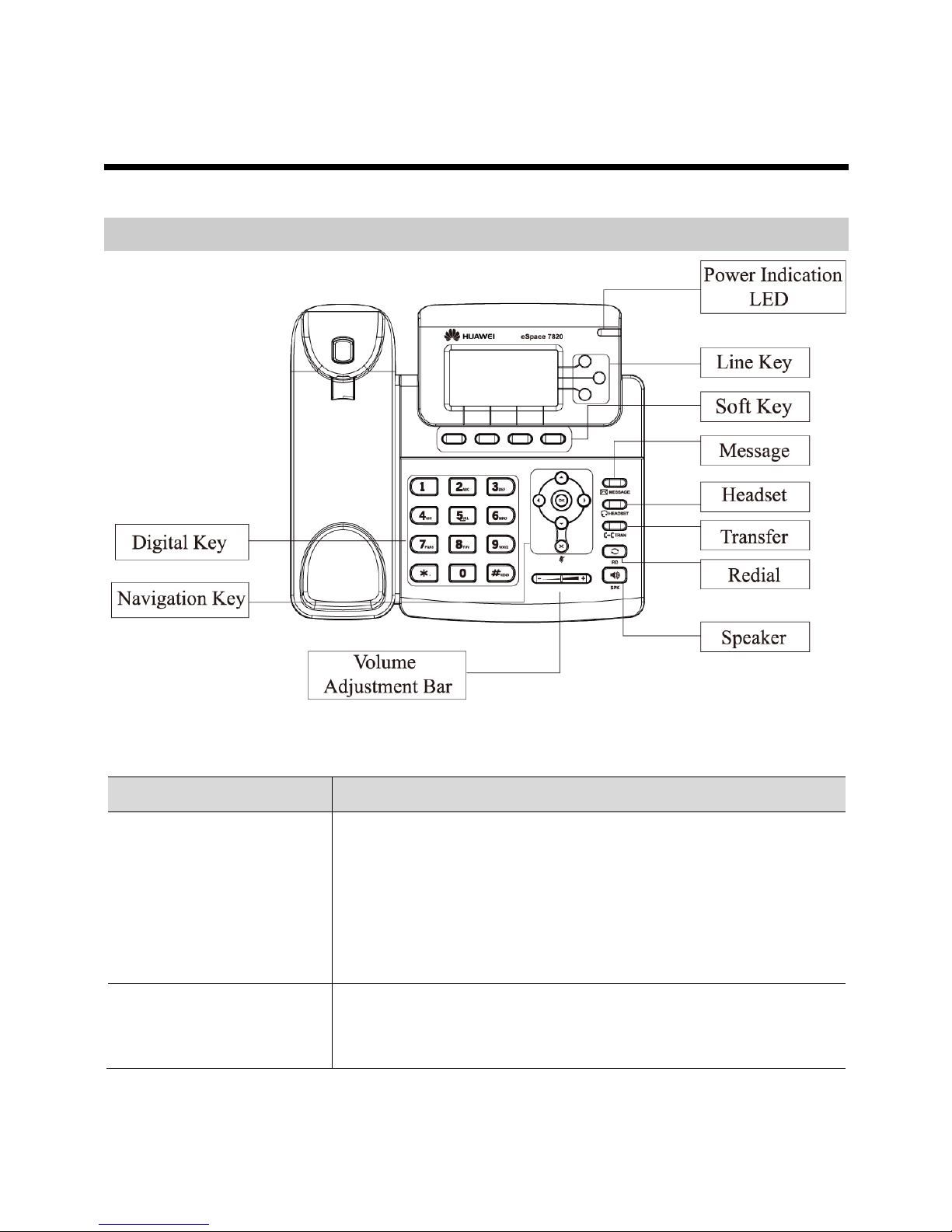

eSpace 7820 Keys and Indicators

eSpace 7820 keys and indicators are described as follows:

Key and Indicator

Description

Power Indication LED

This indicator indicates the power supply status.

When eSpace 7820 is powered on, the indicator is on.

When eSpace 7820 is powered off, the indicator is

off.

When eSpace 7820 has an incoming call or when it is

muted during a call, the indicator blinks.

Line Key

Line keys indicate the status of the three accounts. You

can set line keys to Direct Station Selection (DSS) keys

for other use.

Soft Key

The phone screen displays function names of the four soft

keys. For example, soft keys are marked as <History>,

<Directory>, <DND>, and <Menu> on the standby

screen.

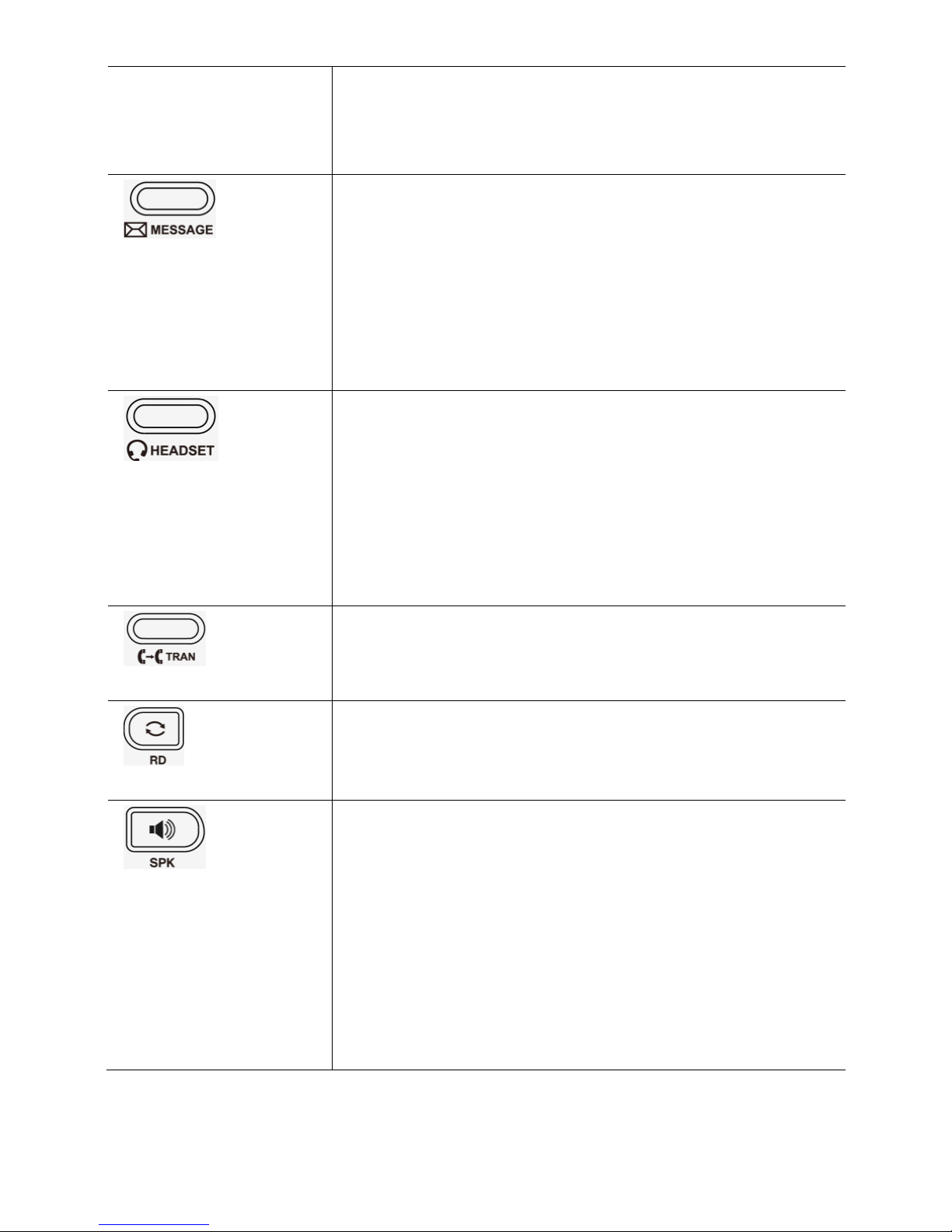

Message

When you receive a new voice message, the indicator

blinks.

If you have set Account No., the voice mailbox is

automatically connected after you press this key.

If there is no new voice message, the page for setting

voice mailbox connection code for the default

account is automatically displayed afteryou press this

key.

Headset

On the dialing page or conversation page, press this key

to change the conversation mode.

In a conversation with a handset, press this key to

access the headset mode, and press this key again to

restore the handset mode.

In a conversation in the hand-free mode, press this

key to access the headset mode, and press this key

again to restore the hand-free mode.

Transfer

Press this key to transfer a call to another party.

Redial

In the standby state, press this key to access the page

displaying numbers that you have dialed.

Select a record and press this key again to initiate a call.

Speaker

Press this key to answer an incomingcall in the hand-free

mode.

On the dialing page or conversation page, press this key

to change the conversation mode.

In a conversation with a handset, press this key and

put down the handset to access the hand-free mode.

To restore the handset mode, press this key again.

In a conversation with a headset, press this key to

access the hand-free mode, and press the Headset key

to restore the headset mode.

Volume Adjustment

Bar

Adjusts the receiving volume for the handle, headset, and

ring tone, and the receiving volume in the hand-free

mode.

Navigation Key

Navigation keys include four arrow keys (up, down, left,

and right), one <OK> key, and one <X> key.

Arrow keys: move the cursor on pages.

<OK> key: access the menu that is selected or

confirm an operation, or answer an incoming call if

any.

<X> key: cancel an operation, return to the

upper-level menu, reject an incoming call (in the

ringing state), or end a call.

Digital Key

Enters alphanumeric and special characters.

To enter digits, lowercase letters, uppercase letters, and

special characters, switch the entering mode.

Making a Call

To access the dialing page, press the SPK key or related line key, or pick up the

handset.

Direct dial: Enter a number and press the soft key <Send> or the <OK> key.

Redial: Press the <RD> key to access the page displaying numbers that you have

dialed. Select a record and press the <RD> key again.

Call-record-based dial: Press the soft key <Pool>. On the Pool page that is

displayed, press the up or down key to select a type and a record, and then press the

soft key <Send> or <Dial>.

Answering a Call

To answer an incoming call in the standby state, press the <SPK> key, pick up the

handset, or press the key <Headset> or the soft key <Answer>.

Rejecting a Call

To reject a call, directly press the soft key <Reject>.

Holding a Call

To hold an ongoing call, press the <Hold> soft key. If you want to cancel the holding,

proceed as follows:

When only one call is held, press the <Resume> soft key again.

When multiple calls are held, press the up or down key to select a callthat you want

to unhold, and press the <Resume> soft key again.

Transferring a Call

The eSpace 7820 supports the following call transfer modes: blind transfer,

semi-consultation transfer, and consultation transfer.

Assume that user A wants to transfer user B's call to user C. The procedure is as

follows:

Step 1 During the conversation with user B, user A presses the <Transfer> key to

hold the call with user B.

Step 2 User A dials user C's number.

Step 3 User A performs call transfer.

Blind transfer

User A presses the <Transfer> key to initiate the call. After that, user C's

phone rings. After user C picks up the phone, user A's phone hangs up

automatically to complete the transfer.

Semi-consultation transfer

User A presses the <OK> key to initiate the call. When user C's phone

rings, user A presses the <Transfer> key, and user A's phone hangs up

automatically. The transfer is complete when user C picks up the phone.

Consultation transfer

User A presses the <OK> key to initiate the call. Afteruser C picks up the

phone, user A asks user C whether user C wants to answer user B's call. If

user C wants to answer, user A presses the <Transfer> key to complete

the transfer.

Step 4 User B talks with user C.
