Huawei EC156 Manuale utente

HUAWEI EC156

User Guide

Table of Contents

1. Introduction.............................................................................................................................. 3

2. System Requirements........................................................................................................... 3

3. EC156 Appearance................................................................................................................. 4

4. Technical Specifications....................................................................................................... 5

5. Inserting a microSD Card .................................................................................................... 6

6. Using the device...................................................................................................................... 7

Installation Procedure for Windows XP ........................................................................ 7

Installation Procedure for Mac OS.................................................................................16

Installation Procedure for Linux ....................................................................................23

7. Laptop Compatibility List..................................................................................................32

8. Troubleshooting....................................................................................................................36

9. Care and Maintenance ........................................................................................................39

10. Warnings and Precautions................................................................................................39

1. Introduction

Congratulations on your purchase of Huawei EC156 TATA Photon Plus USB Data

Modem Device.

The User Guide contains important information on the proper use and correct

operation of Huawei EC156 TATA Photon Plus USB Data Modem Device. We

recommend that you read this manual carefully to ensure optimal performance.

2. System Requirements

PC with USB Port

Hardware configuration should satisfy the demand of any of the following

operating system.

a. Windows XP SP2 / SP3, Windows Vista SP1 / SP2, Windows7

b. Mac OS X 10.5 and 10.6 with latest upgrades

c. Linux Ubuntu 10.04/9.10/9.04, openSUSE 11.3/11.2, Fedora

13/12/11, Debian 5.0, Xandros 4.2, Mandriva 2010.1/2010.0,

Red Flag 7.0

Display Resolution：Above 800x600

Note:

If your PC has lower configuration，the performance of EC156 may be lower.

3. EC156 Appearance

Please find below the description that you need to know to start using your device.

Name

Description

1.USB Plug

It connects the device to your PC.

2.Strap Hole

You can tie the cap and the USB Stick together by

threading a strap through the strap holes, so that the

cap will not be easily lost.

3.Indicator light

Solid: Device is powered on.

Blinking once every 2 seconds: Device is searching

for a network or no network is found.

Blinking twice every 2 seconds: Device finds a

network.

Blinking once every 0.2 second: Device is

transmitting data.

4. microSD card

Slot

To install a microSD slot and use it as a data storage

device

4. Technical Specifications

Modem Type

USB Dongle NON-RIUM

Mode

EVDO REV A

Frequency (Band )

800 MHz

Antenna Type

Internal

Dimension

83.0mm×26.5mm×11.5mm

Memory Card Slot Support

microSD card

External Memory Support

Up to 4GB

Speeds

Up to 3.1 Mbps (Downlink) &

Up to 1.8 Mbps (Uplink)

NOTE: In regions, where Tata Photon Plus network coverage is unavailable, the

device will operate on Tata Photon Whiz speeds of up to 153.6 Kbps

5. Inserting a microSD Card

1. Slide the back cover to remove it from the device.

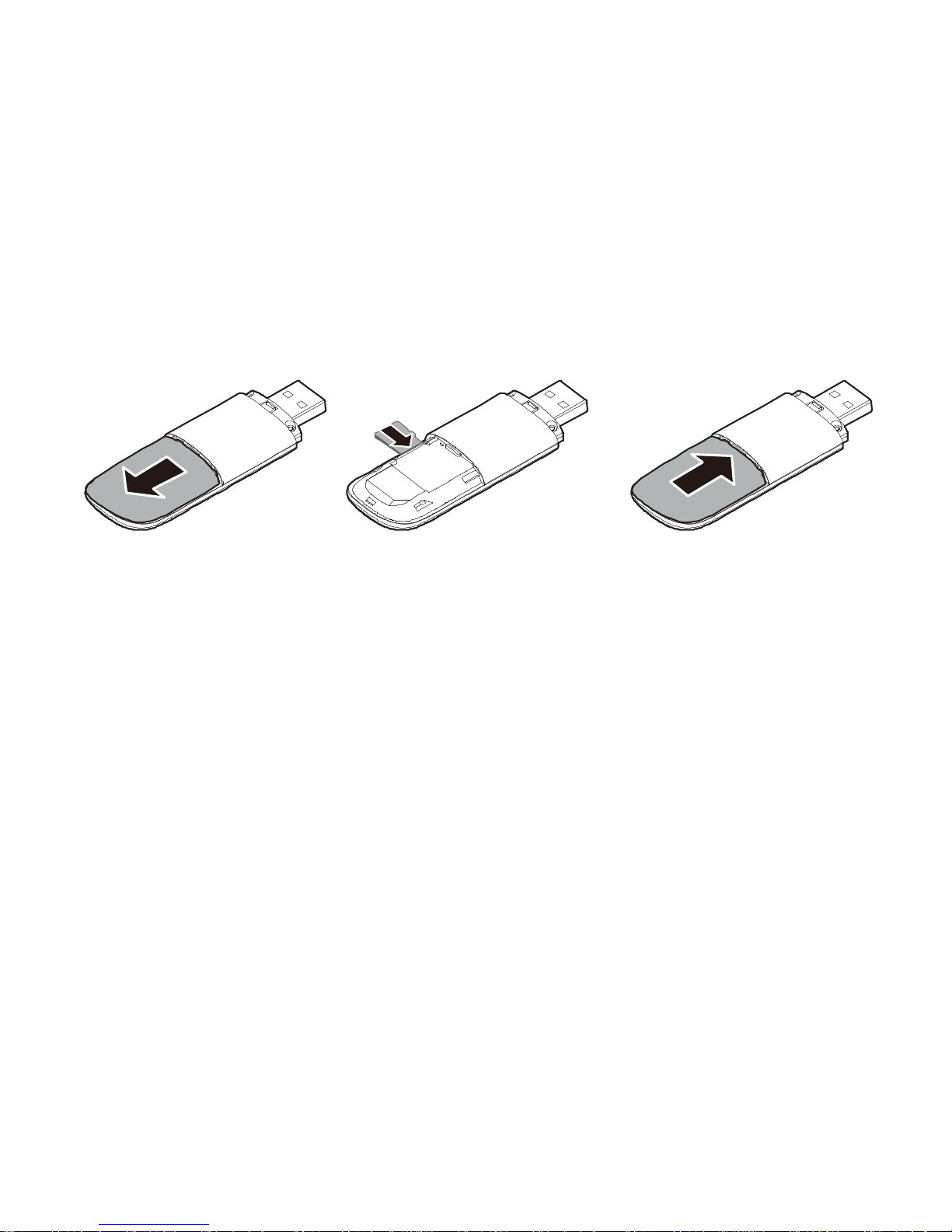

2. Insert the microSD card into the corresponding card slot, as shown in the

following figure.

3. Replace the back cover and slide it into place.

6. Using the device

For different operating system, the installation process is different. Please note the

process for the following Operating Systems

Installation Procedure for Windows XP

1．Connect the USB Modem with PC

Connect the USB Modem with your PC via USB port.

2．Install the Dialer & Driver

If PC opens the auto run function, it will pop up an installation interface. If not,

please go to CD as shown in the figure below and open it and double click the

“AutoRun.exe” file or right click and click on Auto play.

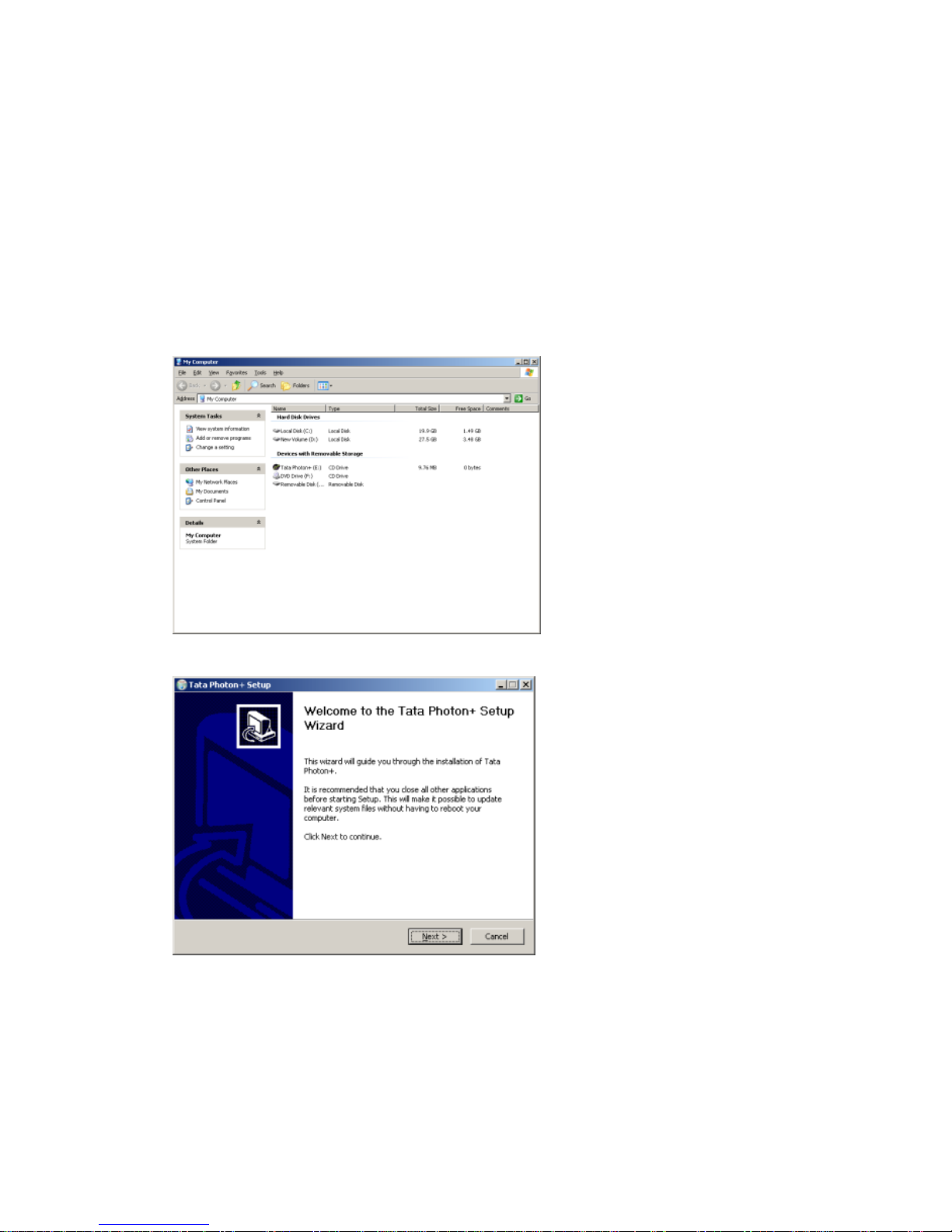

Please refer to the following screenshots for the further steps of installation

Click “Next “and then to agree with the license agreement click “I Agree”.

Click “Next “and then choose a location path for installation and click install. In

case you do not have any specific location preference you may choose to continue

with the default location and click “Install”.

Please click on “Finish” button.
