Huawei B310s Manuale utente

B310s LTE CPE

Quick Start

Getting to know your Router B310s

Power indicator

On: the B310s is switched on.

Off: the B310s is switched off.

Network mode

indicator

Steady cyan: connected to an LTE network.

Steady green: connected to an Ethernet

network.

Steady red:

– The SIM card is not recognised, the PIN has

not been entered, or the PIN verification has

failed.

– Failed to connect to a mobile network or an

Ethernet network.

Wi-Fi/WPS

indicator

Steady on: Wi-Fi turned on.

Blinking: a WPS connection is being setup.

Off: Wi-Fi turned off.

LAN/WAN

indicator

Steady on: LAN/WAN port connected to a LAN

device or an Ethernet port.

Blinking: data is being transmitted through the

LAN/WAN port.

Off: LAN/WAN port not connected to a LAN

device or an Ethernet port.

Signal strength

indicator

On: signal reception available (3 Bars

recommended for better reception).

Off: no reception.

SIM card slot Install a standard SIM card to access internet via

an LTE data connection.

External

antenna port Connect to an external antenna after the removal

of cover.

WPS button Press and hold for 2 or more seconds until

is blinking to activate WPS connection when Wi-Fi

is turned on.

Power button Press and hold for about 3 seconds to power the

B310s on or off.

Reset button

Restoring the default settings of the B310s will

erase all previous settings.

When the B310s is powered on, use a sharply

pointed object to press and hold for about 3

seconds until indicator is blinking to restore

the B310s to its factory settings. After the factory

defaults are restored, the B310s will restart

automatically.

Power port Connect to a compatible power adapter.

LAN/WAN port

Working as a LAN port when connected to a

computer, switch to any other LAN device.

Working as a WAN port when connected to an

Ethernet port.

Telephone port Connect to a telephone.

1 Installation

Scenario 1: Accessing the Internet using an LTE

network

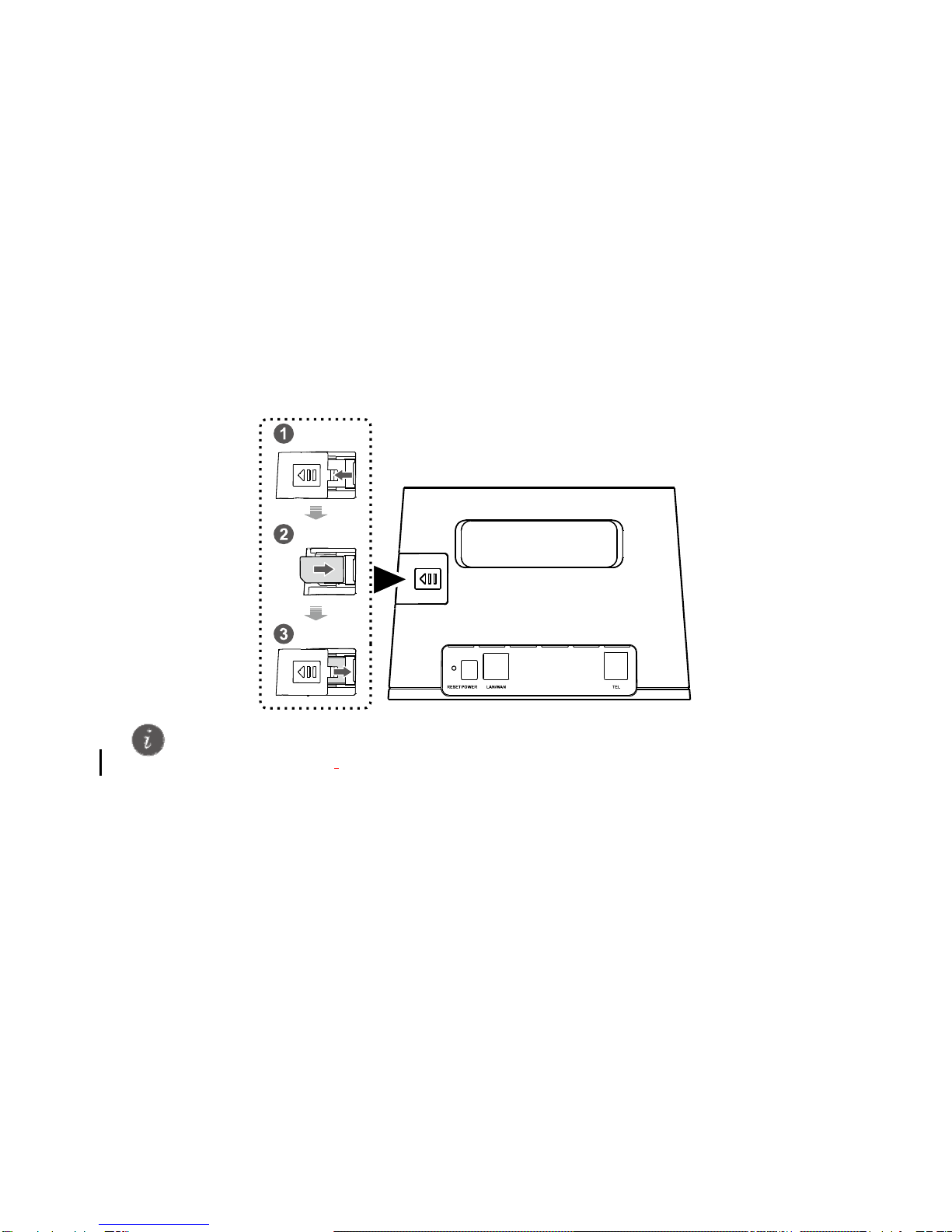

Step 1: Installing the SIM card

1. Slide off the card slot cover.

2. Insert the SIM card into the card slot. Ensure that the slanted edge of the SIM

card aligns with that of the card slot

3. Close the card slot cover.

Do not remove the SIM card when it is in use. Doing so, will affect the

performance of your router B310s.

Step 2: Connecting cables

Once connected to a power outlet, press the power button as the Router B310s

requires to be powered on manually

Power adapter Computer

Telephone Laptop, Tablet or Smartphone

To prevent interference caused by radio signals, place the B310s at least 1

meter (3.28 feet) away from telephone and other electrical devices.

The B310s power adapter model is HW-120100XYW. X and Y represent

letters or numbers that vary by region. For details about the specific adapter

model, contact an authorised dealer.

Do not connect the B310s to the telephone wall outlet (or any Public Switched

Telephone Network), because doing so could damage the B310s due to

excessive heat.

Installing the external antenna

In areas with poor reception, connect external antenna to the Router B310s

external antenna port to improve signal reception.

1. Power off the B310s and disconnect it from the power outlet.

2. Remove the cover from the antenna port. (Keep it in a safe place.)

3. Install one or two external antennas as needed. Make sure the external

antennas are securely connected to the antenna ports.

If you are using only one external antenna, connect it to port 1.

Before installing the external antenna, ensure that the B310s is switched off

and disconnected from the power outlet.

Only use the external antenna indoors, and do not use it during a

thunderstorm.

Do not change another unexpected antenna unless it is provided by the

manufacturer -

Scenario 2: Accessing the internet via multiple

devices

Connect the B310s to an Ethernet port or an ADSL modem for internet access.

Once connected to a power outlet, the B310s automatically powers on.

Power adapter Ethernet port

Telephone Laptop, Tablet, or Smartphone

To prevent interference caused by radio signals, place the B310s at least 1

meter (3.28 feet) away from telephone and other electrical devices.

The B310s power adapter model is HW-120100XYW. X and Y represent

letters or numbers that vary by region. For details about the specific adapter

model, contact an authorised dealer.

Do not connect the B310s to the telephone wall outlet (or any Public Switched

Telephone Network), because doing so could damage the B310s due to

excessive heat.

2 Setting up a Wi-Fi connection

Step 1: Enabling Wi-Fi on the B310s

When the indicator is steady on, the Wi-Fi function of the B310s is turned

on.

Step 2: Recording the SSID and Wi-Fi key

The default SSID and Wi-Fi key are printed on the B310s bottom label.

Step 3: Setting up a Wi-Fi connection on your device (computer,

tablet, or smartphone) -

Method 1: Setting up a Wi-Fi connection manually

1. From your Wi-Fi enabled device - scan for wireless networks in your area.

2. Connect to the network name that matches the SSID found on the device label.

Make sure your device (Computer, Tablet, or Smartphone) also supports Wi-Fi.

For details about how to manually enable or disable the Wi-Fi function, refer to

the WLAN settings section of the help information on the web management page.

To prevent unauthorised parties from accessing your Wi-Fi network, it is

recommended that you change the SSID and Wi-Fi key from time to time. For

details, see the help information on the web management page.

3. When prompted for password, enter the Wi-Fi Key found on the device label.

(The Wi-Fi key is case sensitive.) Your device will notify you when it is

connected.

Method 2: Reset Wi-Fi connection through WPS

If the device supports WPS, you can set up a WPS connection as follows:

1. Ensure that Wi-Fi is enabled on the device.

2. Press and hold the WPS button for 2 or more seconds. The indicator

then starts blinking.

3. Activate the WPS connection on the device in 2 minutes.

For instructions about how to enable a WPS connection on the client, see the

device - user guide.

3 Configuring your B310s

1. After the device is connected to the B310s through Wi-Fi or LAN port, launch a

browser on the client and visit http://192.168.8.1.

2. Enter the user name and password to log-in to the web management page.

The default user name and password are printed on the B310s bottom label.

3. Follow the quick setup wizard to check or set network connection parameters

step by step. For details, see the help information on the web management

page.

Once you are done, try opening a web page on the client to verify whether you

have Internet access.

To protect your account, change the password after your first log-in. For details

see the help information on the web management page.

If you modify the SSID and Wi-Fi key, you must set up the Wi-Fi connection on

the client again.
