Huawei V600R019 Manuale utente
Operation Guide (Touch Panel)
V600R019
Touch Panel
Touch Panel UI
Share Content
Invite a New Participant
to a Conference
Join a Conference Using
the Conference Access
Number/VMR Domain
Name/Passcode
Join a Conference from the
Conference Schedules
Create a Conference Using the
Address Book
Create a Conference Using the
Site Number or IP Address
Create a Conference Using the
Call History
Create a Local Conference
1 Quick Start
2 Join a
Conference
3 Create a
Conference
Request/Release Chair Control Rights
Select a Screen Layout
Add a Site
Extend a Conference
Switch from One Conference to Another
View Sites in Turn
Enable Voice Activation
Broadcast a Site
Request the Floor
Give the Floor
Record a Conference
Display Caption
Set Continuous Presence
Mute or Unmute the Microphone of a
Site
Disconnect a Site
Call a Site
Delete a Site
4 Control a Conference
(Standalone MCU) Contents
PART 01
Quick Start
Touch Panel
Touch Panel UI
Share Content
Invite a New Participant to a
Conference
Quick Start
Touch Panel About the Touch Panel
Using the touch panel, you
can easily:
Hold a conference
Perform voice dialing
Control a conference
Control the microphone
and speaker
Select and control a
camera
With the touch panel, you
can join and control
conferences by several taps.
Back to Contents
Power button
Quick Start
Touch Panel UI Operating Tips
Press the power button
for about 2s to power
on the tablet. Then
press to access the
home screen of the
telepresence system.
On the home screen,
you can use the
passcode to join a
conference.
Alternatively, enter the
access number of a
conference to join it or
call a site by its IP
address. Select the
method of joining a
conference based on
your actual needs.
Task bar
Joining a conference
using its passcode
Scheduled
conference list,
from which you
can search for and
join a scheduled
conference
Tapping it to display the
Address book, Keypad, and
Conference History menus Tapping it to view local
video and presentation Back to Contents
Quick Start
Share Content About Presentation Sharing
The Air Content Sharing client can
run on 32-bit and 64-bit Windows
7, Windows 8, and Windows 10
operating systems.
Before sharing a presentation from
a PC, ensure that the PC is
connected to the endpoint.
Connect the endpoint and PC.
Using a cable:
Connect the video output port
on the PC to the video input
port on the endpoint through a
video cable.
Using the Air Content Sharing
client:
1. Open a browser on the PC,
enter the endpoint's IP
address in the address box,
and press Enter.
2. On the login page of the
endpoint's web interface,
click Download Air Content
Sharing in the upper left
corner to download the
client. Then install it as
prompted.
3. On the PC desktop, double-
click the icon of the Air
Content Sharing client to
start it.
Then the shared content
appears on the display
connected to the endpoint.
To stop presentation
sharing, tap Cancel.
2
Tap Share.
1
Tap Share presentation.
Back to Contents
Quick Start
Share a Presentation Using the AirPresence Mobile Client About AirPresence
•AirPresence is a wireless
projection client designed for
the endpoint. It can be
installed on a PC or mobile
device.
•The projection code is
available on the endpoint's
user interface after
Connection policy is set to
Projection code under
System Settings > Security
> Air Content Sharing on the
endpoint's web interface.
The AirPresence mobile client
runs in:
•Android 5.0 or later
•iOS 7.0–11.0
Back to Contents
•Enter the projection code to connect to the endpoint.
•Start the AirPresence client on your mobile
device.
12
After the connection is set up, tap Share. Then choose
to share a document, image, or desktop.
1
About Sharing a
Presentation
To stop sharing, click Stop or
Disconnect.
Obtain the AirPresence PC client
installation package from the
endpoint's software package.
The AirPresence PC runs in:
•32-/64-bit Windows
7 SP1/8.1/10
•32-/64-bit OS X 10.7–10.11
Quick Start

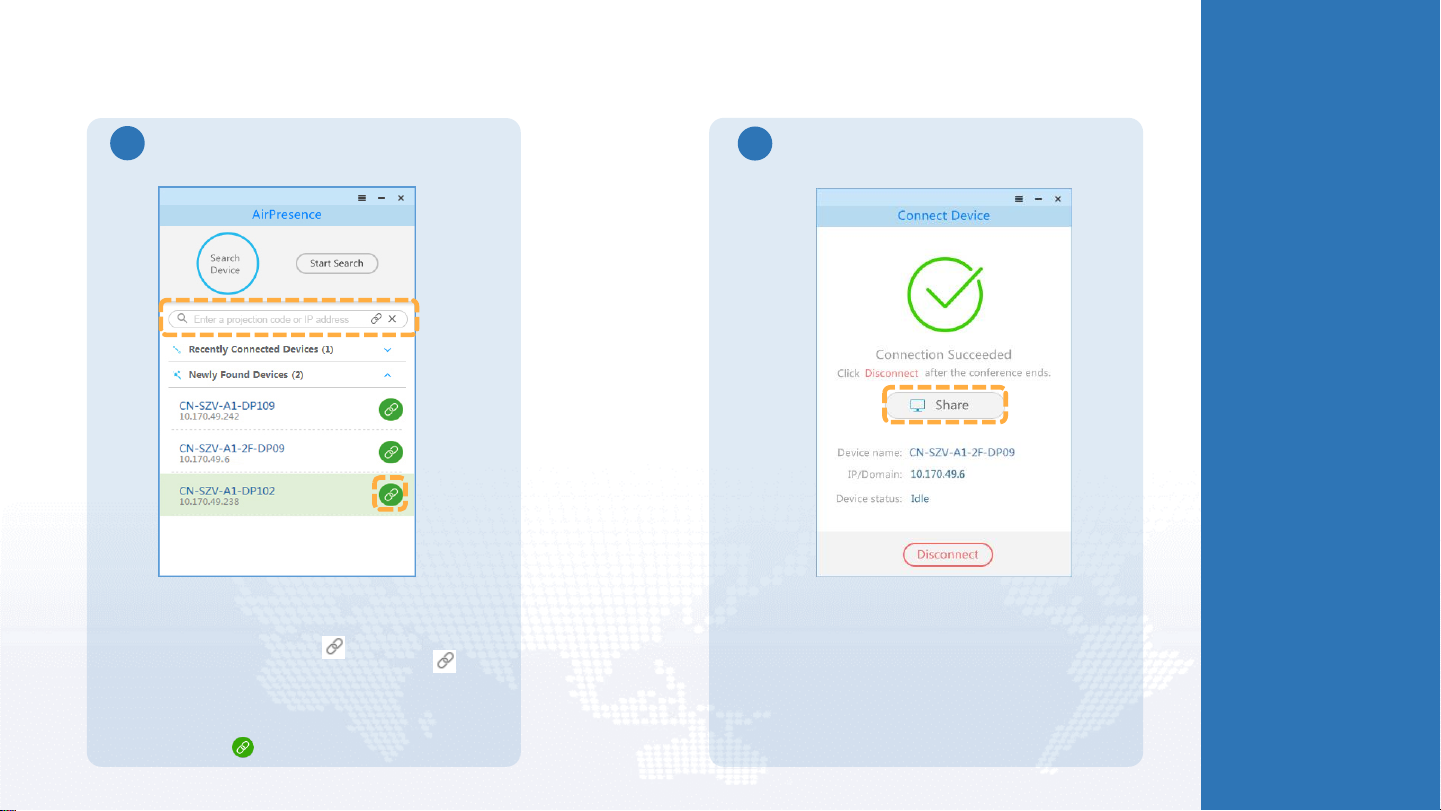

Share a Presentation Using the AirPresence PC Client
Connect the AirPresence PC client to an endpoint
through one of the following methods:
•Enter the projection code found on the endpoint's
user interface and click .
•Enter the endpoint's IP address and click .
Then enter the connection password on the
AirPresence client or accept the connection request
from the endpoint's user interface.
•Find the endpoint in the Newly Found Devices list
and click .
Tap Share.
2
