Huawei UPS5000-S Series Manuale utente

Issue: 03

Part Number: 31509861

Date: 2019-06-10

UPS5000-S-(40 kVA-200 kVA)

Quick Guide (IP42, 40 kVA Power

Modules)

1Overview

UPS Model Cabling

Mode Capacity

Configuration Weight (Standard

Configuration) Dimensions

(H x W x D)

UPS5000-S-

200K-SM-IPB Bottom

cable routing 200 kVA Net weight ≤ 480 kg

Gross weight ≤ 530 kg

2000 mm x 600 mm

x 850 mm

UPS5000-S-200K-SM

1. Before installation, read

the user manual

carefully to get familiar

with product information

and safety precautions.

2. Use insulated tools

during installation and

operation.

3. Only engineers certified

by Huawei or its agents

are allowed to install,

commission, and

maintain the UPS.

Otherwise, personal

injury or equipment

damage may occur, and

the UPS faults caused

are beyond the warranty

scope of Huawei.

4. This document

describes the

installation procedure

for a single UPS. For

details about how to

install a parallel system,

contact Huawei

technical support.

Power modules

Bypass module

Control module

Power distribution

subrack module

Monitoring

display unit

(MDU)

Filler panel

Maintenance

bypass switch

Document

holder

7. Insert expansion bolts into the expansion bolt

holes in the floor, and tighten the expansion

bolts.

2. Use a hammer drill to drill holes for installing

expansion bolts and then install four

expansion bolts in the holes. Remove the

bolts, spring washers, and flat washers.

3. Wheel the cabinet to the installation position.

4. If the castors of the UPS need to be lifted

from the ground, perform steps 1 to 2 in "Non-

Secured Installation."

5. Remove the rear cover from the cabinet and

open the front door.

6. Remove the four rubber plugs (two front and

two rear) from the bottom of the cabinet.

1. Lower the four leveling feet at the bottom of

the UPS using a wrench until all the four

castors at the bottom do not touch the floor

and the leveling feet bear the whole UPS

weight.

2. Check the UPS levelness using a level. If the

UPS is not level, adjust the leveling feet.

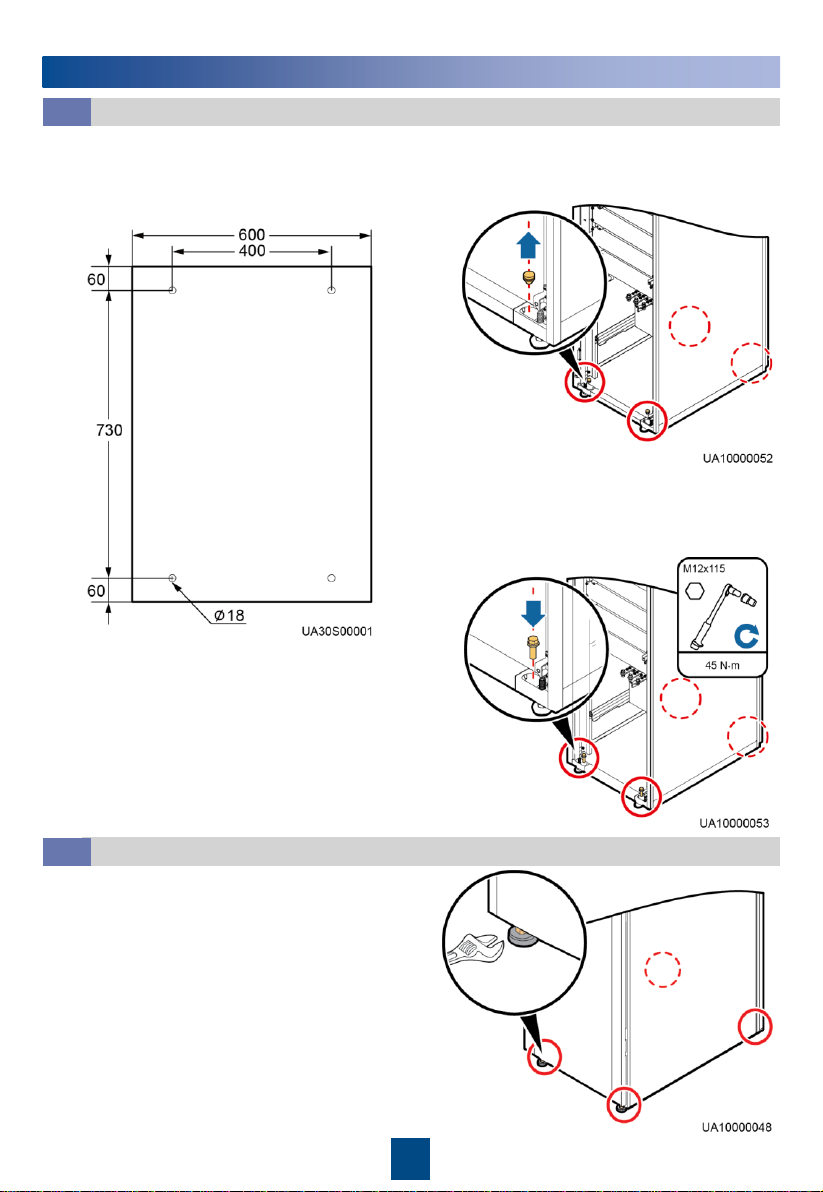

Non-Secured Installation

2.2

Secured Installation

2.1

1. Determine the cabinet installation position.

Mark mounting holes in the installation

position based on drawings.

Unit (mm)

2Installing the UPS

3Installing Cables

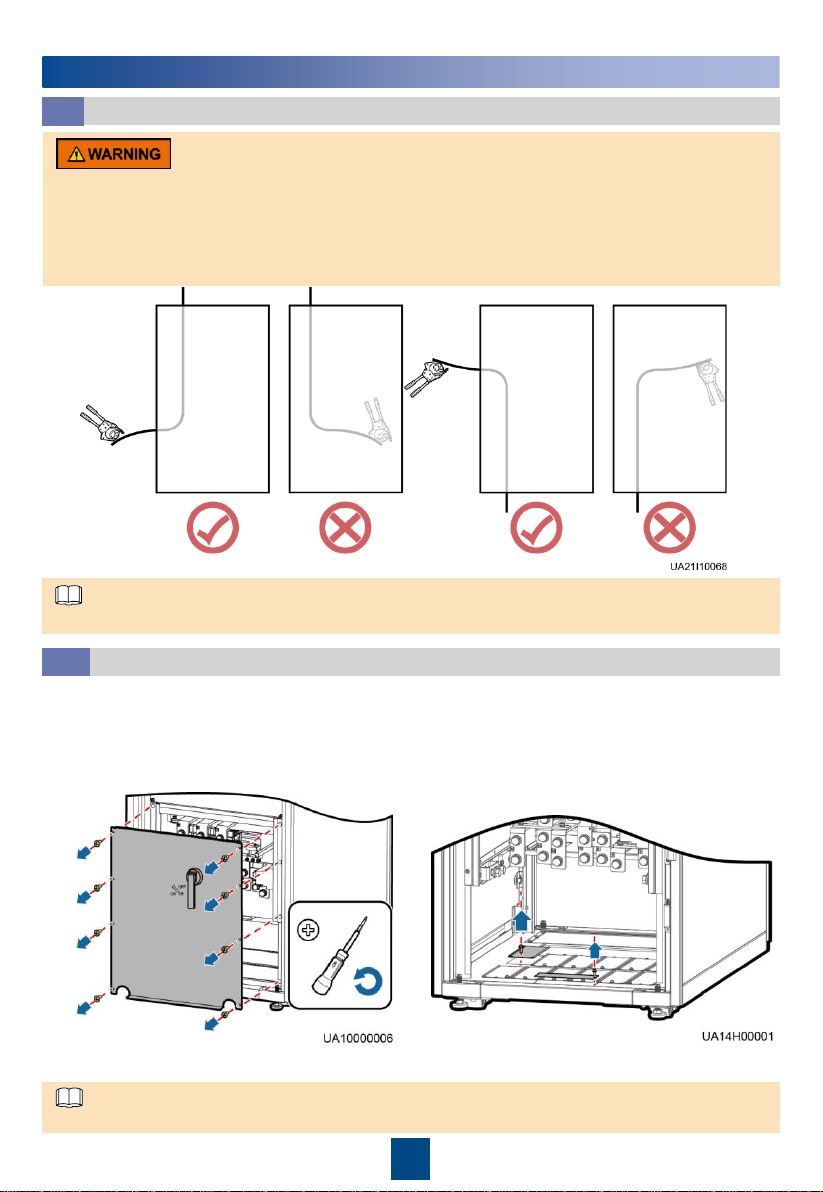

1. Open the front door, and remove the

front cover from the power distribution

subrack.

2. Remove the cable tray cover for the signal

cable, and remove a certain number of small

covers from the cabinet bottom based on site

requirements.

Installing UPS Cables

3.2

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinet in a timely manner. Ensure that there is no

foreign matter inside and around the cabinet.

•You need to prepare terminals onsite. The length of the stripped copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

NOTE

The cover can be removed only when the maintenance bypass switch is OFF.

NOTE

4. (Skip this step if the mains and bypass

inputs share a power source.) Remove the

copper bars between the mains and

bypass input wiring terminals.

3. Connect the ground cables.

5. (If the mains and bypass inputs share a

power source, you do not need to connect

the bypass input power cable.) Connect the

mains and bypass input power cables.

6. Connect the output power cable.

•: internal equipotential connection label.

•: protection ground label.

NOTE

7. Connect the battery cable. 8. Connect the signal cable.

The number and color of signal cables in the figure are for reference only. Signal cables can be

routed along the left or right side of the cabinet. Route signal cables based on the actual situation.

4Verifying the Installation

1. Check that there is no foreign

matter in the cabinet.

2. After verifying the installation,

reinstall all the covers.

NOTE

Wiring terminal

blocks and switches

Cabinet top

Cabinet bottom

Rear of the

modules

Paper

protective film

Sealing putty

Dustproof

cover

5Powering On and Starting the UPS

Powering On the UPS

5.1

Turn on the external bypass and mains input switches.

After the UPS is powered on, initialization begins. The MDU

displays the Huawei logo and an initialization progress bar.

3. (Remove the paper protective film from the

sealing putty.) After routing cables and verifying

cable connections, seal the gap between

cables and the cabinet using sealing putty.

4. Do not remove the dustproof cover before

power-on to prevent dust from entering the

UPS.

Starting the Inverter

5.2

Battery

Specifications

Number of

Batteries

Connected

in Series

Number of Battery

Strings Connected in

Parallel to the UPS

Number of

Cells

Battery Capacity

150 Ah/12 V DC

36 x 6 = 216

150 Ah + 150 Ah = 300 Ah

300 Ah/2 V DC

192

192 x 1 = 192

300 Ah + 300 Ah = 600 Ah

300 Ah/12 V DC

40 x 6 = 240

300 Ah + 300 Ah + 300 Ah

= 900 Ah

300 Ah/2 V DC

240

240 x 1 = 240

300 Ah + 300 Ah + 300 Ah

+ 300 Ah = 1200 Ah

•Number of cells indicates the number of 2 V DC batteries in a battery string connected to the UPS.

•If multiple UPSs share battery strings, the battery capacity of each UPS is the total capacity of the

battery strings.

1. Before powering on the UPS, ensure that the UPS has passed all check items in the UPS5000

Commissioning and Acceptance Report and Chapter 4.

2. Measure the voltage and frequency of the mains and bypass inputs of the UPS, or the voltage

and frequency output from the external input power distribution cabinet (PDC) to the UPS.

Ensure that the line voltage is in the range of 138–485 V AC and the frequency is in the range

of 40–70 Hz.

Sealing putty must be used as a whole and

the gap can be sealed only from the top.

Initial Startup

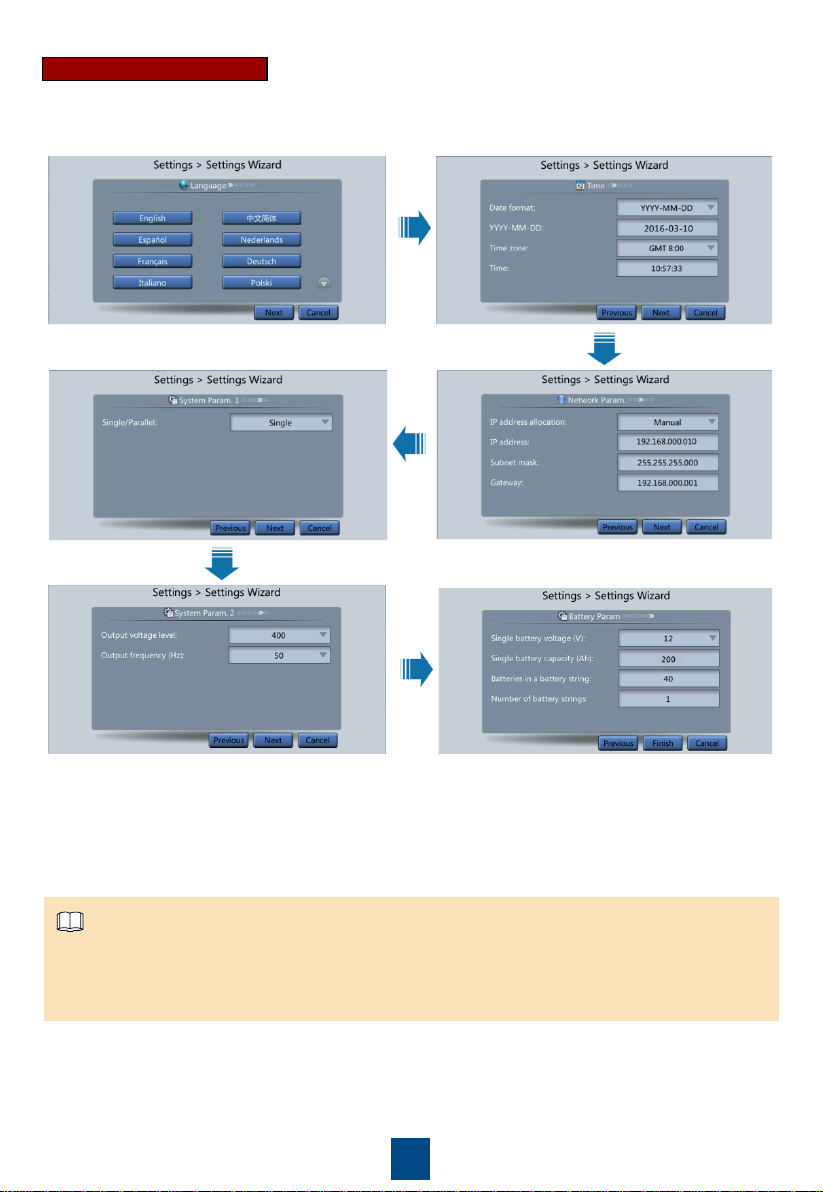

a. During the initial startup, set the language, time and date, network parameters, and system

parameters on the Settings Wizard screen.

b. After you set parameters on the Settings Wizard screen, the MDU displays the Bypass mode

and No battery alarms, which do not need to be handled. If there is any other alarm, you need to

rectify the fault.

c. View the system running diagram on the MDU to check that the UPS is working in bypass mode.

d. Start the inverter on the app.

•The Service Expert app can be downloaded from Google Play and can run on Android.

•The port number is 443 by default and can be modified. If the UPS is managed using the app,

the port number must be set to 443.

NOTE

System User

LCD Preset Password

WebUI

Preset Password

admin (administrator)

000001

Changeme

operator (common user)

000001

Changeme

a. Choose Common Functions from the main menu and tap Inv. ON.

b. In the displayed login window, enter the user name and password, and tap .

c. In the displayed dialog box, tap OK to start the inverter.

Non-initial Startup

Download the mobile phone app

(Service Expert).

On the home screen of the app, tap Startup to

access the Set Startup screen. Select Site and

Device Type as required and connect to the

device. Enter UPS IP address and port

number (default value: 443), use the user

name and password of the WebUI account,

and tap Login.

Enable the mobile phone WLAN, search for the

UPS WiFi signal, and connect to the WiFi

signal. The default value of WiFi SSID is

HUAWEI_UPS.

Insert the WiFi module into the USB port on the

MDU. Choose System Info > Settings >

Communication, and set WiFi Password on

the MDU.

After login, tap Power-on password activation

on the screen. A message is displayed,

indicating whether to start the UPS. Tap OK.

On the Offline Activation screen, enter the

Bar code and Verification obtained from

the MDU. Tap Generate PWD to generate

a startup password.

On the MDU, choose System Info >

Maintenance > Inv. ON and obtain the Bar

code and Verification.

Enter the generated password in the

password text box on the MDU to start the

inverter.

Use the app to

start the inverter

online?

Yes

No, start the

inverter offline

Open the Service Expert app.

On the home screen of the app, tap

Startup to access the Set Startup screen.

Select Site and Device Type as required,

and tap Offline Activation.

NOTE

To ensure system security, change the preset password after login.

(Optional) Setting Parameters for the BCB Box

5.4

1. If a BCB box is configured, set MUE05A connection to Enable in Settings > Dry contacts,

and then set BCB connection [OL] and Battery breaker [STA] to Enable.

Powering On Loads

5.3

1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears

from the MDU.

2. After confirming that the battery strings are properly connected, turn on the battery string input

circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each battery

string and then turn on the general circuit breaker between battery strings and the UPS. The No

battery alarm disappears from the MDU.

3. Turn on the UPS downstream output switch to supply power to the loads.

6Shutting Down the UPS

1. On the LCD, choose Common Functions, and tap Inv. OFF.

2. In the displayed login window, enter the user name and password, and tap .

3. In the displayed dialog box, tap OK to shut down the inverter.

Shutting Down the Inverter to Transfer the UPS to Bypass Mode

6.1

Powering Off a Single UPS

6.2

Turn off the external output power distribution switch and battery string switch.

Turn off the external mains and bypass input power distribution switches.

After you shut down the inverter, the UPS transfers to bypass mode if the bypass is normal; the

UPS supplies no power if the bypass is abnormal. Before shutting down the UPS, ensure that all

loads have been shut down.

Huawei Technologies Co., Ltd.

Huawei Industrial Base, Bantian, Longgang

Shenzhen 518129 People's Republic of China

www.huawei.com

Scan here for more documents:

You can also log in to Huawei technical support website:

http://support.huawei.com/enterprise

http://support.huawei.com

SupportSupport-E WeChat

Scan here for technical support (enterprise):

Scan here for technical support (carrier):

Huawei App Store

Altri manuali per UPS5000-S Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Huawei UPS

Huawei

Huawei UPS5000-A-200K-ST Manuale utente

Huawei

Huawei UPS5000-A series Manuale utente

Huawei

Huawei UPS5000-A-400 kVA Manuale utente

Huawei

Huawei UPS5000-A-800 Series Manuale utente

Huawei

Huawei UPS5000-E-40 kVA Manuale utente

Huawei

Huawei UPS5000-A-30 kVA Manuale utente

Huawei

Huawei UPS5000-A-30 kVA Manuale utente

Huawei

Huawei UPS2000-H Manuale utente

Huawei

Huawei UPS5000-H Series Manuale utente

Huawei

Huawei Smartkits V100R002C00 Manuale utente

Huawei

Huawei UPS5000-E Series Manuale utente

Huawei

Huawei UPS5000-S Series Manuale utente

Huawei

Huawei UPS2000-G-6KRTLL Manuale utente

Huawei

Huawei UPS5000-E-600 kVA Manuale utente

Huawei

Huawei UPS5000-E Series Manuale utente

Huawei

Huawei UPS5000-S-880 kVA Manuale utente

Huawei

Huawei UPS5000-E-25 kVA-BF Manuale utente

Huawei

Huawei UPS5000-A-400K-SL Manuale utente

Huawei

Huawei UPS2000-G1-6 kVA Manuale utente

Huawei

Huawei UPS5000-A-30KTTL Manuale utente

Huawei

Huawei UPS2000-G-15KRTL Manuale utente

Huawei

Huawei UPS5000-S-1200 kVA Manuale utente

Huawei

Huawei UPS5000-E-30 kVA Manuale utente

Huawei

Huawei UPS5000-E-400K-SM Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
