Huawei B315 LTE CPE Manuale dell'operatore

B315 LTE CPE

Quick Start

31507485_01

1

1 Product overview

Power indicator Network status indicator

Wi-Fi®/WPS indicator LAN/WAN indicator

Signal strength indicator SIM card slot

External antenna sockets WPS button

Power button Reset button

Power input Network ports

USB port Landline phone port

2

2 Setup

Insert a SIM card into the SIM card slot as shown in the preceding diagram

and then connect the power adapter to the B315 router.The router will turn

on automatically and search for available mobile networks.

The following indicators will turn on when the router has successfully

connected to a network.

Cyan/blue/yellow:

Connected to a mobile

network.

White: More signal bars

indicate a stronger signal.

Do not insert or remove a SIM card when the router is running, as this may

affect performance or damage the SIM card.

3

3 Connecting to your router's Wi-Fi

network

SSID ：....................

W IFI K EY ：............

abcdefg

XXXXXXXX

WIFI KEY：YYYYYYYY

XXXXXXXX

WIFI KEY：

YYYYYYYY

Once the router has connected to a mobile data network, you can connect

your computer or mobile phone to the router'sWi-Fi network to access the

Internet. Please refer to the label on the bottom of the router for the default

wireless network name (SSID) and password (WIFI KEY).

When the indicator is steady on, Wi-Fi is enabled.To enable or

disable Wi-Fi, refer to the help section on the router's web-based

management page.

Ensure that you promptly change the Wi-Fi network name and password

on the web-based management page to prevent unauthorized access to

your Wi-Fi network. Once you have changed the password, you will need

to reconnect to the router's Wi-Fi network.

4

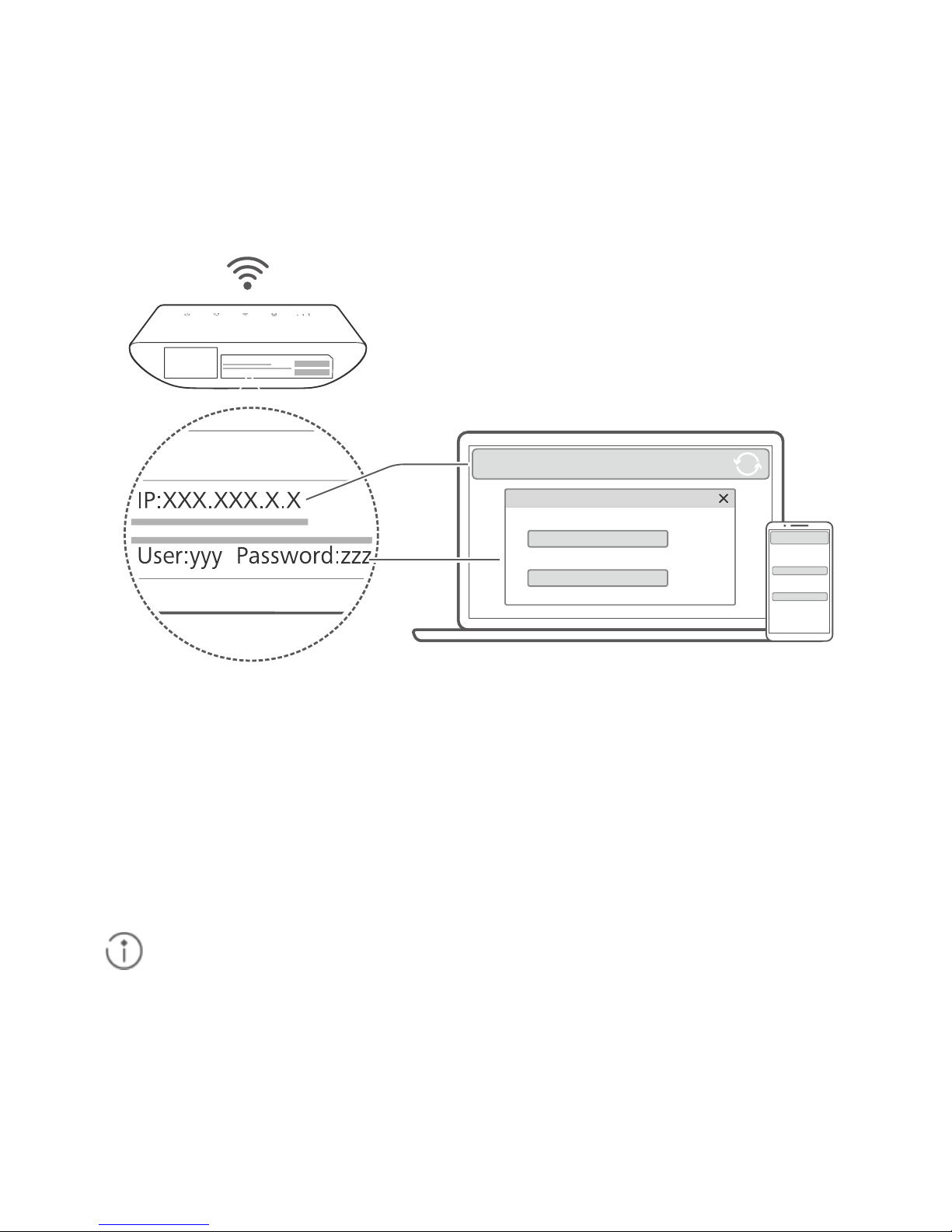

4 Configuring your router

IP：XXX.XXX.X.X

User：yyy Password:zzz

User:

yyy

Password:

zzz

XXX.XXX.X.X

XXX.XXX.X.X

User：

yyy

Password：

zzz

You can configure the router using the web-based management page.

Please refer to the label on the bottom of the router for the default IP

address, user name, and password.

More information can be found in the help section of the web-based

management page.

Ensure that you promptly change the default login password for the web-

based management page to prevent unauthorized users from changing the

router's settings.

5

5 Optional configurations

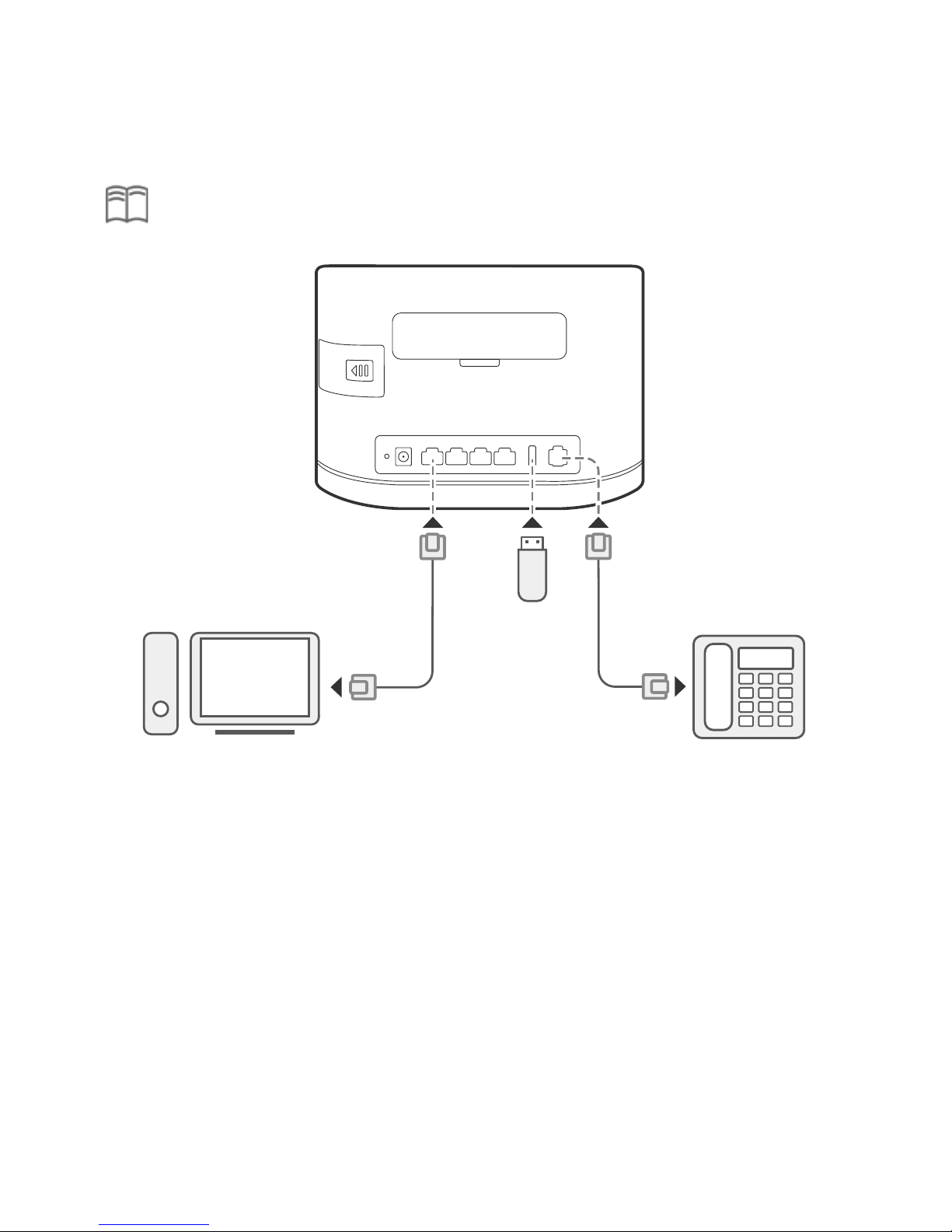

1. Connecting multiple devices

You can connect a computer, landline phone, or USB storage device to the

router to access the Internet, make telephone calls, share files, and more.

The features described in this section are for reference purposes only.Your

router may not support all of these features.

6

1

2

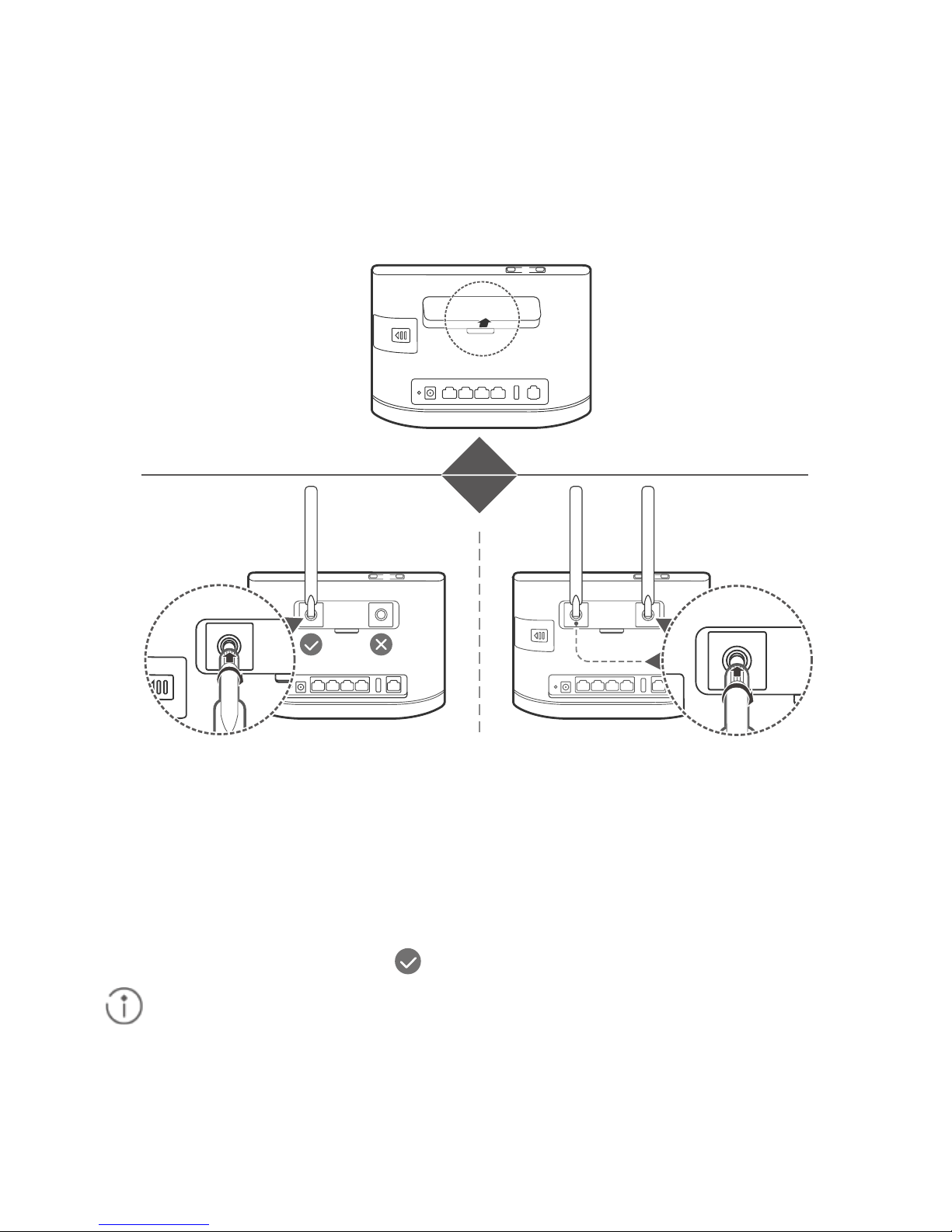

2. Installing external antennas

You can install external antennas to improve signal reception. Please contact

your network service provider to purchase the antennas. If you only require

one antenna, plug it into the socket.

7

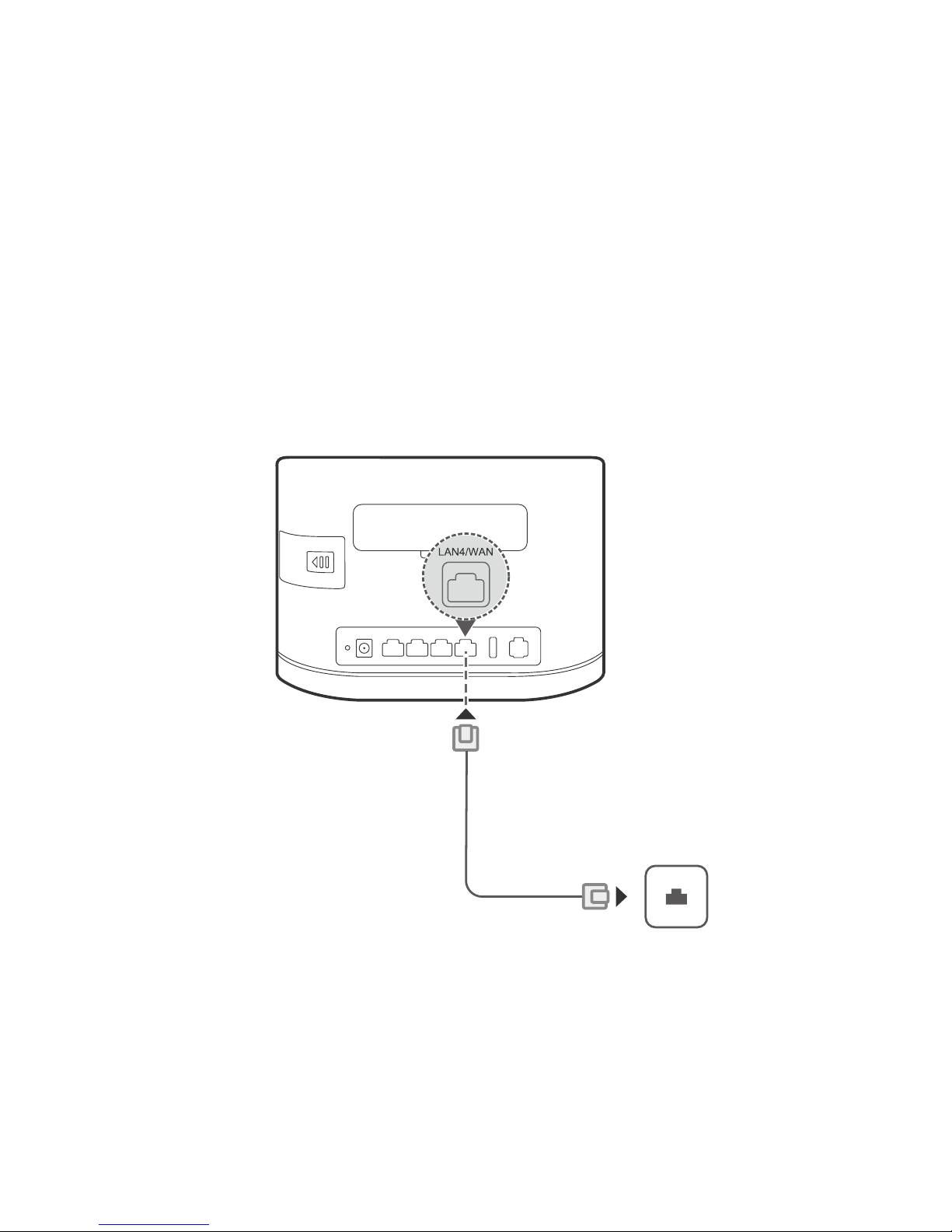

3. Accessing the Internet through an Ethernet port

Turn off the router and unplug the power adapter before installing any

external antennas.

External antennas are only suitable for indoor use. Do not use external

antennas during thunderstorms.

Only use external antennas provided by your network service provider.

The peak gain of the external antennas is 3dBi.
