Huawei E5776s-32 Manuale utente

Product Description

HUAWEI E5776s-32 Mobile WiFi

V100R001

Issue 01

Date 2012-07-25

HUAWEI TECHNOLOGIES CO., LTD.

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 6 of 20

1 Overview

HUAWEI E5776s-32 Mobile WiFi (hereinafter referred to as the E5776s-32) is a

high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for

SOHO (Small Office and Home Office) and business professionals. It supports:

LTE: FDD 2600/2100/1800/900/800 MHz

DC-HSPA+/HSPA+/HSPA/UMTS: 2100/1900/900/850 MHz

EDGE/GPRS/GSM: 1900/1800/900/850 MHz

The E5776s-32 supports the following standards:

Long Term Evolution (LTE)

Dual Carrier High Speed Packet Access Plus (DC-HSPA+)

High Speed Packet Access Plus (HSPA+)

High Speed Uplink Packet Access (HSUPA)

High Speed Downlink Packet Access (HSDPA)

Universal Mobile Telecommunications System (UMTS)

Enhanced Data rates for Global Evolution (EDGE)

General Packet Radio Service (GPRS)

Global System for Mobile communications (GSM)

The E5776s-32 provides the following services:

High-speed LTE packet data service of up to 150 Mbit/s

High-speed DC-HSPA+ packet data service of up to 43.2 Mbit/s

High-speed HSPA+ packet data service of up to 21.6 Mbit/s

High-speed HSPA (HSUPA/HSDPA)/UMTS packet data service of up to 14.4

Mbit/s

EDGE/GPRS packet data service of up to 236.8 kbit/s

Short Message Service (SMS)

You can connect the E5776s-32 with the Wi-Fi, or connect the E5776s-32 with the

USB interface of a computer. In the service area of the

LTE/DC-HSPA+/HSPA+/HSPA/UMTS or EDGE/GPRS/GSM network, you can surf the

Internet and send/receive messages/emails cordlessly. The E5776s-32 is fast, reliable,

and easy to operate. Thus, mobile users can experience many new features and

services with the E5776s-32. These features and services will enable a large number

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 7 of 20

of users to use the E5776s-32 and the average revenue per user (ARPU) of operators

will increase substantially.

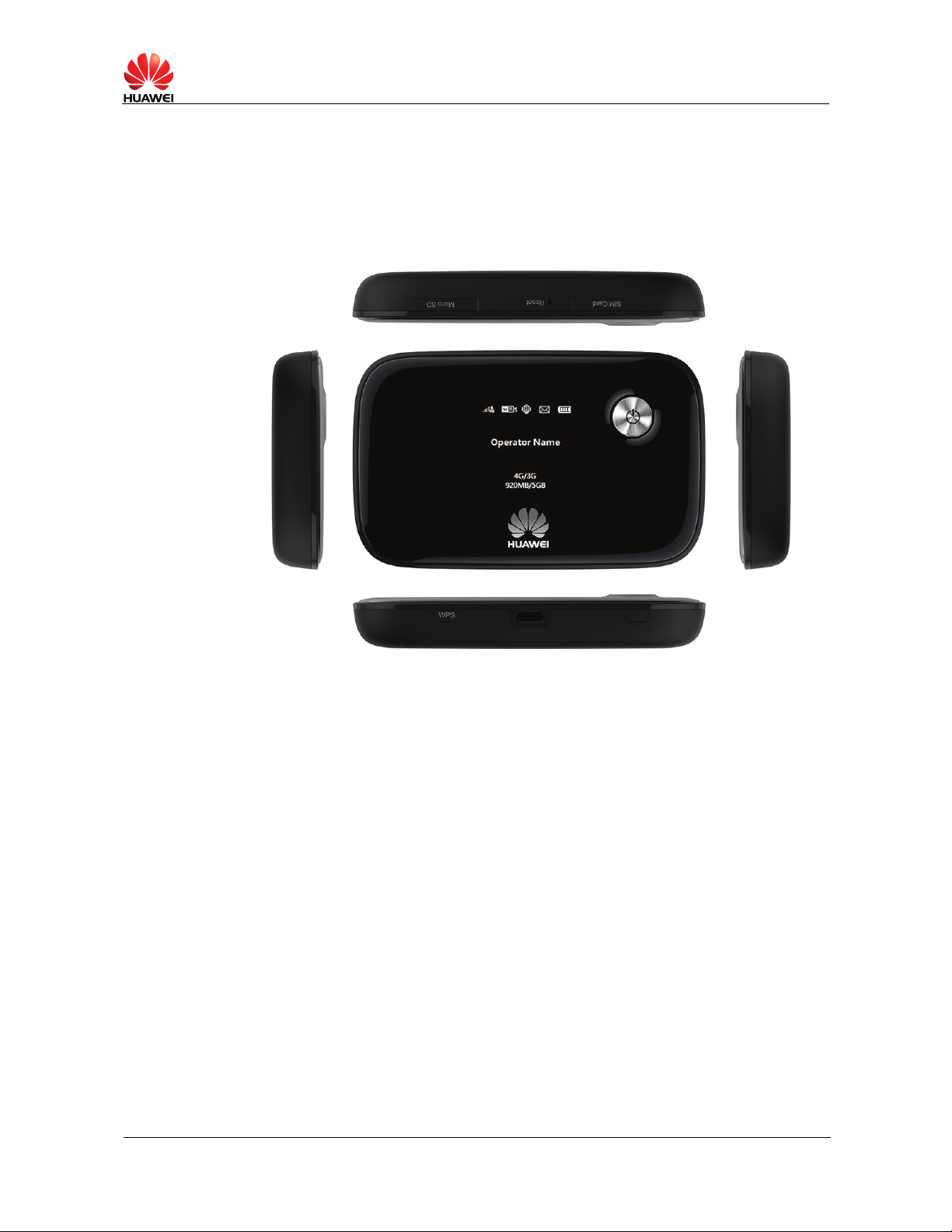

Figure 1-1 shows the profile of the E5776s-32.

Figure 1-1 E5776s-32 profile

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 8 of 20

2 Features

2.1 Main Features

The E5776s-32 mainly supports the following features:

LTE (DL) data service of up to 150 Mbit/s

LTE (UL) data service of up to 50 Mbit/s

DC-HSPA+ (DL) data service of up to 43.2 Mbit/s

DC-HSPA+ (UL) data service of up to 5.76 Mbit/s

HSPA+ (DL) data service of up to 21.6 Mbit/s

HSPA+ (UL) data service of up to 5.76 Mbit/s

HSDPA (DL) data service of up to 14.4 Mbit/s

HSUPA (UL) data service of up to 5.76 Mbit/s

UMTS data service of up to 384 kbit/s

EDGE data service of up to 236.8 kbit/s

GPRS data service of up to 85.6 kbit/s

PS domain data service based on LTE and UMTS

SMS

Sharing Data Stored on the microSD card

Wi-Fi

WPS

Fast boot

Plug and Play (PnP)

IPv6 /IPv4 dual stack

Display current SSID and Wi-Fi key on the screen

Built-in DHCP Server, DNS RELAY and NAT

Online software upgrade

Traffic statistic

Standard Micro USB interface

TFT-LCD screen

Windows XP, Windows Vista, Windows 7, MAC OS X 10.5, 10.6 and 10.7

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 9 of 20

2.2 Optional Features

Optional features refer to features that are not supported by the standard version or are

disabled by default. These features can be customized according to operator or

customer requirements. The E5776s-32's optional features is as follows:

LTE/3G/Wi-Fi auto offload

2.3 Technical Specifications

2.3.1 Hardware

Table 2-1 lists the hardware specifications.

Table 2-1 Hardware specifications

Item Specifications

Technical

standard

WAN: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

WLAN: IEEE 802.11b/g/n

Operating

frequency

LTE: FDD 2600/2100/1800/900/800 MHz

DC-HSPA+/HSPA+/HSPA/UMTS: 2100/1900/900/850 MHz

EDGE/GPRS/GSM: 1900/1800/900/850 MHz

WLAN: 2400–2452 MHz

Internal memory 256 MB flash and 128 MB Memory

Maximum

transmitter

power

LTE: Conform to Power Class 3 Definition

UMTS: Conform to Power Class 3 Definition

WLAN 802.11b: 11 dBm

802.11g: 10 dBm

802.11n: 8 dBm

Receiver

sensitivity

LTE: Confirm to 3GPP Requirements

UMTS: Confirm to 3GPP Requirements

WLAN 802.11b: -76 dBm@11 Mbit/s

WLAN 802.11g: -65 dBm@54 Mbit/s

WLAN 802.11n: -64 dBm@65 Mbit/s

WLAN speed 802.11b: Up to 11 Mbit/s

802.11g: Up to 54 Mbit/s

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 10 of 20

Item Specifications

802.11n HT20: Support MCS0–MCS7; Up to 72.2 Mbit/s.

Support MCS8–MCS15; Up to 144.4 Mbit/s.

HT40: Support MCS0–MCS7; Up to 150 Mbit/s.

Support MCS8–MCS15; Up to 300 Mbit/s.

Maximum power

consumption

5 W

Power supply AC: 100–240 V

DC: 5 V, 2 A

Battery Type: Li (rechargeable and non-removable)

Capacity: 3.7 V, 3000 mAh

Maximum working time: 10 hours (depending on the network)

Maximum standby time: 500 hours (depending on the network)

External

interfaces

USB interface: Micro USB

Standard microSD card interface

SIM card: standard 6-pin SIM card interface

External main diversity antenna interface

Screen TFT-LCD

key-press Power switch, WPS switch, Reset switch

Antenna Built-in LTE/UMTS/GSM main diversity antenna

Built-in LTE/UMTS diversity antenna

Built-in WLAN antenna

Dimensions

(D × W × H)

106.4 mm×66.0 mm×15.5 mm

Weight < 150 g (including the battery)

Temperature Operating: 0℃to +35℃

Storage: -20℃to +60℃

Humidity 5% to 95% (non-condensing)

2.3.2 Software

Table 2-2 lists the software specifications.

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 11 of 20

Table 2-2 software specifications

Item Description

SMS Writing/Sending/Receiving

Sending/Receiving extra-long messages

Storage: Up to 500 messages can be saved in the

internal memory of the E5776s-32.

New message prompt

Network connection

setup

APN management: create, delete and edit.

Set up network connection

WLAN setup SSID broadcasting and hiding

Open system and shared key authentication

ASCII and HEX keys

64/128-bit WEP encryption

256-bit WPA-PSK and WPA2-PSK encryption

TKIP and AES encryption algorithm

TKIP and AES integrated encryption algorithm

Automatic adjustment of ratios

Display STA status

Turn off Wi-Fi automatically

WLAN MAC filter

Firewall setup Firewall Switch

LAN IP Filter

Virtual Server

DMZ Service

UPnP Service

WAN Ping block

NAT setup CONE NAT

Symmetric NAT

VPN passthrough

DHCP setup DHCP server enabling and disabling

Address pool of the DHCP server setup

DHCP lease time setup

Software installation Automatic installation (PnP)

LTE/3G/Wi-Fi auto

offload (optional)

Accessing to WAN via LTE/3G or Wi-Fi

Automatic offload between LTE/3G and Wi-Fi

IPv6/IPv4 dual stack DHCPv6/v4 server and client

DNSv6/v4 server and client

Display IPv6/v4 WAN address

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 12 of 20

Item Description

Other Network connection settings:

Automatic network selection and registration

Manual network selection and registration

Network status display: signal, operator name, system

mode, and so on.

Selection of network connection types, for example:

LTE Only

3G Only

Auto

PIN management: activate/deactivate PIN, PIN lock,

changing PIN, unblocking by using the PUK.

System requirement Windows XP, Windows Vista, Windows 7

Mac OS X 10.5, 10.6 and 10.7

Your computer’s hardware system should meet or

exceed the recommended system requirements for the

installed version of OS

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 13 of 20

3 Services and Applications

3.1 Data Service

3.1.1 Wireless Modem

The E5776s-32 can be used as a wireless modem when the Wi-Fi is enabled. You can

directly use the default settings (or configure APN on the E5776s-32 WEB page) and

set up a wireless network connection. Then you can access the Internet.

A maximum of ten wireless users can access the E5776s-32 at the same time. You

can set up the WLAN with the access point (AP) function.

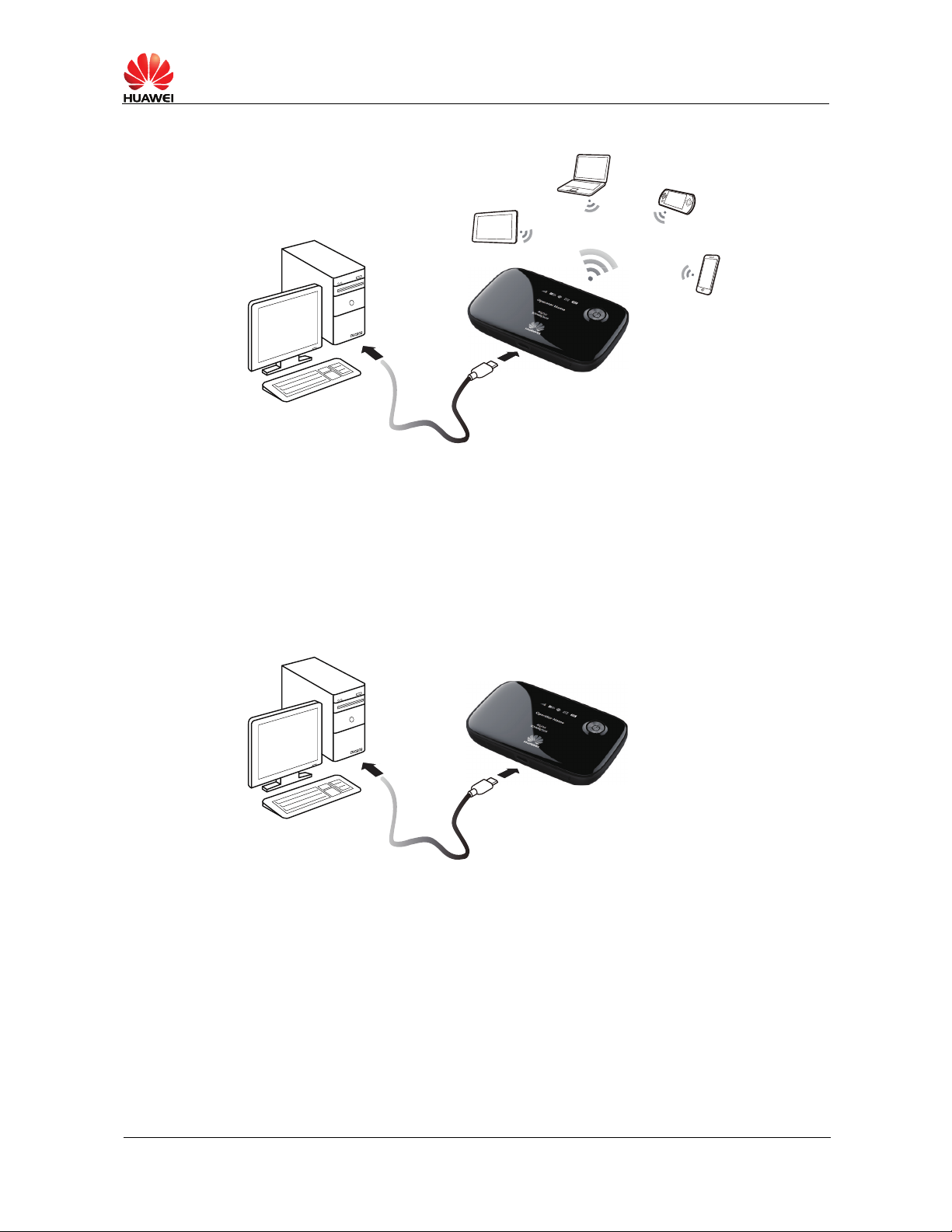

Figure 3-1 Multi-device access via Wi-Fi

HUAWEI E5776s-32 Mobile WiFi V100R001

Product Description

Issue 01 (2012-07-25) Commercial in Confidence Page 14 of 20

Figure 3-2 Multi-device access via Wi-Fi and USB at the same time

3.1.2 USB Modem

After you connect the E5776s-32 and PC with a USB data cable, the E5776s-32 driver

is installed on the PC automatically and the shortcut of the web page is displayed on

the PC desktops. You can directly use the default settings (or configure APN on the

E5776s-32 WEB page) and set up a network connection. Then you can send or

receive E-mail, access the network through wireless connection, and download files

through wireless data channels.

Figure 3-3 One-device access via USB

3.1.3 LTE/3G/Wi-Fi Auto Offload (Optional)

The E5776S-32 allows you to access the Internet via LTE/3G or Wi-Fi. When you are

using the E5776S-32 in areas with a Wi-Fi hotspot, for example, an airport, a cafe, a

hotel, or your home, the E5776S-32 switches to Wi-Fi connection automatically,

saving your LTE/3G network traffic fees.
