Huawei E583C Manuale utente
1
Thank you for choosing the HUAWEI E583C Wireless
Modem (E5).
Supported functions and actual appearance depend on the specific models you
purchased. The following illustrations are provided for your reference only. For details
about the model you selected, consult your service provider.
This guide briefly describes the functions of the E5. For details about how to set
management parameters, see Help on the web management page.
If the E5 is placed in an environment with poor ventilation, it may overheat after
extended use. When the E5 overheats, it will switch off and disconnect from the
network automatically to protect itself. If this happens, place the E5 in a
well-ventilated location, then restart the E5.
2
Getting to Know Your E5
Packing List
The package should contain the following items. If any of the items are missing or
damaged, contact your local dealer immediately.
Quick Start Guide
Safety Information Main unit Battery Data cable Charger
Some accessories are optional and are not provided with the modem. To purchase any
optional accessories, contact your local dealer.
3
Connection Scenarios
A Wi-Fi device or computer can be connected to the Internet through the E5. The actual
connection procedure depends on the operating system of the Wi-Fi device or computer.
The connection scenarios illustrated here are for your reference.
Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB
Laptop
Digital camera
Game machine
Smart phone
4
Scenario 3: Multi-device access via Wi-Fi and USB at the same time
Smart phone
Game machine
Laptop
Digital camera
5
1
2
34
5
Appearance
No. Item
1 External antenna interface
2 Power button
3 USB connector
4 WPS button
5 Screen
Note:
Wi-Fi: Wireless Fidelity
WPS: Wi-Fi Protected Setup
6
7
8
1
2
4
3
5
6
Screen
No. Item
1 Signal strength
2 Network
3 Wi-Fi enabled
Number of devices connected
4 Internet connection
5 New messages
Number of new messages
6 Battery level
7 Roaming status
8 M: Manual mode
A: Auto mode
7
Before You Start

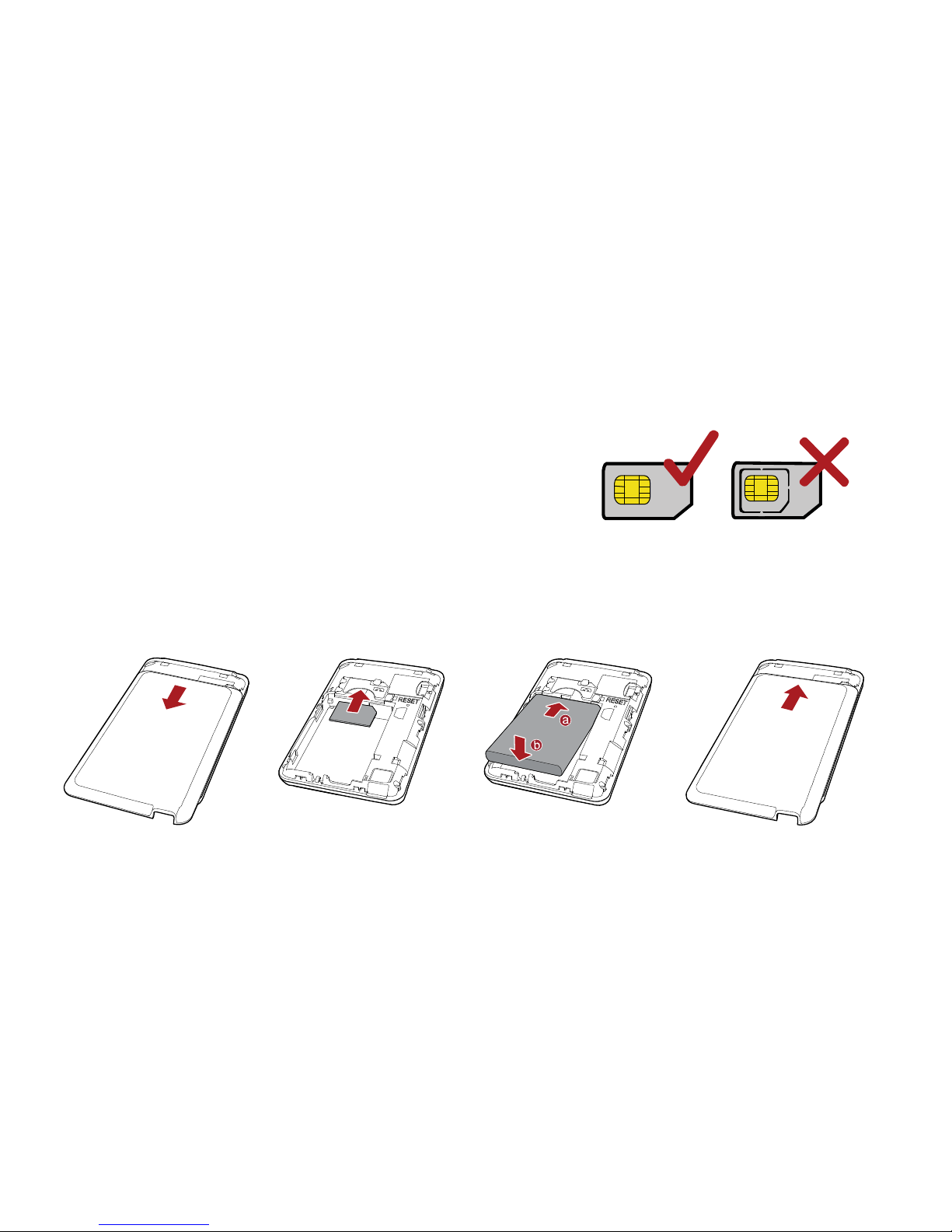

Installing the SIM Card and the Battery
Caution: Do not use any SIM card that is not standard
or is incompatible with the E5. Otherwise, the E5 may
be damaged.
Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction,
as shown in figure 2, and then slide the SIM card into the slot.
1234
8
Installing the microSD Card
Note:
The microSD card is an optional accessory. If a microSD card
did not come with your modem, you may purchase one
yourself.
To remove the microSD card, press in the card gently.
The microSD card will pop out for removal.
Do not remove the microSD card when it is in use.
Doing so may damage the card and the E5, and data stored
on the card may be lost.
9
Charging the Battery
Note: If the battery has not been used for a long time, it must be charged first.
Method 1: Using the charger
Caution: Only use chargers compatible with the E5
and provided by a designated manufacturer. Use of
an incompatible charger or one from an unknown
manufacturer may cause the E5 to malfunction, fail,
or could even cause a fire. Such use voids all
warranties, whether expressed or implied, on the
product.
Method 2: Connecting to a PC for charging
Connect the E5 to a PC using a compatible data cable.
10
Accessing the Internet via Wi-Fi Connection
Note: By default, management parameters are preset on the E5 according to the
requirements of the service provider. Follow the steps below to quickly access the Internet.
For the details about how to set management parameters, see Help on the Web
management page.
Step1: Power on the E5.
Step2: Establish a Wi-Fi Connection.
Step3: Access the Internet.
1. Power on the E5
Press and hold until the screen lights up. The E5 is powered on.
Note: Press and hold to power off the E5.
