Quidway® NetEngine 80E Core Router System Architecture

Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.

http://www.huawei.com/products/datacomm/ 1

Quidway® NetEngine 80E Core Router

System Architecture

Overview

The Quidway®NetEngine 80E core routers (“NE80E” hereinafter) are an enhanced series of

Huawei NE80 routers and can provide 10G wire-speed interfaces. It is located at the core of the IP

backbone network, IP MAN and other large-scale IP networks. It can be networked with core

routers of the NE5000E and NE40E series to form an IP network solution of integral architecture

and clear hierarchy.

The NE80E now provides 640Gbps switching capacity, 320Gbps interface capacity and 400Mpps

packet forwarding rate. In the near future, these figures may increase greatly. It provides 22 slots in

total, two of which for Main Processing Unit (MPU) (working in the 1:1 backup mode), four for

Switching Fabric Unit (SFU) (working in the 1+3 backup mode) and the left for service boards.

Architecture

Based on distributed hardware forwarding and non-blocking switching technology, the NE80E

features carrier-class reliability, line rate forwarding, well proved QoS mechanism, rich variety of

service processing capabilities and excellent scalability. Therefore it can meet the raising demand

of data and Internet services for equipment on the backbone network.

Monitoring bus

Power system

(redundancy)

MPU

(active/standby)

Management bus

Fan system

(redundancy)

LPU

Switching matrix

(1+3 backup) LPU

LPU

LPU

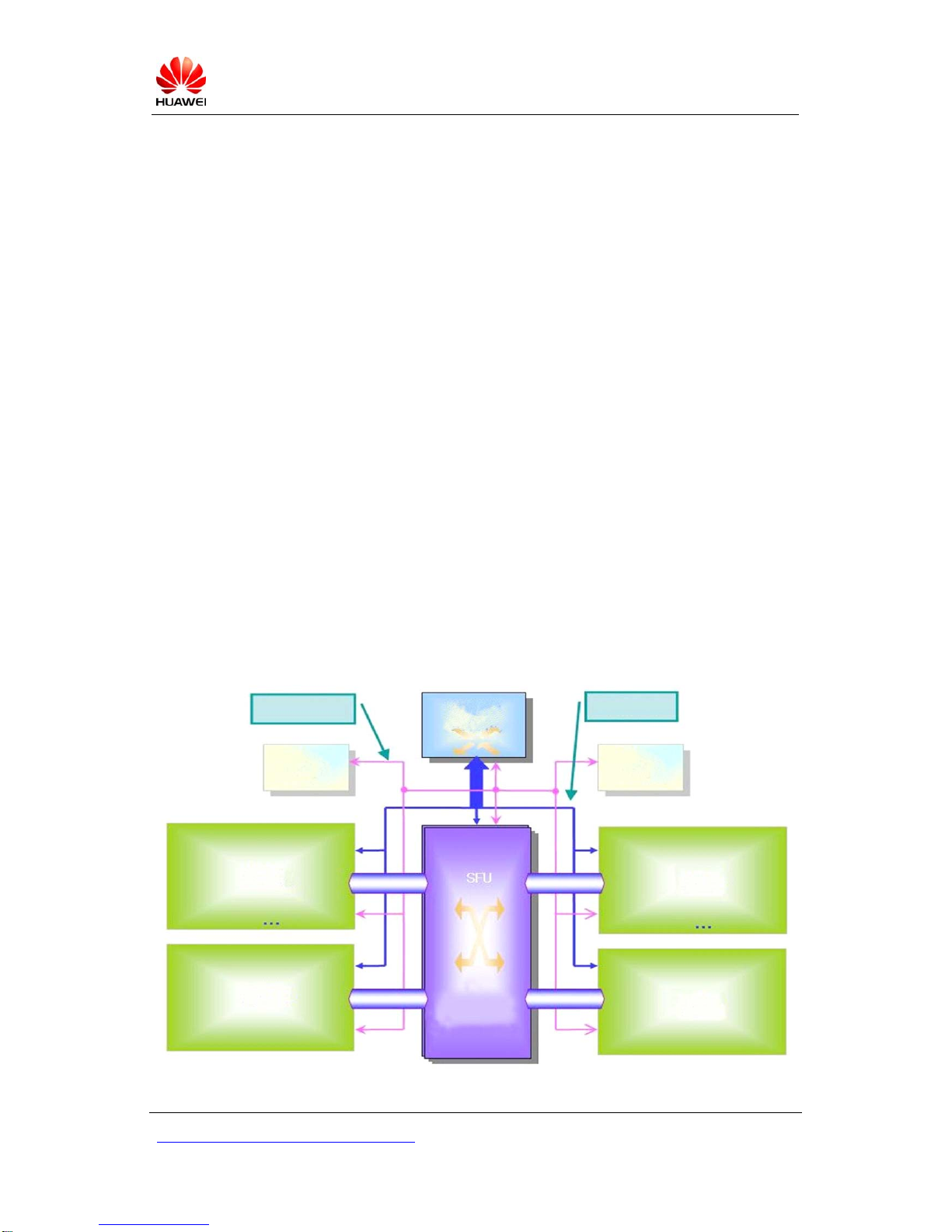

NE80E hardware architecture

Quidway® NetEngine 80E Core Router System Architecture

Copyright ©2007 Huawei Technologies Co., Ltd. All rights reserved.

http://www.huawei.com/products/datacomm/ 2

Boards of the NE80E include MPU, SFU, service boards and many Line Processing Units (LPU).

Key components such as MPU, SFU, fan and power are of redundancy design, which helps

improve the reliability of the whole system. The interface types of LPUs include FE, GE, 10GE,

POS, CPOS, ATM and RPR.

The logical architecture of the NE80E falls into data plane, control management plane and

monitoring plane. Functions of the three planes are described in the figure below.

Logical architecture of NE80E

zThe data plane completes high-speed data packet processing and internal non-blocking

switching, including packet encapsulation/decapsulation, IPv4/MPLS forwarding processing,

QoS and packet scheduling, internal high speed switching and various statistics.

zThe control and management plane completes system control and management functions. It is

the nerve center of the entire system. The control and management unit completes functions

such as protocol and signaling processing, system status configuration and maintenance

management as well as system status reporting and control.

zThe monitoring plane independently completes system environment monitoring, including

voltage detection, system power on/off control, temperature detection and fan control to

ensure the safe and stable operation of the system. It isolates the fault in time when a unit is

faulty, thus guaranteeing the normal operation of the other system components.
