Human Touch®Massage Chair
SUPER NOVO
Delivery and Assembly Guide
ESPAÑOL
ENGLISH
2
DELIVERY AND ASSEMBLY GUIDE
This guide describes how to deliver a Super Novo chair through doorways ranging from
29 to 34 inches. The chair must be removed from the shipping box to fit through
doorways in this range. Moving the chair through a doorway 29 – 33.5 inches requires
a furniture moving dolly and strap. The chair SHOULD NOT be moved through a doorway
that is narrower than 29 inches. All required tools are provided.
When deciding where to place your Super Novo, consider the following:
• Place the unit on a flat surface, away from direct sunlight or any other direct heat source (to avoid fading).
• If you wish to place the unit on a hard surface, it is recommended that you place a piece of carpet or a soft mat
underneath it to avoid damaging the floor (minimum 48” x 28”).
• To accommodate the footrest when deployed, make sure the area in front of the chair is clear for at least 24”.
• To ensure the chair does not hit the wall when reclining, make sure there is a 4” clearance behind it.
Clearance
24”
Clearance
4”
CHOOSE A LOCATION
3
ENGLISH
Person 1 Person 2

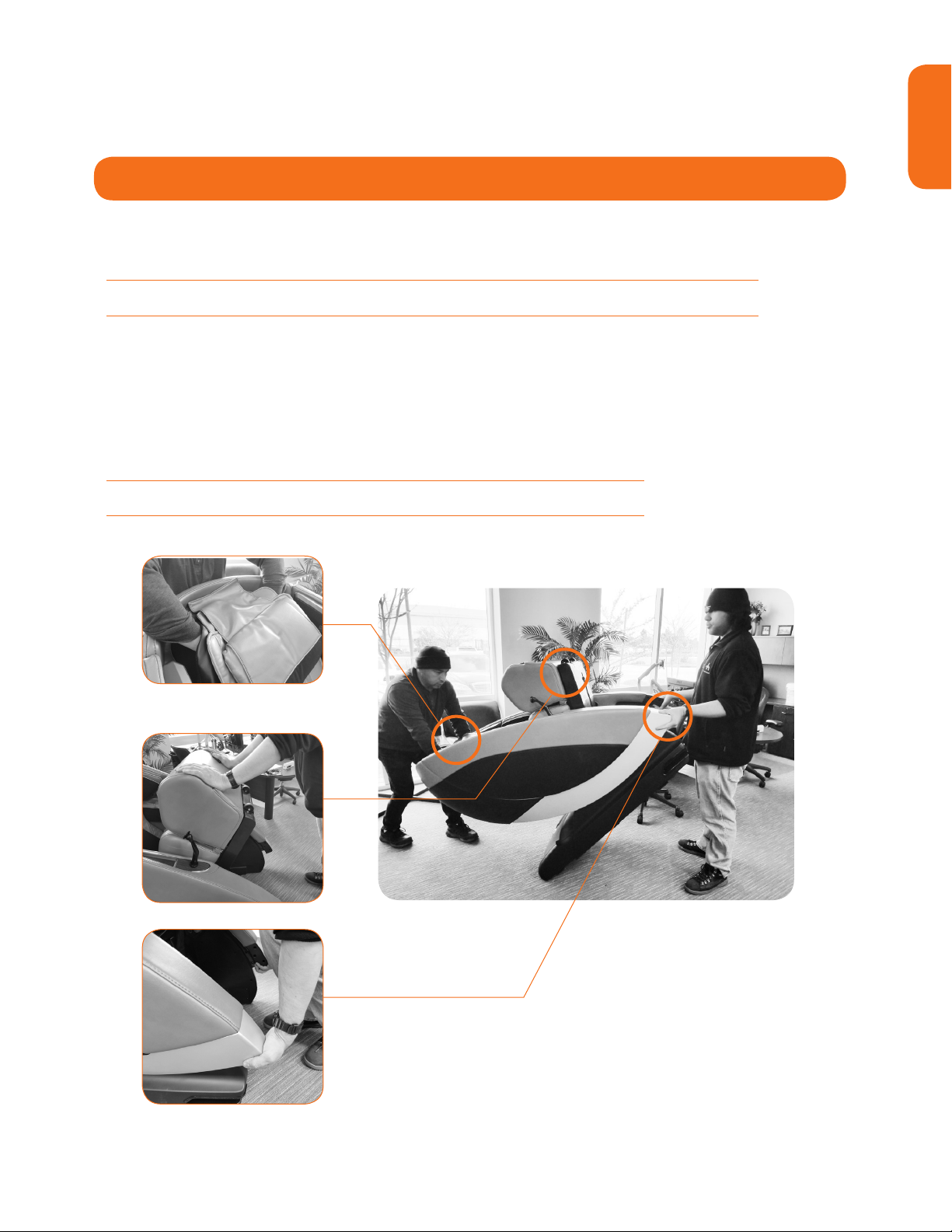

The Super Novo fits through a 34-inch or wider door in the upright position; no need for any disassembly. Follow these
instructions to safely move the chair:
1. Person 1 grasp the inside of the headrest while person 2 folds the footrest up onto the seat and then grasps the front
of each side panel.
2. Person 1 push downward on the headrest to rotate the chair onto its mobility wheels while person 2 lifts up on the
front of the side panels.
3. Roll the chair on its mobility wheels to the desired location.
4. Gently lower the chair all the way to the floor.
WARNING: Dropping the front of the chair to the floor may damage the chair and/or floor.
CAUTION: To avoid injury to yourself and damage to the product, use two or more people to move the chair.
MOVING THE CHAIR THROUGH A 34-INCH OR WIDER DOOR AND WITHIN A ROOM
4
• Foot/calf massager removed
• On its side
• On moving dolly
• Foot/calf massager removed
• Side panels removed
• On its side
• On moving dolly
MOVING THE CHAIR THROUGH A 29- TO 33.5-INCH DOORWAY
32- TO 33.5-INCH
DOORWAY
29- TO 31.5-INCH
DOORWAY
5
ENGLISH
1. Lift up the foot/calf massager to expose the connectors behind it (Fig.1).
2. Insert the provided screwdriver into the slot on the top of the connector to release it, then disconnect the connector.
Remove the foot/calf massager
NOTE: The purpose of removing the foot/calf massager is to significantly reduce the weight and improve the maneuverability of
the chair for moving.
IMPORTANT: Do not attempt to disconnect the connector without first releasing it or you may damage the wiring (Fig.2).
3. Pull outward on the air hose to disconnect it (Fig.3).
4. Lower the calf massager.
5. Unzip the upholstery that connects the foot/calf massager to the seat (Fig.4).
6. Locate the clip that secures the foot/calf massager on one side, then rotate it until you see three loops on top (Fig.5).
7. Thread the provided zip tie through the loops, then hang onto both ends of the zip tie to ensure that the clip does not fall into the chair.
8. Rotate the clip onto its side to expose the tab that holds it in place, use your finger to pry open the tab, then pull the clip off the
mounting post (Fig.6).
9. Repeat steps 6 – 8 to remove the clip from the other side of the foot/calf massager.
10. Slide the foot/calf massager to one side until the mounting bracket clears the post, pull the foot/calf massager slightly forward on
that side, then slide the other mounting bracket off the post to remove the foot/calf massager from the chair.
Connector
Calf clip
Air hose
Unzip
Tab
(Fig.1) (Fig.2)
(Fig.3)
(Fig.5)
(Fig.4)
(Fig.6)
6
Remove the side panels and secure the remote and hoses (29- to 31.5-inch doorway only)
IMPORTANT: Do not attempt to disconnect the connector without first releasing it or you may damage the wiring (Fig.10).

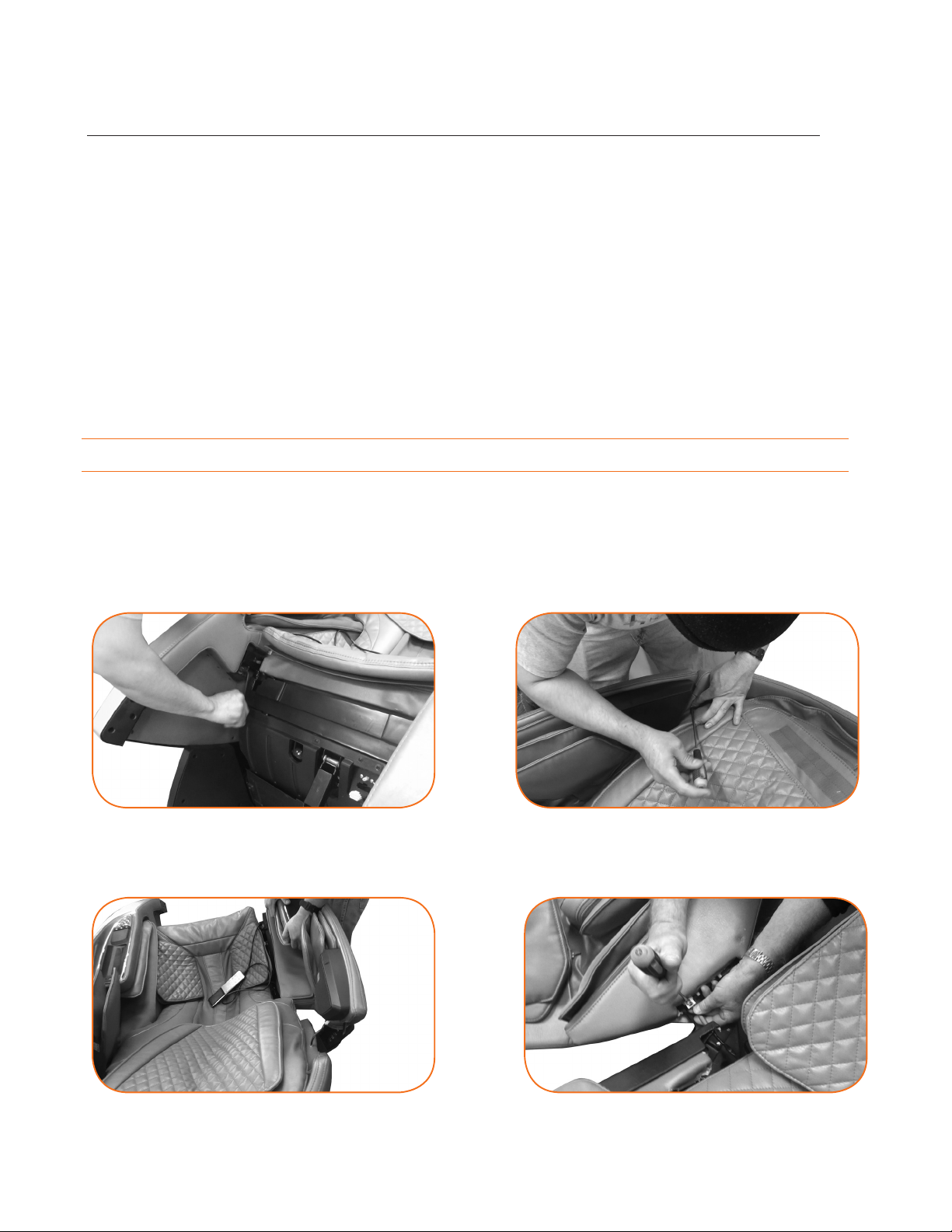

1. Using the provided 6mm Allen wrench, remove the screw/washer that secures the front of the right-hand side panel (Fig.7).
2. Locate the small zippered pocket at the top of the side panel, adjacent to the top of the speaker.
3. Open the zippered pocket and, using the provided Phillips-head screwdriver, remove the screw that secures the top of the side
panel (Fig.8).
4. Lift up and forward on the side panel to disengage it just enough to expose the air hoses along the bottom and speaker wire at the
top. TIP: Rest the side panel on the chair frame to make the next step easier (Fig.9).
5. Disconnect the hoses and speaker wire, then remove the side panel from the chair.
6. Repeat steps 1 – 5 on the left-hand side panel; however note that there is an additional connector on the left-hand side panel that
must be disconnected before you can remove the side panel – we will address that next.
7. Insert the provided screwdriver into the slot on the top of the side panel connector to release it, then disconnect the connector.
8. Remove the side panel from the chair.
9. Open the zipper on the front of the seat cushion and tuck the remote inside for safekeeping while moving the chair.
10. Tuck the air hoses on both sides and the left-hand side panel connector into the chair frame for safekeeping while moving the chair.
(Fig.7)
(Fig.9)
(Fig.8)
(Fig.10)
7
ENGLISH

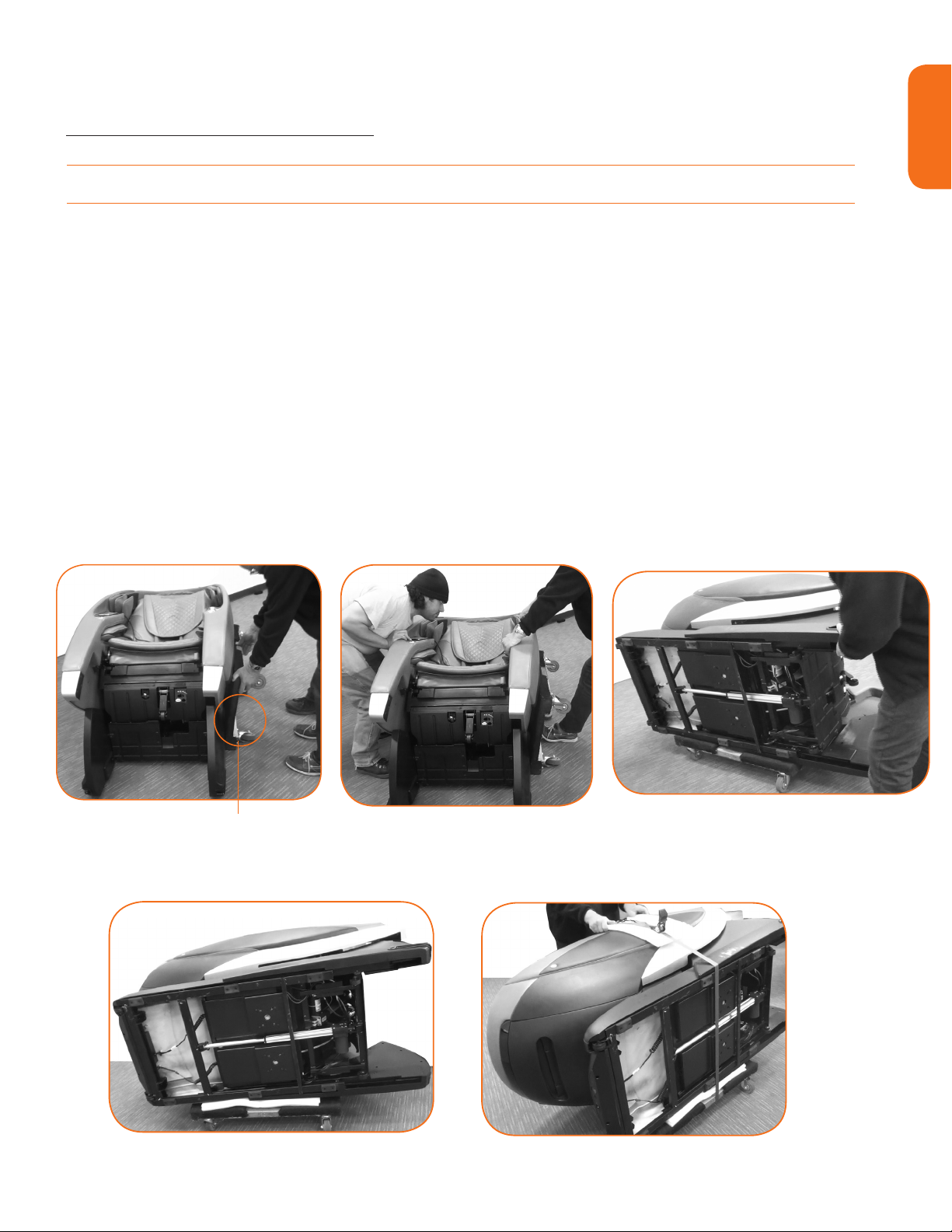

Position the chair on the moving dolly
NOTE: Photos in this procedure show chair with side panels on; the procedure is the same for chairs that have the side panels off.
1. Position the moving dolly against the center left-hand side of the chair (Fig.11).
2. Position one person with one foot on the lower edge of the dolly to hold it in place and both hands on the chair arm; position the
second person on the opposite side with one hand on the lower edge of the chair frame and the other hand on the chair arm (Fig.12).
3. Tip the chair onto the dolly. Don’t worry if it’s not positioned just right – you will adjust it next.
4. Adjust the chair so that the bottom of the chair frame is aligned with the edge of the dolly (otherwise the chair will not fit through the
door) (Fig.13).
5. Using foam from the chair packaging, tip the chair up a few inches away from the dolly and insert approximately 2 inches of foam
between the chair and the dolly to level the chair (while this is also important for the chair to fit through the door, the chair need only
be approximately level, as you can rock it as necessary while moving it through the door) (Fig.14).
6. If the side panels are on the chair, place a piece of foam on top of the side panel upholstery to protect the upholstery from dirty strapping.
7. Strap the chair securely to the dolly (Fig.15).
Dolly
(Fig.11) (Fig.12) (Fig.13)
(Fig.14) (Fig.15)
8
Move the chair
NOTE: You may need to carefully rock the chair one way or another to fit through the door.
1. Move the chair slowly through the doorway making sure the plastic side of the chair does not bump into the door frame, to avoid
damaging the chair or the door frame.
2. Move the chair to the desired final destination.
3. With the dolly and strapping still in place, tip the chair gently upright.
4. Remove the strapping and foam, catching the dolly on the left-hand side as it becomes loose.
9
ENGLISH
1. Untuck the air hoses on both sides and the side panel connector from the left-hand side of the chair.
2. Untuck the remote from the front of the seat cushion.
3. Plug the power cord into the power socket on the back of the chair, and into a wall outlet.
4. Press the power button on the remote control; the chair restores to the upright position.
5. Power off the chair, then unplug it.
6. Lift the left-hand side panel into position, supporting it on the chair frame.
7. Reconnect each numbered air hose to the corresponding numbered air hose.
8. Reconnect the side panel connector.

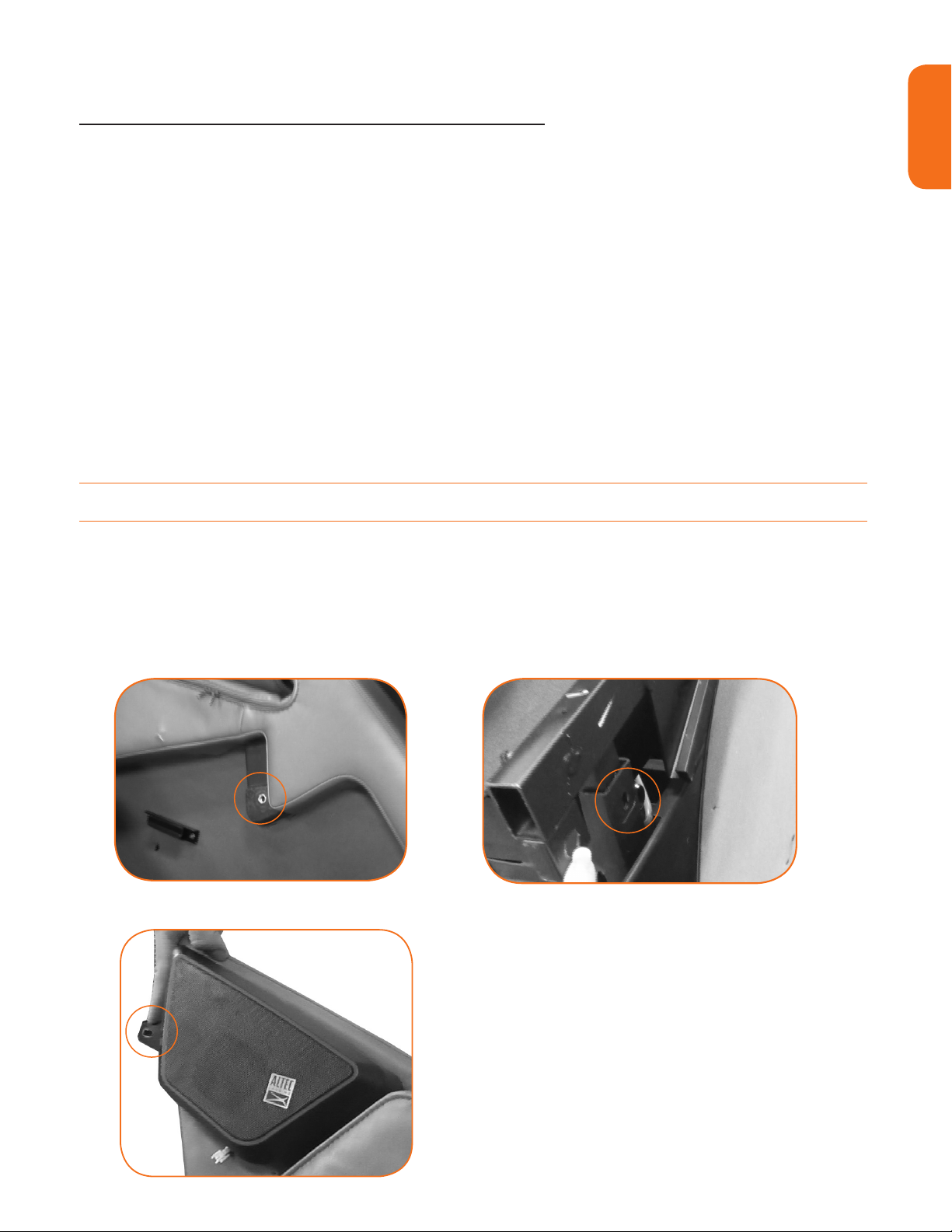

9. Align the side panel screw hole just in front of the corresponding screw hole on the side of the chair frame (Fig.16 - Fig.17), and the
bracket at the top of the side panel just in front of the slot in the upholstery on the chair (Fig.18).
10. Connect the speaker wire at the top of the side panel.
11. While pushing inward, slide the side panel backward into place.
12. Replace the Allen screw/washer to secure the lower end of the side panel.
13. Replace the Phillips-head screw in the zippered pocket at the top of the side panel to secure it.
14. Close the zippered pocket.
15. Repeat steps 6 – 14 (minus step 8) to install the right-hand side panel.
Reinstall the side panels (29- to 31.5-inch doorway only)
NOTE: There’s a bracket on the side panel that has to slide over a post on the chair.
(Fig.16) (Fig.17)
(Fig.18)
10

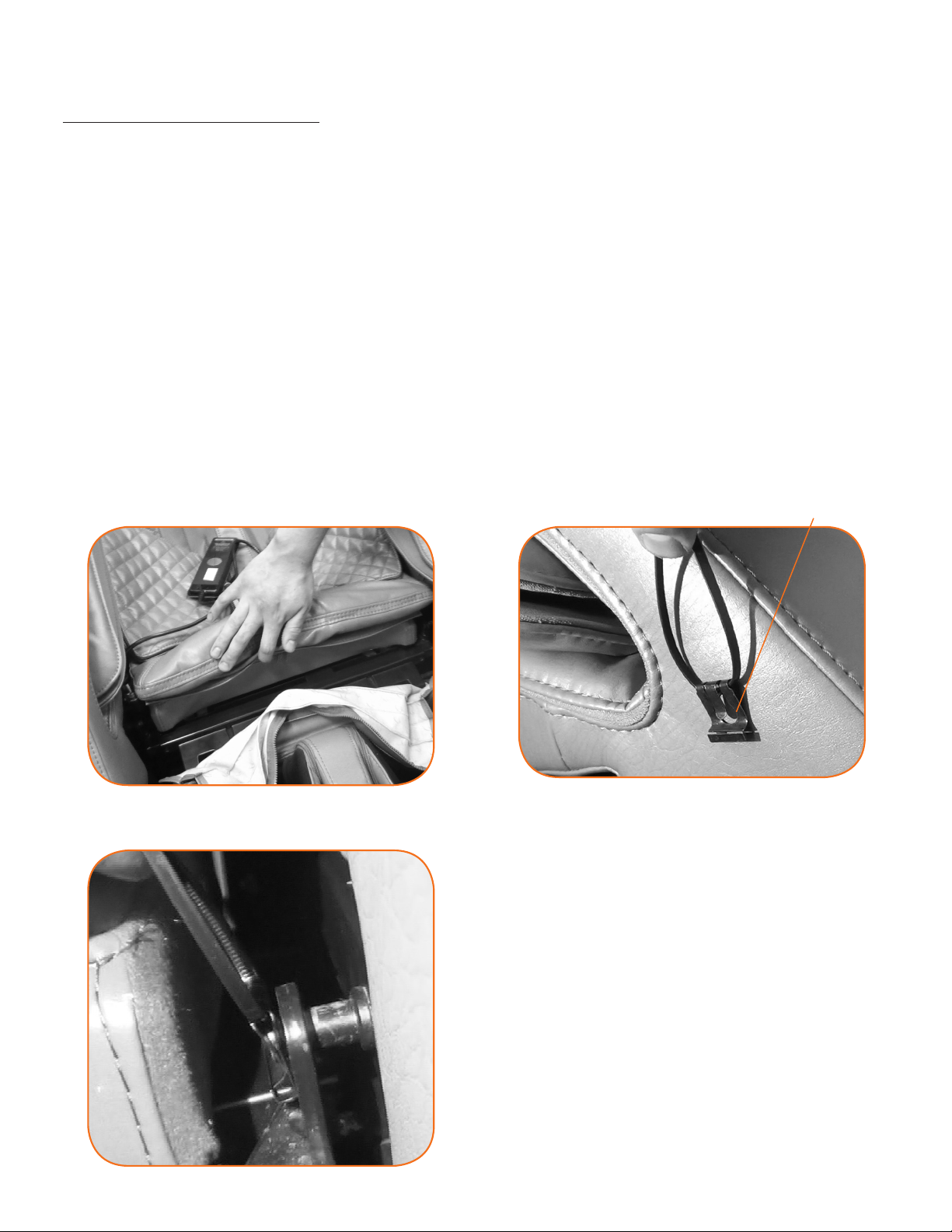

Reinstall the foot/calf massager
1. Position the foot/calf massager in front of the chair.
2. Reconnect the connector, making sure it is pressed all the way in and locked.
3. Reconnect the air hose, making sure it is pressed all the way in.
4. Move the foot/calf massager into position, with the mounting brackets on the massager aligned with the mounting posts on the chair.
5. Lift the foot/calf massager and slide the mounting bracket on one side onto the mounting post, then slide the mounting bracket on the
other side onto the other mounting post, centering the massager so that both sides are held up by the mounting posts (Fig.19).
6. Slide the provided zip tie through the three loops on one of the calf massager mounting clips, then position the clip with the tab facing
inward (away from the chair side panel) (Fig.20).
7. Slide the clip onto the slot on the mounting post to secure the mounting bracket, then remove the zip tie (Fig.21).
8. Repeat steps 6 -7 to install the mounting clip on the opposite post.
9. Zip the calf massager upholstery to the seat upholstery.
Clip
(Fig.19) (Fig.20)
(Fig.21)
