Humphree LIGHTNING INTERCEPTOR Manuale utente
1
OPERATOR
MANUAL
INTERCEPTOR
2
TECHNICAL DOCUMENTATION
The information in the following document was correct at the time it was produced. However, Humphree
cannot accept liability for any inaccuracies or omissions it may contain. In addition, continuous
product improvement may change specifications without notice. As a result, Humphree cannot accept
liability for any differences between the product and the document.
READ THE MANUAL
Please read the manual carefully before operating the Humphree system and pay extra attention to
the following safety notices:
WARNING!
Never try to force the interceptor blades by hand. Be aware of the sharp edges when
close to the interceptors.
NOTE!
Notes contain important information regarding the Humphree system.
GENERAL SAFETY INFORMATION
1. SAFETY INFORMATION
1.1 WARNINGS AND IMPORTANT NOTICES
3
2.1 INTENDED PRODUCT USAGE
2. ABOUT THIS MANUAL
LIGHTNING by Humphree is a stabilization system designed for motorboats with the following
specifications:
• Length of 20-45 feet
• Speed of 10-50 knots
The system must not be used for purposes other than the intended usage.
The purpose of this manual is to give instructions on how to operate the LIGHTNING by Humphree
system.
This manual is available digitally as a PDF file, and can be downloaded in the following ways:
• Scan the QR code that is displayed on the product packaging and attached documentation.
• Use the following Humphree URL address: https://humphree.com/lightning/
2.2 INTENDED AUDIENCE
This manual is aimed at the user/operator of the LIGHTNING by Humphree system.
4
1. SAFETY INFORMATION
2. ABOUT THIS MANUAL
1.1 WARNINGS AND IMPORTANT NOTICES
2.1 INTENDED PRODUCT USE
2.2 INTENDED AUDIENCE
3. SYSTEM OVERVIEW
4. FUNCTION PACKAGES
6.1 ABOUT FUNCTION
02
03
06
7
CONTENTS
12
13
15
5. CONTROL PANEL 8
6. AUTO TRIM 12
6.2 HOW TO USE
14
5.1 TOUCH SCREEN GESTURES 8
5.2 DISPLAY FEATURES 9
5.3 DISPLAY SETTINGS 11
7.1 ABOUT FUNCTION
7. AUTO LIST
7.2 HOW TO USE
14
4.1 DISPLAY FUNCTION 7
4.2 DESCRIPTION OF FUNCTION 7
5
8. COORDINATED TURN
16
9. PITCH & ROLL STABILIZATION
17
10. MANUAL CONTROL
18
11. RESET
20
12. MAINTENANCE
21
13. TROUBLESHOOT
22
22
22 13.1 ALARM ALERT
13.2 CLEAR ALARM
17
17 9.1 ABOUT FUNCTION
9.2 HOW TO USE
16 8.1 ABOUT FUNCTION
6
3.TYPICAL SYSTEM OVERVIEW
ETHERNET
(OPTIONAL)
NMEA2000
KEY
SWITCH
(OPTIONAL)
EXTBUS
(OPTIONAL)
FUSE
(NOT INCLUDED)
+
-
BATTERY
(NOT INCLUDED)
INTERCEPTORINTERCEPTOR
CONTROL UNIT (LCU)
CONTROL PANEL
GPS INPUT
7
4.FUNCTION PACKAGES
Adjusts the trim of the boat
according to speed.
Keeps the boat at even keel
during speed, for comfort and
safety.
Adjusts the boats heeling angle
during turns. Improving safety and
comfort levels.
Dynamically counteracts roll
motions, which reduces the risk
of seasickness
AUTO TRIM AUTO LIST
COORDINATED TURN ROLL STABILIZATION
4.2 DESCRIPTION OF OPTIONAL FUNCTIONS
Eliminates a large amount of
unwanted pitching.
PITCH CONTROLL
Each interceptor is factory
equipped with 10 RGBW LED:s
providing a total of 25W. Select
this option to bring a bright and
adjustable UW light to the waters.
UNDERWATER LIGHT OPT
4.1 DISPLAY AVAILABLE FUNCTIONS
Roll
Stabilization
FUNCTIONS INCLUDED
FUNCTION PACKAGES
Comfort √√ √
Comfort PLUS √√ √ √
Dynamic √ √ √√
Dynamic PLUS √√ √ √ √
Underwater Light Activation
Auto Trim Pitch
Control Auto List C-Turn UWL
√
8
5. CONTROL PANEL

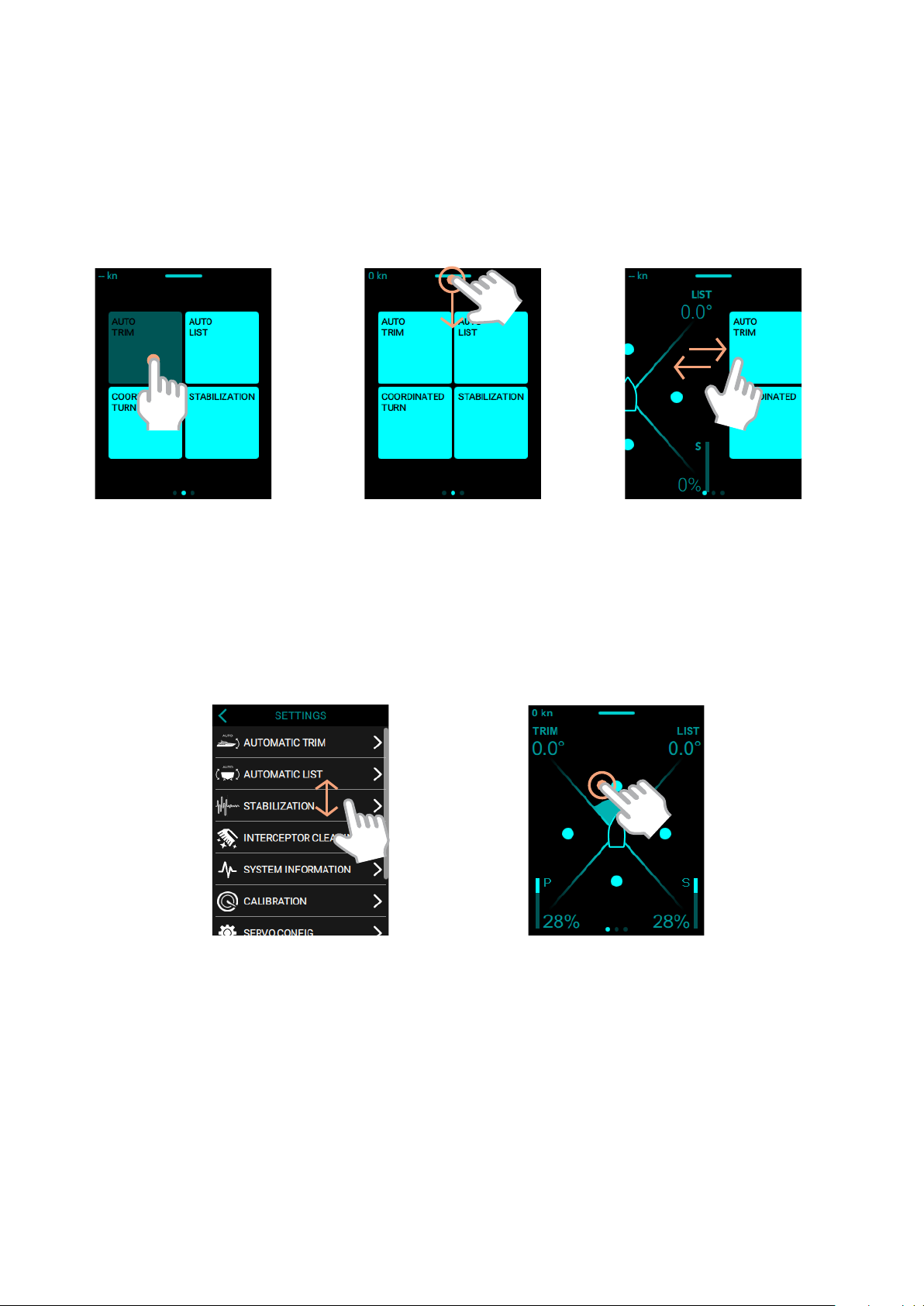

5.1 TOUCH SCREEN GESTURES
Tap. Tap one
finger lightly
on the screen.
Swipe. Move one
finger across the
screen quickly.
Tap and drag. Tap
and drag with one
finger.
Scroll. Move one finger
across the screen
without lifting.
Tap and hold. Tap and hold
to increase the eect of a
function faster.
9
5. CONTROL PANEL

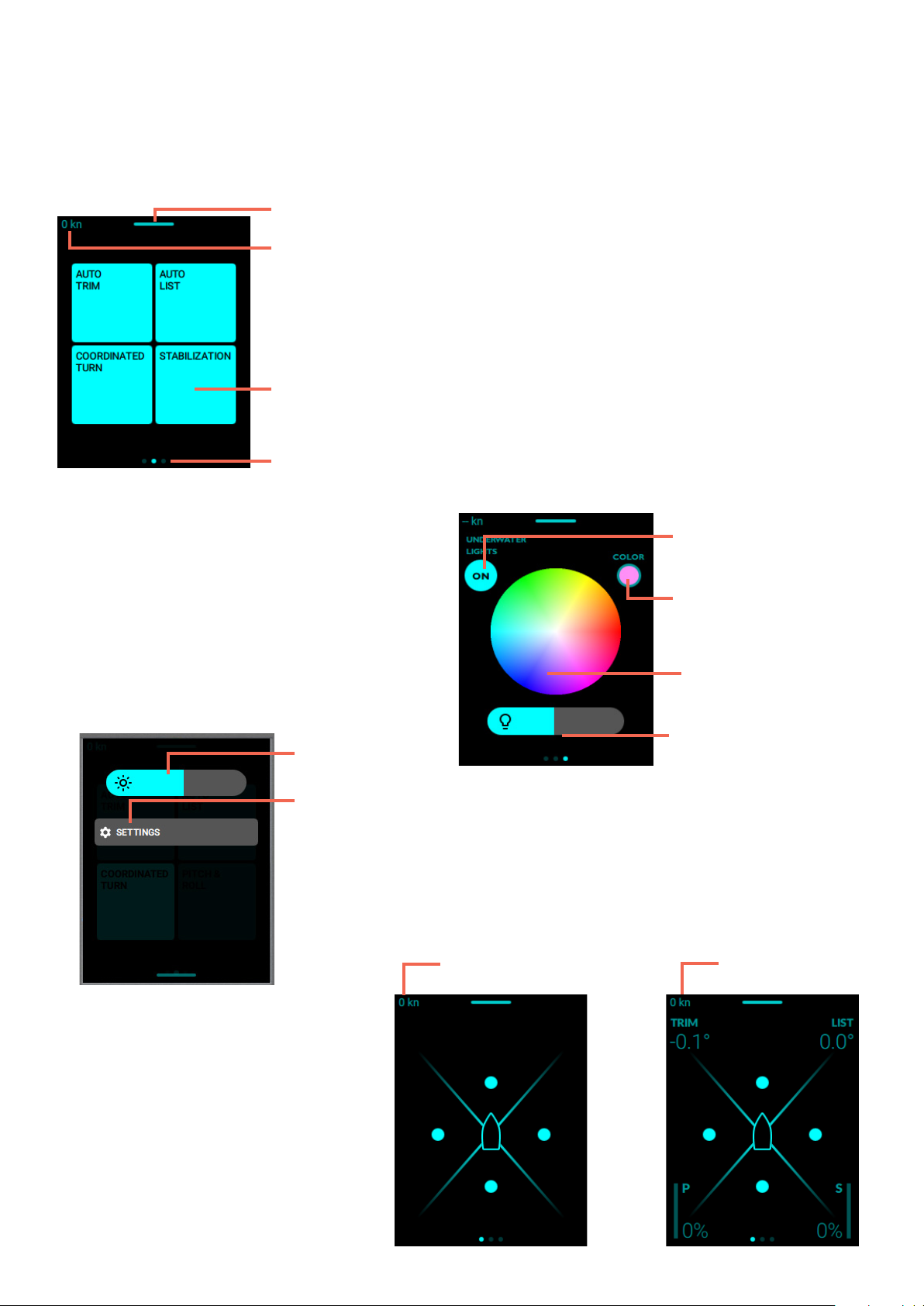

MAIN SCREEN
DROP DOWN
UNDERWATER LIGHTS
GPS speed
Drop down menu
Auto functions
ON/OFF
Page indicator
Brightness
Settings menu
Lights intensity
Underwater lights
ON/OFF
Select color
Selected color
5.2 DISPLAY FEATURES
or
When the speed exceeds 5 kn,
the control view is automatically
showing.
Detailed view
AUTOMATIC FUNCTION
Overview
10
Trim
angle
Bow up
List
angle
List to
starboard
List to
port
Port
interceptor
Starboard
interceptor
Starboard
interceptor
deployment
DETAILED CONTROLS ON
5. CONTROL PANEL
DETAILED CONTROLS OFF
Bow down
Port
interceptor
deployment
5.2 DISPLAY FEATURES
