Hunter 30847 Manuale utente
Total Air PurificationTotal Air PurificationTotal Air Purification
Form# 44030-01
20100119
©2010 Hunter Fan Co.
HEPA
Air Purifier
Owner’s Manual
Model
30847
English
2©2010 Hunter Fan Co. 44030-01 20100119
TABLE OF CONTENTS
Introduction ............................................................. 3
Safety Instructions..................................................... 3
Setting Up Your Air Purifier ....................................... 5
How The System Works ............................................ 6
Operating Your Air Purifier ....................................... 7
Air Purifier Maintenance........................................... 7
Check or Clean Your Pre-Filter 7
Check or Replace Your Filters 8
Replace The UVC Bulb 8
Clean the Unit 9
Troubleshooting...................................................... 10
Technical Support................................................... 10
Filter Ordering....................................................... 11
Warranty............................................................... 11
Products ................................................................ 11
Filter and UVC Calendar ........................................ 14
Notes .................................................................... 14
3©2010 Hunter Fan Co. 44030-01 20100119
3High Particulate Efficiency: The HEPA filters
will remove up to 99.9% of particles as small as 0.3
micron particles from the air that passes through the
filter.
3Washable Pre-Filter: The washable pre-filter is
permanent and can be cleaned and reused.
3UVC Lamp: This Hunter Air Purifier is equipped
with a UVC germicidal lamp. UVC technology is a
proven germicide that is accepted by the FDA and
EPA as having the ability to kill pathogens in air that
are exposed to UVC light.
3Photocatalitic Oxidation: Reduces the amount
of toxic VOCs in the air caused by household cleaners
and products.
3Oxygenating Catalyst: Converts ozone and
smog into oxygen for cleaner air and peace of mind.
SAFETY INSTRUCTIONS
1. WARNING: This Air Purifier emits UVC radiation that
may cause eye and/or skin irritation. RG-3. Avoid
exposing eyes and skin to unshielded UVC Lamp.
2. CAUTION: The UVC Lamp may shatter and cause
injury if it is dropped or sustains impact. Wear safety
glasses and gloves when handling the UVC Lamp.
Do not use excessive force when handling the UVC
Lamp. Dispose of the UVC bulb in accordance with
local or State guidelines as trace amounts of Mercury
are present.
IMPORTANT!
READ ALL INSTRUCTIONS BEFORE USING THIS AIR
PURIFIER.
INTRODUCTION
Thank you for purchasing the Total Air Purification System
from Hunter Fan Company. You have purchased our
latest development in Portable Air Purification Systems.
This system has been developed to improve the quality of
the air you breathe.
Our HEPA Air Purification System out performs other air
purification systems by quickly and effectively removing
dust, smoke, and pollen particles as small as 0.3 microns
in size. The following innovative features are included in
your Hunter Air Purifier.
4©2010 Hunter Fan Co. 44030-01 20100119
3. This Air Purifier is designed for use on a level floor and
may not work properly on an uneven floor. ALWAYS
place the Air Purifier on a firm, level floor. ALWAYS
place the Air Purifier at least six (6) inches away from
walls and heat sources such as stoves, radiators, or
heaters.
4. Place the Air Purifier in an area that is out of the reach
of children.
5. Before using the Air Purifier, extend the cord and
inspect for any signs of damage. DO NOT use the
product if the cord has been damaged.
6. To reduce the risk of electric shock, this product has
a polarized plug (one blade is wider than the other)
as a safety feature. This plug will fit into a polarized
outlet only one way. If the plug does not fit fully into
the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. DO NOT attempt to defeat or
override this safety feature.
7. ALWAYS UNPLUG the Air Purifier while it is being
cleaned.
8. DO NOT move or tilt the Air Purifier while it is in
operation. Turn off and unplug before moving.
9. DO NOT immerse the Air Purifier in water at any time
because permanent damage will occur. To properly
clean your Air Purifier, follow the instructions in the
Maintenance section of this manual “Air Purifier
Maintenance” on page 7.
10. This equipment should be inspected frequently and
collected dirt removed from it regularly to prevent
excessive accumulation that could result in flashover
or risk of fire.
5©2010 Hunter Fan Co. 44030-01 20100119
Figure 1.
SETTING UP YOUR AIR PURIFIER
1. Take the Air Purifier out of the box and remove the
clear plastic protective bag and place the unit on a
firm, level surface.
2. Before turning on the Air Purifier, you need to confirm
that the filters are firmly in place and have not become
loose during shipping. To check the filters, push down
on the tab under the handle. Figure 1.
3. Gently pull the rear grill away from the unit and lift
away. Figure 2.
4. The washable Pre-Filter is mounted inside the back
grill of the unit. Confirm that it properly covers the
grill vents.
5. The HEPA Filters will be resting inside the unit. If
present, remove the plastic bag surrounding the filter
and place the filters back into the Air Purifier. The
filters should have arrows on the side to indicate air
flow and the direction the filter should be placed back
into the unit. Figure 3.
6. Set the tab on the bottom of the rear grill into the slot
in the base of the unit and rock the grill up until the
top tab snaps into place. Figure 4.
7. Plug the unit into a 120V electrical outlet.
Figure 2.
Figure 4.
Figure 3.
HEPA Filters
Tab
6©2010 Hunter Fan Co. 44030-01 20100119
HOW THE SYSTEM WORKS
Dust and other irritants are pulled into the Air Purifier by the fan. The Washable Pre-Filter
attracts larger particles like pet dander and hair and traps them on the Pre-Filter. Smaller
particles such as dust, mold, and pollen pass through the Pre-Filter and are captured by the
HEPA filters. Up to 99.9% of particles can be captured.
The UVC Light helps kill particles not trapped on the HEPA Filters and the Photocatalytic
Oxidation screen removes harmful VOC’s. Clean, purified air is then released into the room
through the front grill as the Oxygenating Catalyst converts smog and ozone back into
oxygen. Figure 5.
Figure 5.
Grill
HEPA Filters
Washable
Pre-Filter
Unit
UVC
Light
Photocatalytic
Oxidizer
Oxygenating Catalyst
7©2010 Hunter Fan Co. 44030-01 20100119
AIR PURIFIER MAINTENANCE
It is necessary to periodically check your Air Purifier
for performance. If the Pre-Filter and/or HEPA Filters
are covered in dust and other captured particles, it will
be necessary to clean or replace one and or both. The
Pre-Filter and Filters should be checked at least every 6
months. The UVC Light should be replaced every year.
NOTE: Some environments may require more frequent
cleaning of each filter. In these situations, adjust the time
you check your filters to ensure the filters stay clog free to
optimize performance.
Figure 7.
Press
Down
OPERATING YOUR AIR PURIFIER
OFF Unit off
Low speed - Recommended for use when soft
background noise is unwanted.
Medium speed - Typical usage setting. Soft
background noise is not an issue.
High speed - Use when quick, efficient results
to a room’s air quality are desired.
The fan speed can be adjusted at any time by rotating the
dial so the indicator light aligns with the desired speed.
Press the UVC Light Button to turn on and off the UVC
function of your Air Purifier.
NOTE: The ON/OFF Indicator and the UVC Indicator
will stay lit while the fan and/or UVC is running.
Figure 6.
UVC ON/OFF
Speed
control
ON/OFF
ON/OFF
Indicator
UVC
Indicator
Check or Clean Your Pre-Filter
1. Turn the Air Purifier off and disconnect from the wall.
2. Remove the rear grill on the back of the unit by
pressing the tab at the top of the unit, under the
handle and pull the rear grill outward. Figure 7.
3. Turn the Rear grill over and gently remove the Pre-
Filter from the grill.
4. Check the Pre-Filter side facing the grill for particle
coverage.
8©2010 Hunter Fan Co. 44030-01 20100119
Figure 10.
Replace The UVC Bulb
The UVC light should be replaced once yearly. Follow
these instructions to remove and replace the UVC bulb.
1. Unplug the unit from the wall outlet and remove the
back grill by pressing down on the top tab.
2. Remove the 2 screws holding the Photcatalytic Screen
in place and remove the screen. Figure 9.
3. Remove the 3 screws holding the UVC Guard in place
and remove it from the unit. Figure 10. & 11.
4. Grasp the bulb with your thumbs and forefingers at
the plastic top and bottom and gently roll the bulb to
the left. Figure 12.
5. When the bulb releases, slide the top of the bulb out
of the bracket and remove.
6. Partially remove the new UVC Bulb from it’s packaging
being careful not to let the bulb come in contact with
your skin.
Figure 11.
5. If the Pre-Filter needs to be cleaned, It may be
submerged in warm soapy water to clean. Gently lift
and submerge the filter several times to clean.
6. When complete, rinse the filter with warm water and
allow to dry completely.
Note: Wet parts placed into the unit can cause damage
to the filters and or the motor of the Air Purifier.
Check or Replace Your Filters
1. Turn the Air Purifier off and disconnect from the wall.
2. Remove the rear grill on the back of the unit by
pressing the tab at the top of the unit, under the
handle and pull the rear grill outward. Figure 7.
3. Remove the HEPA Filters from the unit.
4. Check the Filters for particle build-up.
5. The HEPA filter should be removed every 12 months
of use and matched to the color indicator on the inside
of the filter compartment. When the filter matches the
dark, charcoal gray indicator, it should be replaced. Figure 9.
Screws
Screws
9©2010 Hunter Fan Co. 44030-01 20100119
Figure 14.
Note: Oils from your skin can cause damage to the bulb
and will prevent it from working.
7. Using the bag the bulb came in to prevent skin contact
with the bulb, insert the base of the bulb into the lower
UVC socket in the unit, with the flat side of the base
facing the opening of the unit. Figure 13.
8. Insert the top part of the UVC bulb into the top socket
and roll the bulb to the right util it locks into place.
Note: If the UVC Bulb Guard is not re-installed correctly,
the unit will not run.
9. Reattach the UVC Guard by inserting the back tabs
into the Air Purifier and secure the 3 screws holding it
back in place. Figure 14.
10. Align the Photocatalytic Screen over the 2 holes in
the unit and screw it back into place.
11. Set the tab on the bottom of the rear grill into the slot
in the base of the unit and rock the grill up until the
top tab snaps into place.
Figure 15.
Clean the Unit
Clean the outside of the unit with a soft, damp cloth.
The rear grill can be cleaned in soapy water after it has
been removed from the unit and the pre-filter has been
removed.
NOTE: Ensure the grill is completely dry before
reinstalling it on the unit. Failure to do so could cause
damage to the filters or motor.
Figure 13.
Figure 12.
10©2010 Hunter Fan Co. 44030-01 20100119

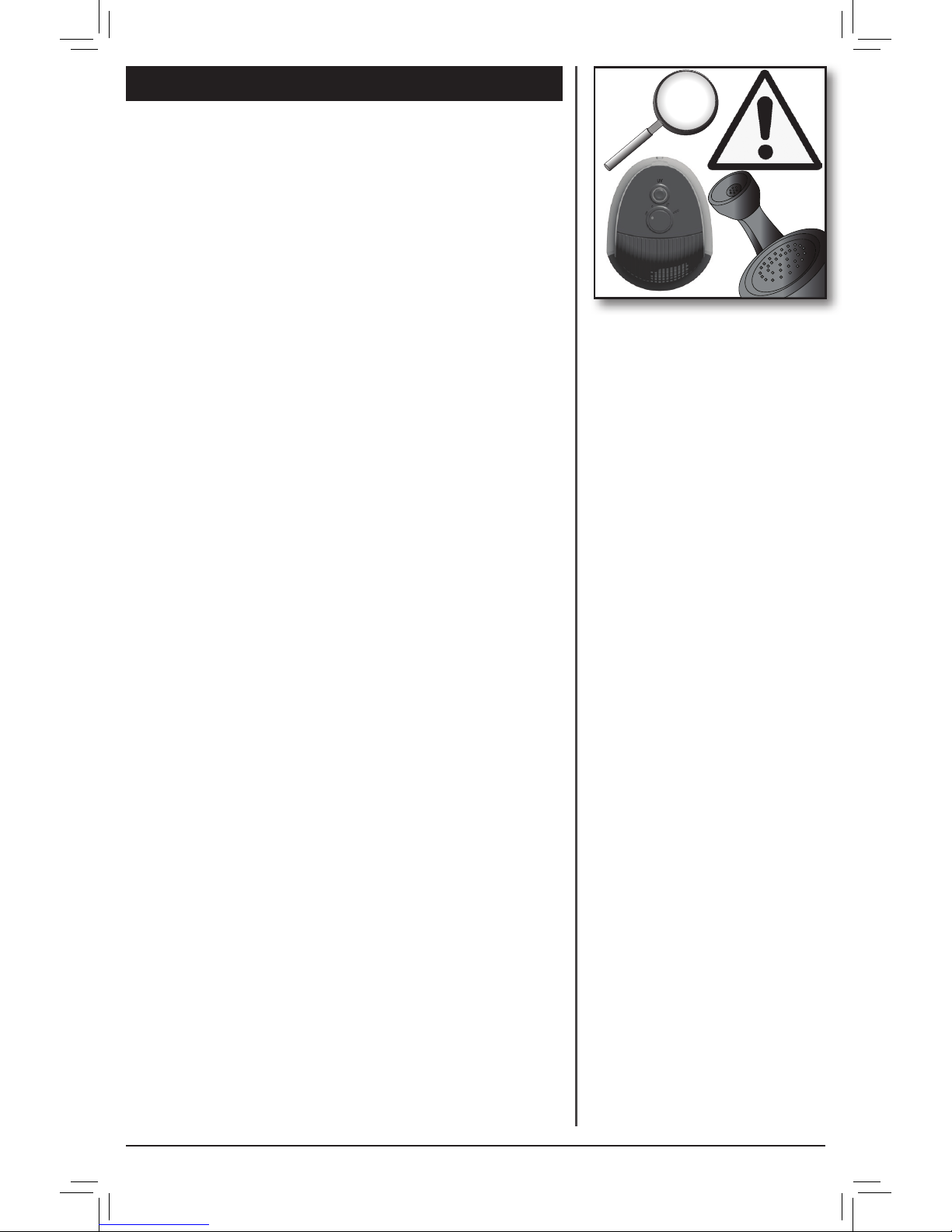

TROUBLESHOOTING
Problem:
No Operation.
Solution:
3Confirm that the unit is plugged in.
3Check the installation of the Rear grill.
3Check the installation of the UVC Lamp Cover.
Problem:
Unit has reduced air flow or increased noise.
Solution:
3The filter may be clogged and needs to be
cleaned. See “Check or Replace Your Filter” on
page 10.
Problem:
The UVC Lamp is not operating.
Solution:
3Check the installation of the UVC Bulb.
3Replace the UVC Bulb. See “Replace The UVC Bulb”
on page 8.
If you have any additional questions or problems with
your Hunter Air Purifier, please call:
USA: 1-888-830-1326
Canada: 1-866-268-1936
Hours of operation are from 7:00 am to 7:00 pm
Monday - Friday and 8:00 am to 5:00 pm on Saturday,
Central Time. You may also contact us over the Internet at
www.hunterfan.com.
TECHNICAL SUPPORT
Altri manuali per 30847
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Hunter Purificatore d'aria
Hunter
Hunter HEPAtech 30027 Manuale utente
Hunter
Hunter PermaLife 30755 Manuale utente
Hunter
Hunter QuietFlo 30095 Manuale utente
Hunter
Hunter HEPAtech 140 Manuale utente
Hunter
Hunter HEPAtech 30527 Manuale utente
Hunter
Hunter QuietFLO 30245 Manuale utente
Hunter
Hunter 30791 Manuale utente
Hunter
Hunter Quietflo 30085 Manuale utente
Hunter
Hunter 30763 Manuale utente
Hunter
Hunter 30776 Manuale utente
Hunter
Hunter 30890 Manuale utente
Hunter
Hunter 30943 Manuale utente
Hunter
Hunter HEPAtech 30060 Manuale utente
Hunter
Hunter HPH625 Manuale utente
Hunter
Hunter 30849 Manuale utente
Hunter
Hunter HEPAtech 30027 Guida alla configurazione
Hunter
Hunter PermaLife 30023 Manuale utente
Hunter
Hunter HEPA 20310 Series Manuale utente
Hunter
Hunter 30377 Manuale utente
Hunter
Hunter HEPAtech 30772 Manuale utente
