Hunter 21322 Manuale di istruzioni

Type A ModelsType A ModelsType A Models

Form# 42857-01

20081204

For Your Records and

Warranty Assistance

For reference, also attach your receipt or a copy

of your receipt to the manual.

__________________________________________

Model Name

__________________________________________

Model No.

__________________________________________

Date Purchased

__________________________________________

Where Purchased

English Español

Owner’s Guide and Installation Manual

Viente

21322

42857-01 • 12/04/08 • Hunter Fan Company

Table Of Contents

1 • Getting Ready......................4

2 • Installing the Hanger Bracket .......5

3 • Assembling and Hanging the Fan ...6

4 •Wiring the Fan......................7

5 • Installing the Motor Housing .......8

6 • Assembling the Blades..............9

7 • Completing Your Installation With or

Without a Bowl Light Fixture ......10

8 • Operating and Cleaning Your Ceiling

Fan ...............................14

9 • Troubleshooting....................15

Your new Hunter® ceiling fan is an addition to your home or oce that

will provide comfort and performance for many years. is installation

and operation manual gives you complete instructions for installing

and operating your fan.

We are proud of our work. We appreciate the opportunity to supply

you with the best ceiling fan available anywhere in the world.

Before installing your fan, for your records and warranty assistance,

record information from the carton and Hunter nameplate label

(located on the top of the fan motor housing).

Cautions and Warnings

•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING

INSTALLATION. SAVE THESE INSTRUCTIONS.

• Use only Hunter replacement parts.

• To reduce the risk of personal injury, attach the fan directly to the

support structure of the building according to these instructions,

and use only the hardware supplied.

• To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the

outlet box and associated wall switch location. If you cannot lock

the circuit breakers in the o position, securely fasten a prominent

warning device, such as a tag, to the service panel.

• All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualied electrician.

• To reduce the risk of personal injury, do not bend the blade

attachment system when installing, balancing, or cleaning the fan.

Never insert foreign objects between rotating fan blades.

• To reduce the risk of re, electrical shock, or motor damage, do not

use a solid-state speed control with this fan. Use only Hunter speed

controls.

Welcome

42857-01 • 12/04/08 • Hunter Fan Company

Mounting and Optional Accessories

Understanding Mounting

Hunter’s patented mounting system provides you maximum ease in

installing your fan. is fan was designed to be mounted only on at

ceilings and can be used on ceilings less than 8 feet high.

Considering Optional Accessories

Consider using Hunter’s optional accessories, including a wall-mounted

or remote speed control. To install and use the accessories, follow

the instructions included with each product. For quiet and optimum

performance of your Hunter fan, use only Hunter speed controls.

Low Proﬁle Mounting ts close to the

ceiling, recommended for ceilings less

than 8 feet high

Support Brace

Low Prole

Mounting

Style

Ceiling

Outlet Box

CAUTION: To reduce the risk of

personal injury, attach the fan directly

to the support structure of the building

according to these instructions, and use

only the hardware supplied.

42857-01 • 12/04/08 • Hunter Fan Company

To install a ceiling fan, be sure you can do the following:

• Locate the ceiling joist or other suitable support in ceiling.

• Drill holes for and install wood screws.

• Identify and connect electrical wires.

• Lift 40 pounds.

If you need help installing the fan, your Hunter fan dealer can direct

you to a licensed installer or electrician.

Gathering the Tools

You will need the following tools for installing the fan:

• Electric drill with 9/64” bit

• Standard screwdriver (magnetic tip recommended)

• Phillips-head screwdriver (magnetic tip recommended)

• Wrench or pliers

• Ladder (height dependent upon installation site)

Checking Your Fan Parts

Carefully unpack your fan to avoid damage to the fan parts. Refer to

the included Parts Guide. Check for any shipping damage to the

motor or fan blades.

Preparing the Fan Site

Before you begin installing the fan, follow all the instructions in

the pullout sheet called “Preparing the Fan Site.” Proper ceiling fan

location and attachment to the building structure are essential for

safety, reliable operation, maximum eciency, and energy savings.

Installing Multiple Fans?

If you are installing more than

one fan, keep the fan blades and

blade irons (if applicable) in sets,

as they were shipped.

1 • Getting Ready

42857-01 • 12/04/08 • Hunter Fan Company

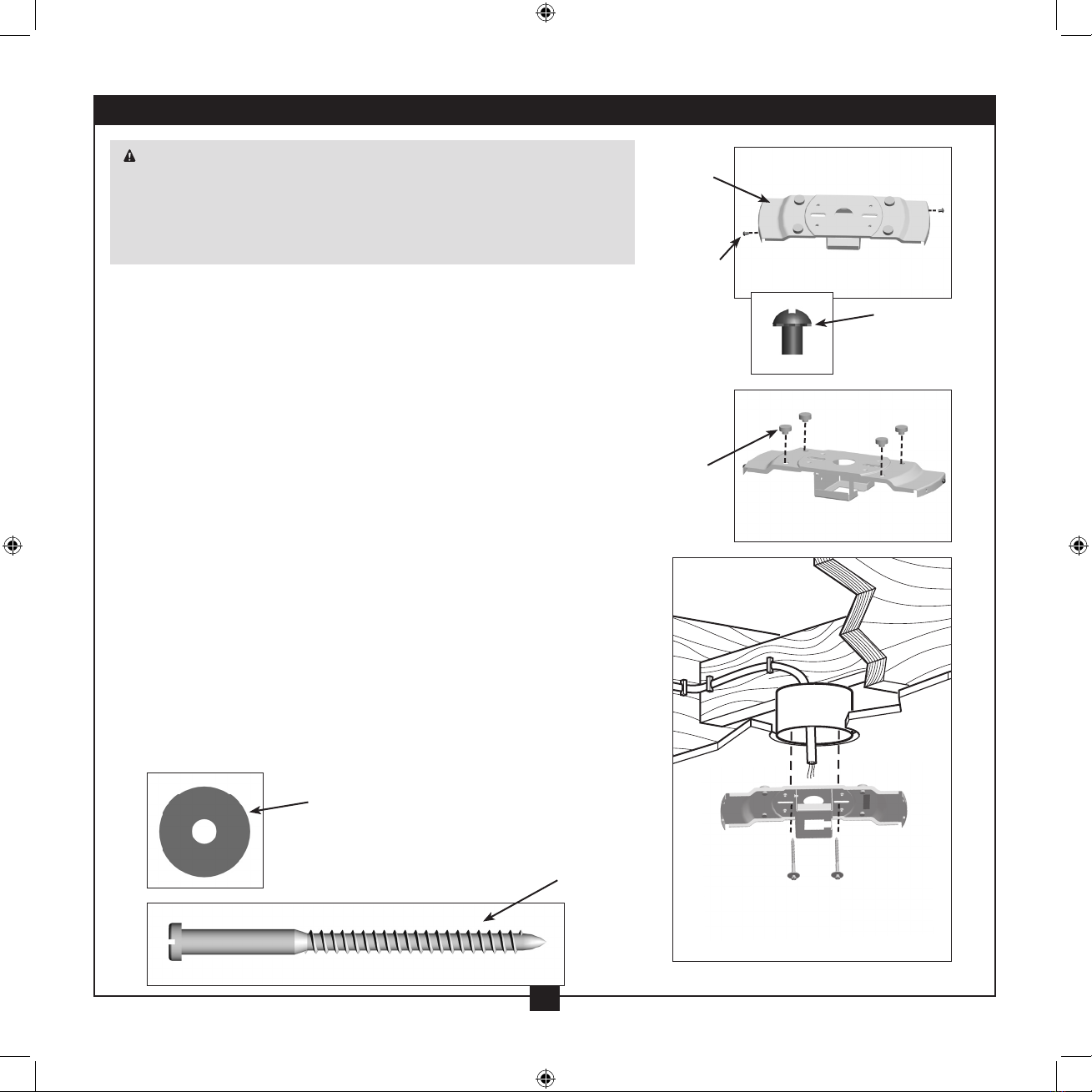

2 • Installing the Hanger Bracket

CAUTION: To avoid possible electrical shock, before installing your fan,

disconnect the power by turning o the circuit breakers to the outlet box

and associated wall switch location. If you cannot lock the circuit breakers

in the o position, securely fasten a prominent warning device, such as a

tag, to the service panel.

2-1. Drill two pilot holes into the wood support structure through the

outermost holes in the outlet box. e pilot holes should be 9/64”

in diameter.

2-2. Partially install two canopy screws in the holes on each end of the

hanger bracket, as shown in the gure to the right.

2-3. Your fan comes with four mounting isolators. Position the

isolators between the hanger bracket and ceiling by inserting the

raised areas on each isolator into the holes in the hanger bracket.

2-4. read the lead wires from the outlet box down through the hole

in the middle of the hanger bracket.

2-5. Align the slotted holes in the hanger bracket with the pilot holes

you drilled in the wood support structure.

Note: e isolators should be ush against the ceiling.

2-6. Place a at washer on each of the two 3” wood screws and pass

the screws through the slotted holes in the hanger bracket into

the pilot holes you drilled.

Tighten the screws into the 9/64” pilot holes; do not use lubricants

on the screws. Do not over tighten.

Step 2-2

Flat Washer

3” Wood Screw

Steps 2-4 – 2-6

Hanger

Bracket

Step 2-3

Canopy Screw

Canopy

Screw

Isolator

2 • Installing the Hanger Bracket

42857-01 • 12/04/08 • Hunter Fan Company

3 • Assembling and Hanging the Fan

Step 3-2

#8-32 x 1” Screw

Green

Ground Wire

3-1. Position the square hanger so that the green ground wire attached

to the square faces out of the large opening in the metal bracket.

3-2. Holding the wires out of the way, lift the motor assembly and

place the square hanger into the opening in the ceiling plate.

WARNING: Make sure the square hanger can not rotate in the

metal bracket. Failure to do so could result in the fan falling.

3-3. Install two locking screws through the holes in the side of the

metal bracket to secure the square hanger.

Step 3-1

Motor

Assembly

Square

Hanger

Step 3-3

Locking Screw

Green

Ground Wire

42857-01 • 12/04/08 • Hunter Fan Company

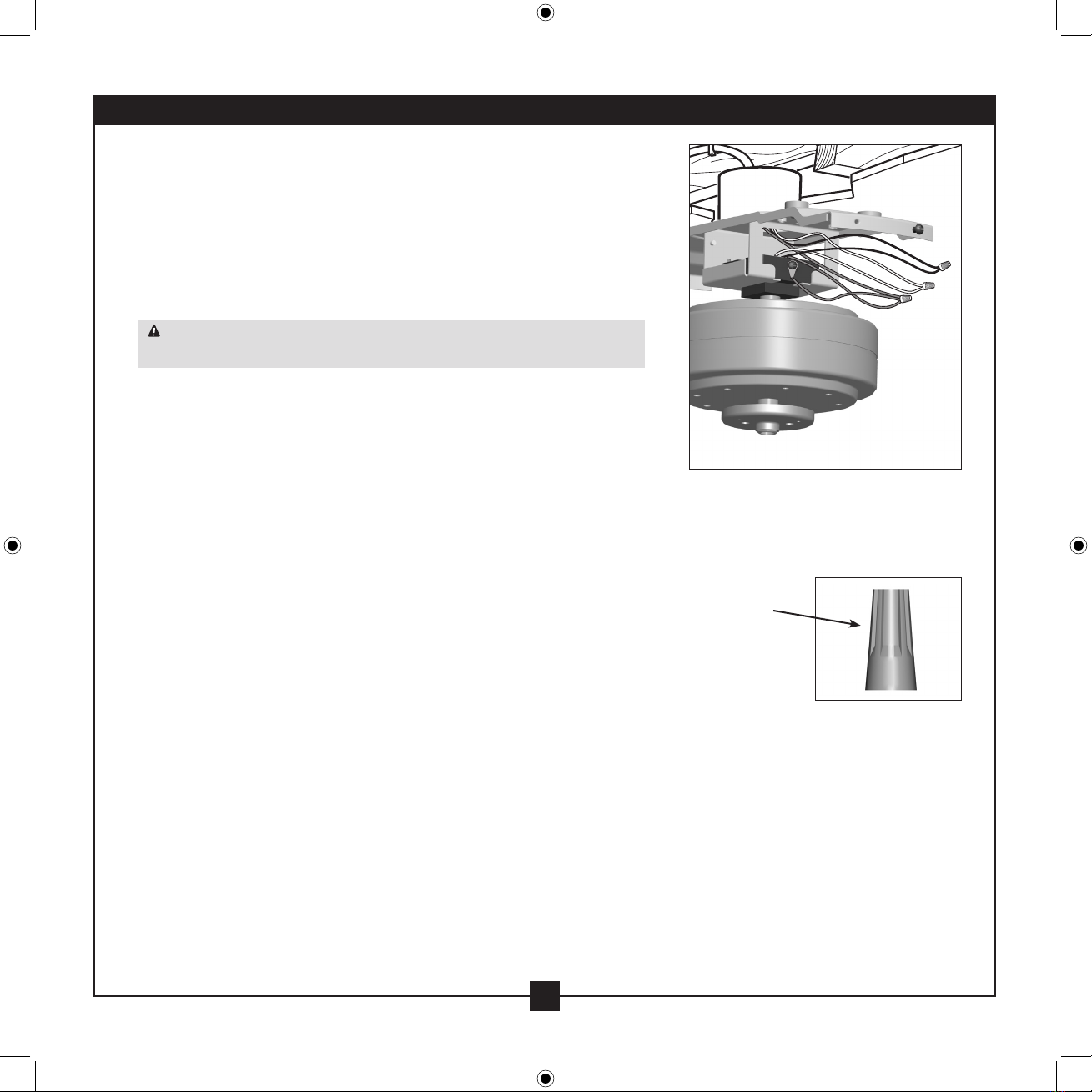

4 •Wiring the Fan

All wiring must be in accordance with national and local electrical

codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a

qualiﬁed electrician.

4-1. Disconnect the power by turning o the circuit breakers to the

outlet box and associated wall switch location.

4-2. To connect the wires, hold the bare metal leads together and place a

wire connector over them, then twist clockwise until tight.

CAUTION: Be sure no bare wire or wire strands are visible after

making connections.

4-3. Connect the wires as follows:

• e green or bare ground wire from the ceiling to the green ground

wire from the ceiling plate and the green ground wire from the fan

• e white (common) power wire from the ceiling to the white wire

from the fan

• e black power wire from the ceiling to the black wire from the fan

• e black/white wire from the fan to the black/white wire from

the ceiling.

4-4. Push all wires and wire connectors back through the ceiling plate hole

into the outlet box.

Step 4-3

Wire

Connector

42857-01 • 12/04/08 • Hunter Fan Company

5 • Installing the Motor Housing

5-1. Place the fan housing over the motor.

5-2. Align the keyholes in the fan housing with the two partially

installed canopy screws in the hanger bracket. Rotate the fan

housing to situate the screws in the narrow ends of the keyholes.

5-3. Install the two remaining canopy screws into the holes in the fan

housing and into the hanger bracket. Securely tighten all screws.

5-4. Install the rubber plugs into the holes over the canopy screws.

Canopy

Screw

Step 5-1

Motor

Step 5-3

Fan Housing

Step 5-4

42857-01 • 12/04/08 • Hunter Fan Company

Hunter fans use several styles of fan blade irons (brackets that hold the

blade to the fan).

6-1. Your fan may include blade grommets. If your fan has grommets,

insert them by hand into the holes on the blades.

6-2. Attach each blade to a blade iron using three blade assembly

screws. If you used grommets, the blades may appear slightly loose

after screws are tightened. is is normal.

6-3. Remove the blade mounting screws and rubber shipping bumpers

from the motor. Note: Some blade mounting screws are installed

in the motor to secure shipping blocks.

6-4. For each blade, insert one blade mounting screw through the

blade iron, and attach lightly to the fan. Insert the second blade

mounting screw, then securely tighten both mounting screws.

Step 6-1 (Detail)

Blade Assembly

Screws

Use with grommet

Use without grommet

Grommet

Blade

Mounting

Screw

Steps 6-1 – 6-2

Step 6-4

6 • Assembling the Blades

42857-01 • 12/04/08 • Hunter Fan Company

Your Hunter fan comes with an integrated light xture assembly and

an optional switch housing cap and plug button. is feature gives

you the option of installing the fan with OR without the included light

xture. e steps below direct you whether or not you are installing a

light xture.

WARNING: Use only the light xture supplied with this fan model.

7-1. To attach the upper switch housing, partially install two housing

assembly screws into the switch housing mounting plate.

7-2. Feed the upper plug connector through the center opening of the

housing.

7-3. Align the keyhole slots in the housing with the housing assembly

screws.

7-4. Turn the housing counterclockwise until the housing assembly

screws are rmly situated in the narrow end of the keyhole slots.

Install the remaining screw into the housing. Tighten all three

screws rmly.

CAUTION: Make sure the upper switch housing is securely

attached to the switch housing mounting plate. Failure to properly

attach and tighten all three assembly screws could result in the

switch housing and light xture falling.

7-5. If you want to install the light ﬁxture, proceed with step 7-6

now.

If you do not want to install the light ﬁxture, you need to

uninstall it now. See “Uninstalling the Light Fixture” on step 7-15.

Once you have uninstalled the light xture, continue with step 7-6.

Steps 7-1 – 7-3

Housing

Assembly

Screw

Upper

Switch

Housing

7 • Completing Your Installation With or Without a Bowl Light Fixture

Altri manuali per 21322

Indice

Altri manuali Hunter Ventilatore da soffitto

Hunter

Hunter M3519-01 Manuale utente

Manuali Ventilatore da soffitto popolari di altre marche

Emerson

Emerson CF710AB02 Manuale utente

MERCATOR

MERCATOR FC130124WH Manuale utente

Casablanca

Casablanca Isotope C30G45L Manuale utente

LUCCI

LUCCI LD-CD52BN/BC Manuale utente

Harbor Breeze

Harbor Breeze 40113 Manuale utente

Fanimation

Fanimation The Air Shadow FP820CH Manuale utente

Kichler Lighting

Kichler Lighting Ridley Manuale utente

Turn of the century

Turn of the century 20500 Manuale utente

Turn of the century

Turn of the century GRAND HAVEN Manuale utente

Monte Carlo Fan Company

Monte Carlo Fan Company 5DCR52 Series Manuale utente

Harbor Breeze

Harbor Breeze CPJ1240 Manuale utente

Monte Carlo Fan Company

Monte Carlo Fan Company 5SQR52XXD Series Manuale utente

Monte Carlo Fan Company

Monte Carlo Fan Company 5VYR56XXD-L Series Manuale utente

Emerson

Emerson CF776BS00 Manuale utente

Quorum

Quorum PROXIMA PATIO Manuale utente

Nordica

Nordica 052-1191-4 Manuale utente

Kichler Lighting

Kichler Lighting 300160 Manuale utente

Fanimation

Fanimation The Edgewood TF910 Manuale utente
