Horizontal Blinds

Standard Cordlock, Moveable Slat Specialty Shape,

LiteRise® , SimpleLift™, and UltraGlide®

Operating Systems

Installation •Operation •Care

CONTENTS

respective owners.

Questions?

Call the Hunter Douglas Customer Information Center at

1-888-501-8364.

Getting Started:

Product View — Standard Cordlock & Moveable Slat Specialty Shape.............. 1

Product View — LiteRise®, SimpleLift™, and UltraGlide®................................. 2

Tools and Fasteners Needed .......................................................................... 3

Unpack the Blind........................................................................................... 3

Installation:

Installation Overview ..................................................................................... 4

Mount the Installation Brackets — Inside Mount and Ceiling Mount ................. 6

Mount the Installation Brackets — Outside Mount .......................................... 9

Install the Blind ........................................................................................... 12

Complete the Installation ............................................................................. 16

Operation:

Operate the Blind........................................................................................ 21

Troubleshooting .......................................................................................... 24

Care:

Removing the Blind (If Necessary) ................................................................ 27

Cleaning Procedures ................................................................................... 27

Child Safety:

Cord Connector........................................................................................... 28

Reassembly of Cord Connecter .................................................................... 28

Cord Cleats................................................................................................. 29

GETTING STARTED

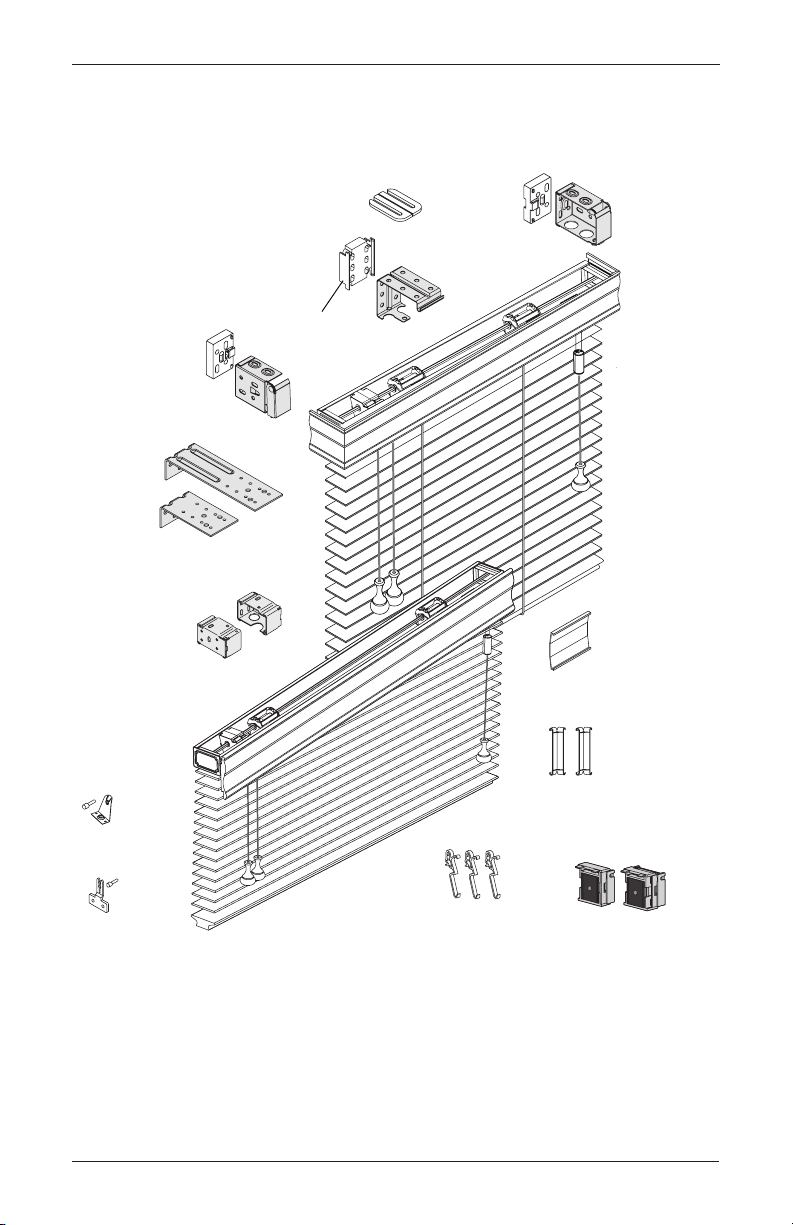

Product View — Standard Cordlock & Moveable Slat Specialty Shape

Standard Cordlock

Moveable Slat Specialty Shape

2" or 4" Extension

Brackets (Optional)

End

Bracket

End

Bracket

End Bracket

Spacer Block

End Bracket

Spacer Block

Intermediate

Bracket

Spacer Block

Intermediate Bracket

(If Required)

End

Brackets

Corner Clips for

Valance Returns

(If Required)

Valance Clips

(Alternative Wood &

Aluminum Blinds)

Magnetic Valance Clips

(Wood and

Natural Elements™

Blinds)

Hold-Down

Bracket

and Pin

(Optional)

Hold-Down

Bracket

and Pin

(Optional)

Valance Splice

(If Required)

Required with 2

" slat size; optional with 2" slat size

2" and 2

" slat sizes

" slat size

* Valance, valance clips, bottom rail, tassel, and wand design varies by product

Valance*

Bracket

Shim

GETTING STARTED

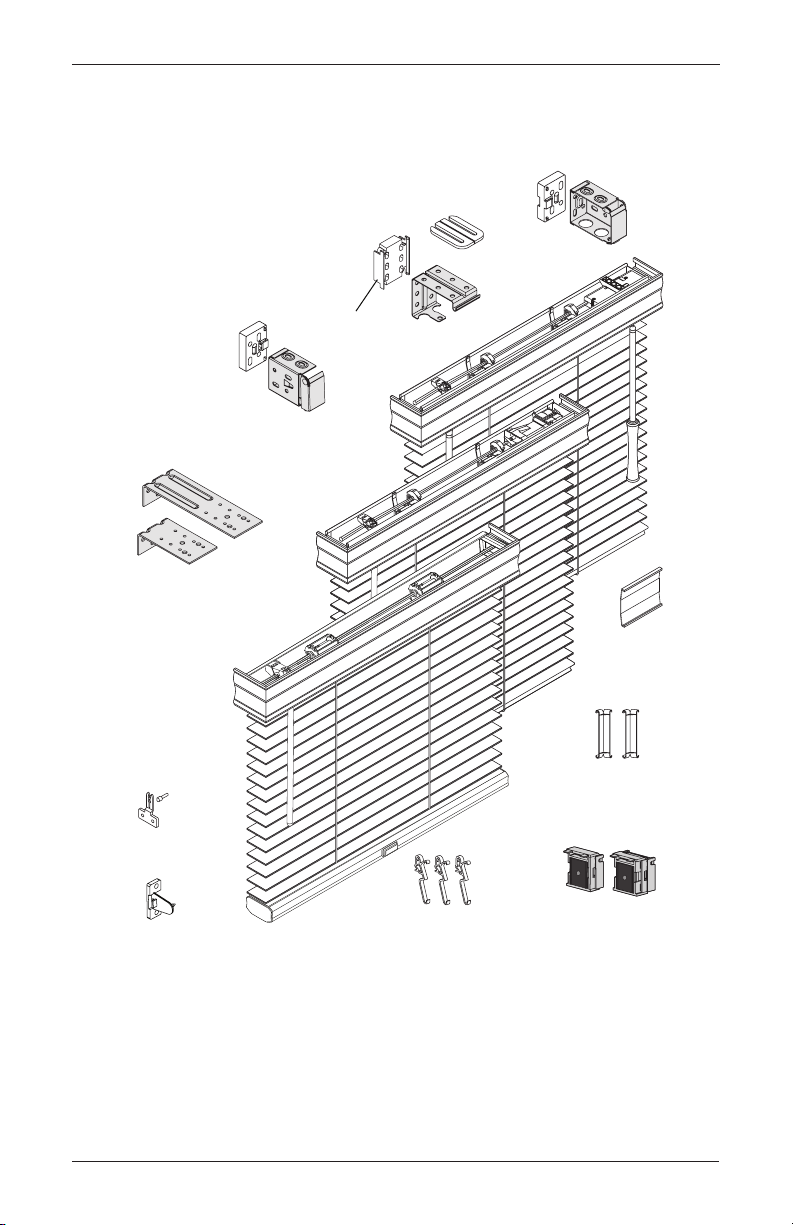

Product View — LiteRise®, SimpleLift™, and UltraGlide®

2" or 4" Extension

Brackets (Optional)

End

Bracket

End

Bracket

End Bracket

Spacer Block

End Bracket

Spacer Block

Intermediate

Bracket

Spacer Block

Intermediate Bracket

(If Required)

Corner Clips for

Valance Returns

(If Required)

Valance Clips

(Alternative Wood &

Aluminum Blinds)

Hold-Down

Bracket

and Pin

(Optional)

Valance Splice

(If Required)

Required with 2

" slat size; optional with 2" slat size

2" and 2

" slat sizes

Valance, valance clips, bottom rail, tassel, and wand design varies by product

UltraGlide®

LiteRise

alance*

SimpleLift

Hold-Down

Bracket

(Optional)

Bracket

Shim

SimpleLift

™

Magnetic Valance Clips

(Wood and

Natural Elements™Blinds)

GETTING STARTED

Thank you for purchasing Hunter Douglas horizontal blinds. With proper installation, operation,

and care, your new blinds will provide years of beauty andperformance.

Please thoroughly review this instruction booklet and the enclosed packing list before beginning

the installation.

Tools and Fasteners Needed

■Flat blade and Phillips screwdrivers

■Level (laser level is recommended)

■Measuring tape and pencil

■Power drill, drill bits, and

" hex driver (or socket wrench with

" hex socket)

In addition, you will need fasteners designed to work with your speciﬁc mounting surface(s).

■#6 Hex Head Screws (Provided). Two 1

" screws are provided per installation bracket.

■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long

enough for a secure attachment.

■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.

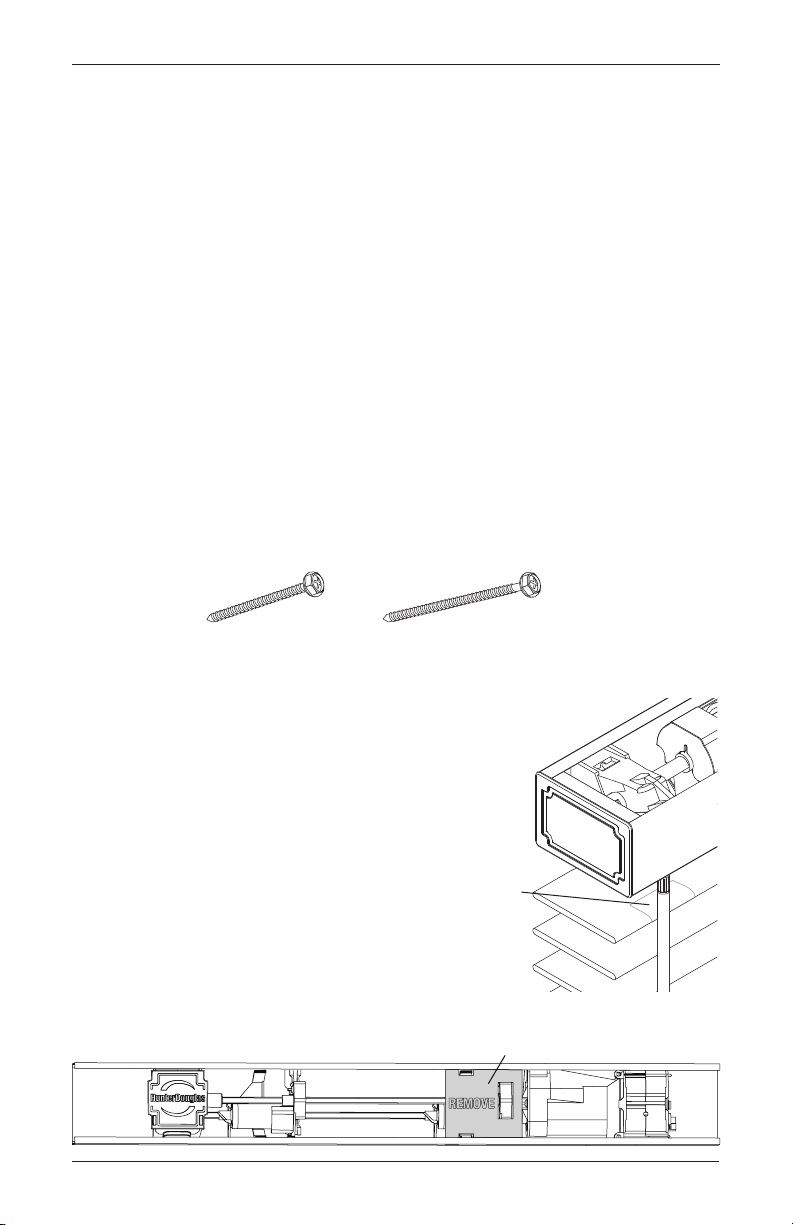

Unpack the Blind

■Remove the blind from the package. Keep the packaging

until the blind operates to your satisfaction.

■Refer to the diagrams on the previous pages and check

for all necessary parts.

■Contents of your hardware package may vary

depending upon the options chosen.

■Do not remove the slat protector tape. Doing

so will damage the slat ﬁnish.

Do Not

Remove

Slat Protector

Tape

#6 x 1

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

Remove Cardboard

Before Installing

INSTALLATION

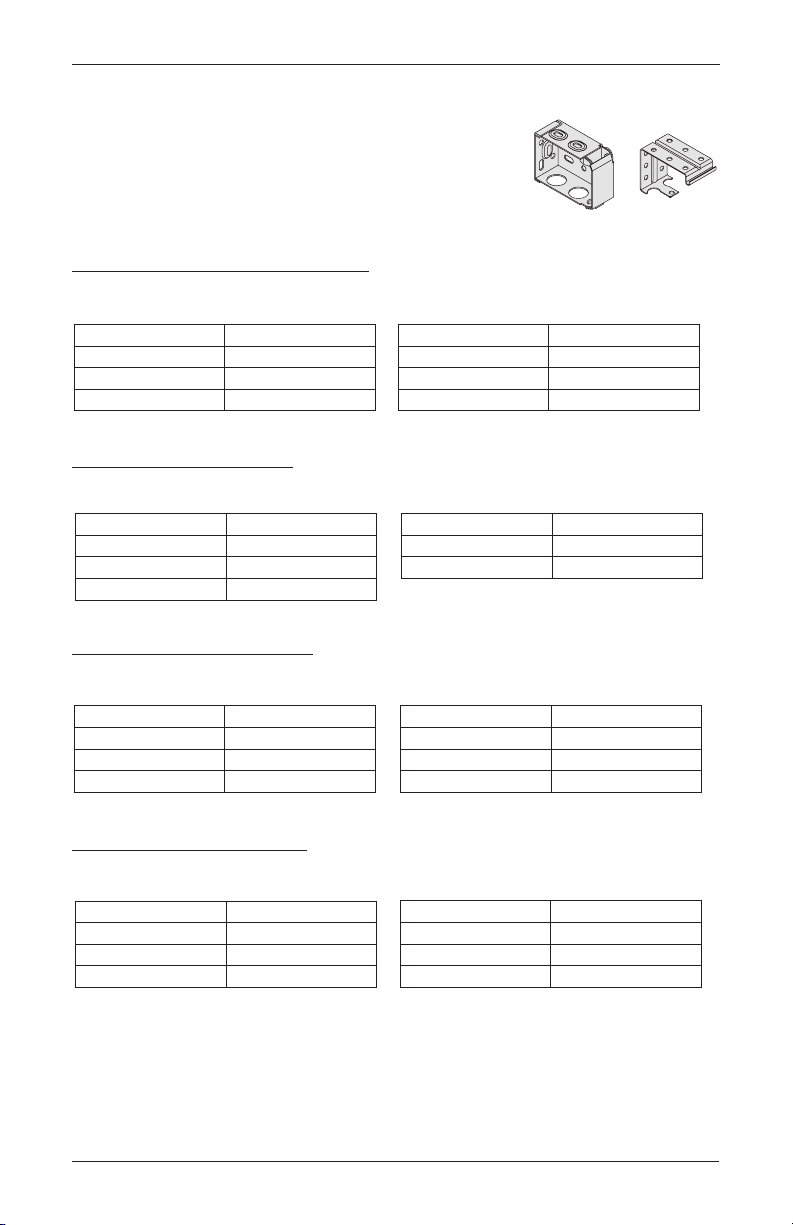

Installation Overview

■Two end brackets are used to mount horizontal blinds. Wider

blinds also require one or two intermediate brackets, as

shown in the tables below.

Standard Cordlock Hardware System

LiteRise®Operating System

SimpleLift™Operating System

UltraGlide®Operating System

Intermediate

Bracket

End

Bracket

Width of Blind Intermediate Brackets

Up to 48" 0

" – 60" 1

" – 96" 2

", 2", and 2

" Wood Blinds

2" and 2

" Alternative Wood Blinds

Width of Blind Intermediate Brackets

Up to 48" 0

" – 60" 1

" – 78" 2

2" and 2

" Wood Blinds

2" and 2

" Alternative Wood Blinds

2" Wood Blinds

2" Alternative Wood Blinds

Width of Blind Intermediate Brackets

Up to 48" 0

" – 60" 1

" – 96" 2

Width of Blind Intermediate Brackets

Up to 48" 0

" – 96" 1

" – 144" 2

2" Macro Aluminum Blinds

2" Natural Elements™Aluminum Blinds

Width of Blind Intermediate Brackets

Up to 48" 0

" – 90" 1

2" Macro Aluminum Blinds

2" Natural Elements Aluminum Blinds

Width of Blind Intermediate Brackets

Up to 48" 0

" – 96" 1

" – 112" 2

2" Macro Aluminum Blinds

2" Natural Elements Aluminum Blinds

2" Wood Blinds

2" Alternative Wood Blinds

Width of Blind Intermediate Brackets

Up to 48" 0

" – 60" 1

" – 96" 2

Width of Blind Intermediate Brackets

Up to 48" 0

" – 96" 1

" – 120" 2

2" Macro Aluminum Blinds

INSTALLATION

2" Macro Aluminum Blinds

2" Natural Elements Aluminum Blinds

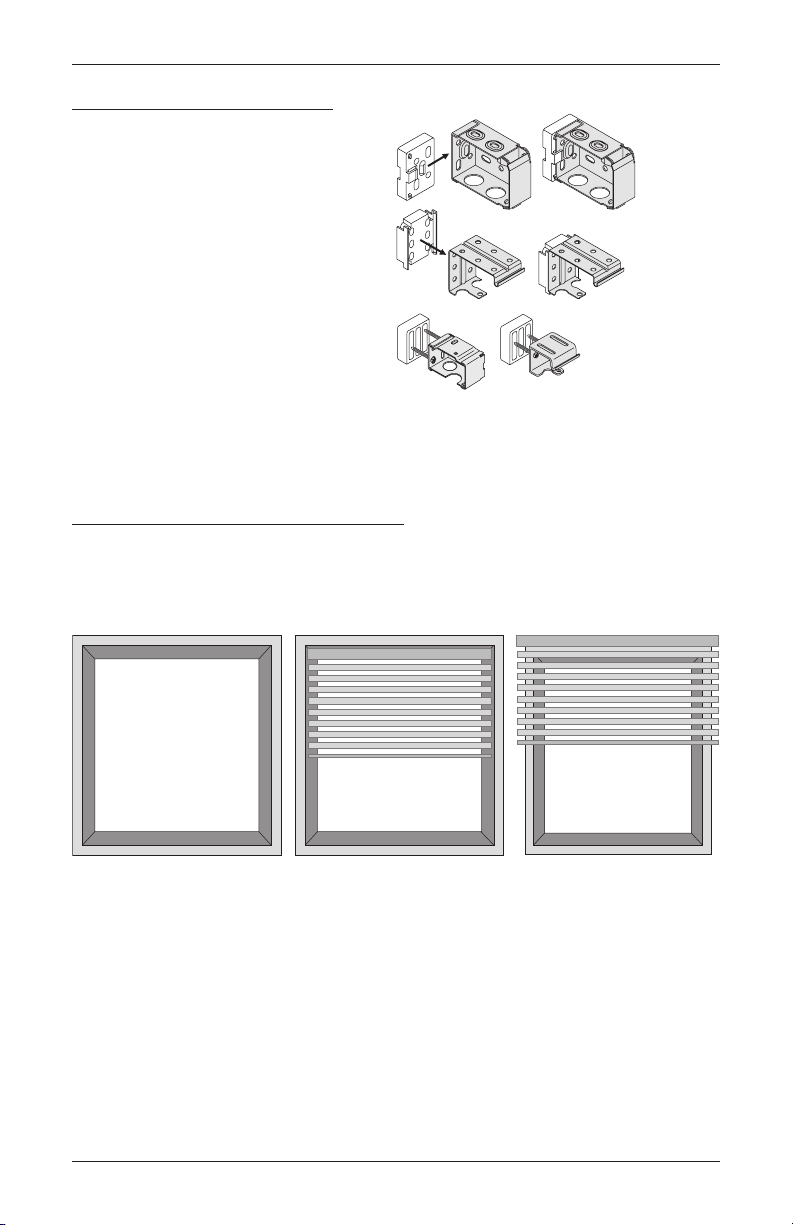

Spacer Blocks for 2

" Slat Size

NOTE: Spacer blocks are required for the

" slat size and optional for 2" and 1

slat sizes.

■Attach a spacer block to each of the two

end brackets.

■If one or more intermediate brackets is

required (see chart on previous page),

attach a spacer block to each intermediate

bracket.

■If extension brackets will be used, it is not

necessary to attach spacer blocks.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important ﬁrst step, review the mounting types and basic window

terminology illustrated below.

■Refer to the appropriate page below based on your order:

➤Inside Mount and Ceiling Mount — Page 6

➤Outside Mount — Page 9

Outside Mount

Blind mounts

outside window

opening.

Inside Mount

Blind ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

2" and 2

End Bracket

2" and 2

Intermediate

Bracket

" End and

Intermediate

Brackets

2" Macro Aluminum Blinds

INSTALLATION

Mount the Installation Brackets — Inside Mount and Ceiling Mount

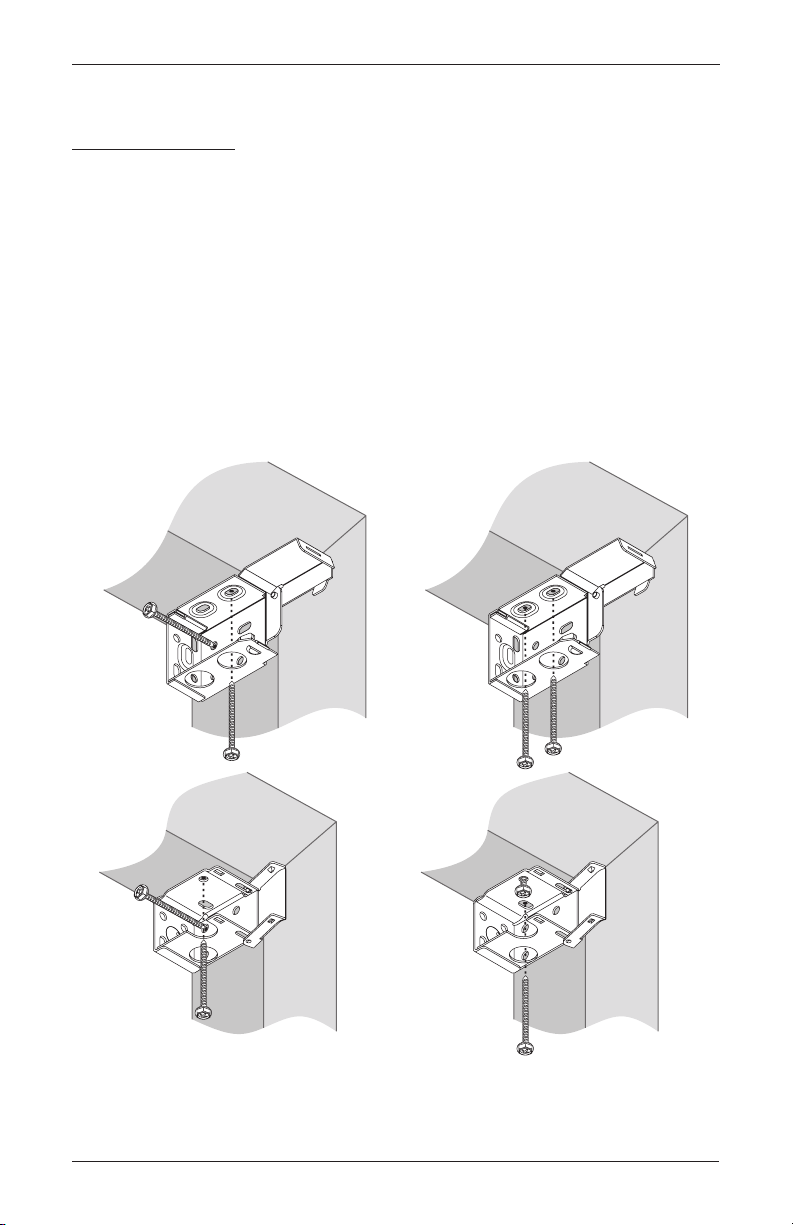

Attach End Brackets

With inside mounts or ceiling mounts, attach the two end brackets ﬂush against the sides of the

window casement or to the ceiling. (See page 9 of the outside mount section for positioning the

brackets for ceiling mounting.) Choose the most appropriate of the following mounting methods:

■Inside mount only: Mount the end brackets with one screw through a side hole and one

screw through a top hole, as shown below left.

■Inside mount only: Mount the end brackets with two screws through diagonal side holes.

■Inside mount or ceiling mount: Top mount the end brackets with screws through the two

top holes, as shown below right.

■Ceiling mount only: If the brackets are ﬂush with the back wall, attach them with one

screw through a top hole and one through a rear hole.

■Use a

" drill bit to drill holes for the mounting screws.

CAUTION: Use drywall anchors when mounting into drywall.

2" and 2

Side/Top

Mount

2" and 2

Top Mount

Side/Top

Mount

Top Mount

INSTALLATION

■Attach the end brackets using the screws provided.

IMPORTANT: The front edges of the brackets must be level and aligned to eachother.

NOTE: For blinds with 2

" slats, spacer blocks are used with inside mounts to position the

brackets a minimum of

" from the glass. This prevents the slats from rubbing the glass

when they are tilted open.

■Moveable Specialty Shapes with sloped headrail:

Only the top of each end bracket can be ﬂush against the casement.

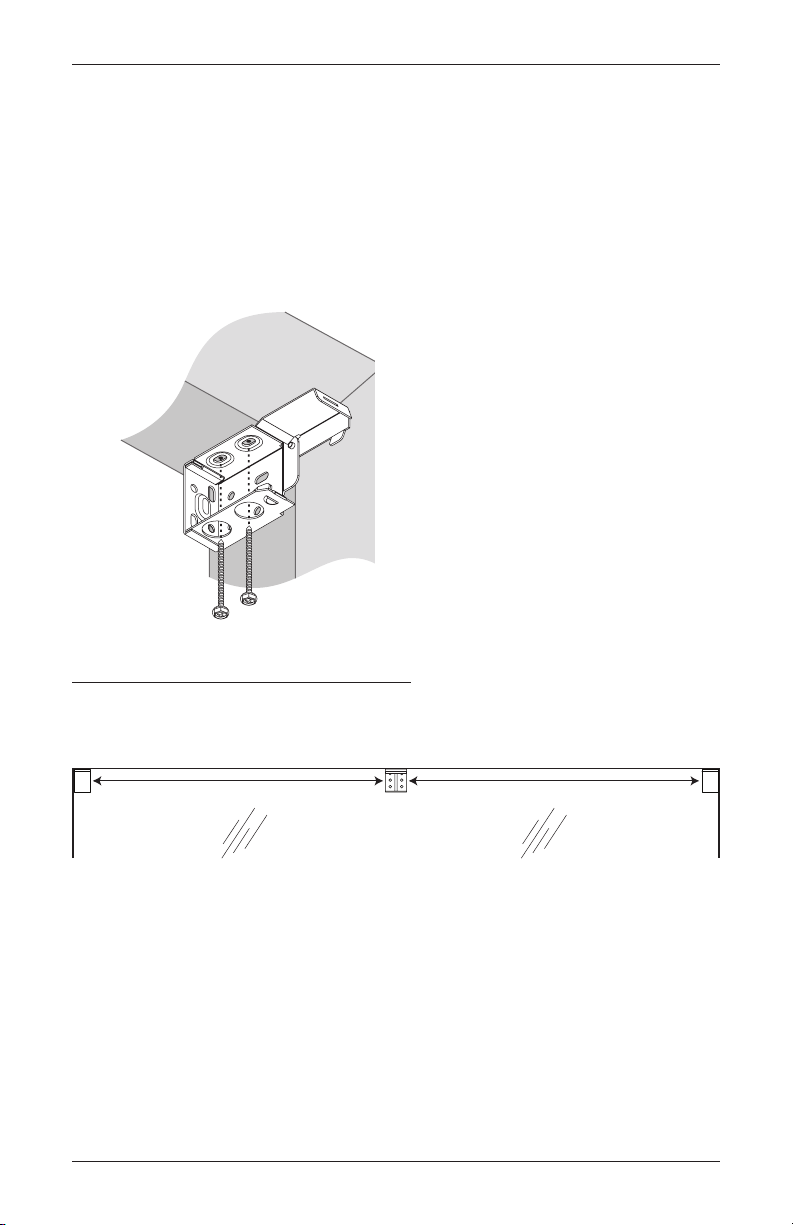

Attach Intermediate Brackets (If Required)

■Evenly space the intermediate bracket(s) between the two end brackets.

➤Adjust spacing if needed to avoid interference with internal headrail mechanisms.

■Attach the intermediate bracket(s) with two screws through diagonal top holes.

IMPORTANT: The rear of the end brackets and intermediate bracket(s) must align.

Intermediate

Bracket

End

Bracket

End

Bracket

Space Evenly Space Evenly

INSTALLATION

Use Bracket Shims (If Required)

Bracket shims are used to gain clearance for universal valance clips with inside mounts and

ceiling mounts. Shims are included with your order (one for each end bracket and two for each

intermediate bracket).

■With each end bracket, ﬁrst fold the shim and then position it on top of the bracket to gain

the required clearance.

■With each intermediate bracket, stack two unfolded shims.

NOTE: Bracket shims may also be used whenever the mounting surface is uneven in order to

mount the blind level. The shims can be cut along their fold line to make them thinner.

Proceed to “Install the Blind” on page 12.

One Shim

Folded Over

Two Shims

Stacked

End

Bracket

Intermediate

Bracket

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HunterDouglas Tenda per finestra

HunterDouglas

HunterDouglas Provenance Woven Wood Shades Manuale elenco delle parti

HunterDouglas

HunterDouglas RB 500 Manuale utente

HunterDouglas

HunterDouglas Specialty Motorized Vertical Blinds Manuale elenco delle parti

HunterDouglas

HunterDouglas Blockout Manuale utente

HunterDouglas

HunterDouglas Nantucket EasyRise Manuale operativo

HunterDouglas

HunterDouglas DecoFlex WireFree Telis Istruzioni operative

HunterDouglas

HunterDouglas EverWood Guida utente

HunterDouglas

HunterDouglas Reveal Manuale elenco delle parti

HunterDouglas

HunterDouglas Duette Honeycomb Shades Manuale utente

HunterDouglas

HunterDouglas Reveal with MagnaView Manuale operativo

HunterDouglas

HunterDouglas LiteRise Manuale elenco delle parti

HunterDouglas

HunterDouglas WOODMATES Manuale utente

HunterDouglas

HunterDouglas Skyline Manuale elenco delle parti

HunterDouglas

HunterDouglas Sonnette Manuale utente

HunterDouglas

HunterDouglas LiteRise Manuale utente

HunterDouglas

HunterDouglas Paramount Manuale del proprietario

HunterDouglas

HunterDouglas Vignette Traditional Manuale utente

HunterDouglas

HunterDouglas ZIP 100 Guida alla manutenzione e all'assistenza

HunterDouglas

HunterDouglas Silhouette Nantucket PowerView Gen 3... Manuale elenco delle parti

HunterDouglas

HunterDouglas VS 100 Guide rail Guida alla manutenzione e all'assistenza

HunterDouglas

HunterDouglas Alustra Woven Textures Manuale utente

HunterDouglas

HunterDouglas RB 500 Manuale utente

HunterDouglas

HunterDouglas Design Studio Manuale di installazione

HunterDouglas

HunterDouglas PowerView Manuale utente

Manuali Tenda per finestra popolari di altre marche

Jysk

Jysk ROGEN Manuale utente

SOMFY

SOMFY 1241752 Manuale utente

Rollos

Rollos S-Nanorollo V2 Guida alla pianificazione

Teptron

Teptron Move Manuale utente

Renson

Renson Outdoor Loggia Guida di sicurezza

Project Source

Project Source CDLF2342W Manuale utente

Domondo

Domondo PureNight Manuale di istruzioni per l'installazione

rollease acmeda

rollease acmeda Easy Spring Air Guida all'installazione

IKEA

IKEA KADRILJ Manuale utente

Hallis Hudson

Hallis Hudson Rolls Super glide Manuale utente

Benthin

Benthin P1614 Manuale utente

MV LINE

MV LINE CLARA 015 Manuale di istruzioni

Current

Current E-WAND Guida

weinor

weinor VertiTex ZipR Manuale

Roto

Roto ZAR M R4/R7 Manuale utente

SOMFY

SOMFY Movelite WT Series Manuale utente

Acmeda

Acmeda RF400 Series Manuale utente

Motura

Motura Pli_353/3 Manuale utente
