Huskie Tools REC-5OM Manuale di istruzioni

OPERATING INSTRUCTION MANUAL

REC-5OM

GEAR-DRIVEN BATTERY- POWERED CUTTING TOOL

2” JAW OPENING

www.huskietools.com

@huskietoolsinc

linkedin.com/company/huskie-tools

youtube.com/user/huskietools

facebook.com/huskietools

Connect with us!

www.huskietools.com

SPECIFICATIONS

REC-50M

Weight: 6 Ibs. with battery

Size: 14.5” L x 4” H x 2.5”W

Jaw Opening: 2”

CUTTING ESTIMATES

BP-80

1000 MCM Cu 40

1500 MCM Al 50

CONNECTOR RANGE

Aluminum 1500 MCM

Copper 1000 MCM*

FEATURES

• Improved Ergonomic Handle

• One Hand Operation

• Tested up to 75kV

• Ergonomically Balanced

• Weather Resistant Housing

• Overload Circuit Breaker Protection.

• For Copper and Aluminum Only

• 5 Year Warranty on Tool, Battery & Charger

BATTERY CARTRIDGE (BP-80)

Battery Type: Lithium Ion

Voltage: 14.4V DC

Rated Current: 3 Ah

Charge Time: 1 Hour

Dimensions: 3.5”L x 2.7”W x 5.3”H

Weight: 1.25 lbs.

BATTERY CHARGER (CH-90)

Input Voltage: 120V AC

Charging Capacity: 20VA

Dimensions: 4.5”L x 3.5”W x 3”H

Weight: 1.5 lbs.

www.huskietools.com

DC CHARGER CORD

CH-DCC

Battery and Charger

• BP-80 Huskie Tools Lithium Ion Battery

• CH-90 Huskie Tools Tri-Chemistry Charger

• This charger can charge the BP-80 and ALL previous

Huskie Tools batteries, including the BP-70, BP-70EI

and the BP-70MH.

• 1 Battery Powered Tool

• 1 Carrying Case

• 1 CH-90 Tri-Chemistry Charger

• 2 BP-80 Lithium Ion Batteries

• 1 Carrying Strap

OPTIONAL ACCESSORIES

KIT INCLUDES

www.huskietools.com

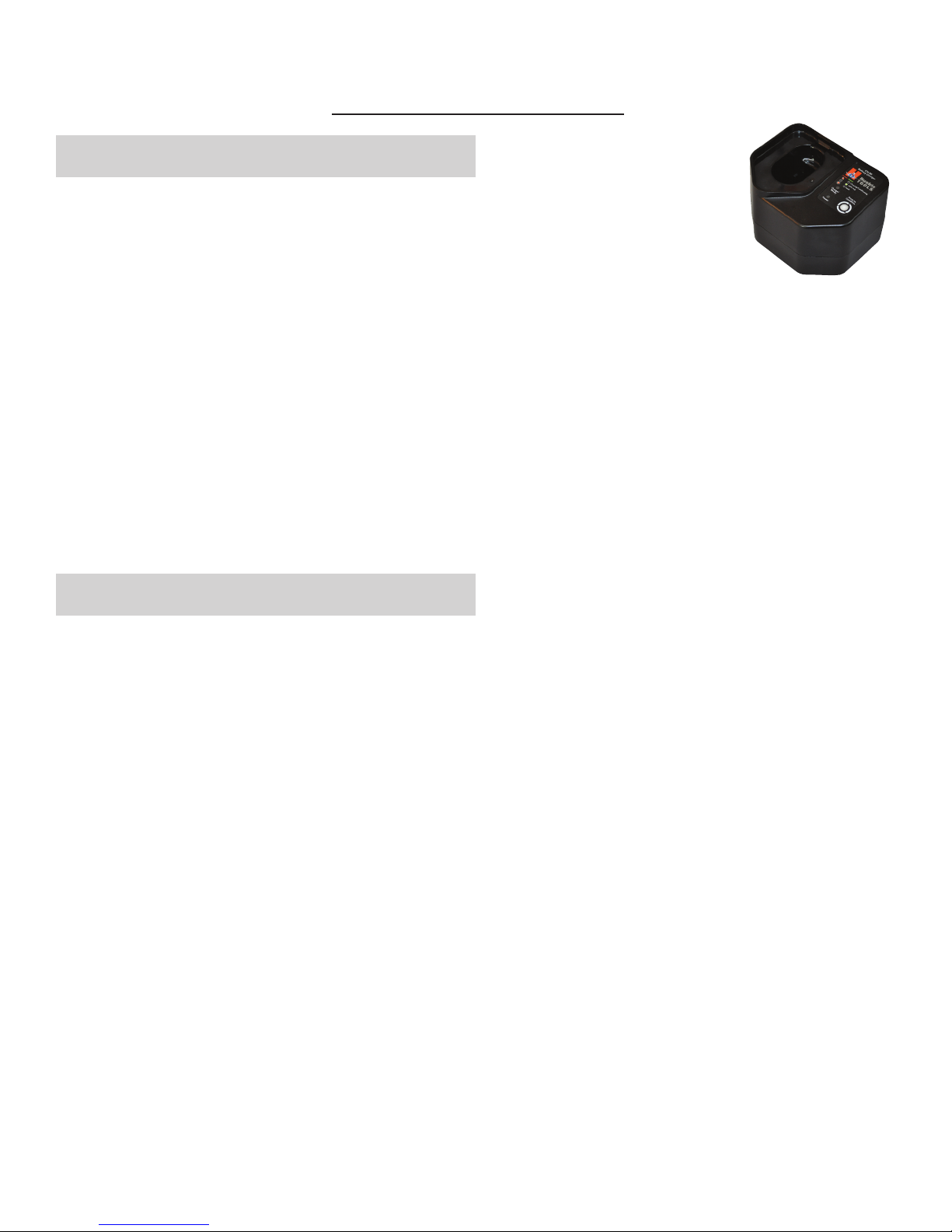

OPERATING INSTRUCTIONS

CHARGING THE BATTERY

1. Insert the plug end into a 120V power source. The LED indicator will be steady

green indicating the charger is now in “stand-by” mode and ready to charge the

battery. Do not plug the charger into a generator as this will likely cause the fuse

in the charger to short, and will not operate.

2. To charge a drained battery, insert the battery into the charger until the LED

indicator shows a steady amber. This indicates the battery is being charged and

will be completed in approximately 50-70 minutes. The LED indicator will show a

steady green when the battery is fully charged.

3. If the LED indicator goes out or is ashing quick amber, this could be a possible

short in the battery circuit, or a problem with the charger itself. It is best to consult

the factory at 1-800-860-6170 for service if such a condition occurs.

4. For technical questions or difculty in operation, please call our customer service

department at 1-800-860-6170.

ATTACHING THE BATTERY CARTRIDGE

1. While pressing the latch, pull out the battery cartridge. To

replace the battery cartridge, push the new cartridge rmly into

place.

2. After inserting a battery cartridge, check that it is securely in

place by pulling gently. Do not press the latch when pulling the

cartridge.

www.huskietools.com

OPERATING INSTRUCTIONS

CUTTING

1. Operate the switch (forward or reverse) by depressing the

center lock-out button and toggle the switch up or down to

release the movable blade.

2. Place the cable to be cut onto the stationary blade and rotate

the moveable blade around the cable by hand and engage into

the drive gear.

3. While holding the center lock-out button, depress the forward

toggle switch to drive the blade through the cable to be cut.

Hold switch until cable is completely cut.

4. To cut continuous on smaller diameter cable, rotate the toggle

switch forward and reverse with the blade engaged in the drive

gear.

5. When completed, remove any chips that may have become

attached to the brush during use. This will help avoid damage to

the drive gear.

www.huskietools.com

IMPORTANT OPERATING PRECAUTIONS

PRECAUTION FOR THE TOOL

1. Always point the tool AWAY from other people.

2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool

should be allowed to return to room temperature to ensure smooth operation Use the tool only

after it has been at room temperature for 1 hour.

3. Do not drop the tool.

4. Solvents can be used to clean the head, but should not be used on the plastic body. Use soap and

water to clean the body.

1. Do not short circuit the contacts or expose the cartridge to water, oil or solvents.

2. Do not disassemble or attempt to repair the battery cartridge or dispose of in a re.

3. Do not drop or otherwise abuse the battery cartridge.

4. Do not leave the cartridge in locations where it will be exposed to a temperature greater than 140ºF

(60ºC) for an extended period.

5. The battery has a limited life. When the crimping capacity becomes about 1/2 that of the original

capacity, the battery should be replaced.

6. If the battery cartridge is stored without being charged, natural drainage will cause the power to be

reduced. The battery should be charged every 3 months if not in use.

PRECAUTION FOR THE BATTERY CARTRIDGE

PRECAUTION FOR THE CHARGER

1. The LED indicator lights up amber and remains lit when the unit starts charging a battery cartridge.

The indicator turns green when charging is completed.

2. This unit is for charging battery cartridges BP-80, BP-70E, BP-70EI and BP-70MH only. Do not use

the charger for any other devices.

3. Allow battery cartridges to cool before charging. Allow at least 15 minutes between charges when

charging several cartridges in succession.

4. Charge batteries at an ambient temperature of 50º-95ºF (10º-35º C). Charging time is

approximately 50-70 minutes for the BP-80, 50 minutes for the BP-70E and BP-70EI, and 70

minutes for the BP-70MH.

5. Never short circuit the output terminals.

6. Do not expose the charger to water, oil or solvents.

7. Do not disassemble, attempt to modify, drop or otherwise abuse charger.

www.huskietools.com

REC-50M BREAKDOWN

www.huskietools.com

REC-5OM PARTS LIST

NO. DESCRIPTION CODE QTY

11 M3 X 3 Screw RC50-03 2

12 Gear Guide (B) RC50-04 1

13 Moving Blade RC50-16 1

14 Shoulder Screw RC50-05 1

15 Gear Guide (A) RC50-15 1

16 Stationary Blade RC50-18 1

17 M6 Lock Washer (Ni) RC50-06 1

18 M6 Lock Nut RC50-07 1

19 M3 X 8 Screw RC50-08 5

20 Bearing Case RC50-10 1

21 Cutter Plate RC50-11 1

22 M5 X 14 Screw RC50-09 11

23 Bearing 6001 RC50-12 1

24 Pinion Gear RC50-13 1

25 Bearing 6002 RC50-14 1

26 Needle Pin 3 X 11.8 RC50-17 2

27 Gear Case Ass'y RC50-19 1

28 M4 X 8 Screw RC50-20 2

29 Gear RC50-21 1

30 Gear Plate RC50-22 2

31 Gear Cover RC50-23 1

32 Housing (L) RC50M-01 1

33 Hanging Strap 558-0７A 1

34 M3 X 14 Screw (T.P.) RC50-01 2

35 M4 X 20 Screw 558-01 9

36 Housing (Ｒ)RC50M-02 1

37 Brush RC50-32 1

38 Motor R150-12MG 1

39 Switch Unit Ass'y RC50M-03 1

40 Switch Knob RC50-29 1

41 Spring (524) RC50-30 1

42 Switch Lock RC50-31 1

43 Ferrite Core RC50-39 1

44 Capacitor RC50-40 2

www.huskietools.com
