Husqvarna 142 Guida

S E R V I C E

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

I0601902

IPL,2006-01

142/ 142e

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248 142 North America

DATE

01/11/06

Replaces

rPARTS LIST

9/19/05 -- 530165248

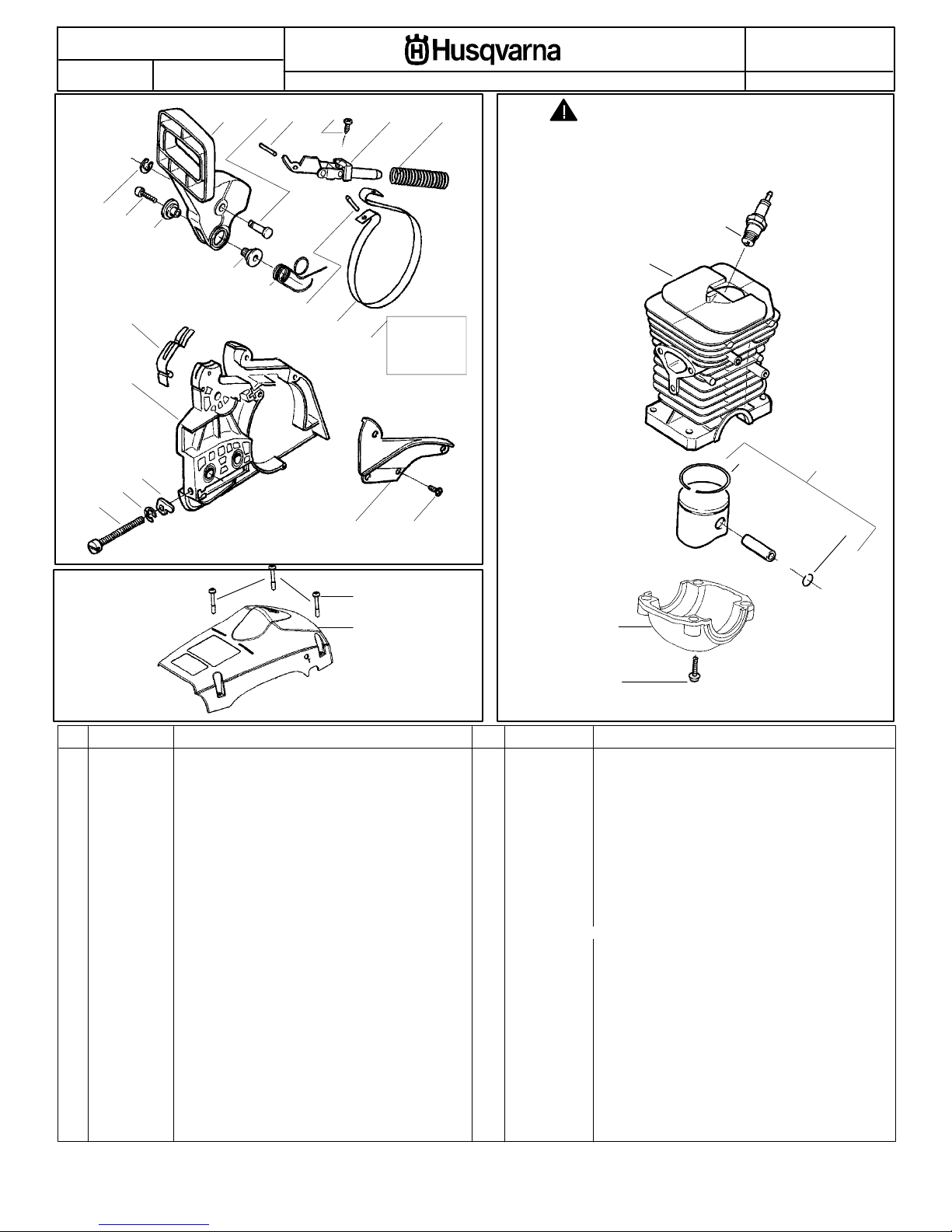

1 530071348 Kit-- Lever & Link Assy.

2 530029879 Pin--Pivot

3 530015915 Pin--Link

4 530015911 Screw

5 530054741 Assy--Front Link

6 530016237 Spring--Chain Brake

7 530024419 Retainer

8 530016384 Screw

9 530056531 Journal--Right

10 530029881 Journal--Left

11 530015910 Spring--Handguard

12 530015913 Pin--Spring

13 530052232 Band--Brake

14 530054802 Assy--Chain Brake

15 530029878 Spring--Position

16 530049483 Cover--Clutch

17 530015826 Pin--Bar Adjusting

18 530038593 Retainer

19 530016110 Screw--Bar Adjusting

20 530053035 Cover--Chain Brake Spring

21 530015911 Screw

22 530016154 Screw

23 530059960 Shield--Cylinder

24 952030150 Spark Plug (RCJ--7Y)

25 530069941 Kit--Cylinder (40cc) (incl.#29 pg. 1 & #23 pg. 2)

Description

26 530069454 Kit--Piston (40cc) (Includes pin and 27, 28)

27 530029982 Ring--Piston (40cc)

28 530015697 Piston Pin Retainer

29 530049794 Cap--Crankcase

30 530015897 Screw

530165144 Manual--Operator’s

530031135 Scrench

530047839 Decal--Warning

Part No. Ref. Part No. DescriptionRef.

Not Shown

Chain

Brake

Assembly

1345

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248 142 North America

DATE

01/11/06

Replaces

rPARTS LIST

9/19/05 -- 530165248

1 530029813 Assy--Turbo Air Cleaner

2 530019203 Seal -- Turbo Clean

3 530029814 Sleeve--Intake

4 530053435 Seal--Impulse

5 530015814 Screw

6 530037465 Adapter -- Carb.

7 530019172 Gasket--Carburetor

8 530071987 Carburetor--W--29

9 530035587 Grommet--Final

10 530047767 Plate -- Support

11 530015896 Screw

12 530036582 Air Filter -- Bottom

Description

13 530015968 Stud -- Carb.

14 530016008 Nut

15 530029811 Air--Filter -- Top

16 530015899 Screw

17 530071511 Kit--Muffler (Includes 20,21 & 22)

18 530016359 Nut--Brass

19 530055600 Cover--Bolt

20 530016338 Bolt--Muffler

21 530055128 Gasket--Muffler

22 530055171 Backplate--Muffler

23 530056363 Assy. --Bearing and Seal

24 530029794 Assy--Crankshaft & Rod

Part No. Ref. Part No. DescriptionRef.

=NEW PART NUMBER FOR THIS IPLn

D=THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248 142 North America

DATE

01/11/06

Replaces

rPARTS LIST

9/19/05 -- 530165248

1 530014949 Assy--Clutch

2 530015611 Washer--Clutch

3 530047061 Assy--Clutch Drum w/Bearing

4 530015907 Washer--Thrust

5 530014776 Assy--Oil Pick--Up and Screen (Incl 6,7)

6 530056533 Filter--Oil

7 545037101 Assy--Pickup

8 530015896 Screw

9 530014410 Assy--Oil Pump

10 530029833 Worm Gear--Oil Pump

11 545033501 Tube--Oil Vent

12 530055322 Clip--Retainer

13 530055174 Shield--Heat

14 530015896 Screw (optional)

15 530015917 Nut

Description

16 530047855 Plate--Bar

17 530019228 Gasket

18 530036043 Plate--Bar Stud

19 530015877 Bar Bolt

20 530015878 Screw

21 530029850 Chain Catcher

22 530015893 Screw

23 530052428 Cover

24 530015922 Nut--Type ”U” Speed

25 530029830 Grommet

26 530029831 Lever--Choke

27 530071991 Kit -- Chassis Ass’y.

28 530015922 Nut--Type ”U” Speed

29 530016037 Screw

30 501765602 Assy.-- Oil Tank Cap

Part No. Ref. Part No. DescriptionRef.

2624

3017 18

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

=THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.

22 25

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248 142 North America

DATE

01/11/06

Replaces

rPARTS LIST

9/19/05 -- 530165248

1 530071968 Kit--Fan Hsg / Starter

(Incl. 2, 3, 4, 5, 6, 7

8, 9, 10, 11)

2 530071966 Kit--Starter EPS

(Incl. 5,6,7,8)

3 530150318 Handle--Starter

4 530069232 Kit--Rope

5 530021179 Screw--shoulder

6 530059677 Hub

7 530021180 Spring--EPS

8 530016080 Screw

9 530042095 Spring--Starter

10 530059959 Baffle--Air

11 530059958 Assy--Fan Hsg. w/eyelet

12 530015893 Screw

13 530015892 Screw

14 530071967 Kit--EPS ignition

(Incl. 17, 18, 22)

15 530403257 Assy--Leadwire

16 530015896 Screw

17 503717901 Switch--Ignition

18 530059637 Assy. --Flywheel

19 530015127 Washer--Flywheel

20 530016134 Nut

21 545003902 Screw

22 530039239 Module -- Ignition

23 530029869 Wire -- Throttle

24 530029863 Cap -- Wire

25 530029860 Pin

Ref. Part No. Description

Ref.

Part No. Description

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

=THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.

26 530029861 Spring

27 530069587 Kit -- Throttle Trigger

28 530069247 Kit -- Fuel line

29 530014497 Assy.-- Fuel Pickup

30 530015940 Screw

31 530029870 Element -- AV Isolator

32 530055613 Assy. --Tank/Handle

33 530015843 Screw

34 530059961 Handle--Front

35 530052439 Isolator--Front Handle

36 530029984 Isolator

37 530026119 Valve -- Check

38 530038264 Plug -- Vent

39 530071266 Kit--Assy. Fuel Cap

Ref. Part No. Description

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

Note: Illustration may differ from actual model due to design changes

PARTS LIST NO.

PAGE NO.

CHAIN SAW MODEL(s)

530165248 142 North America

DATE

01/11/06

Replaces

rPARTS LIST

9/19/05 -- 530165248

=NEW PART NUMBER FOR THIS IPLn=REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)

=THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.

Kit -- Carburetor Assembly No. 530071987 -- Zama W--29

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by qualified service

personnel.

1. 530035269 Kit--Carburetor Repair (Zama)

Ref. Part No. Description

Carb

Repair

Kit
