Husqvarna 325HS Manuale di istruzioni

101 90 73-26

Workshop manual

Husqvarna Hedgetrimmers

325HS/ 325HE/ 325HDA

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Workshop Manual

Hedge trimmers

1. Starter ___________________________________ 5

2. Ignition system ____________________________ 7

3. Fuel system _______________________________ 9

4. Centrifugal clutch _________________________ 13

5. Gear ____________________________________ 17

7. Crankshaft and crankcase__________________ 25

8. Exhaust system __________________________ 27

9. Cutting equipment ________________________ 31

This supplement only takes up elements specific

to the above mentioned models.

For complete information when servicing we rec-

ommend that the supplement is studied together

with theWorkshop Manual.

(Order no. 101 90 74-26)

and the supplement for brushcutters, trimmers,

pruners and hedge trimmers.

(Order no. 101 90 75-26)

Supplement for models 325HS, 325HE,325HDA

Contents

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

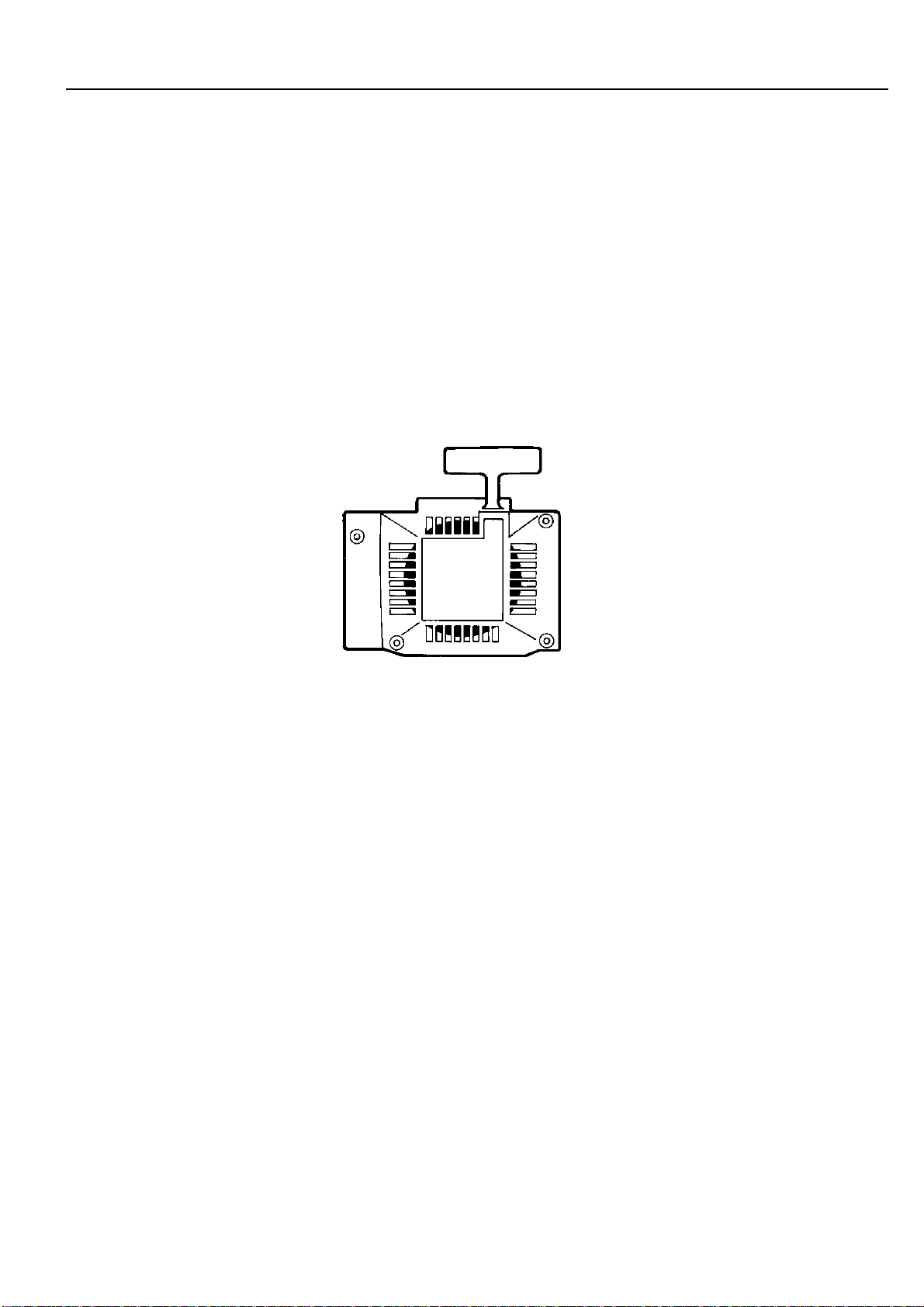

Starter

Contents

General ___________________________________ 6

Replacing the drive dogs, supplement ___________ 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

504 90 00-02

4 mm

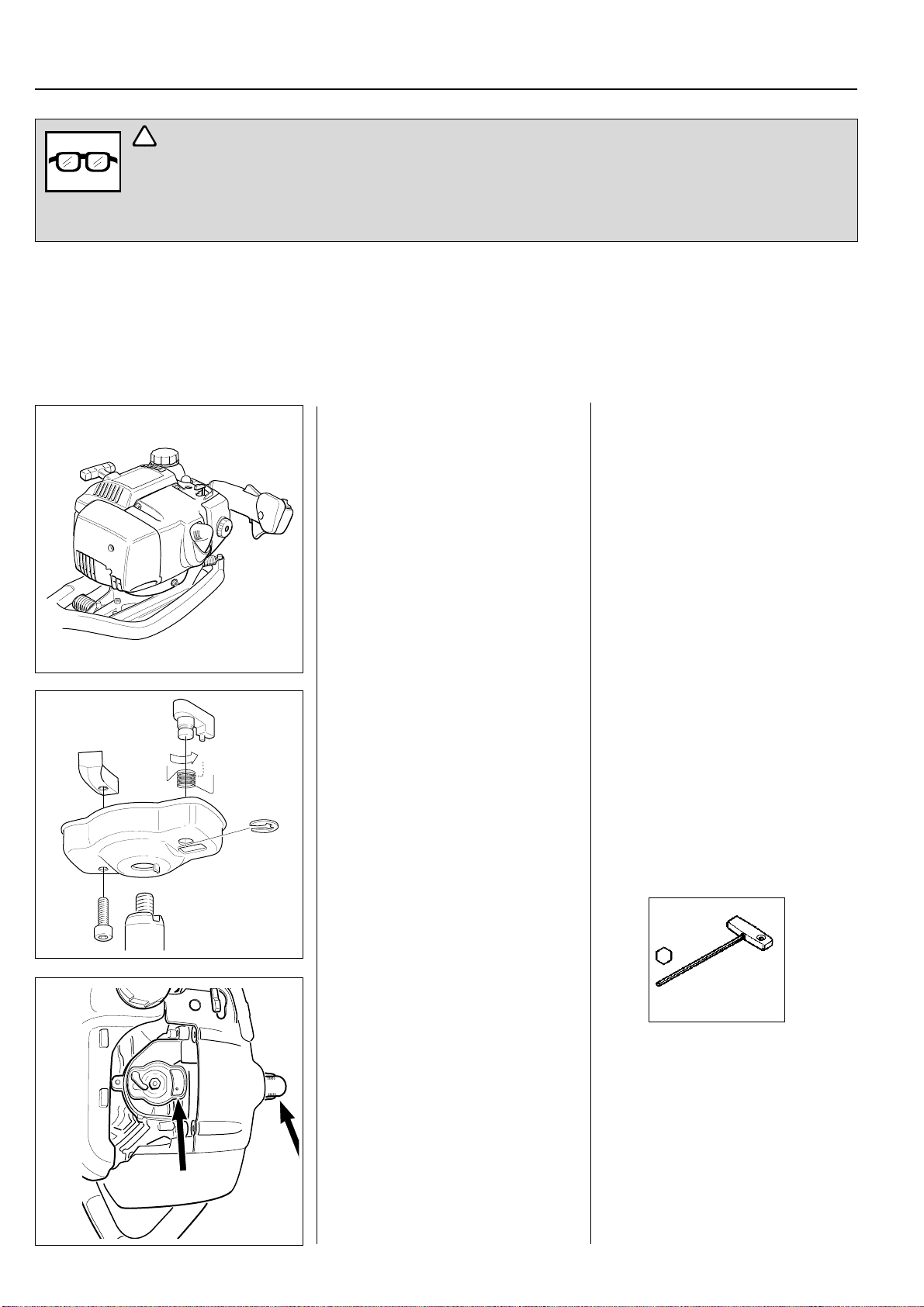

Starter

WARNING!

Protective glasses should be worn when working on the starter to avoid injury to the

eyes if, for some reason, the return spring should fly out.

Replacing the drive

dogs, supplement.

Make sure the ear on the drive cup is

fitted in the cut-out on the crankshaft.

Replacing the drive

dogs, supplement

325HS75, 325HS99

Fit the balance weight in the drive cup,

if necessary.

Fit the drive cup on the crankshaft.

NOTE!

Risk for incorrect assembly. If the

weight is fitted on the wrong side of the

drive cup the blades will vibrate heavily

when the engine is running.

Deviations:

Starter handle placement.The drive

cup is fitted with a balance weight.

General

See Brushcutter 325.

The balance weight should be facing

the spark plug when the piston is in top

dead centre.

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Ignition system

Contents

General 8

Assembling the cylinder cover 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

504 90 00-02

4 mm

The spark in an electronic ignition system

has a very short burn time and can therefore

be interpreted as weak and can be difficult to

see while trouble shooting.

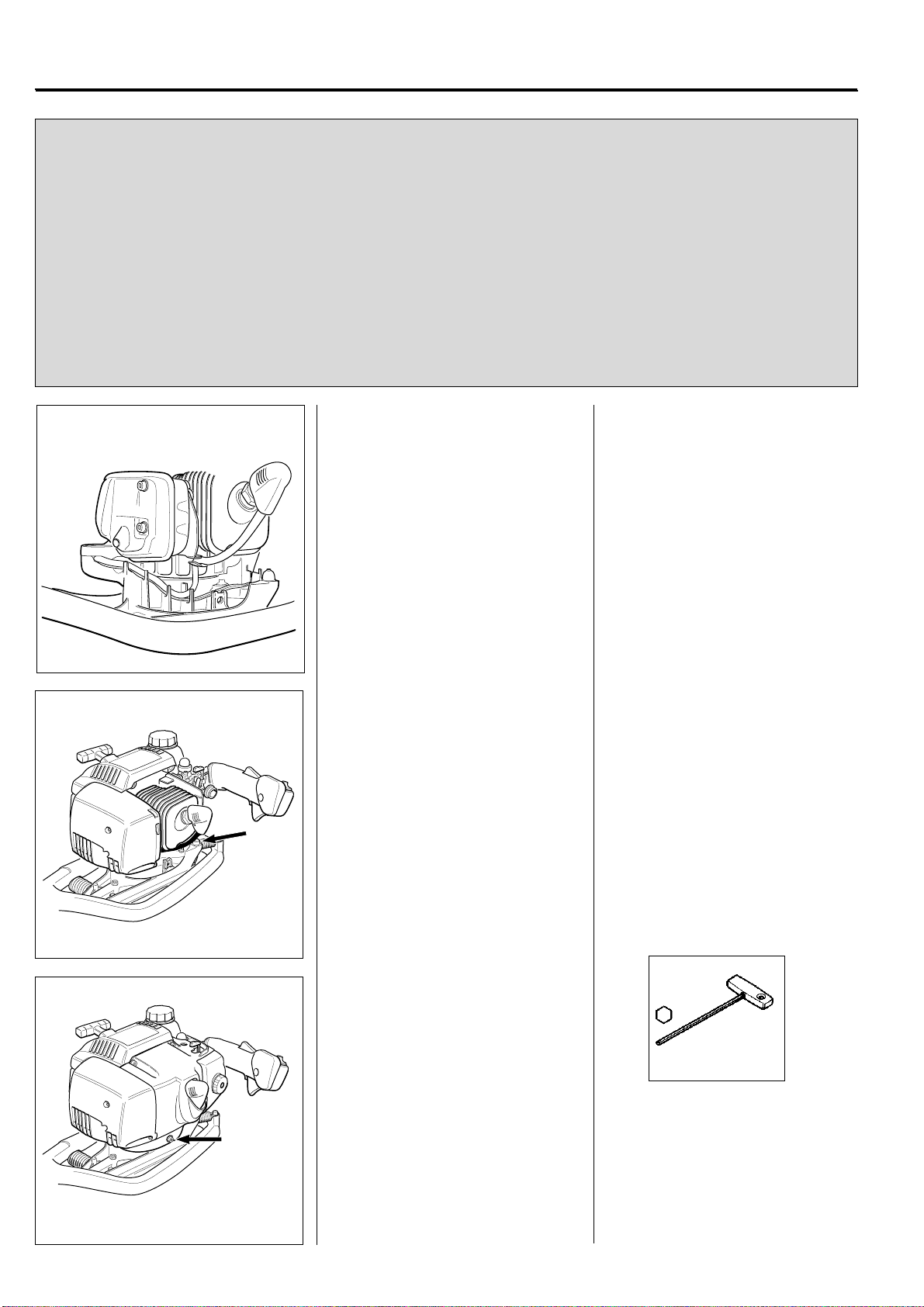

Deviations:

The cylinder cover is located using four

screws instead of three. (325HS)

325HS:The speed is limited to 11,600

rpm.

325HDA55/325HE:

The speed is limited

to 10,000 rpm.

General

325HS75, 325HS99, 325HE2, 325HE3,

325HE4: See Brushcutter 325.

The thick threaded screw (for the clip

set) should be placed in the hole

closest to the gearbox.

Assembling the cylinder

cover

325HS75, 325HS99:

Check that the ignition cable is in

position in the cut-out in the gearbox.

Align the cylinder cover with the slot for

the screw pin, make sure that when the

cover is moved down that the ignition

cable is secured by the wedge shaped

cut-out in the cylinder cover.

Assembling the cylinder

cover

325HS75, 325HS99:

Fit the cylinder cover.

NOTE!

Risk for incorrect assembly.

The ignition cable can be damaged by

the flywheel if incorrectly routed. The

protective casing on the ignition cable

must be clamped in the securing ear (to

get sufficient length of ignition cable to

the wedge shaped cut-out).

If the wrong screw is placed in the hole

closest to the gearbox the threads in

the clip set will be crossed.

Ignition system

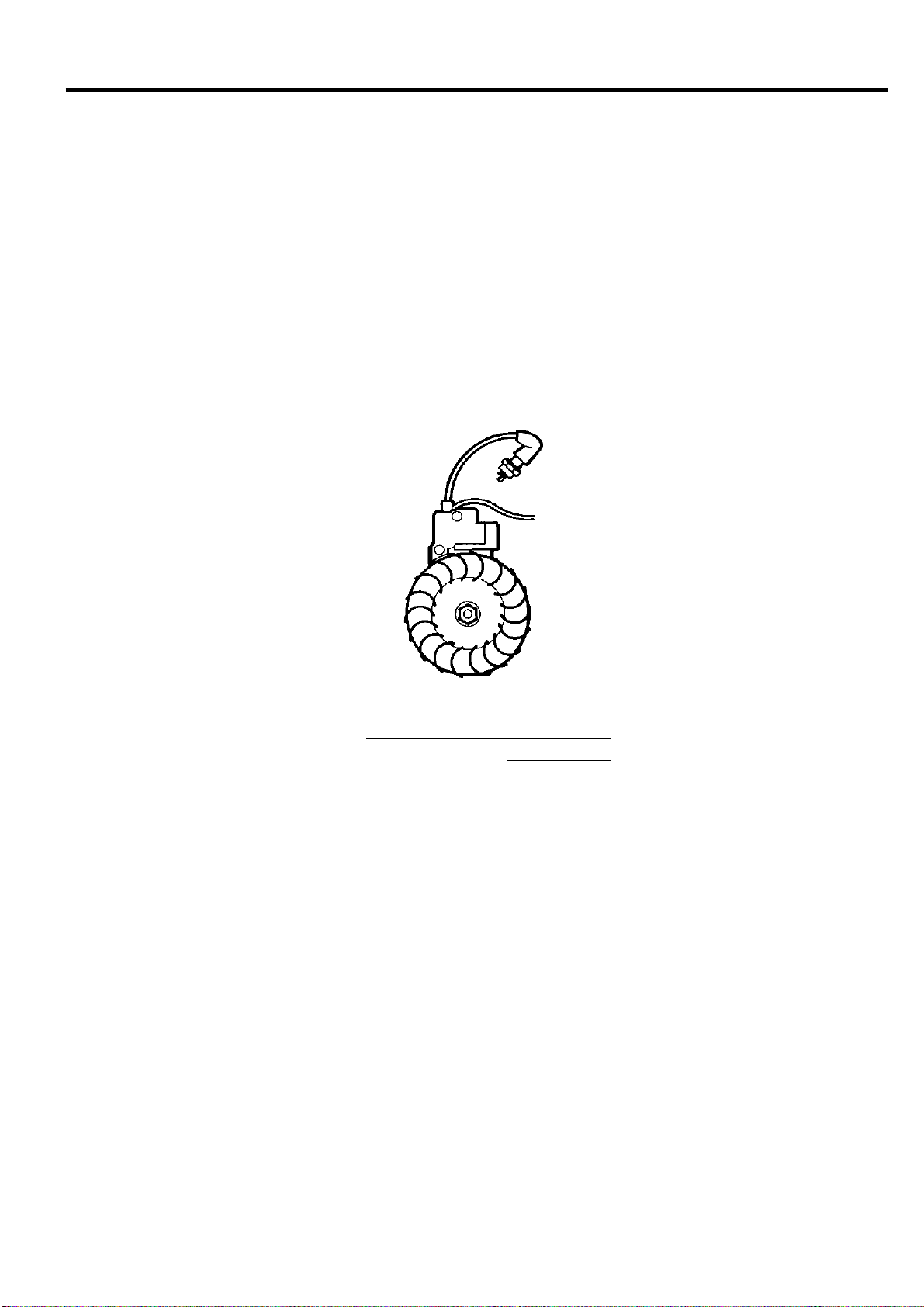

The engine is equipped with an electronic ignition

system completely without moving parts.

Consequently, a faulty component cannot be

repaired, but must be replaced by a new compo-

nent.

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

Fuel system

Contents

General __________________________________ 10

Assembling the fuel tank ____________________ 10

Max speed, modification_____________________ 11

Assembling the cylinder cover ________________ 11

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com

3Fuel system

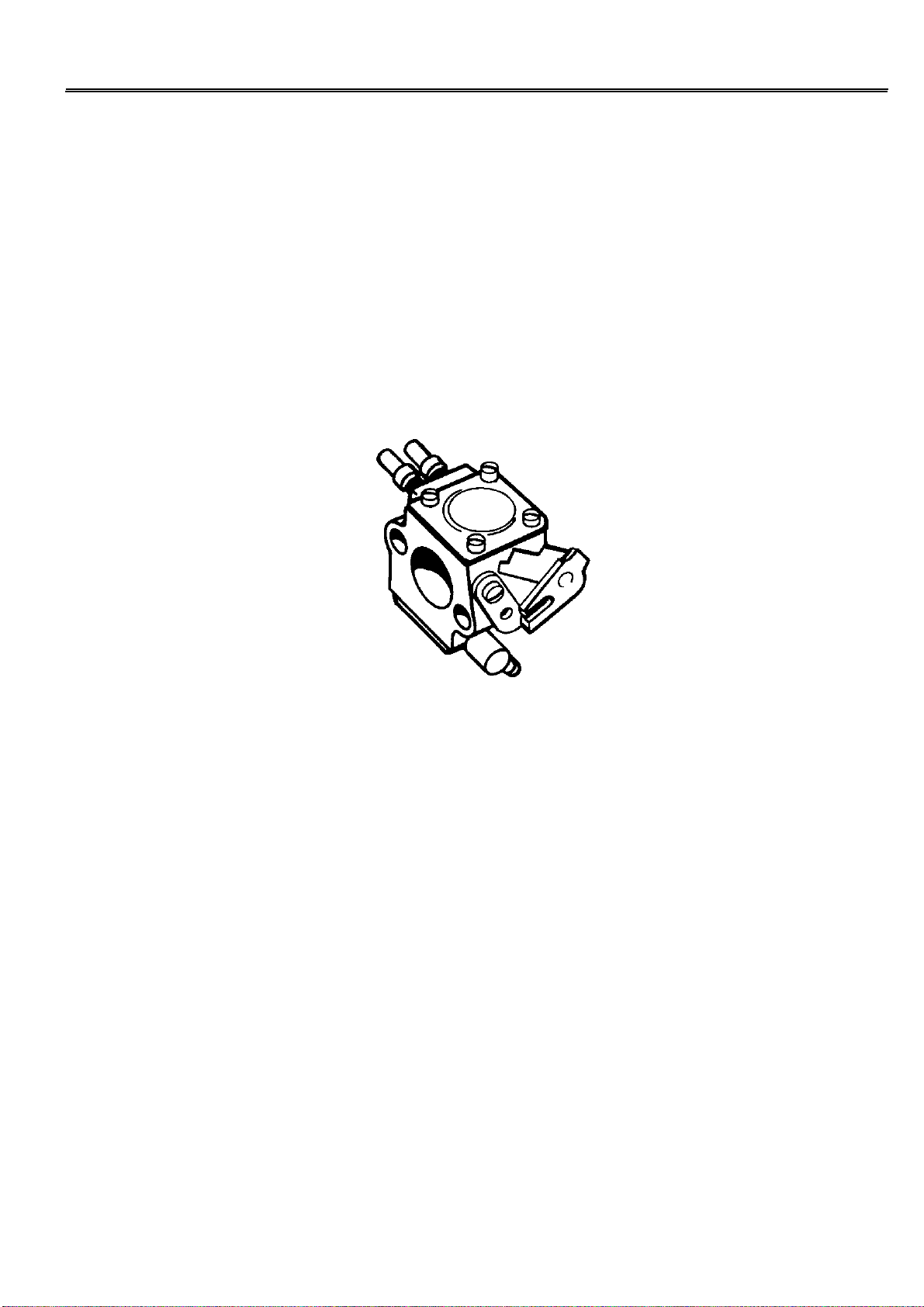

In addition to the fuel tank and carburettor, the

fuel system consists of the air filter, fuel filter and

tank venting.

All these components interact so that the engine

receives the optimal mixture of fuel and air to

make it as efficient as possible.Very small devia-

tions in the carburettor setting or a blocked air

filter have a large effect on the running and

efficiency of the engine.

The carburettor can come from several differ-

ent manufacturers on our models, yet the

function and repair methods are essentially the

same.

General

325HS75, 325HS99, 325HDA55

325HE3, 325HE4:

See Brushcutter 325.

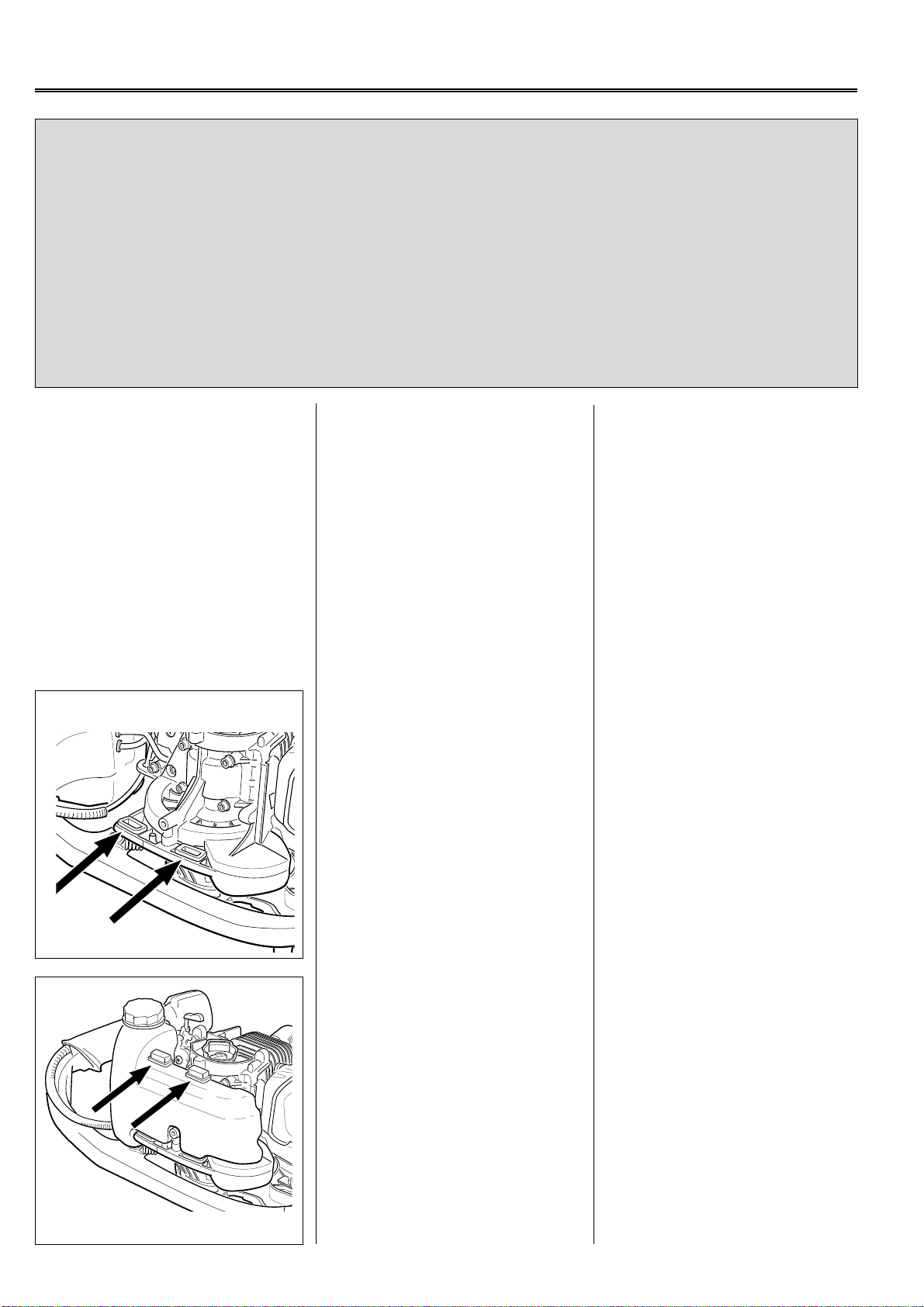

Deviations:

Fuel tank and modified design.The

cylinder cover is secured by four

screws. (325HS)

The speed is limited to 11,600 rpm.

(325HS)

The carburettor´s needle H is not

adjustable.(325HDA, 325HE)

The speed is limited to 10,000rpm.

(325HDA, 325HE)

Thread on two rubber supports on top

of the tank.

Position two rubber supports for the

tank on the engine.

Position the tank and align it on the

rubber supports; press down the tank.

Assembling the fuel

tank

325HS75, 325HS99:

Connect the fuel hoses.

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

www.mymowerparts.com
