Hussmann Impact C1CWC Manuale di istruzioni

Bulb

Location

P/N 0454705_A

Merchandisers

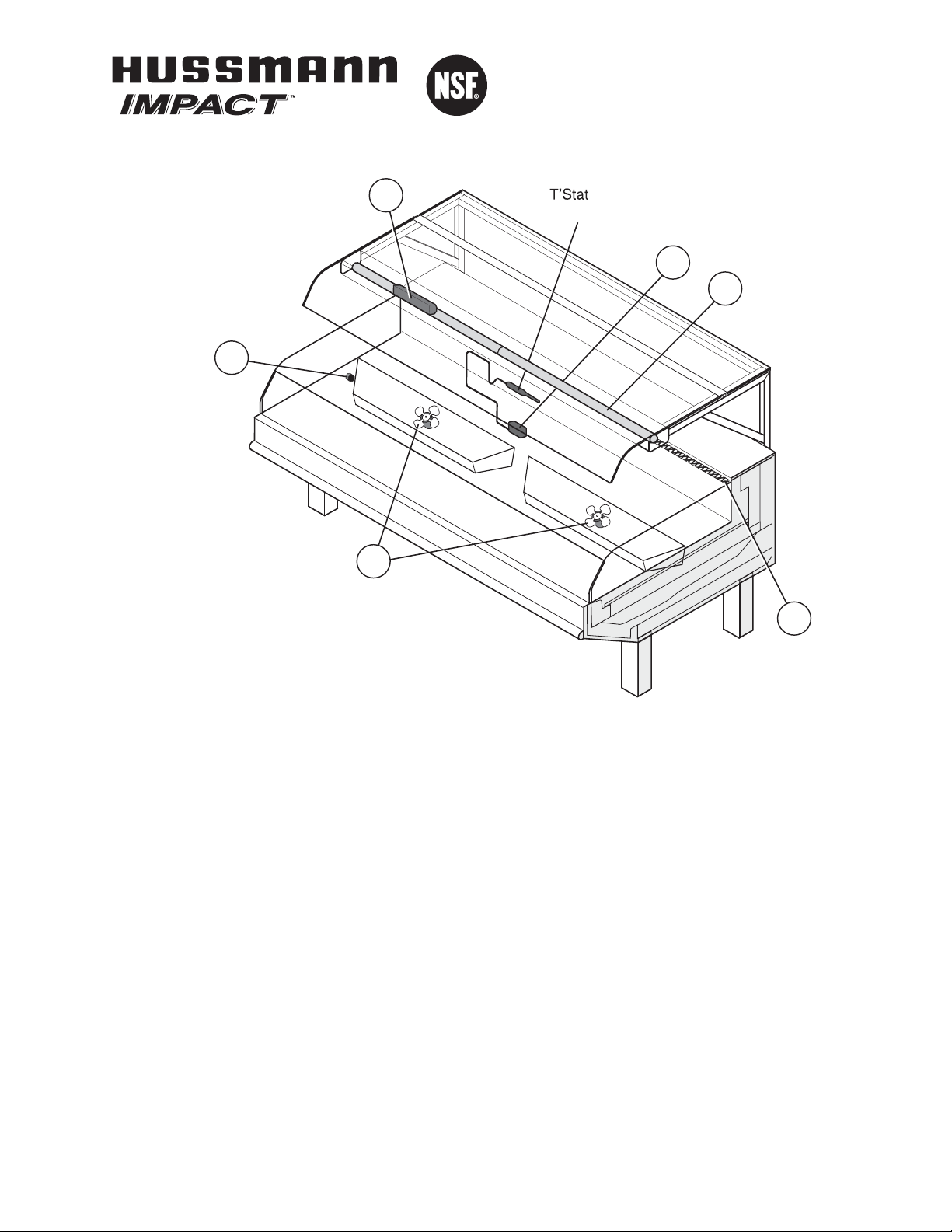

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 4W Fan Assembly (1)

0392457 Fan Motor, Evaporator (MO.4410101)

0409511 Fan Blade (FB.0409511)

embossing toward motor

B. 0382028 Standard Non-adjustable (2)

Defrost Thermostat (CT.0382028)

C. 0253451 Optional Adjustable (3)

Refrigeration Thermostat

(CT.4480780)

Item Part # Description Wiring Item #

HEATERS

D. 0401555 Nosing Anti-Sweat Heater, 4 ft (4)

(HE.4850465)

0401556 Nosing Anti-Sweat Heater, 6 ft (4)

(HE.4850466)

LAMPS AND BALLASTS

E. 0428648 Ballast, Electronic, 2 lamps (5)

(BA.4480823)

F. Fluorescent Lamp (6)

Replace with like fixtures

C1CWC

Technical Data Sheet

P/N 0454705_A

NSF®Certified

March 2007

Shown with

Optional

Light Bar

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision A corrects Page 1 illustration and Page 2 plan view.

6 ft 8 ft

General

Case Length (including ends) 74 1/8(2448) 98 1/4(3670)

Optional End Bumpers (One pair) 2 (51) 2 (51)

Maximum O/S dimension of case back to front (including bumper) 45 3/4(1160) 45 3/4(1160)

Back of case to front of splashguard 31 7/8 (810) 35 7/8 (810)

Center of rear legs to center of front legs 23 1/2 (597) 23 1/2 (597)

Electrical Service (Electrical Field Wiring connection point)

Right-hand of case to center of knockout 34 (863) 46 (1170)

Back of case to center of knockout 8 1/2 (216) 8 1/2 (216)

Length of electrical raceway 31 5/8 (803) 31 5/8 (803)

Waste Outlet

Right-hand end of case to the center of waste outlet 25 (636) 25 1/4 (642)

Back outside of case to center of waste outlet 26 1/2 (672) 26 1/2 (672)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

Refrigeration Outlet

Back of case to center of refrigeration outlet 29 1/2 (750) 29 1/2 (750)

Right-hand end of case to center of refrigeration outlet 10 (254) 10 (254)

Electrical

Refrigeration Outlet

Waste Outlet

Front

8 Ft

C1CWC

Legs

98 1/4(2496)

89 3/8(2271)

23 1/2

(597)

4 1/2

(114)

6 7/8

(174)

25 (636)

34 (863)

65 1/4(1658)

74 1/8(1883)

46 (1170)

25 1/4(642)

29 1/2

(750)

26 1/2

(672)

45 3/4

(1160)

8 1/2

(216)

4 1/2

(114)

29 1/2

(750)

26 1/2

(672)

45 3/4

(1160)

8 1/2

(216)

Legs

23 1/2

(597)

6 7/8

(174)

Electrical

Refrigeration Outlet

Waste Outlet

6 Ft

C1CWC

(254)

1 1/2 (38)

1/2(38)

2 of 6 C1CWC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

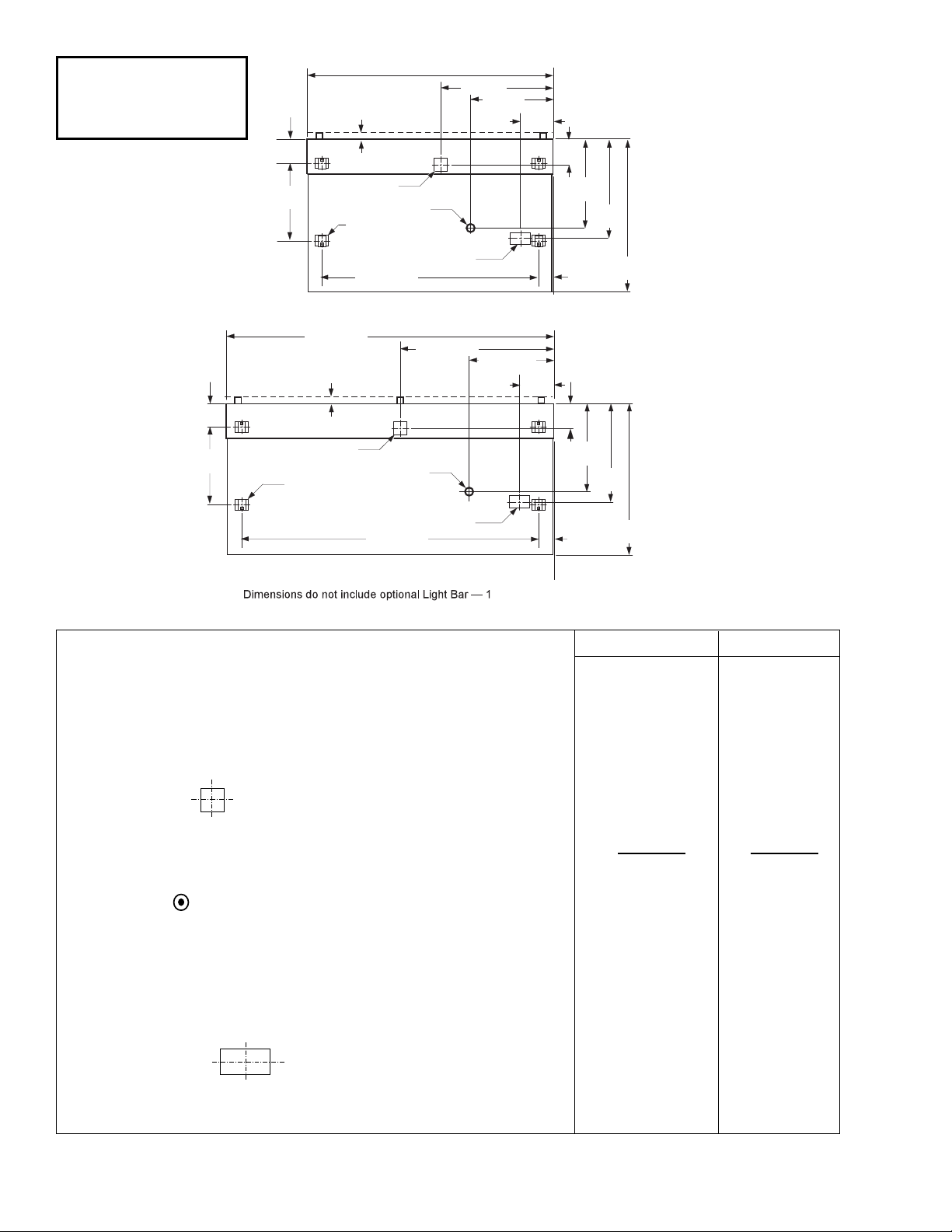

Plan Views

Dimensions shown as inches and (mm).

Prepackaged

Meat &

Delicatessen

09-2003

3 of 6

P/N 0454705_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

28 1/4

(718)

21 3/4

(553)

45 3/4

(1162)

(352)

12 1/2

(319)

(965)

10 1/4

(260)

10 3/8

(264)

21 3/8

(543)

33 1/2

(850)

FAN COIL

C1CWC

with

Optional

Light Bar 56 3/8

(1429)

47 1/4

(1200)

11/2(38)

(680)

26 3/451/8(132)

13 3/4

28 1/4

(718)

21 3/4

(553)

45 3/4

(1162)

(352)

12 1/2

(319)

(965)

33 1/2

(850)

FAN COIL

C1CWC

(680)

26 3/451/8(132)

13 3/4

10 1/4

(260)

(50)

(514)

20 1/4

(514)

20 1/4

71/4

(184)

71/4

(184)

(50)

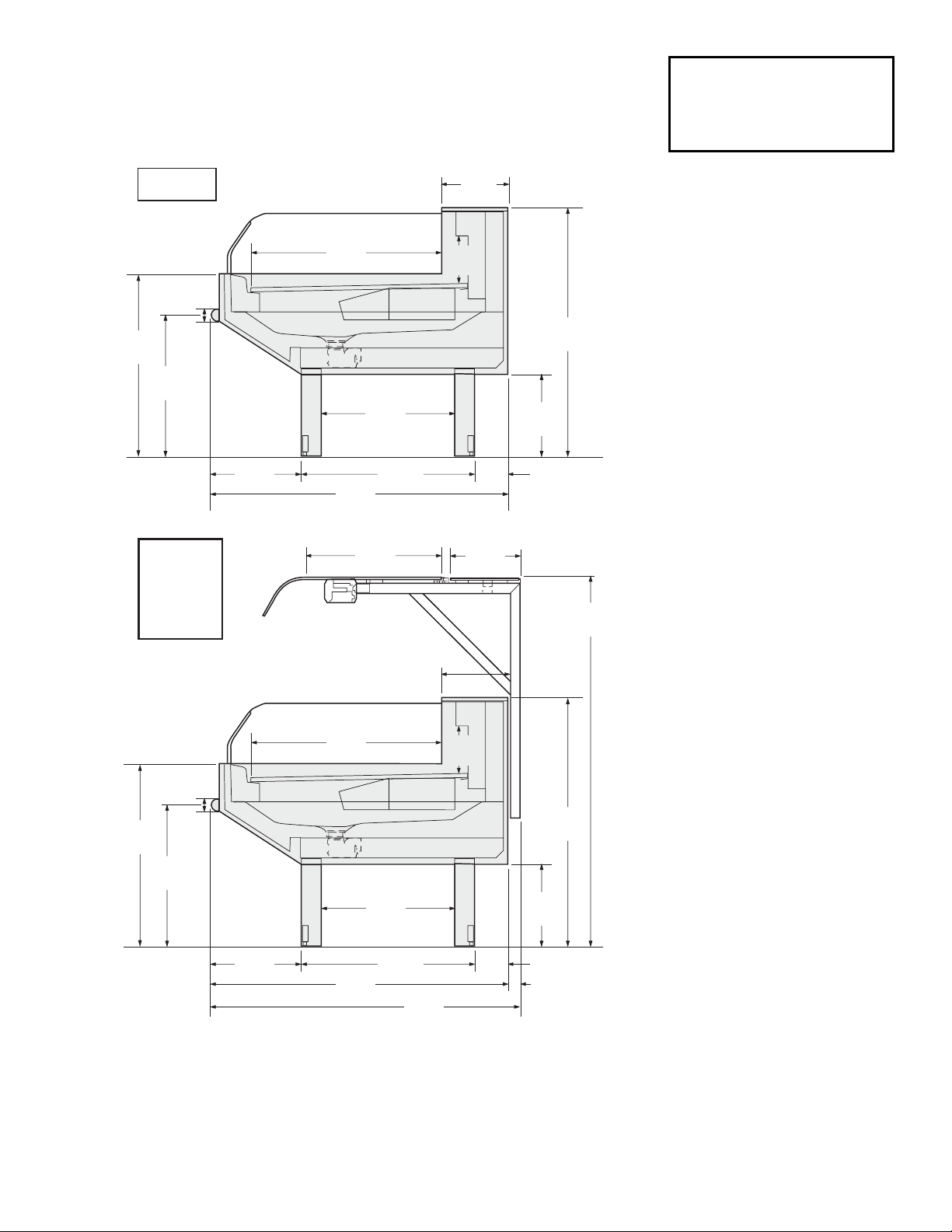

Impact C1CWC

Prepackaged Meat &

Delicatessen

Dimensions shown as inches and (mm).

Single Deck, Wood Clad

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

C1CWC

Discharge Air °F 29

Evaporator °F 18

Unit Sizing °F 16

Btu/hr/ft C1CWC

Parallel 422

Conventional 453

DEFROST DATA

Frequency Hrs 12

Defrost Water (lb/ft/day) 0.2

(± 15% based on case configuration and

product loading).

OFFTIME C1CWC

Temp Term °F 48

Failsafe Minutes 90

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO* 11°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

C1CWC

6 ft 1.5

8 ft 2.0

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by Each

End or Insulated Partition (in.) N/A

4 of 6 C1CWC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact C1CWC

Prepackaged Meat &

Delicatessen

Electrical Data

Number of Fans 6 ft 8 ft

Refrigeration – 9W 4 6

Export – 9W 4 6

Amperes Watts

Merchandiser 6 ft 8 ft 6 ft 8 ft

Fans (Refrigeration)

120V 60Hz Standard 0.62 0.62 48 48

120V 60Hz Energy Efficient NA NA NA NA

230V 50Hz Export NA NA NA NA

Constant On Anti-sweat Heaters 0.2 0.26 24 32

Minimum Circuit Ampacity

120V 60Hz Standard 0.9 0.9

120V 60Hz Energy Efficient NA NA

230V 50Hz Export NA NA

Maximum Over Current Protection 120V 20 20

230V 50Hz Export NA NA

208V Electric Defrost Heaters NA NA NA NA

208V Gas Defrost Heaters NA NA NA NA

Optional Light Bar 6 ft 8ft 6 ft 8 ft

1 Row 0.51 0.51 62 62

5 of 6P/N 0454705_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

= 120V POWER = 120V NEUTRAL = FIELD GROUND = CASE GROUND

2Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing

Unit

}

Light Blue

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

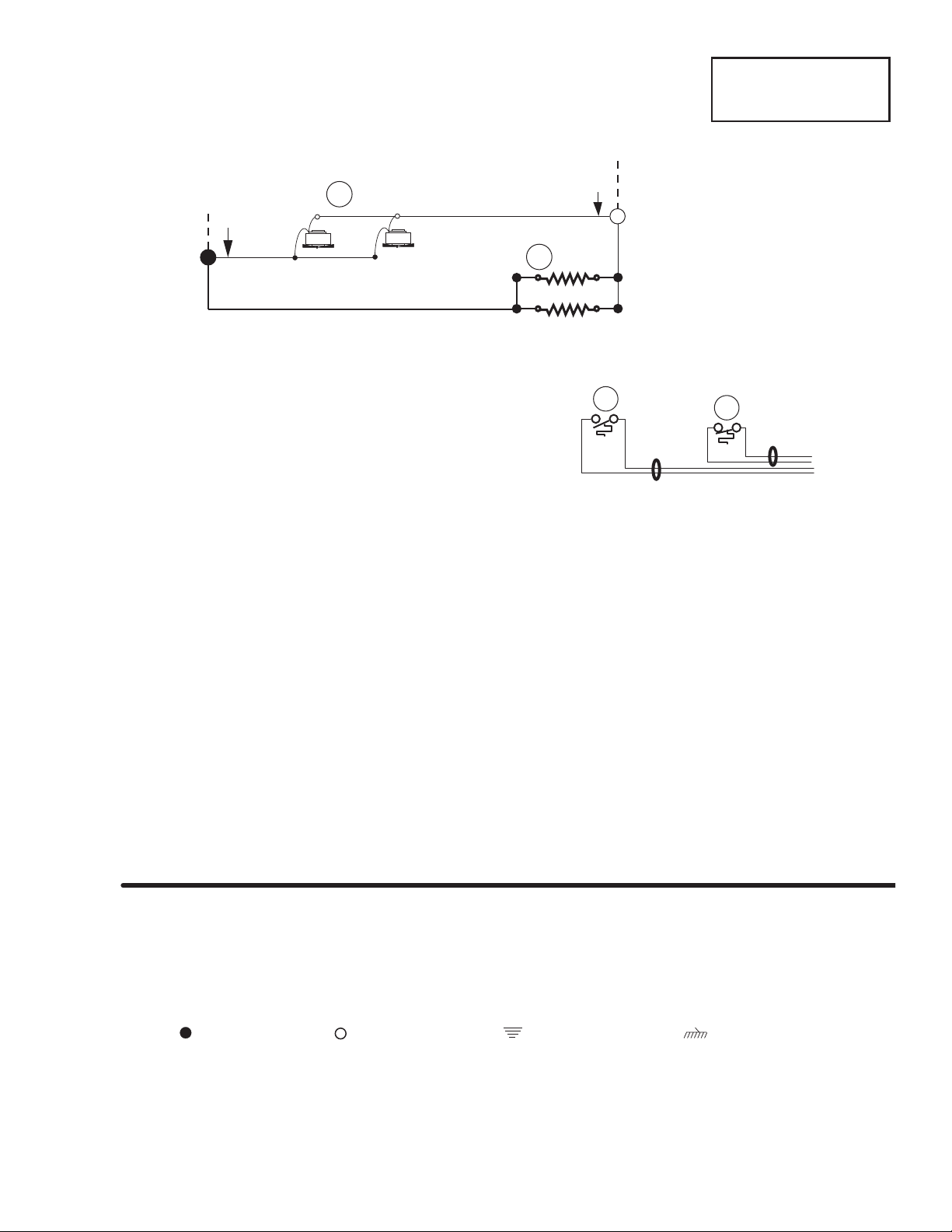

Fan Wiring

Offtime Defrost

2 Fans 120V NEUTRAL

BROWN BAND

120V POWER Fans

BROWN BAND

4Heaters

6 of 6 C1CWC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

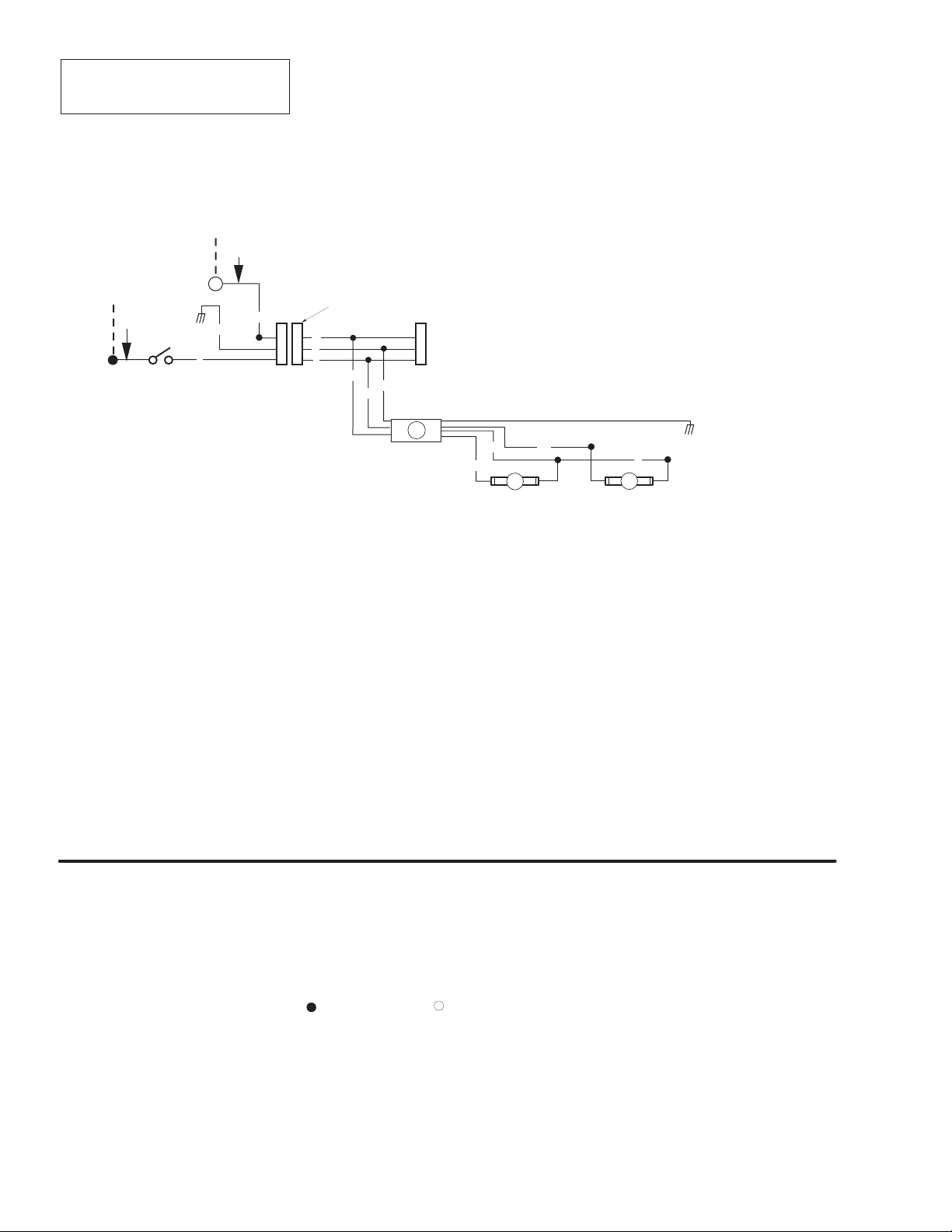

Standard Lighting for Optional Light Bar — 1 Row

Light Circuits

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Ballast Feed Harness

Ballast Jumper Harness

120V NEUTRAL

120V POWER

ORANGE OR TAN BAND

ORANGE OR TAN

BAND

Light
