Hussmann IMPACT Elite E3S Manuale di istruzioni

P/N 0504418_A

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly

0439052 Fan Motor, Evaporator

(MO.4410110)

0142780 Fan Blade (FB.0142780)

7W Export Fan Assembly

0436516 Fan Motor, Evaporator

(MO.4410106)

0142780 Fan Blade (FB.0142780)

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. Ballast, Electronic

0466234 2 lamps (BA.4480823) (4)

0466235 3 lamps (BA.4480901)

0466236 4 lamps (BA.4481095)

E. Fluorescent Lamp (5)

Replace with like fixtures

We reserve the right to change or revise

specifications and product design in

connection with any feature of our products.

Such changes do not entitle the buyer to

corresponding changes, improvements,

additions or replacements for equipment

previously sold or shipped.

E3S

Technical Data Sheet

P/N 0504418_A

NSF®Certified

April 2008

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/8(1222) 72 1/8 (1832) 96 1/4(2445) 144 3/8(3667)

Maximum O/S dimension back to front (with bumper) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181) 46 1/2(1181)

Back of case to front of front panel 34 1/2 (876) 34 1/2 (876) 34 1/2 (876) 34 1/2 (876)

Back of case to O/S edge of front skid rail 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

Width of skid rail 4 1/2 (114) 4 1/2 (114) 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 1 3/8(34) 1 3/8(34) 1 3/8(34) 1 3/8(34)

Distance between edges of

external support and center support NA 28 1/2 (724) 40 1/2 (1029) 40 1/2 (1029)

Distance between edges of center supports NA NA NA 44 (1118)

Stub-up area between front skid rail and front panel 5 3/4 (146) 5 3/4 (146) 5 3/4 (146) 5 3/4 (146)

Electrical Service (Electrical Field Wiring connection point)

(B) Length of electrical raceway 18 3/8 (467) 18 3/8 (467) 37 (940) 37 (940)

Back of case to center of end knockout 29 5/8 (752) 29 5/8 (752) 29 5/8 (752) 29 5/8 (752)

(D) RH End of case to RH end of wireway 27 5/8 (702) 51 5/8 (1311) 57 1/4 (1454) 105 1/8 (2670)

(E) LH End of case to LH end of wireway 2 1/8 (54) 2 1/8 (54) 2 (51) 2 1/4 (57)

Waste Outlet

(F) RH End of case to the center of waste outlet 24 1/4 (616) 24 1/4 (616) 24 1/2 (622) 72 1/4 (1834)

LH End of case to the center of waste outlet 23 7/8 (606) 47 7/8 (1216) 71 3/4 (1822) 72 1/8 (1832)

Back O/S of case to center of waste outlet 27 5/8 (702) 27 5/8 (702) 27 5/8 (702) 27 5/8 (702)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 3/4 (781) 30 3/4 (781) 30 3/4 (781) 30 3/4 (781)

RH end of case to center of refrigeration outlet 8 3/8 (213) 8 3/8 (213) 8 3/8 (213) 8 3/8 (213)

2 of 8 E3S Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views Dimensions shown as

inches and (mm).

09-2005

34 1/2

(876)

83/8(213)

Electrical Service

29 5/8

(752)

Waste Outlet

Front

27 5/8

(702)

30 3/4

(781) 46 1/2

(1181)

Water Seal

E3S

Delicatessen

Precut & Packaged

Produce

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75 (°F) and 55% R.H.

E3S

Discharge Air (°F) 29

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft — Unlit Shelves

E3S‡‡ Parallel Conventional

UNLIT 1180 1280

‡‡ Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

E3S

Frequency (hr) 6

Defrost Water 8 lb/ft/day

(± 15% based on case configuration and product

loading).

OFFTIME E3S

Temp Term (°F) 48

Failsafe (minutes) 40

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** E3S

Temp (°F) 14 / 4

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°F

**Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)*** E3S

4 ft 0.9

6 ft 1.8

8 ft 1.9

12 ft 2.9

***This is an average for all refrigerant types actual

refrigerant charge may vary by approximately half a

pound.

3 of 8

P/N 0504418_A

20 3/8

(518)

(762)

(1372)

(305)

18 1/2

(470)

34 1/2

(876)

46 1/2

(1181)

(305)

27 5/8

(702)

30 3/4

(781)

31 (787)

FAN

(864)

4 1/4

(108)

Refrigeration

Outlet

Impact

Elite

E3S

Delicatessen

Precut & Packaged Produce

Elite Specialty Merchandiser Multi-deck, 3 Display Levels

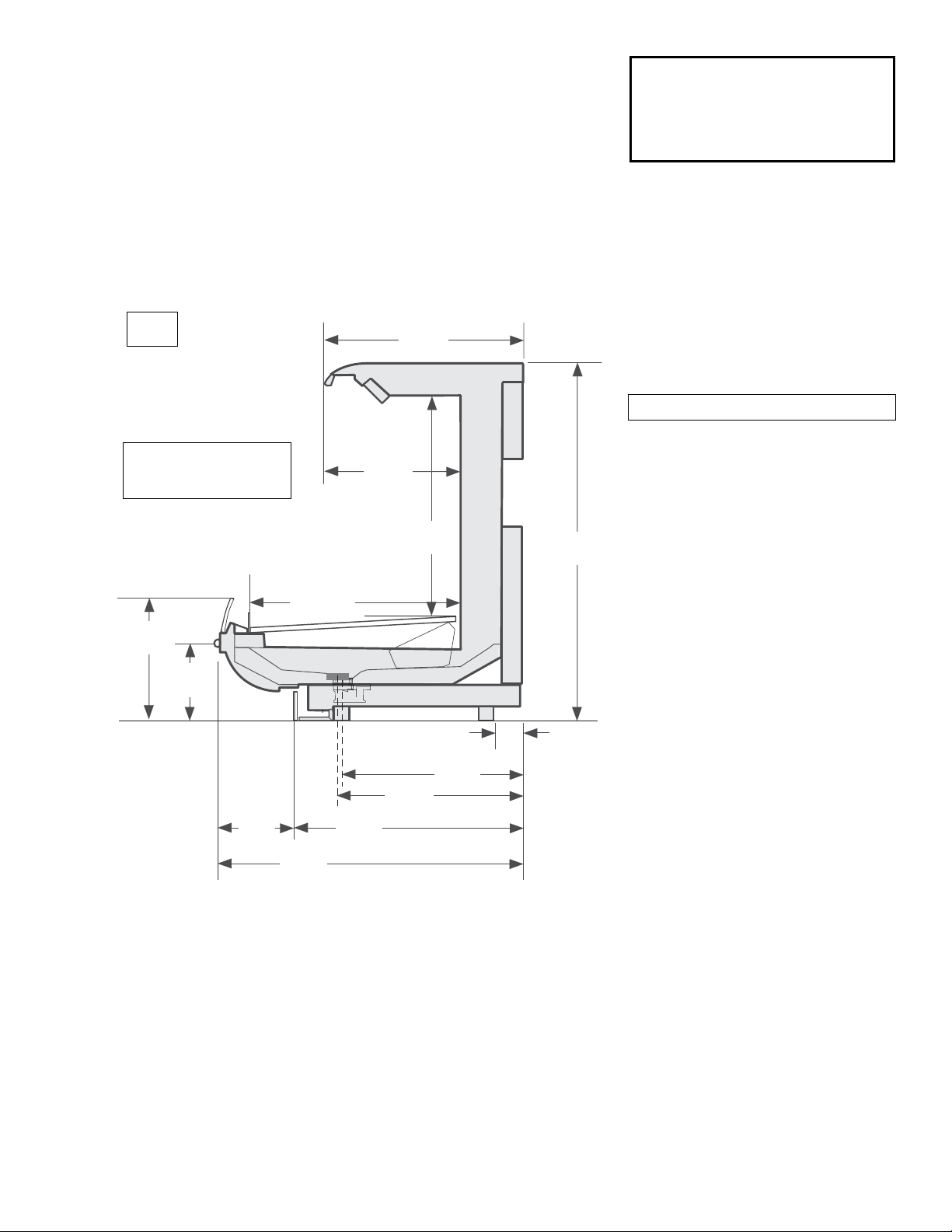

Dimensions shown as in. & (mm).

See Page 8 for

shelf arrangement.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

E3S

4 of 8 E3S Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Elite

E3S

Delicatessen

Precut & Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—7W 1 2 2 3

Number of Fans—7W (Export) 1 2 2 3

(Export: 230V 50 Hz shown)

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.50 1.00 1.00 1.50 39 78 78 117

120V 50Hz Standard 0.55 1.10 1.10 1.65 42 84 84 126

230V 60Hz Export 0.25 0.50 0.50 0.75 39 78 78 117

230V 50Hz Export 0.28 0.56 0.56 0.84 42 84 84 126

120V 60Hz Energy Efficient 0.19 0.38 0.38 0.57 14 28 28 42

230V 60Hz Energy Efficient 0.10 0.20 0.20 0.30 14 28 28 42

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity †

120V 60Hz Standard 0.70 1.20 1.20 1.70

120V 50Hz Standard 0.75 1.30 1.30 1.85

230V 60Hz Export 0.45 0.70 0.70 0.95

230V 50Hz Export 0.48 0.76 0.76 1.04

120V 60Hz Energy Efficient 0.39 0.58 0.58 0.77

230V 60Hz Energy Efficient 0.30 0.40 0.40 0.50

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

208V Electric Defrost Heaters NA

Standard Lighting (T-8 fluorescent)

2 Rows of Canopy 0.51 1.01 1.01 1.52 66 122 122 183

Optional Lighting (T-8 fluorescent)

1 Row of Rail Lights 0.51 0.51 0.51 0.76 62 62 62 96

1 Row of Ledge Lights 0.51 0.51 0.51 0.76 62 62 62 96

Optional Shelf Lighting (T-8 fluorescent)

1 Row of Shelves 0.51 0.51 0.51 0.76 62 62 62 96

2 Rows of Shelves 0.51 1.01 1.01 1.52 66 122 122 183

3 Rows of Shelves 0.76 1.53 1.53 2.28 92 184 184 274

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8

P/N 0504418_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 600 (272) 800 (363) 1000 (454) 1300 (590) 100 (45)

5Actual weights will vary according to optional kits included.

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 5.00 ft3 /ft (0.47 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 4.50 ft3 /ft (0.42 m3/m)

ARI Total Display Area 3 (Sq Ft/Ft) 3.05 ft2 /ft (0.93 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.10 ft2 /ft (2.16 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3] / Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume / Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2] / Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (1) row of 14-inch shelf, (1) row of 18-inch shelf and

(1) row of 22-in shelf.

Impact

Elite

E3S

Delicatessen

Precut & Packaged Produce

6 of 8 E3S Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Fan Wiring

Offtime Defrost

Optional Shelf Lighting

Fluorescent Fixtures

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

G G

Connector

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

7 of 8

P/N 0504418_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Optional Lighting: 1 Row Ledge or 1 Row Rail

Standard Lighting 2 Rows Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Light Circuits

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

8 of 8 E3S Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Load Limit

18 in.

14 in.

Recommended

Angle

Shelf

Size

22 in.

SHELF CONFIGURATION

This merchandiser is designed for three

shelves.

This illustration shows recommended

shelf depth and shelf angle for the three

locations.

It is critical to case performance that no

product, shelf or stop extend beyond the

load limit, as shown in this illustration.

This configuration supports the air

curtain and provides optimal case

performance.

Check with Hussmann engineering

before using a different configuration.

Impact

Elite

E3S

Delicatessen

Precut & Packaged Produce

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann BEXD-A Manuale utente

Hussmann

Hussmann Specialty ProductsCR3FO Manuale di istruzioni

Hussmann

Hussmann Q3 Manuale utente

Hussmann

Hussmann IMPACT Excel C3LGE Manuale utente

Hussmann

Hussmann Specialty Products CR3HV-F Manuale di istruzioni

Hussmann

Hussmann IMPACT Elite E1 Manuale utente

Hussmann

Hussmann CGDM Manuale utente

Hussmann

Hussmann Specialty Products CR3M-F Manuale di istruzioni

Hussmann

Hussmann RI4 Manuale di istruzioni

Hussmann

Hussmann SI2N Manuale di istruzioni

Hussmann

Hussmann NRCV Manuale utente

Hussmann

Hussmann M1XLD-GE Manuale di istruzioni

Hussmann

Hussmann Impact C5HE Manuale utente

Hussmann

Hussmann SHVSS-C Manuale di istruzioni

Hussmann

Hussmann FMSS-L Istruzioni operative originali

Hussmann

Hussmann VHF Manuale utente

Hussmann

Hussmann Impact Excel C2X-E Manuale di istruzioni

Hussmann

Hussmann Hussman P Manuale utente

Hussmann

Hussmann IMPACT Excel D5XRRI Manuale di istruzioni

Hussmann

Hussmann SHVSS-C Istruzioni operative

Hussmann

Hussmann RGD Manuale di istruzioni

Hussmann

Hussmann SMB Manuale di istruzioni

Hussmann

Hussmann VR3-M-EP Istruzioni operative originali

Hussmann

Hussmann C2NX-XE Manuale di istruzioni

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
