D5X-ULEP

Technical Data Sheet

P/N 0495782_B

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

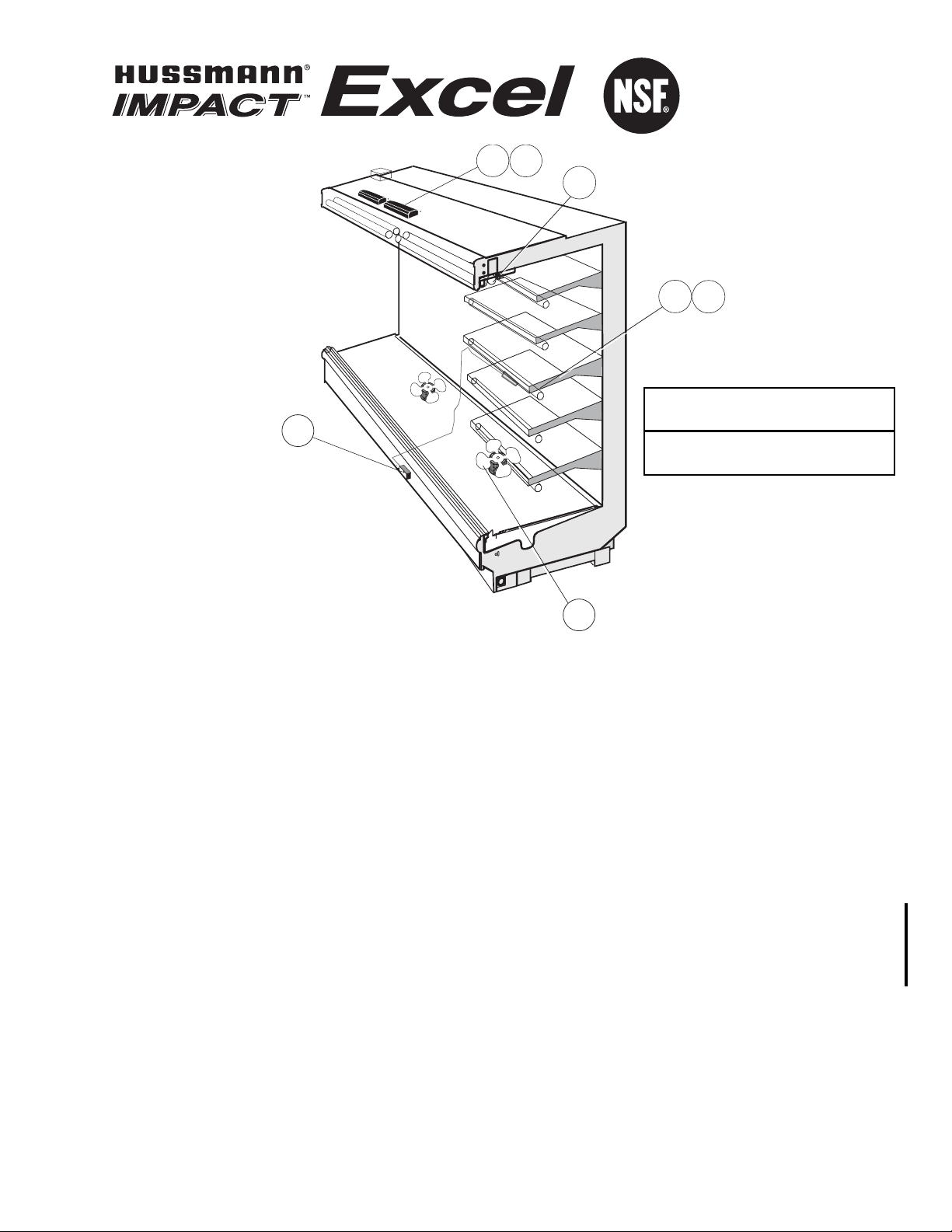

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS AND BALLASTS

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Fixture (6)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

ONE FLOOR DRAIN IS

REQUIRED FOR EACH CASE.

IMPORTANT

Note: Revision B adds Important Note on Page 1, adds optional LED lighting (Pages 1, 3, 4, 8);

adds capacity and weight (Page 5)

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 38 3/8 (975) 38 3/8 (975) 38 3/8 (975) 38 3/8 (975)

Back of case to O/S edge of front rails 30 1/4 (767) 30 1/4 (767) 30 1/4 (767) 30 1/4 (767)

Distance between edges of external rails and center rails NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center rails NA NA NA 43 7/8 (1114)

Distance between front rails and splashguard 8 (203) 8 (203) 8 (203) 8 (203)

Electrical Service (Electrical Field Wiring connection point located on top of case)

(B) RH End of case to center of 4 x 4 x 2 Electrical Box 39 3/8 (1000) 63 3/8 (1610) 87 3/8 (2219) 135 1/2 (3442)

Back of case to center of 4 x 4 x 2 Electrical Box 17 3/4 (451) 17 3/4 (451) 17 3/4 (451) 17 3/4 (451)

Waste Outlets (One each end)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 36 3/4 (933) 36 3/4 (933) 36 3/4 (933) 36 3/4 (933)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

2 of 8 D5X-ULEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

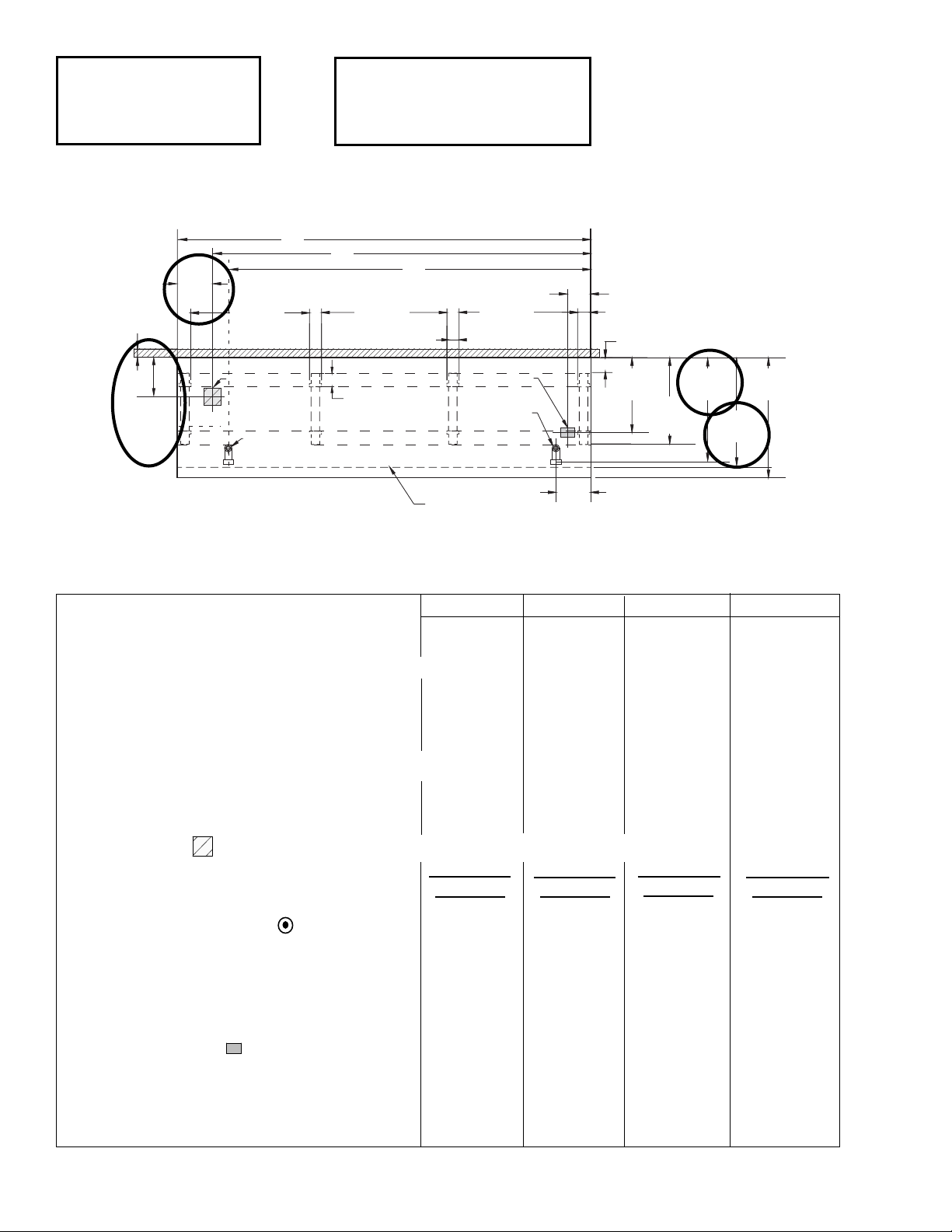

Plan Views

Dimensions shown as in. and (mm).

Ultra Low Front

Dairy & Delicatessen

07-2007

4 3/4 (120)

Splashguard

36 3/4

(933)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical Box

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

4 3/4 (120)

4 1/4 (108)

17 3/4

(451) 38 3/8

(975)

30 1/4

(767)

(229)

D5X

Note: ALL FIELD WIRING CONNECTION POINTS ARE ABOVE THE CASE.

Case to case connections are made in the electrical box at the top of

the case.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

D5X-ULEP* UNLIT LIT

Discharge Air °F 32 30

Evaporator °F 28 26

Unit Sizing °F 26 24

Btu/hr/ft

D5X-ULEP* Parallel Conventional

UNLIT‡‡ 1510 1590

*Hussmann Peg Shelves are no longer

recommended.

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hrs 6

Defrost Water (lb/ft/day) 10.5

(± 15% based on case configuration and

product loading).

OFFTIME D5X-ULEP

Time (minutes) 20

ELECTRIC OR GAS Not

Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** D5X-ULEP

19°F/9°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Estimated Charge (lb)*** D5X-ULEP

4 ft 1.9

6 ft 2.8

8 ft 3.7

12 ft 5.1

***This is an average for all refrigerant

types. Actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0495782_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

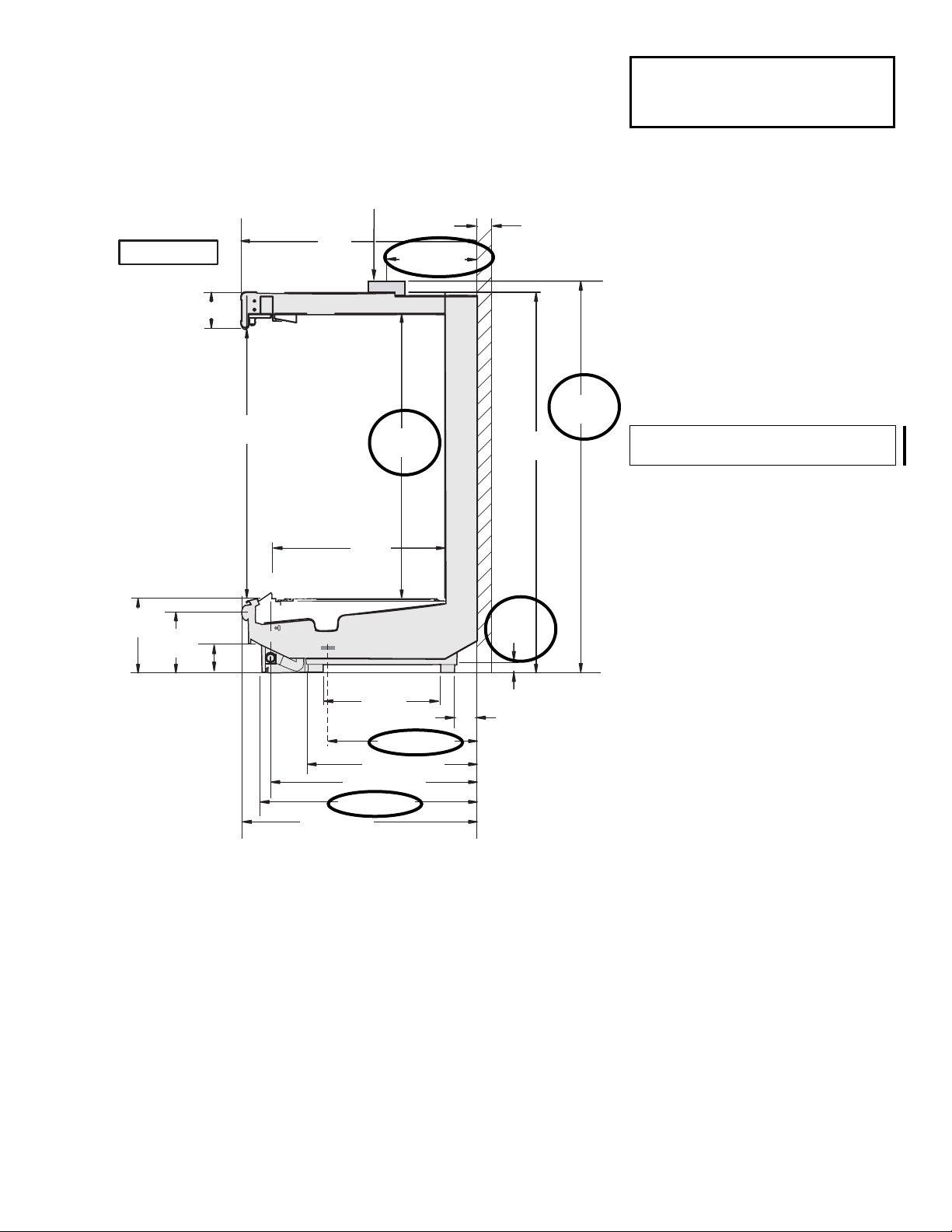

Impact

Excel

D5X-ULEP

Dairy & Delicatessen

Dimensions shown as in. and (mm).

Multi-deck, 6 Display Levels, Ultra Low Front

36 3/4 (934)

4 3/4 (120)

30 1/4 (767)

42 (1064)

(1064)

38 3/8 (975)

81 3/4

(2077)

D5X-ULEP

(762)

64 5/8

(1641)

FAN

10 1/4

(260)

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

12 3/4

(324)

26 1/4 (667)

Refrigeration

Outlet

1 1/4

(32)

20 1/4

(514)

4 x 4 x 2

Electrical

Case to Case

Connections

61 3/4

(1568)

17 3/4 (451)

4 3/4

(121)

83 1/4

(2115)

ALL FIELD WIRING CONNECTION POINTS ARE ABOVE THE CASE.

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 D5X-ULEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

D5X-ULEP

Dairy & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 2 — 4 6

Number of Fans—7W — 4 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 1.30 2.00 2.60 3.90 100 156 200 300

120V 50Hz Standard 1.50 2.20 3.00 4.50 114 168 228 342

230V 60Hz Export 0.66 1.00 1.32 1.98 100 156 200 300

230V 50Hz Export 0.76 1.12 1.52 2.28 114 168 228 342

120V 60Hz Energy Efficient 0.60 0.76 1.20 1.80 36 56 72 108

230V 60Hz Energy Efficient 0.30 0.40 0.60 0.90 36 56 72 108

Minimum Circuit Ampacity

120V 60Hz Standard 1.50 2.20 2.80 4.10

120V 50Hz Standard 1.70 2.40 3.20 4.70

230V 60Hz Export 0.86 1.20 1.52 2.18

230V 50Hz Export 0.96 1.32 1.72 2.48

120V 60Hz Energy Efficient 0.80 0.96 1.40 2.00

230V 60Hz Energy Efficient 0.50 0.60 0.80 1.10

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting

5 Rows of Shelves 1.28 2.55 2.55 3.85 148 295 295 425

6 Rows of Shelves 1.53 3.06 3.06 4.62 177 354 354 510

Optional Always*Bright LED Lighting

5 Rows of Shelves 0.57 0.83 1.13 1.69 68 99 136 203

6 Rows of Shelves 0.67 0.96 1.33 2.00 80 115 160 240

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8

P/N 0495782_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1200 (544) 1600 (726) 100 (45)

5Actual weights will vary according to optional kits included.

Impact

Excel

D5X-ULEP

Dairy & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 11.74 ft3/ft (1.09 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 9.97 ft3 /ft (0.93 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 5.19 ft2/ft (1.58 m2 /m)

Shelf Area 4(Sq Ft/Ft) 9.87 ft2/ft (3.01 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (5) rows of 22-inch shelves.eparately from fans.

Refrigeration

Thermostat

Condensing

Unit

}

ht Blue

2, 4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

3 Row Canopy

344

Connector

D5X-ULEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 8

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8

P/N 0495782_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

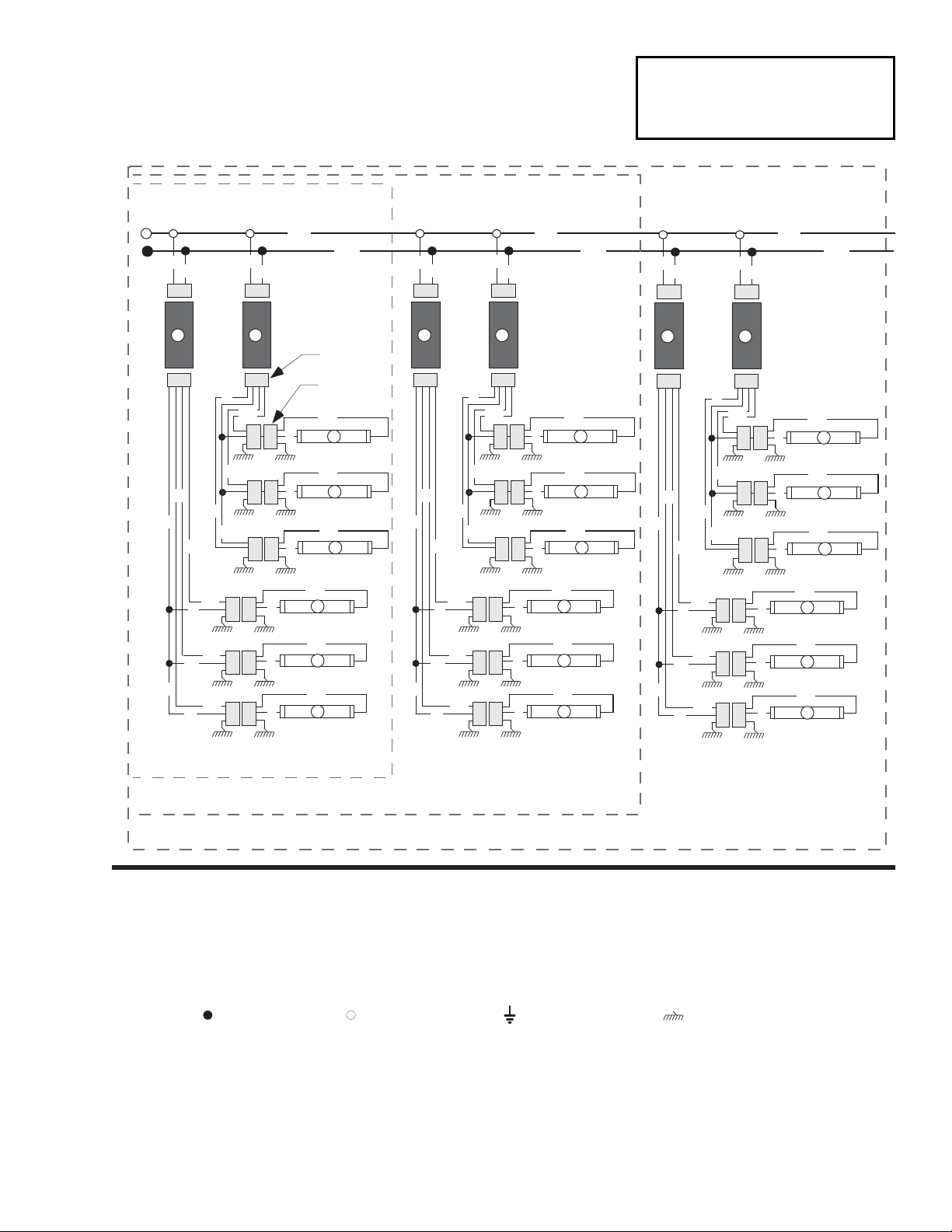

Optional Shelf Harness and Light Circuits for

Six Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

D5X-ULEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

Optional LED Shelf

Lighting

BL 6

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 6

RBL

BL 6

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Altri manuali per Impact Excel D5X-ULEP

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann NAV-4 Manuale utente

Hussmann

Hussmann DVG-8 Manuale utente

Hussmann

Hussmann Specialty Products CR3HV-F Manuale di istruzioni

Hussmann

Hussmann NEBCH Manuale utente

Hussmann

Hussmann C2X-XEP Manuale di istruzioni

Hussmann

Hussmann RGD Istruzioni operative

Hussmann

Hussmann IMPACT Elite E2V Manuale utente

Hussmann

Hussmann micro SC SIM-4AA Manuale utente

Hussmann

Hussmann M1XLD-GE Manuale di istruzioni

Hussmann

Hussmann FL5NX-LEP Manuale di istruzioni

Hussmann

Hussmann IMPACT Excel D5XLRE Manuale di istruzioni

Hussmann

Hussmann ASCS Manuale di istruzioni

Hussmann

Hussmann RGSSFP Manuale di istruzioni

Hussmann

Hussmann DM Manuale utente

Hussmann

Hussmann NAV-4 Manuale utente

Hussmann

Hussmann IMPACT Elite ES1 Manuale di istruzioni

Hussmann

Hussmann SGB Manuale di istruzioni

Hussmann

Hussmann P4NX-EP Manuale di istruzioni

Hussmann

Hussmann MAXI-140 Manuale utente

Hussmann

Hussmann IMPACT Excel D6X-ULEP Manuale di istruzioni

Hussmann

Hussmann LG Manuale di istruzioni

Hussmann

Hussmann Impact Excel M3X-E Manuale di istruzioni

Hussmann

Hussmann IMPACT LNGH Manuale di istruzioni

Hussmann

Hussmann BEXD Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
