Hussmann Impact Excel M3X-GE Manuale di istruzioni
D
C
A
D
E
B
G
F
E
P/N 0463864_D
M3X-GE
Technical Data Sheet
P/N 0463864_D
NSF®Certified
March 2008
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.

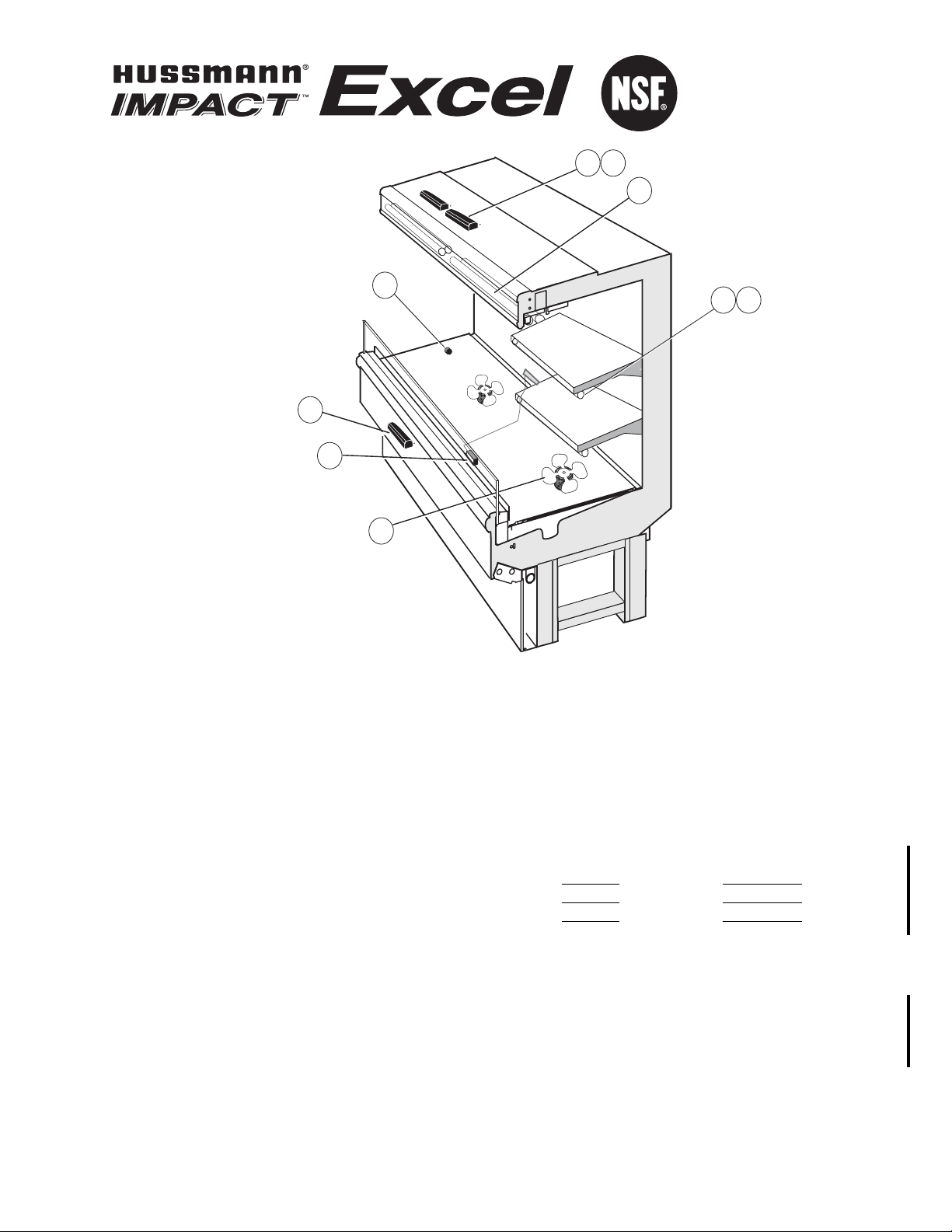

Item Part # Description Wiring Item #
FAN ASSEMBLIES
4 Ft, 8 Ft & 12 Ft
A. 12W Standard Fan Assembly (1)
0047000 Fan Motor, Evaporator
(MO.4410103)
0461805 Fan Blade (FB.4780446)
12W Energy Efficient Fan Assembly (1)
0477655 Fan Motor, Evaporator
(MO.4410546)
0461805 Fan Blade (FB.4780446)
6 Ft Only
A. 7W Standard Fan Assembly (1)
0058698 Fan Motor, Evaporator
(MO.4410102)
0142780 Fan Blade (FB.0142780)
7W Energy Efficient Fan Assembly (1)
0477654 Fan Motor, Evaporator
(MO.4410545)
0142780 Fan Blade (FB.0142780)
Item Part # Description Wiring Item #
THERMOSTATS
B. 0411744 Standard Non-adjustable (2)
Defrost Thermostat
(CT.0411744)
C. Optional Adjustable Refrigeration Thermostat (3)
LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY
D. Ballast, Electronic (4)
0480130 2 lamps (BA.4481676)
0480131 3 lamps (BA.4481654)
0480132 4 lamps (BA.4481677)
E. Fluorescent Lamp (5)
Replace with like fixtures
F. 0501213 Power Supply (EP.4481861) (6)
G. LED Fixture (7)
Replace with like fixtures
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Note: Revision D changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).
2 of 8 M3X-GE Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

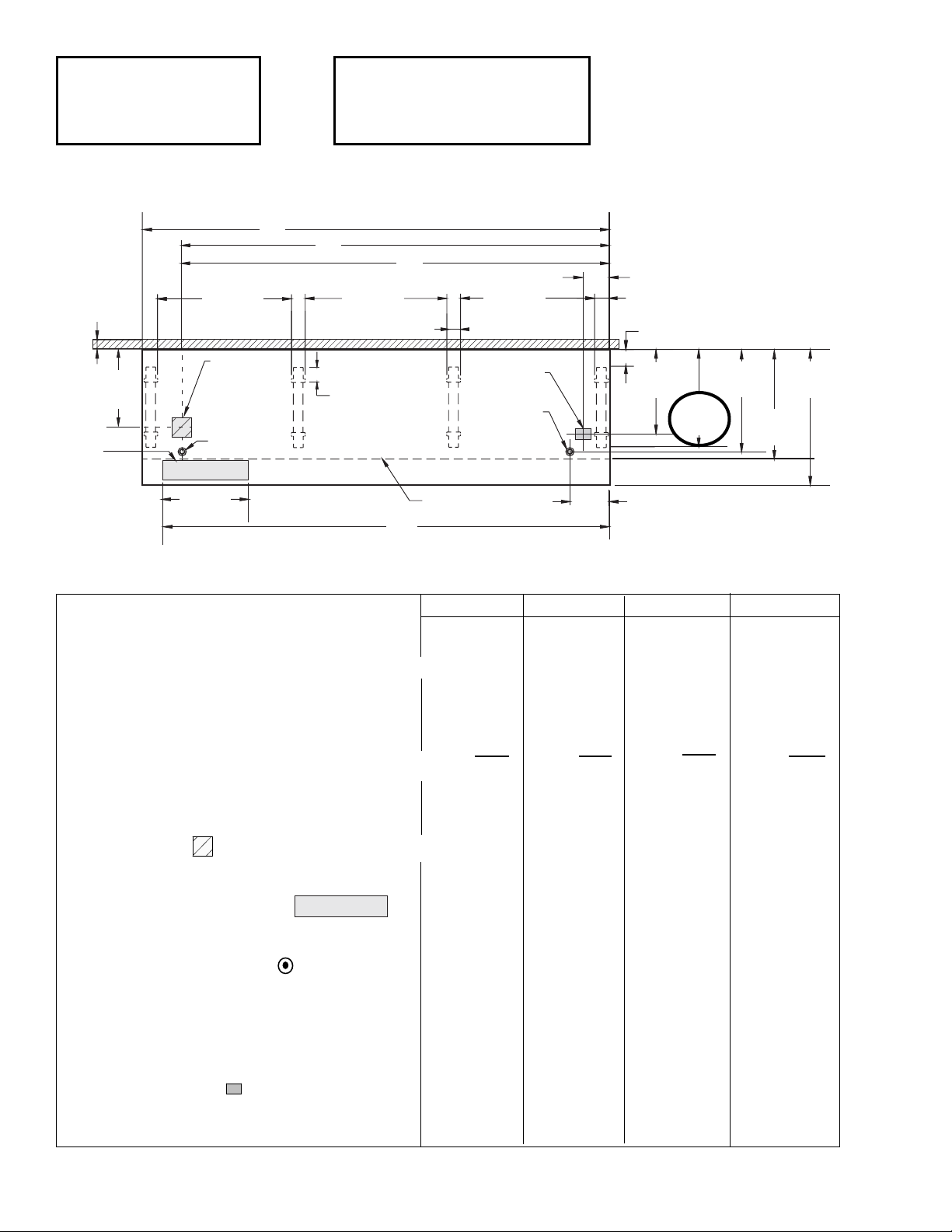

Engineering
Plan Views
Dimensions shown as in. and (mm).
Meat, Delicatessen & Produce
10-2004
NOTE: Case-to-Case Electrical Connections
are made IN FRONT OF SPLASHGUARD.
4 3/4 (120)
Splashguard
31 5/8
(804)
42
(1064)
A
41 1/2
(1054)
3 In.
(77 mm)
Required
Air Gap
Refrigeration
Outlet
Electrical
Stub Up Area
6 x 6
(152x152) Waste Outlet
Waste Outlet
FRONT
26 1/4
(665)
B
D
8(203)
4 1/2 (115)
12 1/8 (307)
41 1/2
(1054)
43 7/8
(1114)
C
Wireway
4 3/4 (120)
26 1/2
(673)
4 1/4 (108)
24
(612)
33 1/2
(851)
Electrical
Field
Connection
30 1/4
(768)
M3X
4 ft 6 ft 8 ft 12 ft
General
(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)
(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)
Maximum O/S dimension of case back to front
(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)
Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)
Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)
Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)
Distance between edges of center legs NA NA NA 43 7/8 (1114)
Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)
Electrical Service (Electrical Field Wiring connection point)
(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)
Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)
Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)
(C) RH End of case to LH end of wireway 42 1/8 (1070) 66 1/8 (1680) 90 1/8 (2289) 138 1/4 (3511)
Waste Outlets (One each end)
(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)
RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)
Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)
Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)
Refrigeration Outlet
Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)
RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.) 3/8
Merchandiser Suction Line (in.) 7/8
Wireway
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75°F and 55% R.H.
M3X-GE
Discharge Air (°F) 28
Evaporator (°F) 21
Unit Sizing (°F) 19
Btu/hr/ft — Unlit Shelves
M3X-GE‡‡ Parallel Conventional
UNLIT 935 1020
‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.
Add 20 Btu/hr/ft per shelf row for fluorescent lamps.
DEFROST DATA
M3X-GE
Frequency (hr) 8
Defrost Water (lb/ft/day) 7
(± 15% based on case configuration and
product loading).
OFFTIME M3X-GE
Temp Term (°F)48°F
Failsafe (minutes) 35
ELECTRIC OR GAS Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F — open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
M3X-GE
CI/CO* 14°F / 4°F
Indoor Unit Only, Pressure Defrost
Termination* 48°F
*Use a Temperature Pressure Chart to deter-
mine PSIG conversions.
Estimated Charge (lb)** M3X-GE
4 ft 1.4
6 ft 1.9
8 ft 2.7
12 ft 3.9
**This is an average for all refrigerant
types. Actual refrigerant charge may vary
by approximately half a pound.
P/N 0463864_D 3 of 8
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
30
(762)
74 3/8
(1890)
31 5/8 (804)
4 3/4
(120)
30 1/4 (768)
42 (1064)
33 1/2 (851)
26 1/4 (665)
Refrigeration
Outlet
42 1/2
(1080)
34 5/8
(878)
FAN
C
O
I
L
28 5/8
(727)
3 In. (77 mm)
Required
Air Gap
7 1/4 (183)
38 1/4
(972)
15
(381)
Electrical
Case to Case
Connections
17 1/8
(436)
29 3/8
(746)
16 1/4
(413)
7 1/4
(184)

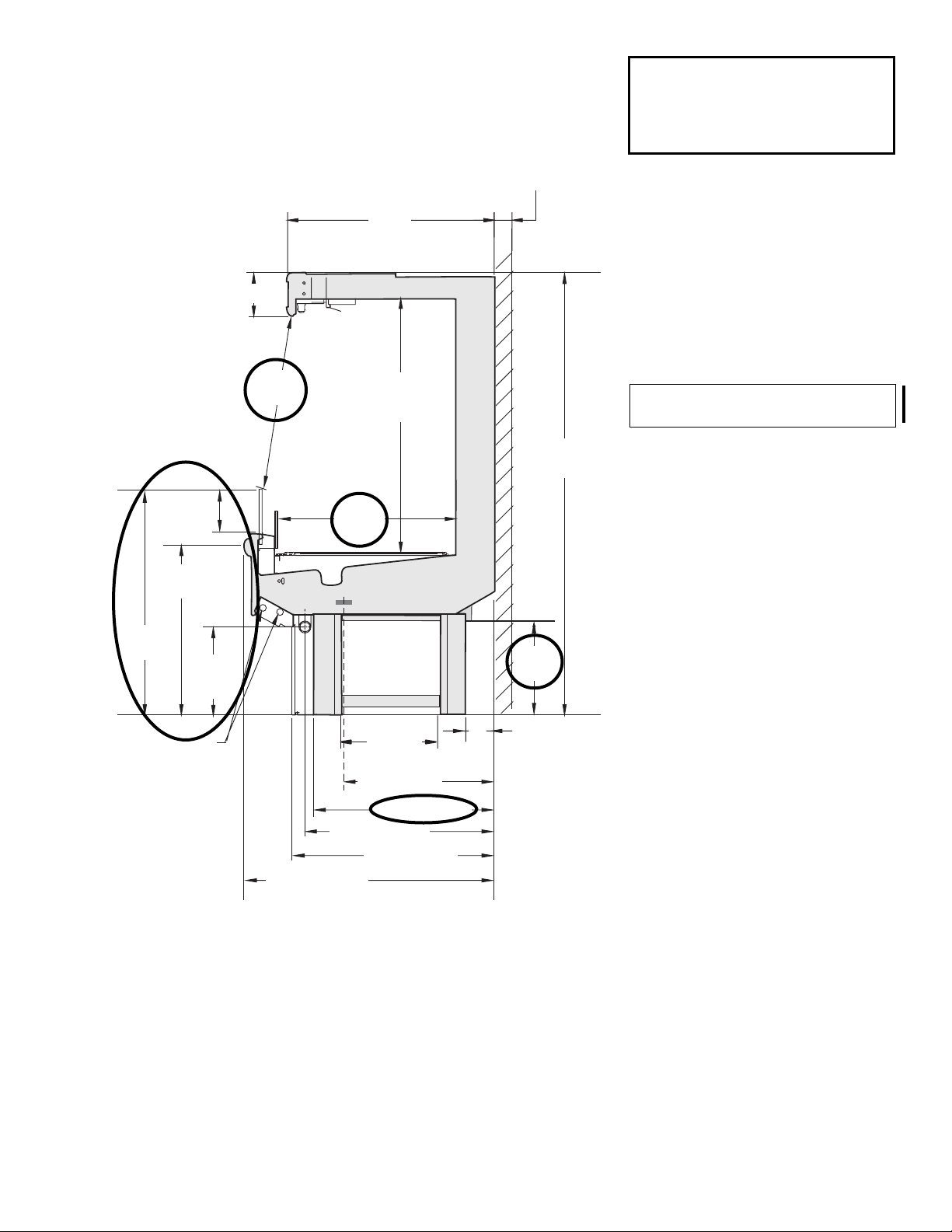

Dimensions shown as inches and (mm).
Multi-deck, 3 Display Levels, and Glass Front Impact
Excel
M3X-GE
Meat, Delicatessen
Pre-cut and Packaged Produce
M3X-GE
NSF Certification
This merchandiser model is manufactured to meet ANSI/NSF
(National Sanitation Foundation) Standard #7 requirements for con-
struction, materials & cleanability.
4 of 8 M3X-GE Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Impact
Excel
M3X-GE
Meat, Delicatessen
Precut and Packaged Produce
Electrical Data
4 ft 6 ft 8 ft 12 ft
Number of Fans—12W 1 — 2 3
Number of Fans—7W — 2 — —
Amperes Watts
4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft
Evaporator Fan
120V 60Hz Standard 0.65 1.00 1.30 1.95 50 78 100 150
120V 50Hz Standard 0.75 1.10 1.50 2.25 57 84 114 171
230V 60Hz Export 0.33 0.50 0.66 0.99 50 78 100 150
230V 50Hz Export 0.38 0.56 0.76 1.14 57 84 114 171
120V 60Hz Energy Efficient 0.30 0.38 0.60 0.90 18 28 36 54
230V 60Hz Energy Efficient 0.15 0.20 0.30 0.45 18 28 36 54
Minimum Circuit Ampacity
120V 60Hz Standard 0.85 1.20 1.50 2.15
120V 50Hz Standard 0.95 1.30 1.70 2.45
230V 60Hz Export 0.53 0.70 0.86 1.19
230V 50Hz Export 0.58 0.76 0.96 1.34
120V 60Hz Energy Efficient 0.50 0.58 0.80 1.10
230V 60Hz Energy Efficient 0.35 0.40 0.50 0.65
Maximum Over Current Protection 120V 20 20 20 20
Maximum Over Current Protection 230V 15 15 15 15
Standard Lighting (T-8 fluorescent)
1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85
Optional Lighting (T-8 fluorescent)
Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85
Additional 2 Row Canopy 0.51 1.02 1.02 1.54 59 118 118 170
Additional 3 Row Canopy 0.77 1.53 1.53 2.31 89 177 177 255
1 Row Rail Light NA — Glass front does not accept rail light
Optional Shelf Lighting (T-8 fluorescent)
2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170
3Row Shelf Receptacle 1.53 2.31 177 255
Optional Always*Bright LED Lighting
2 Rows of Shelves 0.26 0.34 0.47 0.67 31 41 56 80
120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting
230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52
ESTIMATED SHIPPING WEIGHT 5
Case Solid End
4 ft 6 ft 8 ft 12 ft (each)
lb (kg) 600 (272) 800 (363) 1000 (454) 1300 (590) 75 (34)
5Actual weights will vary according to optional kits included.
P/N 0463864_D 5 of 8
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Impact
Excel
M3X-GE
Meat, Delicatessen
Pre-cut and Packaged Produce
Product Data
ARI Refrigerated Volume 1 (Cu Ft/Ft) 6.98 ft3/ft (0.65 m3/m)
Recommended Usable Cube 2 (Cu Ft/Ft) 6.02 ft3 /ft (0.56 m3 /m)
ARI Total Display Area 3 (Sq Ft/Ft) 3.49 ft2/ft (1.06 m2 /m)
Shelf Area 4(Sq Ft/Ft) 5.35 ft2/ft (1.63 m2 /m)
1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]
2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]
3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann
Product Reference Guide. The standard shelf complement for this model is (1) row of 16-inch shelf and (1) row of
18-inch shelf.eparately from fans.
6 of 8 M3X-GE Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
5
5
4
4
4
5
5
5
5
5
5
Optional
Two Row
Canopy
Optional
Three Row
Canopy
Connector
5
BL
W
BL
W
G
R
BL
W
B
R
RR
BL BL
R
BL
R
RR
BL
BL
R
BL
R
RR
B
B
Orange or Tan Band
Standard Lighting 1 Row Canopy
Optional Lighting 2 Row Canopy
3 Row Canopy
B
4 ft 6 ft or 8 ft 12 ft
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
= 120V POWER = 120V NEUTRAL = FIELD GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
= CASE GROUND
Defrost
Termination
Thermostat
Refrigeration
Thermostat
Dark Blue
3
To
Condensing
Unit
}
Light Blue
2
1, 2 & 3 Fans
120V NEUTRAL
BROWN BAND
120V POWER
Fans 1
BROWN BAND
4 ft
6 ft
8 ft
12 ft
12 ft
Fan Wiring
Offtime Defrost
Light Circuits
P/N 0463864_D 7 of 8
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
5
4
5
B
W
R
R
W
BL
BL
R
B
BL
BL
R
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
= 120V POWER = 120V NEUTRAL = FIELD GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
= CASE GROUND

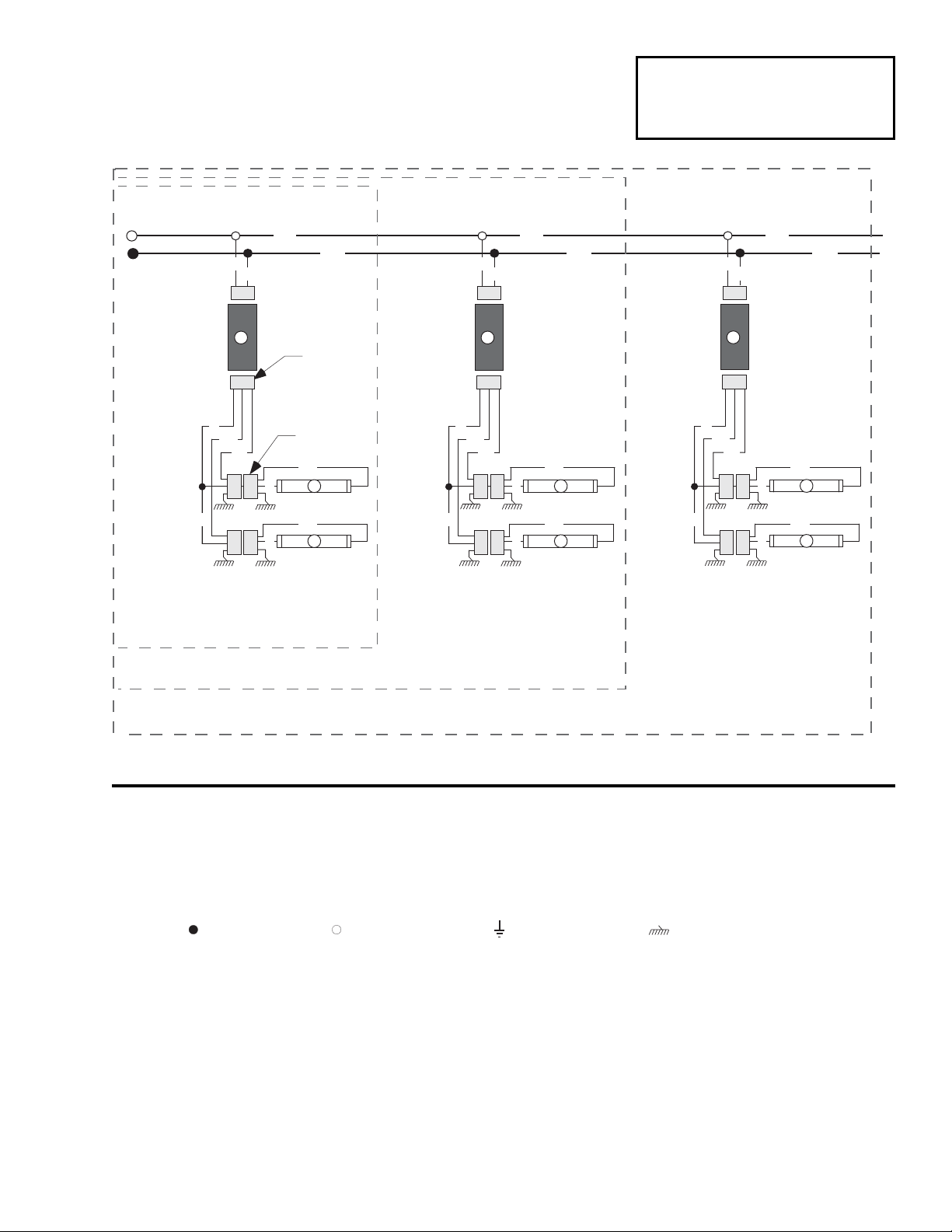

Optional Shelf Harness and Light Circuits for
Two Rows of Shelves
4 ft case
Connector
5
4
5
B
W
Connector
6 ft or 8 ft case
12 ft case
R
R
W
BL
BL
R
B
BL
BL
R
5
4
5
B
W
R
R
W
BL
BL
R
B
BL
BL
R

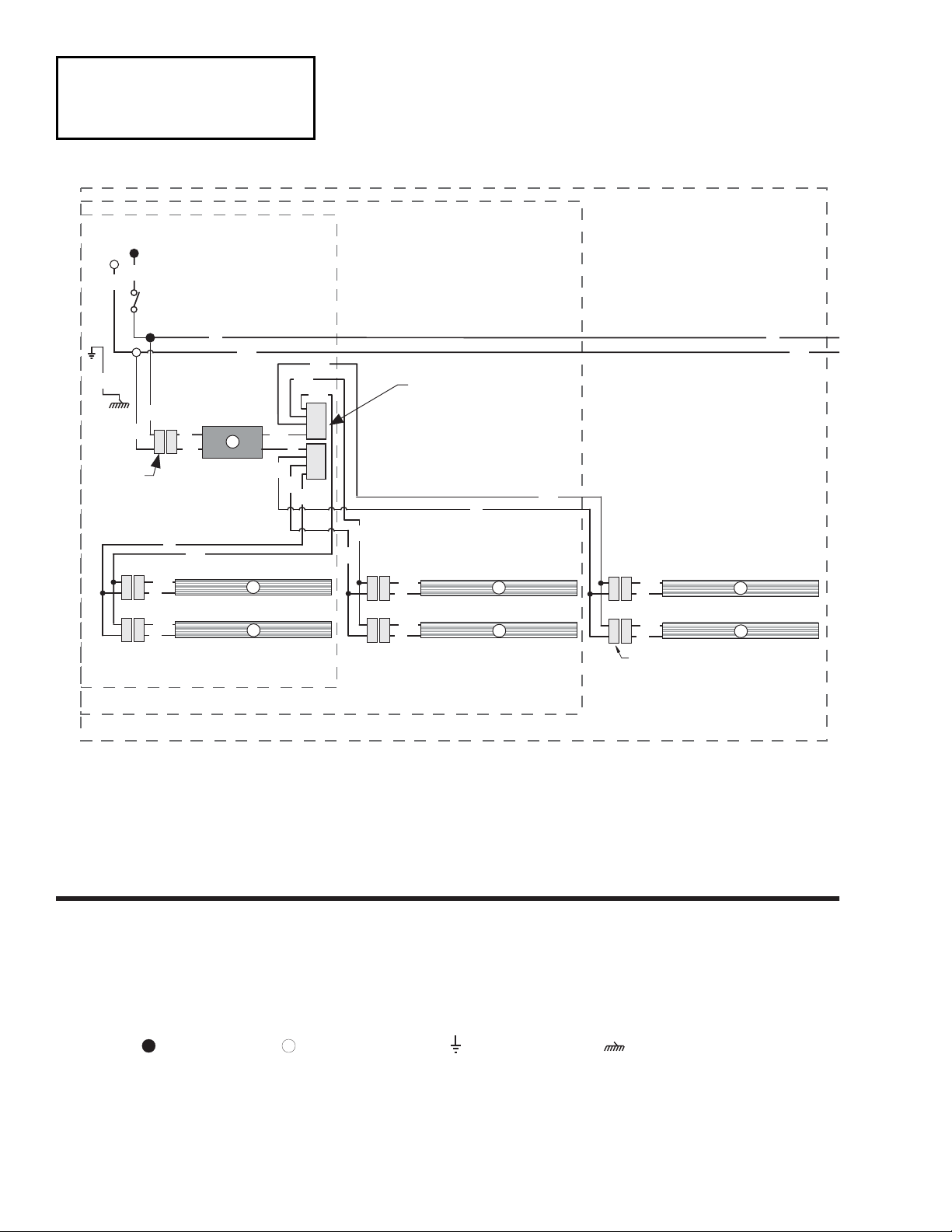

Optional Shelf Lighting
Fluorescent Fixtures
8 of 8 M3X-GE Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
4 ft case
6 ft or 8 ft case
12 ft case
R
BL
R
BL 7
7
RBL
6
B
W
W
BL
R
G
Connector
Connector
B
W
B
W
B
W
R
BL
R
BL 7
7
R
BL
R
BL
R
BL 7
7
RBL
R
BL
BL
BL
(TYP)
Shelf Light
Plug & Receptacle
R = Red G = Green BL = Blue B = Black W = White
= 120V POWER = 120V NEUTRAL = FIELD GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
= CASE GROUND
Optional Shelf Harness and LED Light Circuits for
Two Rows of Shelves
R
R
B
Optional Shelf Lighting
LED Fixtures
Indice
Altri manuali Hussmann Merchandiser
Hussmann
Hussmann ESH Istruzioni operative
Hussmann
Hussmann Specialty Products CR3M-F Manuale di istruzioni
Hussmann
Hussmann IMPACT LNM Manuale utente
Hussmann
Hussmann SM-115W Manuale utente
Hussmann
Hussmann MPCETNM6S Manuale utente
Hussmann
Hussmann IMPACT Elite E2V Manuale utente
Hussmann
Hussmann FWG Manuale di istruzioni
Hussmann
Hussmann IMPACT D5 Manuale utente
Hussmann
Hussmann IMPACT D5RRI Manuale operativo
Hussmann
Hussmann IMPACT D5RRIS Manuale di istruzioni
Hussmann
Hussmann Impact M1GLE-93 Manuale utente
Hussmann
Hussmann DVG-8 Manuale utente
Hussmann
Hussmann IMPACT IEDG1 Manuale di istruzioni
Hussmann
Hussmann GGSM Guida rapida
Hussmann
Hussmann ESBDVS Manuale di istruzioni
Hussmann
Hussmann D5X-LEP Manuale di istruzioni
Hussmann
Hussmann Q3-M/FV-EP Manuale utente
Hussmann
Hussmann SI3E Manuale di istruzioni
Hussmann
Hussmann Impact C2EC-XLGE Manuale di istruzioni
Hussmann
Hussmann DDS Guida rapida
