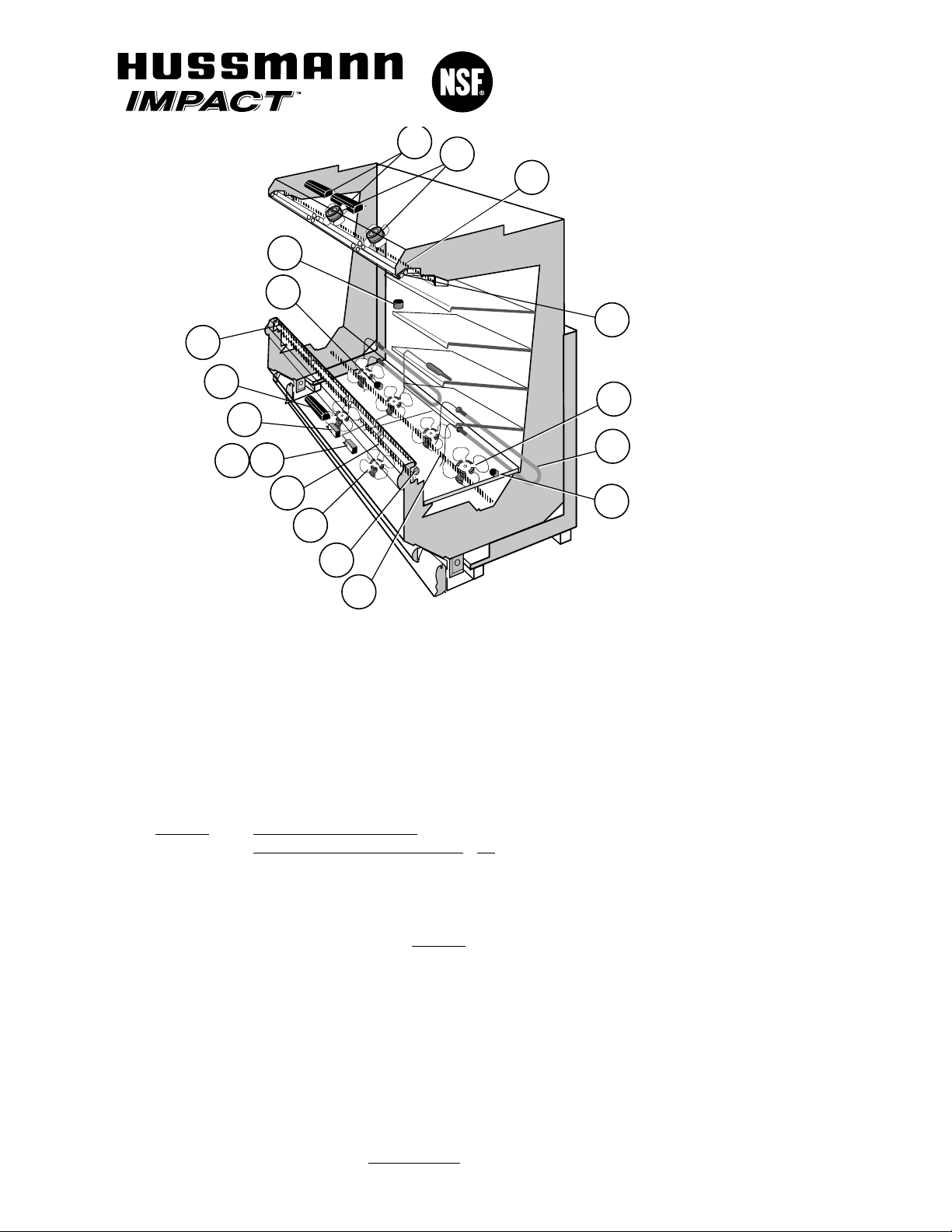

Item Part # Description Wiring Item #

FAN ASSEMBLIES,AND THERMOSTATS

A. Fan Assembly

0047000 Fan Motor, Evaporator (1)

12OV, 9W, CW

0404551 Fan Motor – Muffin,Ambient (2)

12OV, 15W, CW

0302555 Fan Motor, Reversing,

Non-Refrigerated, 12OV, 9W, CW (3)

0xxxxxx Fan Motor,Non-Reversing

Non-Refrigerated,12OV, 6W,CW (3)

A. 0413031 Fan Blade, Evaporator (4)

embossing toward motor, 8 in., 23°, CW

0141070 Fan Blade, Non-Refrigerated (5)

embossing toward motor 8 in., 20°, CW

B. 0121271 Standard Non-Adjustable Bi-metal (6)

Electric Defrost Thermostat

B. 0358566 Optional Adjustable

Gas Defrost Thermostat

C. 0137880 Optional Adjustable (7)

Refrigeration Thermostat

D. 0342599 Reversing Relay, Electric Defrost (8)

0863368 Reversing Pressure Relay, (9)

Gas Defrost

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

E. 0428648 Ballast 2 lamps (10)

E. 0428649 Ballast 3 lamps (11)

F. Fluorescent Lamp (12)

Replace with like fixtures

DEFROST & ANTI-SWEAT HEATERS

G. 0344662 Heater Limit Thermostat (13)

H. 0395709 Defrost Heater-Mod., 220V, 685W (14)

I. 0405733 Defrost Heater - 4 ft (15)

I. 0405734 Defrost Heater - 6 ft

I. 0405735 Defrost Heater - 8 ft

I. 0405736 Defrost Heater -12 ft

J. 0416111 Return Air Heater, 200W - 4 ft (16)

J. 0416112 Return Air Heater, 200W - 6 ft

J. 0416113 Return Air Heater, 300W - 8 ft

J. 0416114 Return Air Heater, 300W -12 ft

K. 0413078 Main Anti-Sweat Heater - 4 ft (17)

K. 0413079 Main Anti-Sweat Heater - 6 ft

K. 0413080 Main Anti-Sweat Heater - 8 ft

K. 0413081 Main Anti-Sweat Heater -12 ft

L. 0416094 Front Rail Heater - 4 ft (Optional) (18)

L. 0416095 Front Rail Heater - 6 ft (Optional)

L. 0416096 Front Rail Heater - 8 ft (Optional)

L. 0416097 Front Rail Heater -12 ft (Optional)

F6/F6L

Data Sheet Set

P/N 0420603C

February, 2002

NSF®Certified

P/N 0420603C

Merchandisers

Note: Changed items have been underlined.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 15 F6/F6L Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

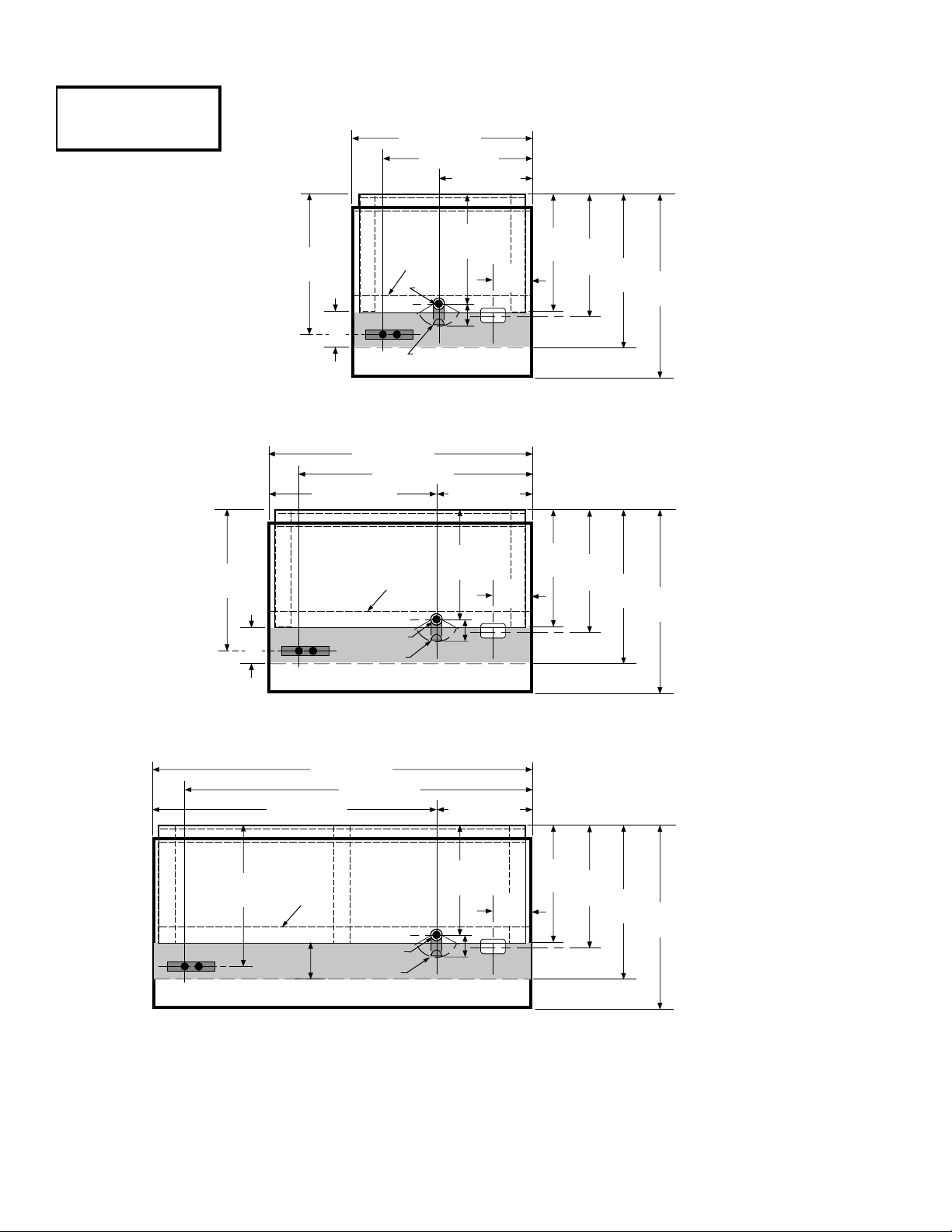

F6/F6L

Engineering

Plan Views

/8 (2245)

/4 (1835)

Elec.

Waste Outlet

(194) 4

(102)

305

(778)

Refrig.

/8 (2448)

Water Seal

(see note)

(1182)

241

8(613)

(699) 29

(749)

(899)

385

(981)

Front Base

Rail

Front

/16

(230)

F6-8

F6L-8

/4 (1632)

/8 (1222)

Elec.

Waste Outlet

(102)

305

(778)

Refrig.

/4 (1835)

Water Seal

(see note)

(1182)

241

8(613)

(699) 29

(749)

3/8

(899)

385

(981)

Front Base

Rail

Front

/16

(230)

F6-6

F6L-6

(194)

/4 (1022)

Elec.

Waste Outlet

4(102)

305

(778)

Refrig.

/4 (1226)

Water Seal

(see note)

(1182)

241

8(613)

(699) 29

(749)

(899)

385

(981)

Front Base

Rail

Front

/16

(230)

F6-4

F6L-4

(194)

Dimensions shown as inches & (mm).

3 of 15

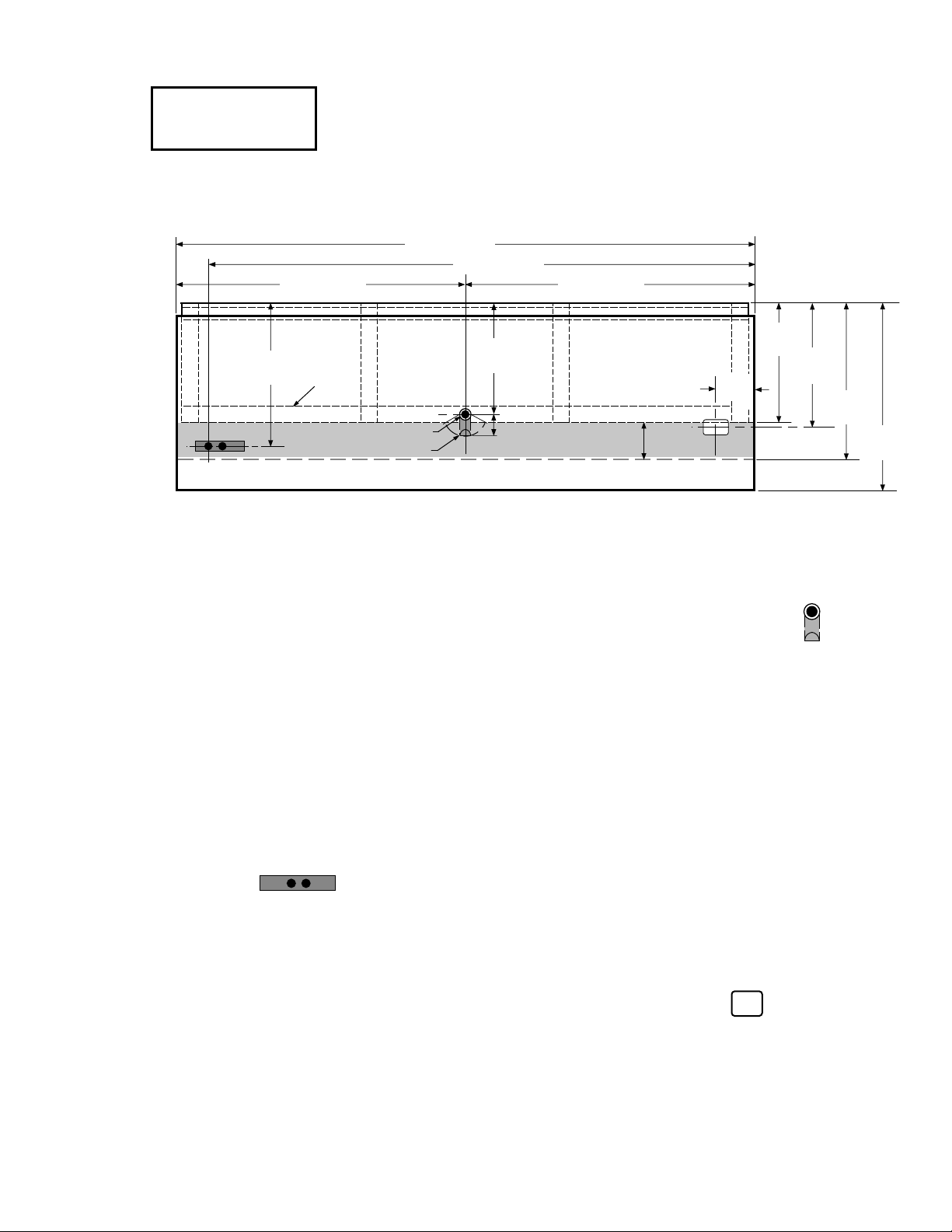

P/N 0420603C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Length of Case: 4 Ft —48 1/4;6 Ft —72 1/4

8 Ft —96 3/8;12 Ft —144 1/2

Maximum O/S dimensions of case back to front

(includes bumper) —46 1/2

Back of case to front of splashguard —38 7/8

Back of case to O/S edge of front skidrail —29 1/4

Width of skidrail —4 1/2

Stub-up area between front skidrail

and splashguard —8

Electrical Service

Right end of case to center of farthest knockout:

4 Ft —40 1/4;6 Ft —64 1/4;

8 Ft —88 3/8; 12 Ft —138 7/8

Back O/S of case to center of

knockout —35 3/8

Waste Outlet and Water Seal

Right end of case to center

of waste outlet:

4 Ft —24 1/8; 6 Ft —24 1/8;

8 Ft —24 1/8; 12 Ft —72 1/4

Left end of case to center of waste outlet:

4 Ft —24 1/8; 6 Ft —48 1/8;

8 Ft —72 1/4; 12 Ft —72 1/4

Back O/S of case to center of

waste outlet —27 1/2

Edge of water seal to center of

waste outlet —4

O/S diamater of drip pipe lines —1 1/2

Note: Water seal outlet must clear front

skid rail. F6 & F6L water seal

rotation in forward direction only,

due to low base.

Refrigeration Outlet

Right end of case to center of

refrigeration outlet —9 1/16

Back O/S of case to center of

refrigeration outlet —30 5/8

1361/2 (3468)

Elec.

Waste Outlet

(194)

(102)

(778)

Refrig.

1441/2 (3670)

Water Seal

(see note)

46 1/2

(1182)

271/2

(699)

291/2

(749)

35 3/8

(899)

(981)

Front Base

Rail

Front

91/16

(230)

72 1/4 (1835) 72 1/4 (1835)

F6-12

F6L-12

Engineering

Plan Views

F6 & F6L

Dimensions shown as inches & (mm).

4 of 15 F6/F6L Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

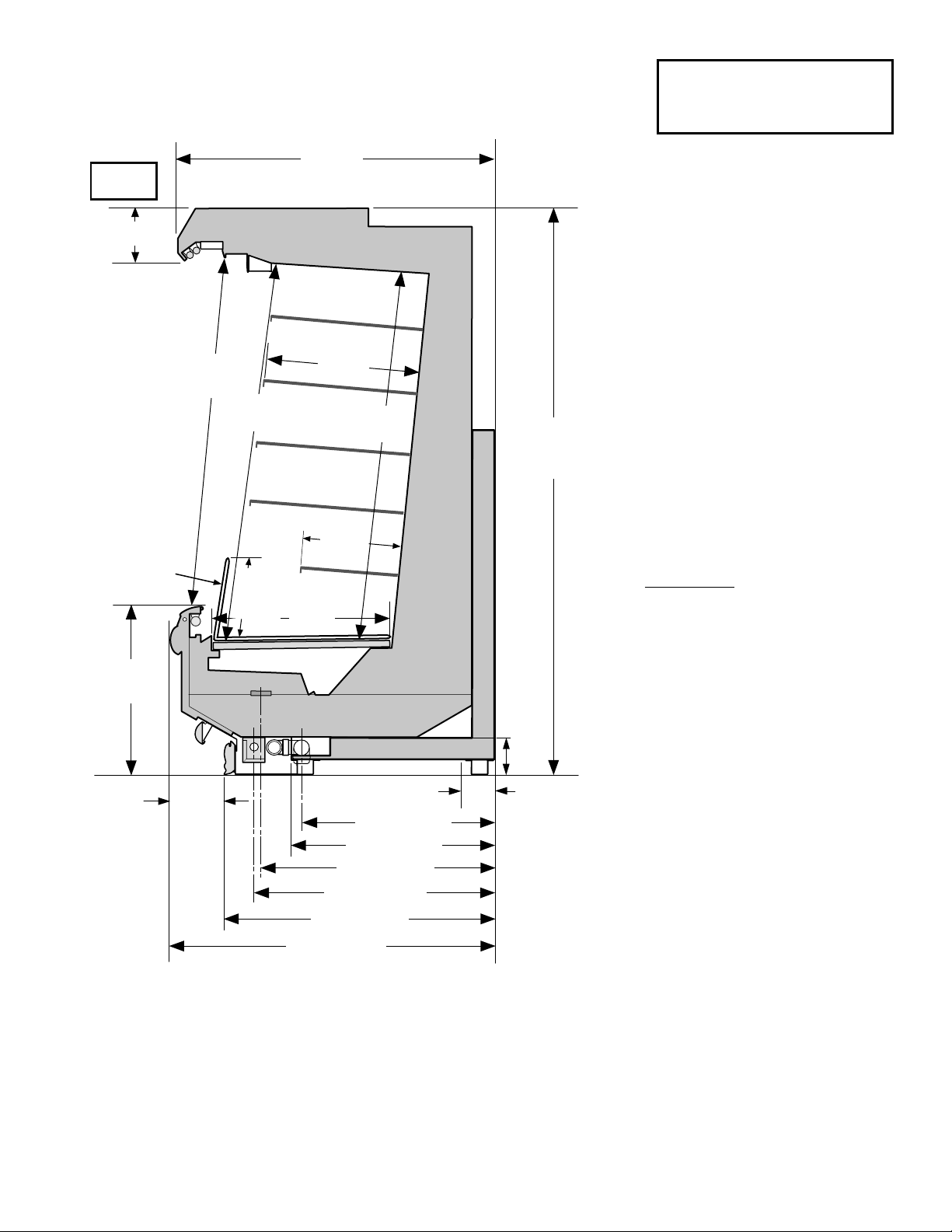

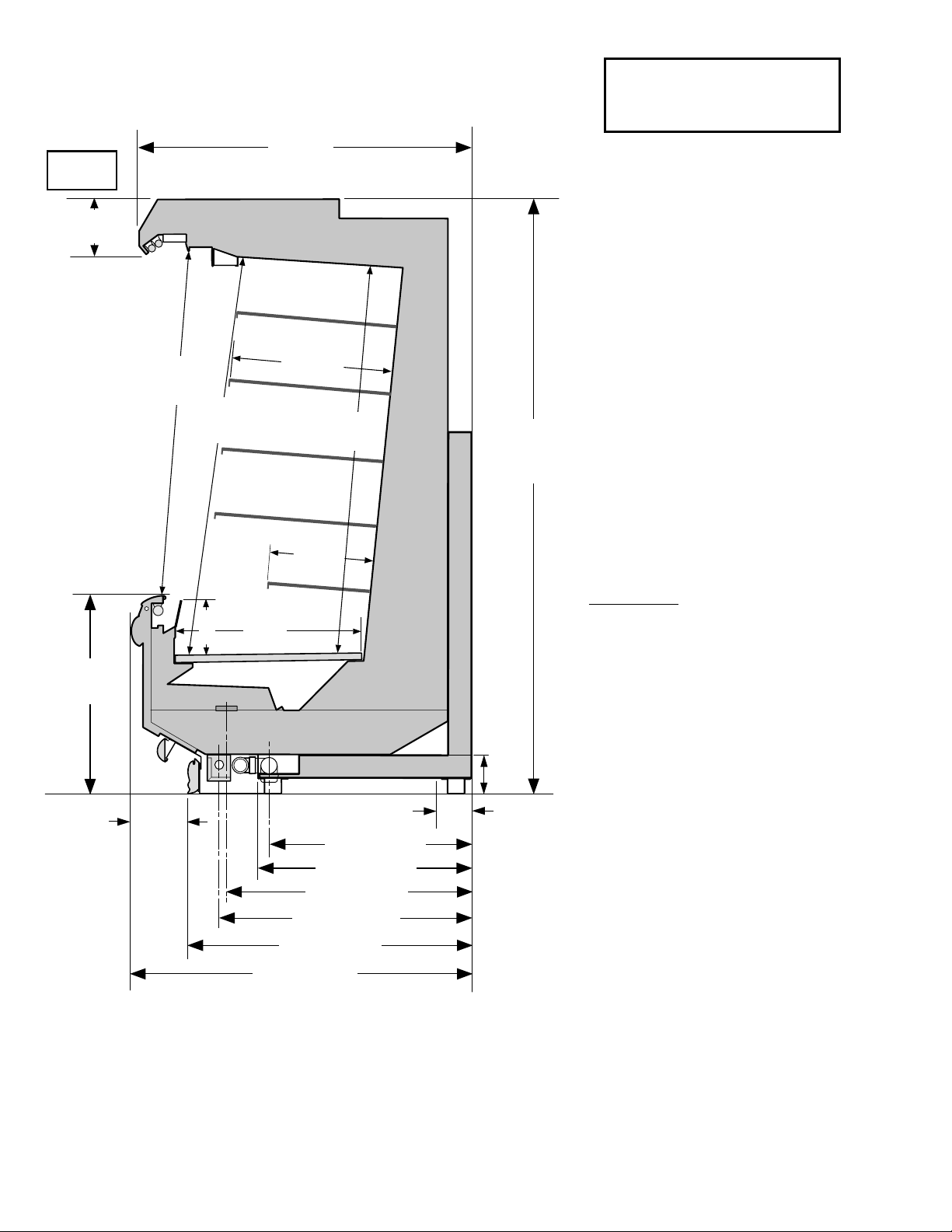

Multideck, 3 Display Levels Impact F6

Multi-Deck Frozen Food

Note :The bumpers are 4 in. wide. The center of the top bumper is 22 1/8 in. from

the floor, and the center of the lower bumper is 6 in. from the floor.

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H.F6 F6*

Discharge Air (°F) –8 –3

Evaporator (°F) –16 –9

Unit Sizing (°F) –19 –12

Btu/hr/ft** F6 F6*

Parallel 1490 1410

Conventional 1570 1485

* = Non-0 Return Code

**For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

Frequency (hr) 12

Defrost Water (lb/ft/day) 8.15

(± 15% based on case configuration and

product loading).

ELECTRIC REVERSE AIR DEFROST

Temp Term (°F) 60°

Failsafe (min) 30

GAS DEFROST

Temp Term (°F) NA

Failsafe (min) 22

OFFTIME NA

CONVENTIONALCONTROLS

Low Pressure Backup Control

CI/CO (Temp °F)*** –20°/ –39°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F) *** 48°

***Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 1 1/8

Estimated Charge (lb)**** F6

4 ft 1.75

6 ft 2.53

8 ft 3.51

12 ft 5.07

****This is an average for all refrigerant

types. Actual refrigerant charge may vary

by approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

(180)

FAN

46 1/4 (1175)

45 5/8

(1159)

41/8

(101)

38 5/8(981)

Refrigeration

Outlet

29 1/2(749)

30 5/8(778)

27 1/2(699)

75/8

(194)

35 3/8(899)

(686)

71/2(191)

(1346) 81 3/16

(2062)

45 5/8

(1159) 55 5/16

(1405)

51/2

(139)

257/8

(657)

(559)

14 (355)

16 (406)

18 (457)

Dimensions are shown as inches & (mm).

NSF Certification: These merchandisers are manufactured to meet

ANSI /National Sanitation Foundation (NSF®) Standard #7 requirements.

5 of 15

P/N 0420603C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Multideck, 3 Display Levels Impact F6L

Multi-Deck Frozen Food

Note :The bumpers are 4 in. wide. The center of the top bumper is 18 1/8 in.

from the floor and the center of the lower bumper is 6 in. from

the floor.

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H.

F6L F6L*

Discharge Air (°F) –8 –3

Evaporator (°F) –16 –9

Unit Sizing (°F) –19 –12

Btu/hr/ft** F6L F6L*

Parallel 1755 1660

Conventional 1850 1750

* = Non-0 Return Code

**For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

F6L

Frequency (hr) 8

Defrost Water (lb/ft/day) 8.56

(± 15% based on case configuration and

product loading).

ELECTRIC REVERSE AIR DEFROST

Temp Term (°F) 60°

Failsafe (min) 30

GAS DEFROST

Temp Term (°F) NA

Failsafe (min) 22

OFFTIME NA

CONVENTIONALCONTROLS

Low Pressure Backup Control

F6L

CI/CO (Temp °F)*** –20°/–39°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F) *** 48°

***Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 1 1/8

Estimated Charge (lb)**** F6

4 ft 1.75

6 ft 2.53

8 ft 3.51

12 ft 5.07

****This is an average for all refrigerant

types. Actual refrigerant charge may vary

by approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

F6L

FAN

46 1/4 (1175)

45 5/8

(1159)

41/8

(101)

38 5/8 (981)

Refrigeration

Outlet

29 1/2(749)

30 5/8(778)

27 1/2(699)

75/8

(194)

35 3/8(899)

(584)

71/2 (191)

81 3/16

(2062)

51/2

(139)

(559)

14 (355)

16 (406)

18 (457)

55 5/16

(1405)

49 5/8

(1260)

12 (305)

6 (152)

2 (51)

25 7/8

(657)

Optional

Bottom

Wire Rack

(1346)

Dimensions are shown as inches & (mm).

NSF Certification: These merchandisers are manufactured to meet

ANSI /National Sanitation Foundation (NSF®) Standard #7 requirements.

6 of 15 F6/F6L Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact F6

Multi-Deck Frozen Food

Electrical Data

Number of Fans per 120V/60hz System4 ft 6 ft 8 ft 12 ft

Main — 9W 2446

Non-Refrigerated — 9W 1223

Ambient — 15W 1223

Merchandiser Amperes Watts

Fans 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Electric Defrost

Standard

Main (Shaded Pole) 1.40 2.80 2.80 3.60 83 167 167 250

Non-Refrigerated (PSC) 0.31 0.62 0.62 0.93 30 60 60 90

Ambient (Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 46 69

Total Standard 1.90 3.80 3.80 5.10 136 273 273 409

Energy Efficient (PSC)

Main (Shaded Pole) 0.52 1.04 1.04 1.56 54 108 108 162

Non-Refrigerated (PSC) 0.31 0.62 0.62 0.93 30 60 60 90

Ambient (Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 46 69

Total Energy Efficient (PSC) 1.02 2.04 2.04 3.06 107 214 214 321

Energy Efficient (ECM)

Main (Shaded Pole Motors) 0.60 1.20 1.20 1.80 34 68 68 102

Non-Refr.(PSC Reverse Motors) 0.31 0.62 0.62 0.93 30 60 60 90

Ambient.(Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 48 69

Total Energy Efficient (ECM) 1.10 2.20 2.20 3.30 87 174 174 261

7 of 15

P/N 0420603C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data (Continued)

Gas Defrost

Standard

Main (Shaded Pole) 1.40 2.80 2.80 3.60 83 167 167 250

Non-Refrigerated (PSC) 0.60 1.20 1.20 1.80 40 80 80 120

Ambient (Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 46 69

Total Standard 2.19 4.38 4.38 5.97 146 293 293 439

EnergyEfficient (PSC)

Main (Shaded Pole) 0.52 1.04 1.04 1.56 54 108 108 162

Non-Refrigerated (PSC) 0.20 0.40 0.40 0.60 20 40 40 80

Ambient (Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 46 69

Total Energy Efficient (PSC) 0.71 1.82 1.82 2.73 97 194 194 311

Energy Efficient (ECM)

Main (Shaded Pole Motors) 0.60 1.20 1.20 1.80 34 68 68 102

Non-Refr.(PSC Reverse Motors) 0.30 0.60 0.60 1.20 17 34 34 51

Ambient.(Two-pole Muffin Fans) 0.19 0.38 0.38 0.57 23 46 46 69

Total Energy Efficient (ECM) 1.09 2.18 2.18 3.57 87 148 148 222

Anti-sweat Heaters

Constant On Anti-sweat Heaters

Min. Circuit Ampacity (Main Divider) 0.75 1.13 1.50 2.30 90 135 180 270

Min. Circuit Ampacity (Return Grill) 0.83 1.25 1.60 2.50 100 150 200 300

Cycling Anti-sweat Heaters Not applicable

TotalAnti-sweat Heaters 1.58 2.38 3.10 4.80 190 285 380 570

Min. Circuit Ampacity

Standard Fans &Anti-sweat Heaters 3.48 6.18 6.90 9.90

Max. Circuit Ampacity

Standard Fans &Anti-sweat Heaters 3.83 6.79 7.59 10.89

Max. Over Circuit Protection 120V 20 20 20 20

120V 1

Supplemental Gas Heaters Not applicable

120V 1

Supplemental Reverse Air Heaters Not applicable

220V 1

Electric Defrost 8.02 13.65 16.01 24.03 1668 2839 3330 4998

T-8 Lighting 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Standard 1 Row Canopy & 1 Row Front Rail 0.74 1.11 1.66 2.50 38 57 86 130

Optional 2 Rows Canopy & 1 Row Front Rail 1.11 1.66 2.50 3.75 58 87 130 195

Impact F6L

Multi-Deck Frozen Food

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 15 F6/F6L Data Sheet Set

Black

Red

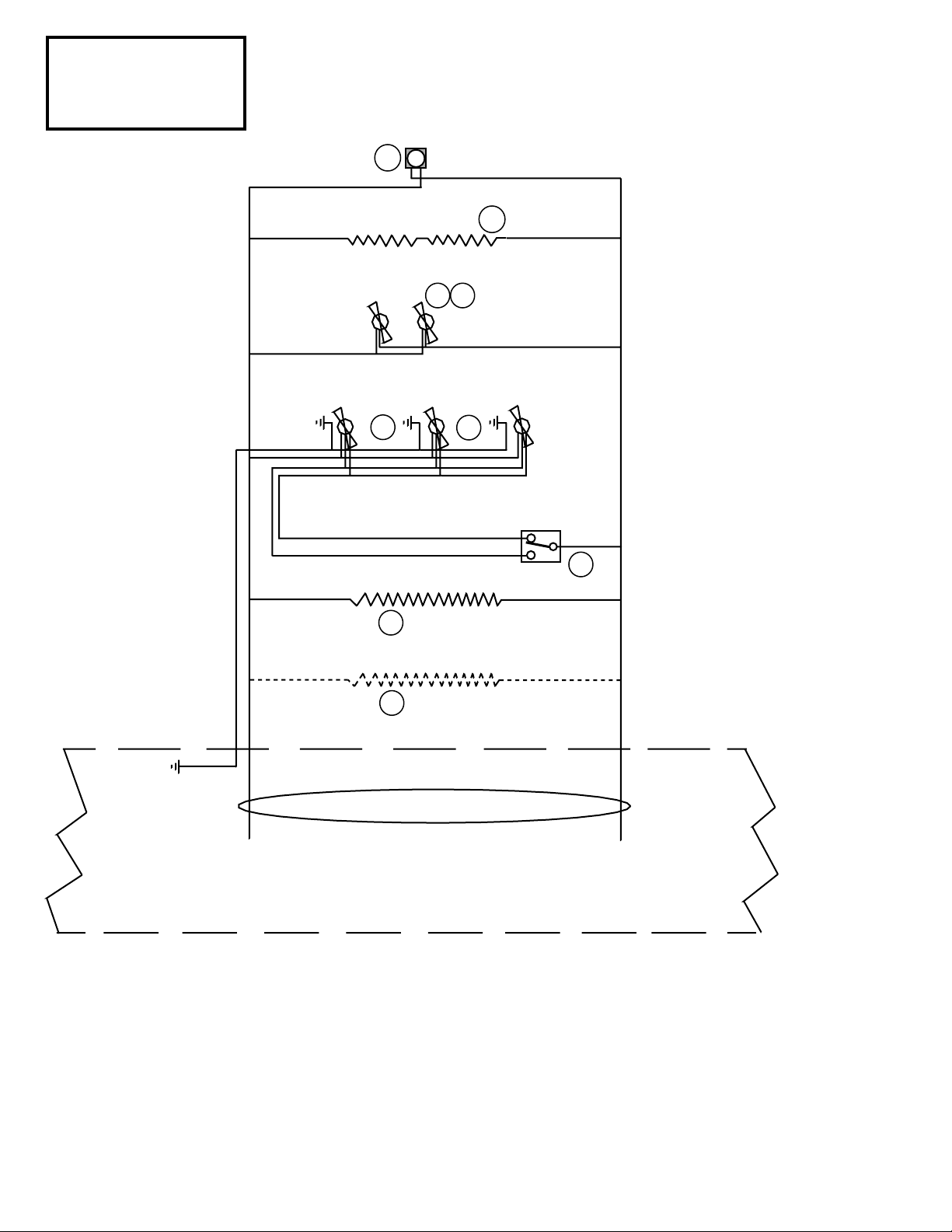

F6 & F6L

4 ft Wiring Diagram

Optional Stainless Steel

Front Rail Heater, 65W

Reversing Non-Refrigerated Fans

Ambient Air Curtain - Muffin Fans

Brown & Purple

Fan and

Anti-sweat Heaters

120V

Neutral 120V

Power

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Electric Defrost

Fan & Anti-Sweat

Heaters

Main Fans

Main Anti-Sweat Heater

(Honeycomb Divider)

100W - 1 pass Tubular Heater

Return Air Heater

90W 4-pass Foil Bond

Brown

9 of 15

P/N 0420603C HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

220V

Holding Coil

220V Power from Defrost Contactor

Reversing Relay

685W each Tubular

U-Shaped Rod Mod. Defrost Heaters

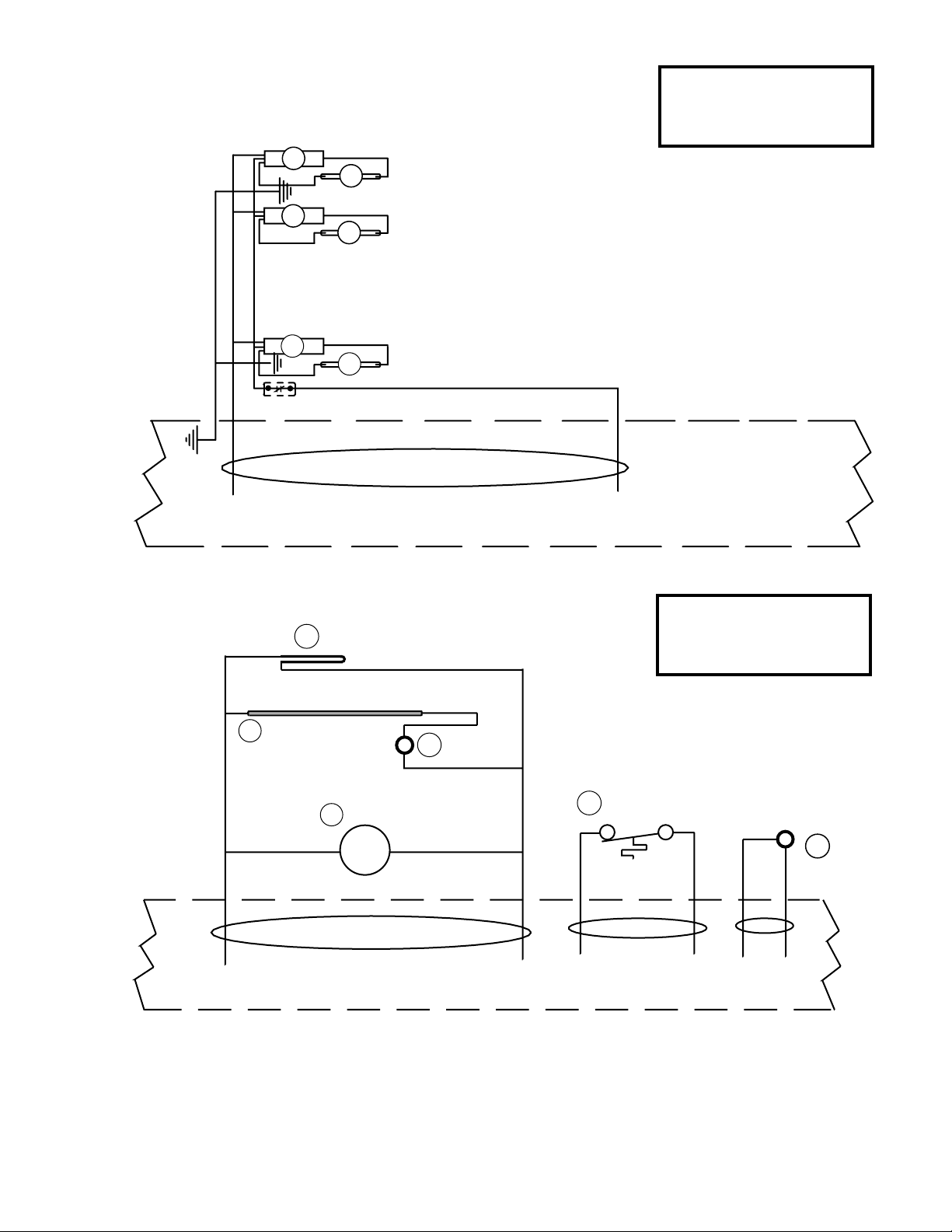

Refrigeration and Defrost Controls

Pink

L-2

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Standard Electric

Light Circuit

Defrost (Rod) Heater

1100W

2Refrigeration

Thermostat

Dark

Blue

Klixon mounted above

left-hand rear coil

Defrost Terminator - 60°

Defrost Circuit

Heater Limit

Thermostat

Standard Electric

Defrost Circuit

Lighting Circuit

Front Rail Light Switch

200W

Orange

120V

Neutral 120V

Power

T-8 ballast mounted in lower raceway

L-1

Red

T-8 Ballast

Ballast mounted next to muffin fans

left and center of canopy area

Lights

10 12

F6 & F6L - 4 ft Wiring Diagram

90°Open

on Rise

10 of 15 F6/F6L Data Sheet Set

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Black

Red 8

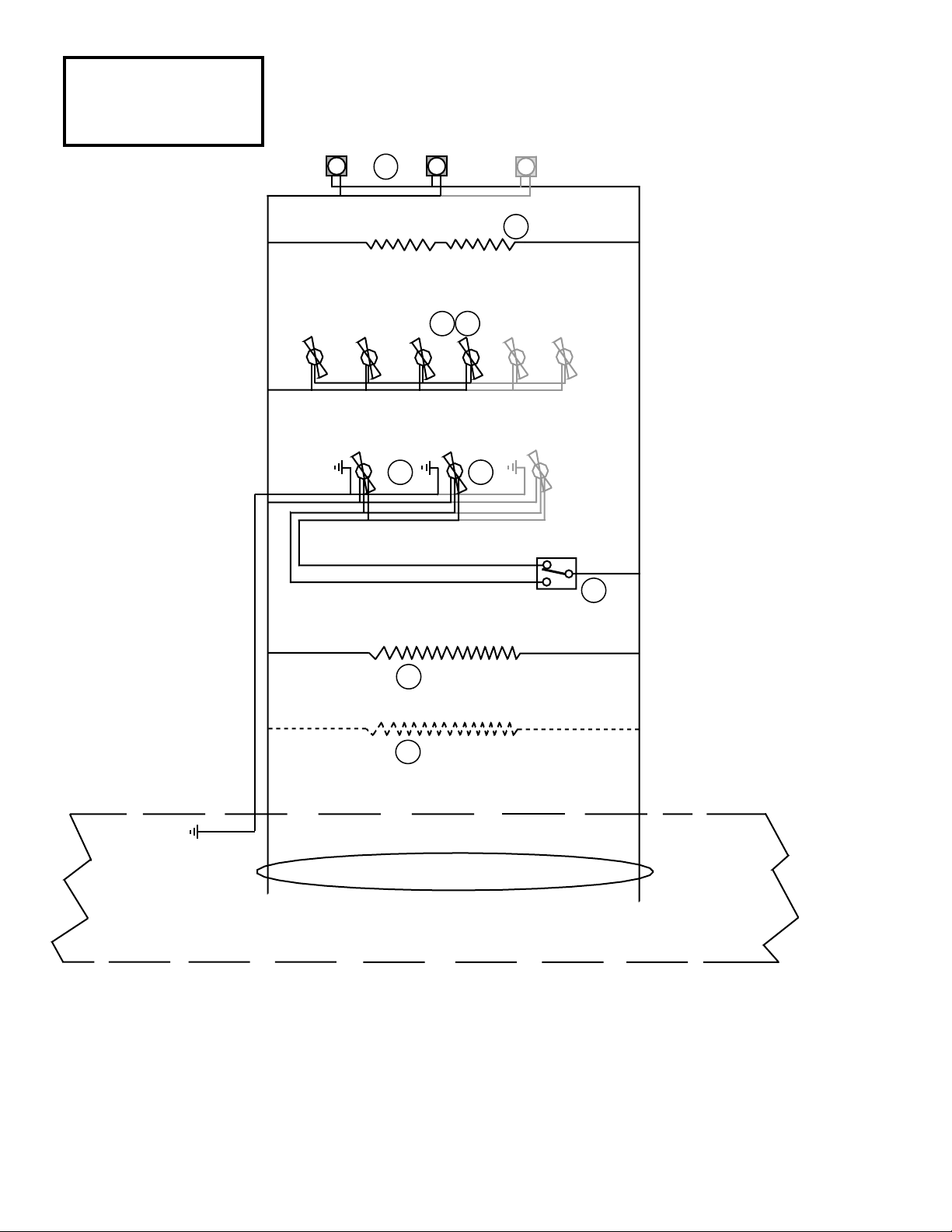

F6 & F6L - 6, 8, &12 ft

Wiring Diagram

Reversing Non-Refrigerated Fans

Ambient Air Curtain - Muffin Fans

Brown & Purple

Fan and

Anti-sweat Heaters

120V

Neutral 120V

Power

Grayed components in 12 ft models only.

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Electric Defrost

Fan & Anti-Sweat

Heaters

Main Fans

12 ft case shown

in gray lines

12 ft case shown

in gray lines

12 ft case shown

in gray lines

18 Optional Stainless Steel Front

Rail Heater 200W -12 ft

150W - 8 ft, 100W - 6 ft

4-pass Foil Bond, 270W -12 ft,

1 pass Tubular Heater, 300W -12 ft

200W - 8 ft, 130W - 6 ft

180W - 8 ft, 120W - 6 ft

Brown

Main Anti-Sweat Heater

(Honeycomb Divider)

Return Air Heater

Altri manuali per Impact F6

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann ASCS Manuale di istruzioni

Hussmann

Hussmann impact Excel C2X-LGE Manuale di istruzioni

Hussmann

Hussmann Impact Excel M5X Manuale

Hussmann

Hussmann microSC MDN4775B1A Manuale utente

Hussmann

Hussmann Excel Supplemento

Hussmann

Hussmann Impact Excel P2X-E Manuale di istruzioni

Hussmann

Hussmann IMPACT Elite ES1S Manuale di istruzioni

Hussmann

Hussmann RI1 Manuale di istruzioni

Hussmann

Hussmann XR75CX Manuale utente

Hussmann

Hussmann SPECIALITY VR3/HV Series Manuale utente

Hussmann

Hussmann RBB Manuale di istruzioni

Hussmann

Hussmann Impact C2-XLE Manuale di istruzioni

Hussmann

Hussmann CR3-F Istruzioni operative

Hussmann

Hussmann IMPACT Elite E3 Manuale utente

Hussmann

Hussmann P/N 0420057_B Manuale utente

Hussmann

Hussmann Impact Excel C6X-LEP Manuale di istruzioni

Hussmann

Hussmann PWWEE Manuale utente

Hussmann

Hussmann Freedom Line series Manuale utente

Hussmann

Hussmann FNGSC-A Manuale utente

Hussmann

Hussmann BCH Manuale utente

Hussmann

Hussmann IMPACT LWEGH Manuale utente

Hussmann

Hussmann Impact P1X49-MOB-B Manuale utente

Hussmann

Hussmann VR3-M Series Manuale utente

Hussmann

Hussmann C2-LE Manuale di istruzioni

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
