Hussmann IMPACT LW Manuale utente
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)
NOTE: Be sure merchandisers have
been leveled according to the
installation instructions. Carefully
unpack and inspect the Wall/Island
Joint Kit, making sure there is no
breakage or damage.
STEPS
1Remove the Bumper so as to
expose the bumper retainer.
2Remove two (2) existing screws
holding bumper retainer to the
vertical brace. Save the screws
for re-insertion later.
3Attach the
Joining Strap – 1 to the bumper
retainer using screws from Step 2
and Screws – 2 provided.
®
Wide Island End Cap (6’) to Wide Island Merchandiser
Joint Kit Instruction
LWE TO LW OR LWU
LWEG TO LWG OR LWUG
For Low Temperature Island Merchandisers
JOINT
JOINT KIT
KIT
PARTS LIST
Item No. Quantity Description
LWE LWEG
1. 8 4Joining Strap
2. 20 12 Hex Head Sheet Metal Screws 8 x1/2
3. 2 2Styrofoam Insulation
4. 1 1Silicone
5. 1 1Gasket 1/2x 1/2x 180
6. 1 1Gasket 1 5/8x 1/2 x 180
7. 1 1 Neoprene Gasket
8. 1 1 Center Flue Joining Bracket (2 Pieces)
9. 2 2 Hex Nut 3/8x 24
10. 4 2Cap Screw5/16-18 x 1
11. 4 2Lock Washer Split Steel;5/16
12. 4 2 Flat Washer 5/16
13. 4 2Hex Nut 5/16 - 18
14. – 2Cover — Glass Post End
15. 12 10 Screw Phillips Sheet Metal 8 x 1/2
16. 2 2Nosing Joint Trim
17. 1 1Nosing Joint Trim Center
18. 2 – Nosing Joint Side Trim
Splashguard Brackets
MUST BE INSTALLED
Before Piping Case.
NOTE:
Refer to the Installation
Manual to install
splashguard brackets.
Remove Bumpers At Circled Locations
Exposing
Bumper
Retainers
LW
LWE
Bumper
Retainer
Figure 1. Removing the Bumpers
Figures 2 and 3. Removing Bumpers, Existing Screws,
and Installing Joining Strap
Re-insert Screws
LWE
LW or LWU
2
Joining
Strap
1
LWE
1
Retainer
March, 1998
P/N 0398652A
2
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)
4Install the
Styrofoam Insulation – 3, by
applying Silicone – 4 to one
side of styrofoam. Place the
styrofoam filler into the corner
created by flat foam assembly
and bottom. Push until the sil-
icone makes contact with the
case causing the styrofoam to
stay in place.
NOTE: APPLY GASKET TOONE
CASE ONLY.
5Apply Gaskets – 5 and 6
as shown in Figure 5.
• Remove paper backing as
gasket is applied.
• Lap gaskets at lower corners.
• Check that there are no gaps
between gasket and the
merchandiser.
• Do not stretch gasket,
especially around corners.
• Do not butt gaskets; always
overlap joints.
Merchandisers
fi
P/N 398652A
LW
SOLID
5
LWG
GLASS
6
5
6

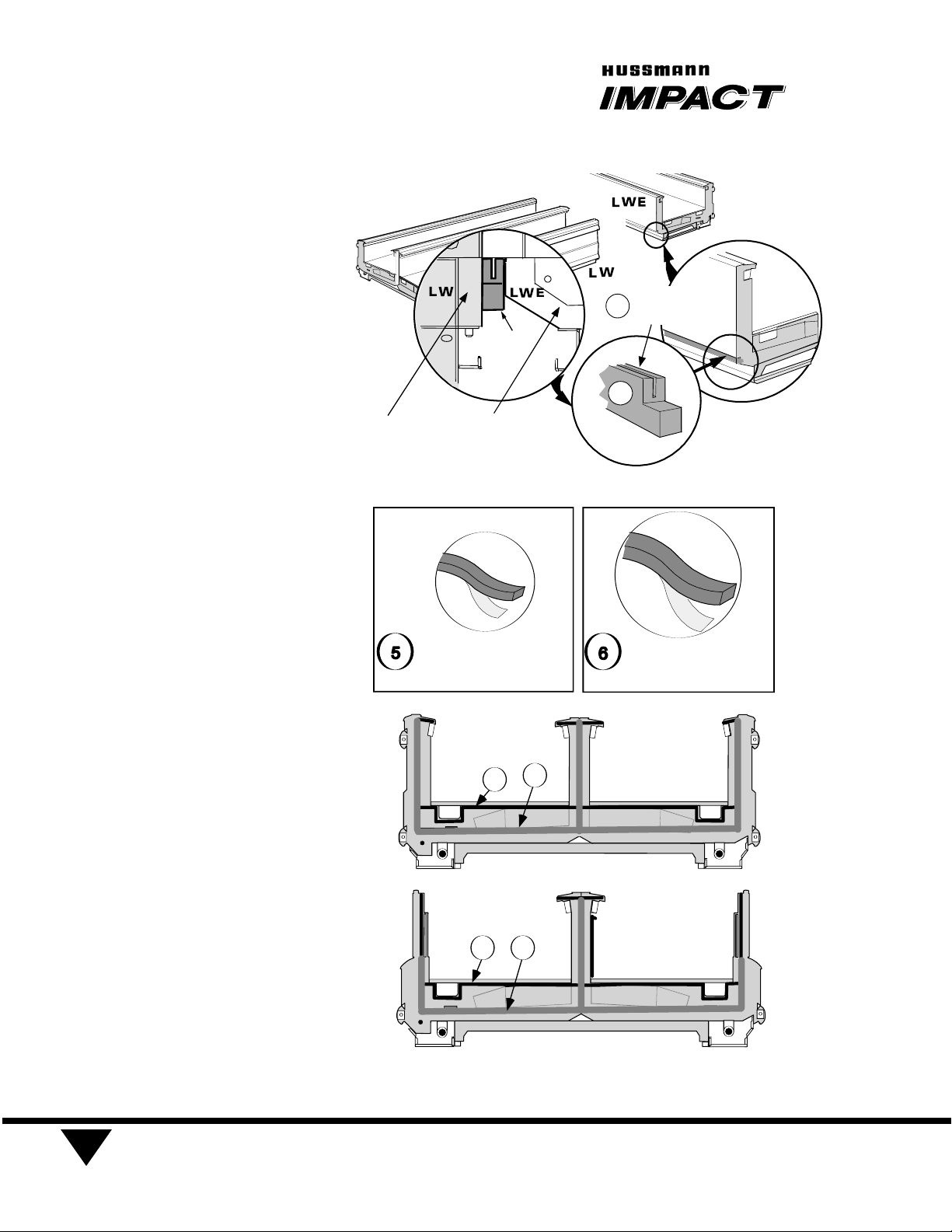

Figure 5. Installing Gasket Solid and Glass
Apply
Silicone
This Side
3
4
Styrofoam
Insulation
Styrofoam
Insulation
Apply
Styrofoam
Insulation here
Bottom Foam
Assembly
LWE(G)
Bottom Foam
Assembly
LW(G) or LWU(G)
Figure 4. Installing Styrofoam Insulation
Solid
Glass
1/2X1/2X180 15/8X1/2X180
FoamTape Gasket FoamTape Gasket
6A. Place one half of the
Center Flue Joining
Bracket – 8 over stud on the
back of the LWE case.
B. Apply strip of
Neoprene – 7 over the stud
and onto the bracket half that
was just installed.
C. Place the other half of the
Center Flue Joining
Bracket – 8 over the stud
and onto the Neoprene.
D. Fasten the Joining brack-
ets and Neoprene together
using Hex Nut – 9, see
Detail A.
7Move Wide Island End Cap
(LWE) against Wide Island
(LW), see Figure 6.
3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)
LWE TO LW OR LWU
LWEG TO LWG OR LWUG JOINT KIT
P/N 0398652A
LW
LWE
Figure 6. Moving the CasesTogether
Neoprene
Studs
Detail A.
Center Flue Joining Bracket
8Begin Fastening the cases
together at the Joining
Straps – 1, starting at the
bottom first.
9Fasten the joining straps
together using,
Cap Screw – 10
Lock Washer – 11
Flat Washer –12and
Hex Nut – 13.
10 Fasten the Joining Bracket
to the side of the Wide
Island Center Flue using
Screws – 2 (see Figure 8,
Detail B).
NOTE: Refer to the
Installation Instruction
to install the splash-
guard brackets.
4HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)
Merchandisers
fi
1
1
LW(G)
GLASS
LW
SOLID
1
1
11
10
12
1
13
Figure 7. Installing and Fastening
Joining Straps to Cases
P/N 398652A
LWE
LW
2
Figure 8. Fastening the Cases at the Center Flue
Detail B.
LWG
LW
GLASS
IFINSTALLING GLASS
CASES
11 Install the Glass Post End
Cover – 14, using
Screws – 15.
12 Install Plastic Top Rails.
Make sure to offset
joints from case joints
(see Figure 9).
13 Use Screws – 15 to attach
Trims – 16, 17 and 18,
at the locations shown in
Figure 10, Details C and D.
5
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 (Print d in U.S.A.)
P/N 0398652A
LW G
LW EG
15
14
Top Rail
15
LW
SOLID
16
16
16
17
17
15
LWG
GLASS
18
18
17
15
CENTER
16
SIDES
18
15
Figure 9. Installing Glass Cover-Post End andTop Rails
Figure 10. InstallingTrims
LWE TO LW OR LWU
LWEG TO LWG OR LWUG JOINT KIT
Detail C.
Detail D.
LWEG
LWG
