Merchandisers

P4EPLUS

Data Sheet Set

P/N 0457240A

NSF®Certified

March 2005

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0380485 Fan Blade

embossing toward motor

B. 0137880 Optional Adjustable (2)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. 0428648 Ballast 2 lamps (3)

0428649 Ballast 3 lamps (3)

D. Fluorescent Lamp (4)

Replace with like fixtures

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4EPLUS Data Sheet

Electrical Refrigeration

72 1/4(1835)

4 1/8(105)

24 1/8(613) 5 1/2(140)

1 3/8(35)

4 1/2(114)

29 1/2

(749)

35 1/8

(891)

46 1/4

(

1174)

(230)

30 5/8

(778)

27 1/2

(699)

40 5/8

(1032)

4 (102)

Water Seal

(See Note*)

Waste Outlet

4(102)

40 5/8

(1032)

30 1/2

(775)

96 3/8(2448)

88 3/8(2245)

Dimensions shown as inches and (mm).

8 Ft 12 ft

General

Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimensions of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 35 1/8 (891) 35 1/8 (891)

Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)

Width of skidrail 4 1/2 (114) 4 1/2 (114)

Right end of case to outside edge of external support 5 1/2 (140) 5 1/2 (140)

Distance between inside edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between inside edges of center supports NA 44 (1118)

Width of external support 4 1/8 (105) 4 1/8 (105)

Stub-up area between front skidrail and splashguard 4 (102) 4 (102)

Right edge of case (excluding end) to inside edge of external support 1 3/8 (35) 1 3/8 (35)

Electrical Service

Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back outside of case to center of knockout 30 1/2 (775) 30 1/2 (775)

Length of electrical raceway 34 1/2 (778) 34 1/2 (778)

Waste Outlet

Right end of case to center of waste outlet 24 1/8 (613) 72 1/4 (1835)

Left end of case to center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back outside of case to center of waste outlet 27 1/2 (699) 27 1/2 (699)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)

*Note: Water seal outlet must clear front skid rail.

Refrigeration Outlet

Right end of case to center of refrigeration outlet 9 (230) 9 (230)

Back outside of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

Engineering

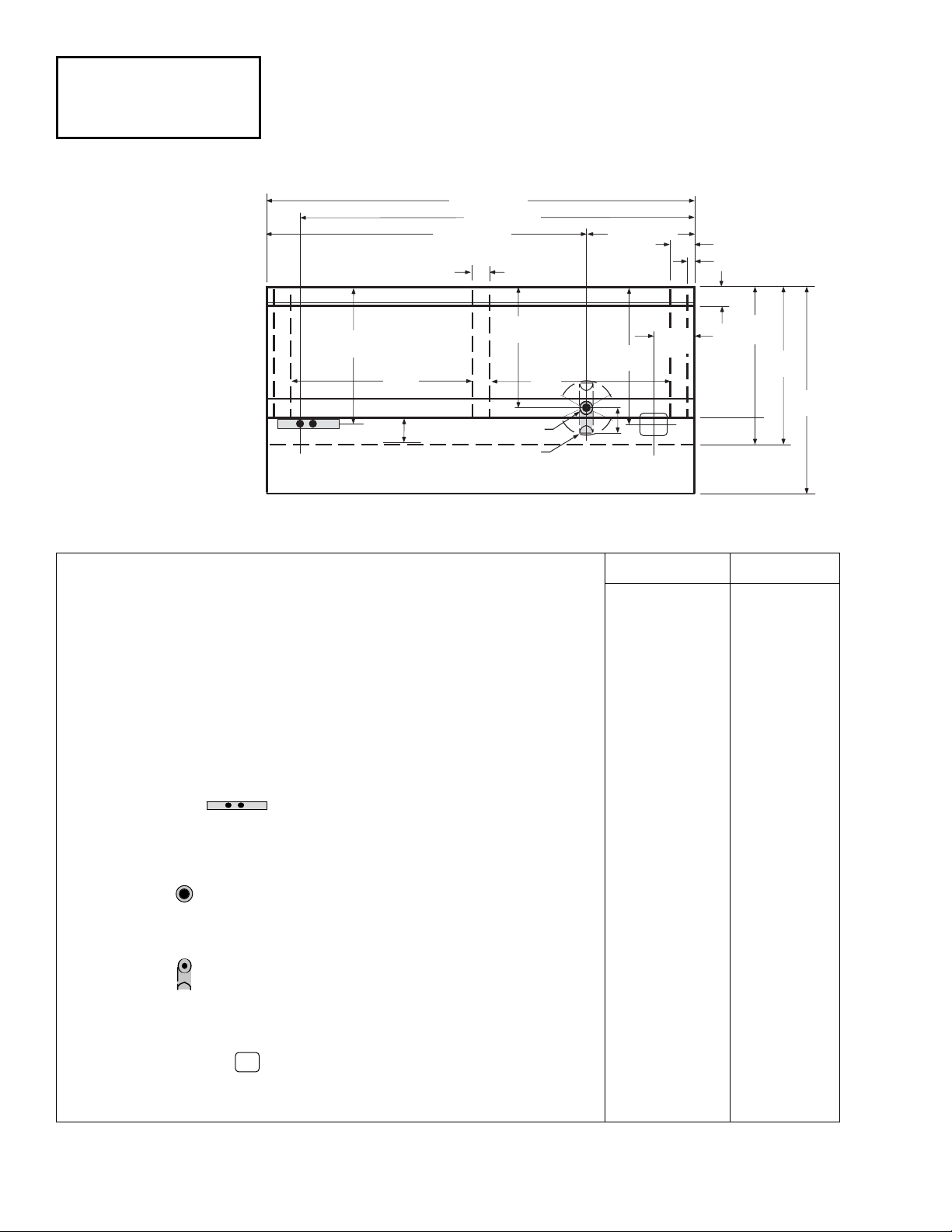

Plan View

Produce

12-2003

P/N 0457240A 3 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

7 1/2

(152)

(1295)

38 1/8

(969)

3 1/8 (79)

81 1/8

(2061)

53 3/4

(1365)

30 1/8

765)

6 1/2 (165)

53 1/8

(1360)

12 5/8

(319)

4(102)

27 1/2 (699)

(102) 4 1/2 (114)

29 1/2 (749)

35 1/8 (891)

46 1/4 (1174)

26 1/4

(670)

FAN

P4EPLUS

21 1/2

(545) 12 3/4

(322)

Impact P4EPLUS

All Produce

Multi-deck, 2 Display Levels

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

MODULAR

PRODUCE

P4EPLUS UNLIT LIT INSERT*†

Discharge Air °F 33 31 33

Evaporator °F 30 28 30

Unit Sizing °F 28 26 28

* All display levels must use baffles.

Btu/hr/ft** UNLIT LIT INSERT

Parallel 1275 1315 1160

Conventional 1390 1435 1265

**For all refrigeration equipment other than

Husssmann, use conventional BTU values.

DEFROST DATA

P4EPLUS

Frequency (hr) 6

Defrost Water (lb/ft/day) 9

(±15% based on case configuration and

product loading.

OFFTIME P4EPLUS

Time (minutes) 30

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

P4EPLUS

CI/CO*** 21/11°F

Indoor Unit Only, Pressure Defrost

Termination*** 48°F

***Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lbs)****

P4EPLUS

8 ft 3.7

12 ft 5.1

****This is an average for all refrigerant

types actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup

by Each End or Insulated

Partition 1 1/2

† This is test data for one third-party insert. Contact your Hussmann representative

for further information.

4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P4EPLUS Data Sheet

Impact P4EPLUS

Bulk Produce

Electrical Data

8 Ft 12 Ft

Number of Fans — 6W 2 3

Amperes Watts

Merchandiser 8 Ft 12 Ft 8 Ft 12 Ft

Fans

Standard (120V 60Hz) 2.80 4.20 210 320

Energy Efficient (120V 60Hz) 1.52 2.28 100 150

Export (230V 50Hz) 1.52 2.28 228 342

Constant on Anti-sweat Heaters NA

Cycling Anti-sweat Heaters NA

Min. Circuit Ampacity

With Standard Fans (120V 60Hz) 3.00 4.40

Export (230V 50Hz) 1.72 2.48

With Energy Efficient Fans (120V 60Hz) 1.72 2.48

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

3 Rows of Shelves 1.53 2.31 177 255

P/N 0457240A 5 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

=120V POWER =120V NEUTRAL =FIELD GROUND =CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

P4EPLUS Data Sheet

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Standard Lighting — 1 Row Canopy (Standard on Multi-deck)

Light Circuits

Optional Lighting — 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

Optional Lighting — 1 Row Rail

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

444

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

444
