Q1 DC Wedge

Technical Data Sheet

Rev A

ecialt

Products

Q1 DC Wedge

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 26

Evaporator (F) 20

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

45° IS

tu/hr/Tota

Parallel 1200

Conventional 1380

45° OS

tu/hr/Tota

Parallel 1000

Conventional 1150

22.5° IS

tu/hr/Tota

Parallel 1200

Conventional 1380

22.5° OS

tu/hr/Tota

Parallel 1000

Conventional 1150

90° OS

tu/hr/Tota

Parallel 2000

Conventional 2300

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 6

OFFTIME

Temp Term °F 54

Failsafe Minutes 40

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types.

Actual refrigerant charge may vary by approximately

half a pound.

GLYCOL REQUIREMENTS

GPM PSI

NA NA

ETL Listed

40427

ETL Sanitation

40427

2 of 8

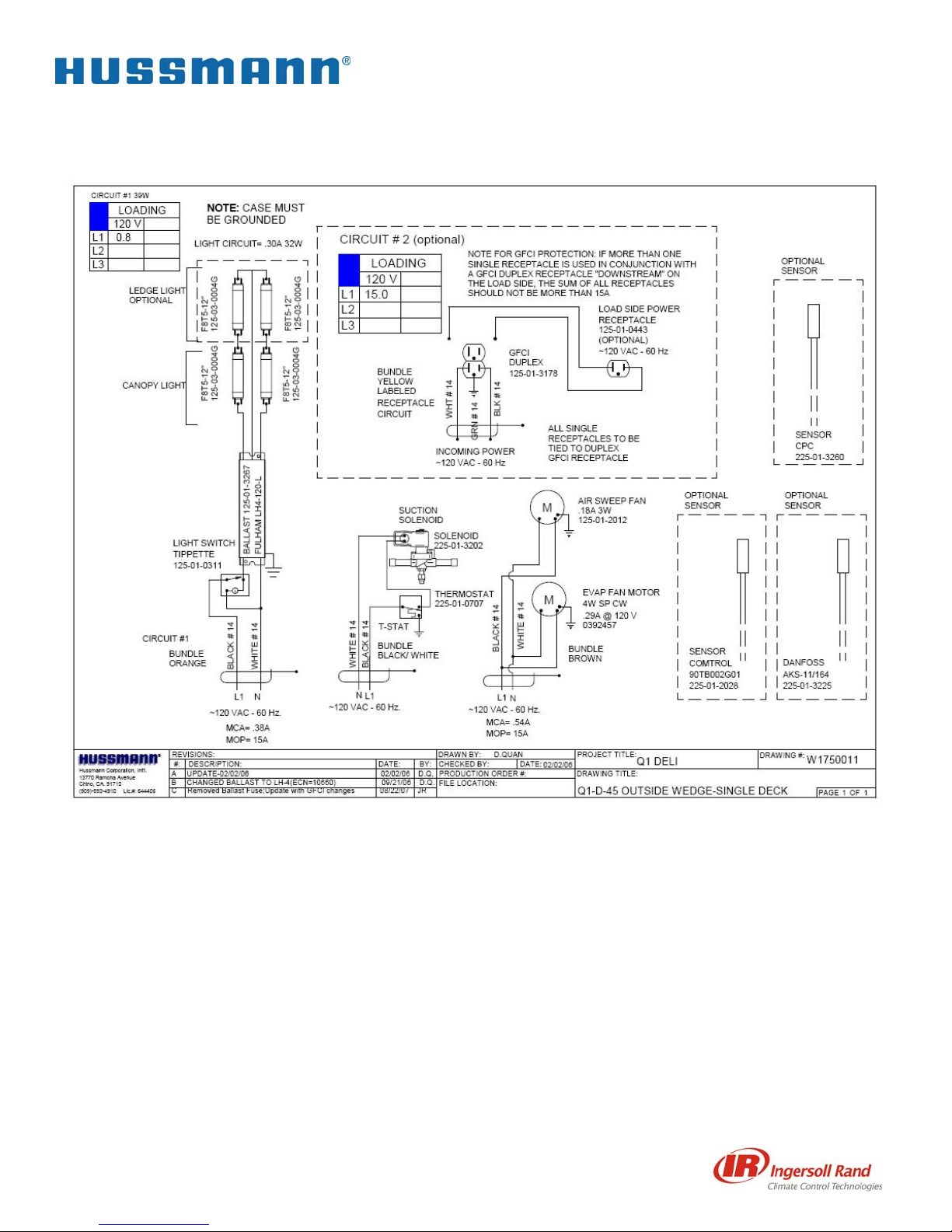

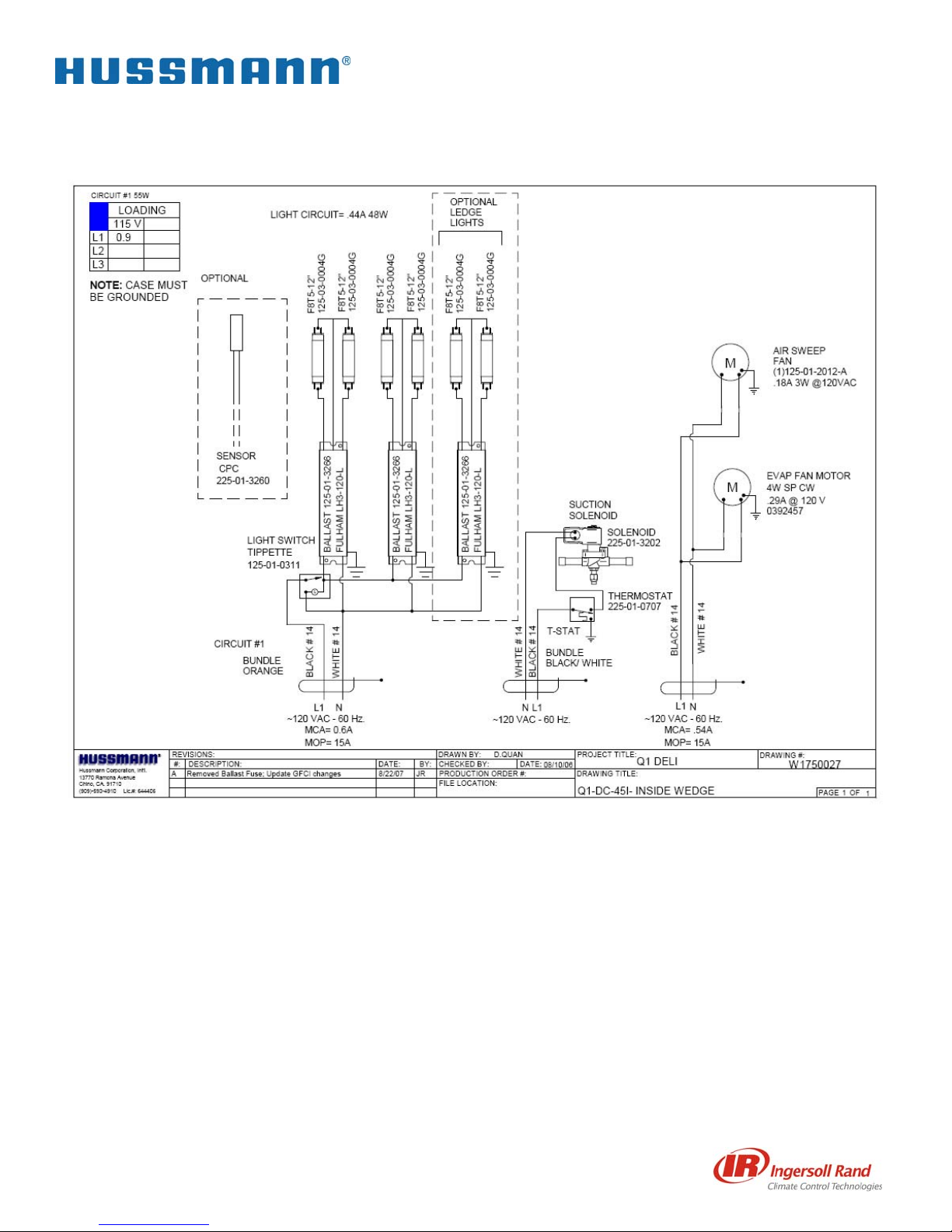

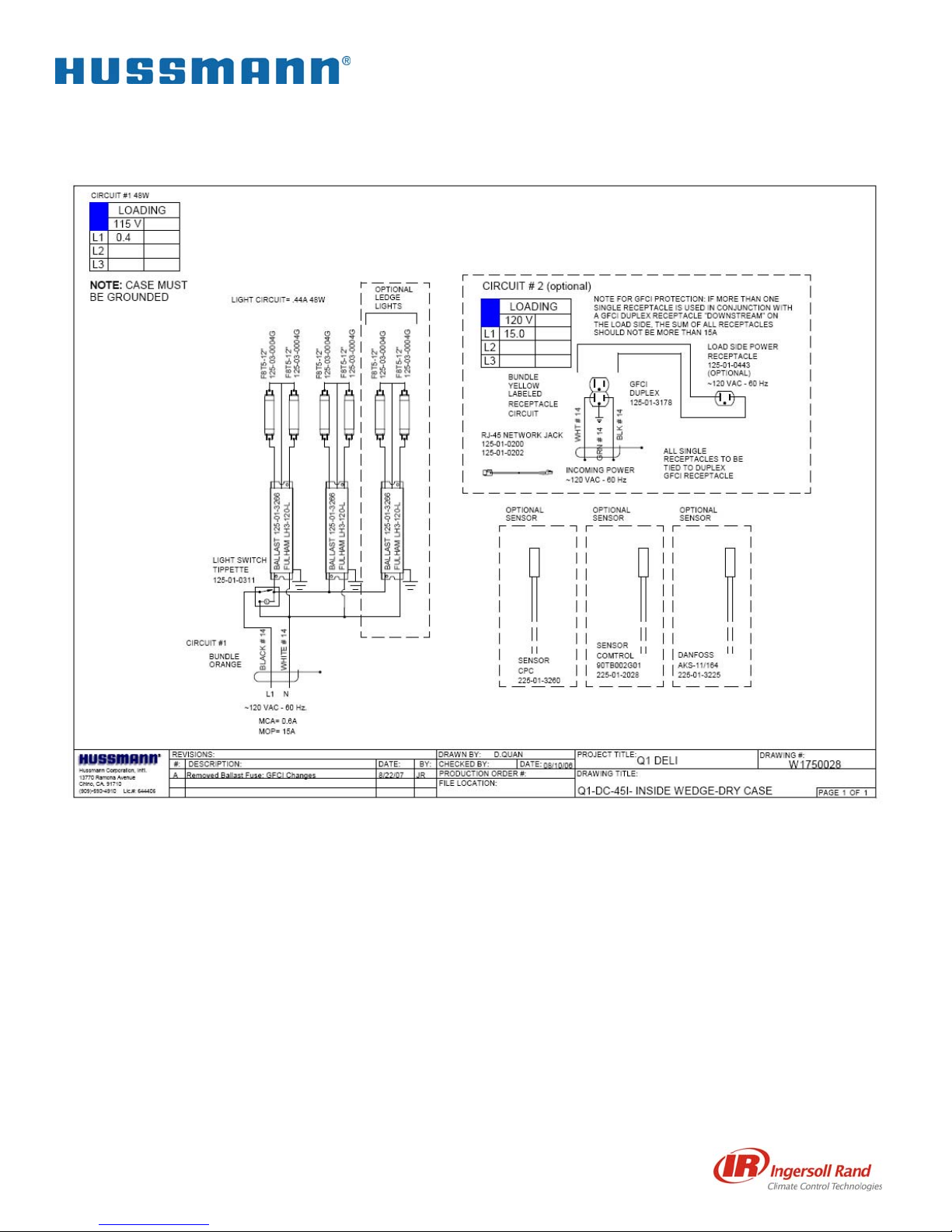

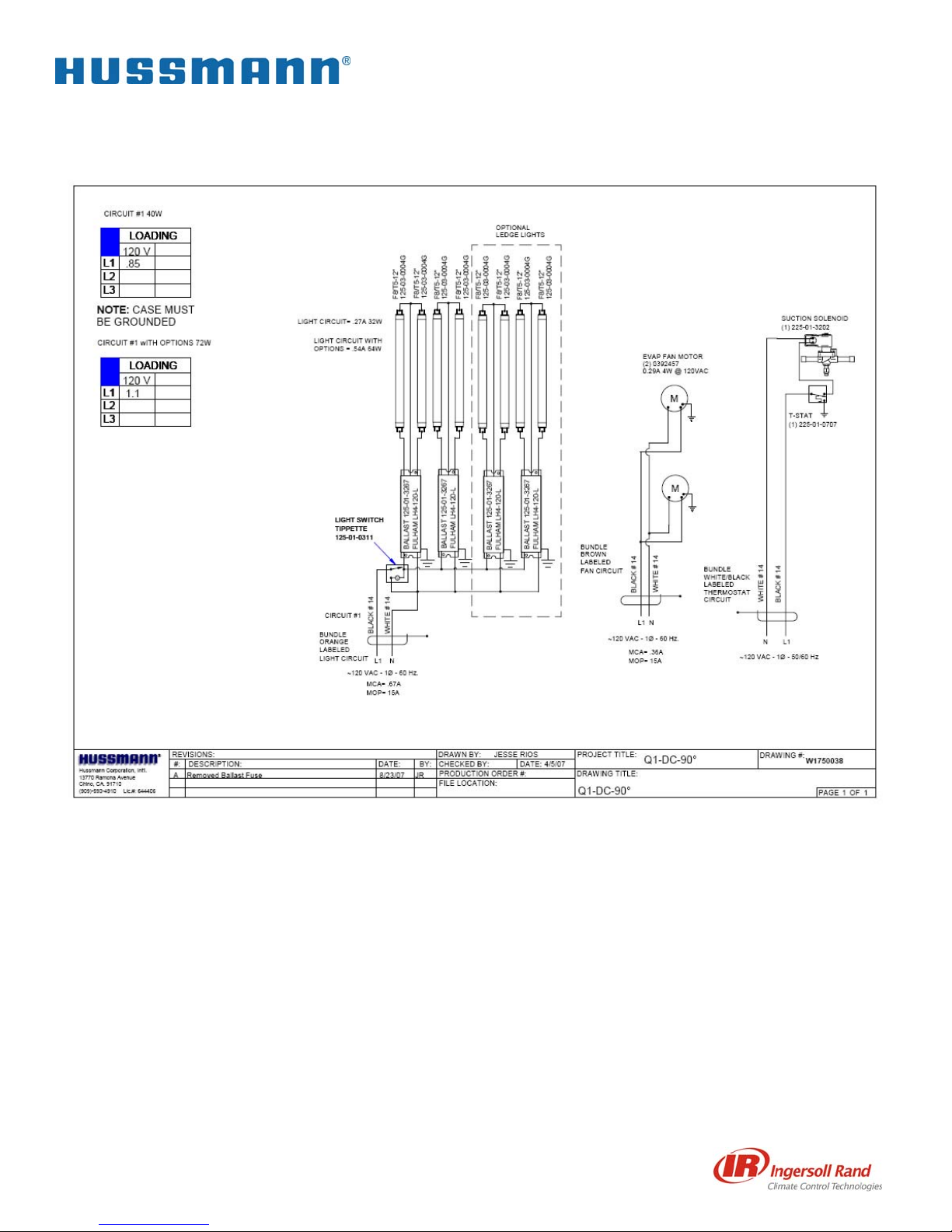

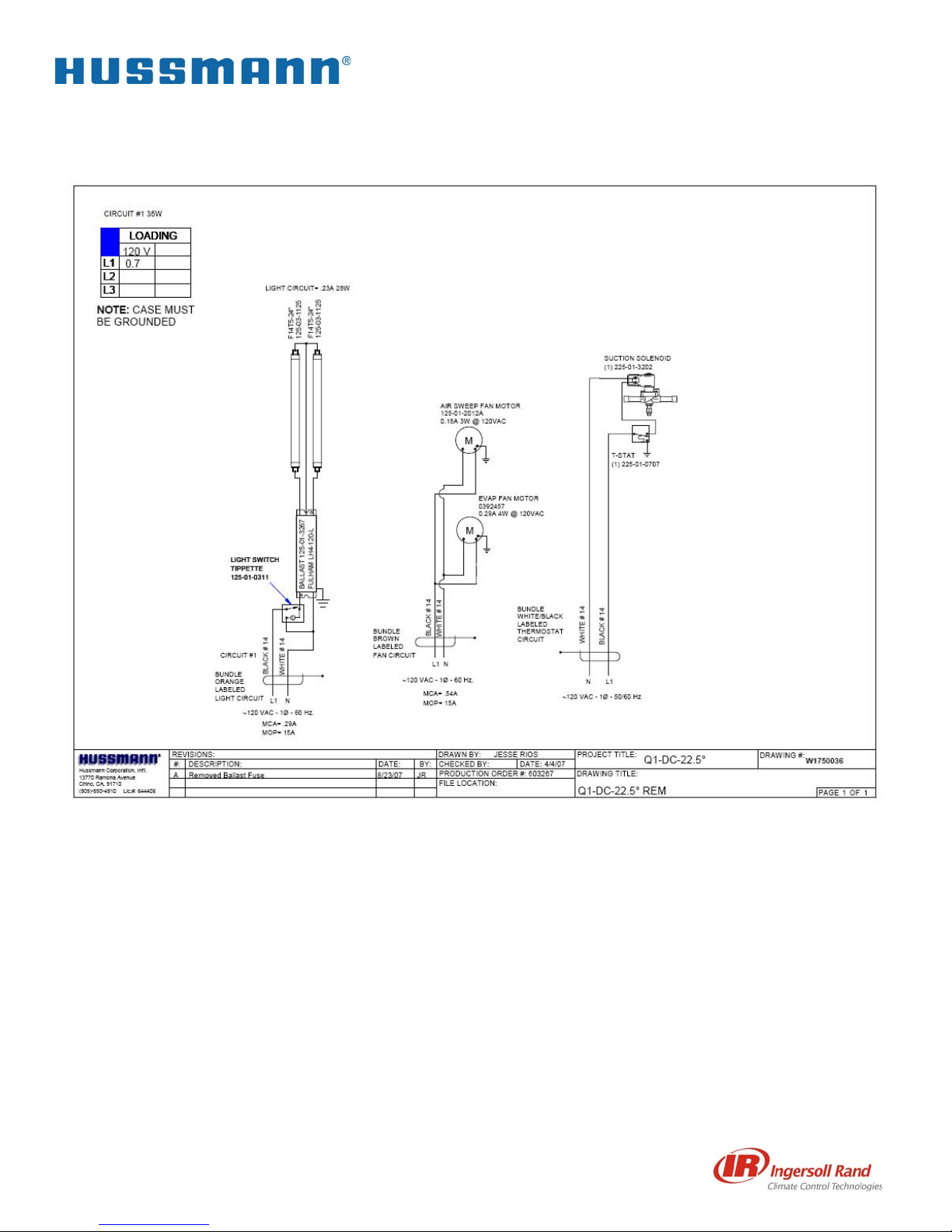

Q1 DC Wedge

Technical Data Sheet

Rev A

ecialt

Products

Q1 DC Wedge

Engineering

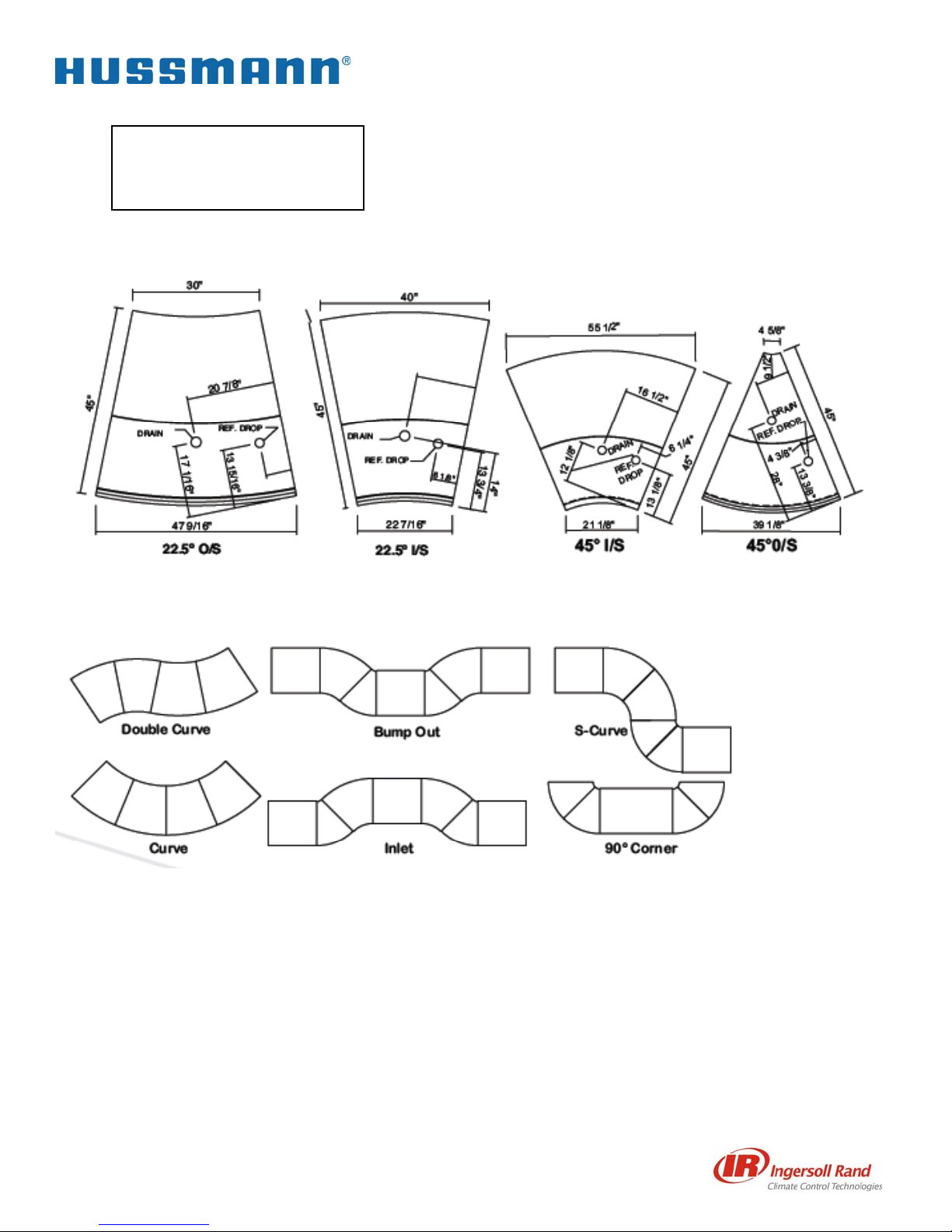

Plan View
