Hussmann SMBT Manuale di istruzioni

T'Stat Bulb

Location

(Optional

Lights)

P/N 0420063_B

Merchandisers

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 0392457 Fan Motor, Evaporator (120V) (1)

(MO.4410101)

0409512 Fan Blade (120V) (FB.0409512)

embossing toward motor

0436517 Fan Motor, Evaporator (220V)

(MO.4410105)

0409513 Fan Blade (220V) (FB.0409513)

embossing toward motor

B. 0404551 Fan Motor, Ambient (120V) (2)

(MO.0404551)

0404552 Fan Motor, Ambient (220V)

(MO.4410590)

C. 0382028 Standard Non-adjustable (3)

Defrost Thermostat

(CT.0382028)

D. 0137880 Optional Adjustable (4)

Refrigeration Thermostat

(CT.4481084)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

E. 0355716 Ballast, Electronic, 2 lamps

(120V) (BA.0355716) (5)

E. 0355398 Ballast, Electronic, 3 lamps

(120V) (BA.4480118) (6)

E. 0440215 Ballast, Electronic, 2 lamps

(230V 50-60 Hz) (BA.4481267) (5)

E. 0428652 Ballast, Electronic, 3 lamps

(230V 50-60 Hz) (BA.4480897) (6)

0385104 Ballast Transformer

(230V 50-60 Hz, per ballast)

(TR.4481191)

F. Fluorescent Lamp (7)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

SMBT

Technical Data Sheet

P/N 0420063_B

NSF®Certified

January 2007

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. SMBT Technical Data Sheet2 of 6

(See Note*)

255

(651)

5/8

(651)

Legs

283

(730)

Front

Refrigeration

Outlet

Water Seal

Waste Outlet

Leg Center Lines

Electrical

5/8

(1133)

333

(849)

(See Note**)

SMBT

SMGT

SSGT

Dimensions shown as in. and (mm).

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length 48 1/4 (1226) 72 1/4 (1835) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front 44 5/8(1134) 44 5/8(1134) 44 5/8(1134) 44 5/8(1134)

(Note: Includes bumper)

Back of case to front of splashguard 33 3/8(848) 33 3/8(848) 33 3/8(848) 33 3/8(848)

Center of rear legs to center of front legs 25 5/8(651) 25 5/8(651) 25 5/8(651) 25 5/8(651)

Each End and Partition adds 1 1/2in. (38 mm) to the length of the lineup.

Electrical Service

(B) RH end of case to Electrical raceway right edge 7 (178) 7 (178) 7 (178) 7 (178)

Back of case to center of knockout 3 5/8(92) 3 5/8(92) 3 5/8(92) 3 5/8(92)

* Electrical Field Wiring Connection Point

Waste Outlet

(D) RH end of case to the center of waste outlet 24 (610) 24 (610) 24 (610) 24 (610)

Back of case to center of waste outlet 25 5/8(652) 25 5/8(652) 25 5/8(652) 25 5/8(652)

Water Seal

Center of tee to center of waste outlet 11 3/8(289) 11 3/8(289) 11 3/8(289) 11 3/8(289)

Outside diameter of drip piping 1 1/2(38) 1 1/2(38) 1 1/2(38) 1 1/2(38)

** Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.

Refrigeration Outlet

Back of case to center of refrigeration outlet 28 3/4(731) 28 3/4(731) 28 3/4(731) 28 3/4(731)

(E) RH end of case to center of refrigeration outlet 9 3/8(238) 9 3/8(238) 9 3/8(238) 9 3/8(238)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 5/8(16) 5/8(16) 5/8(16) 5/8(16)

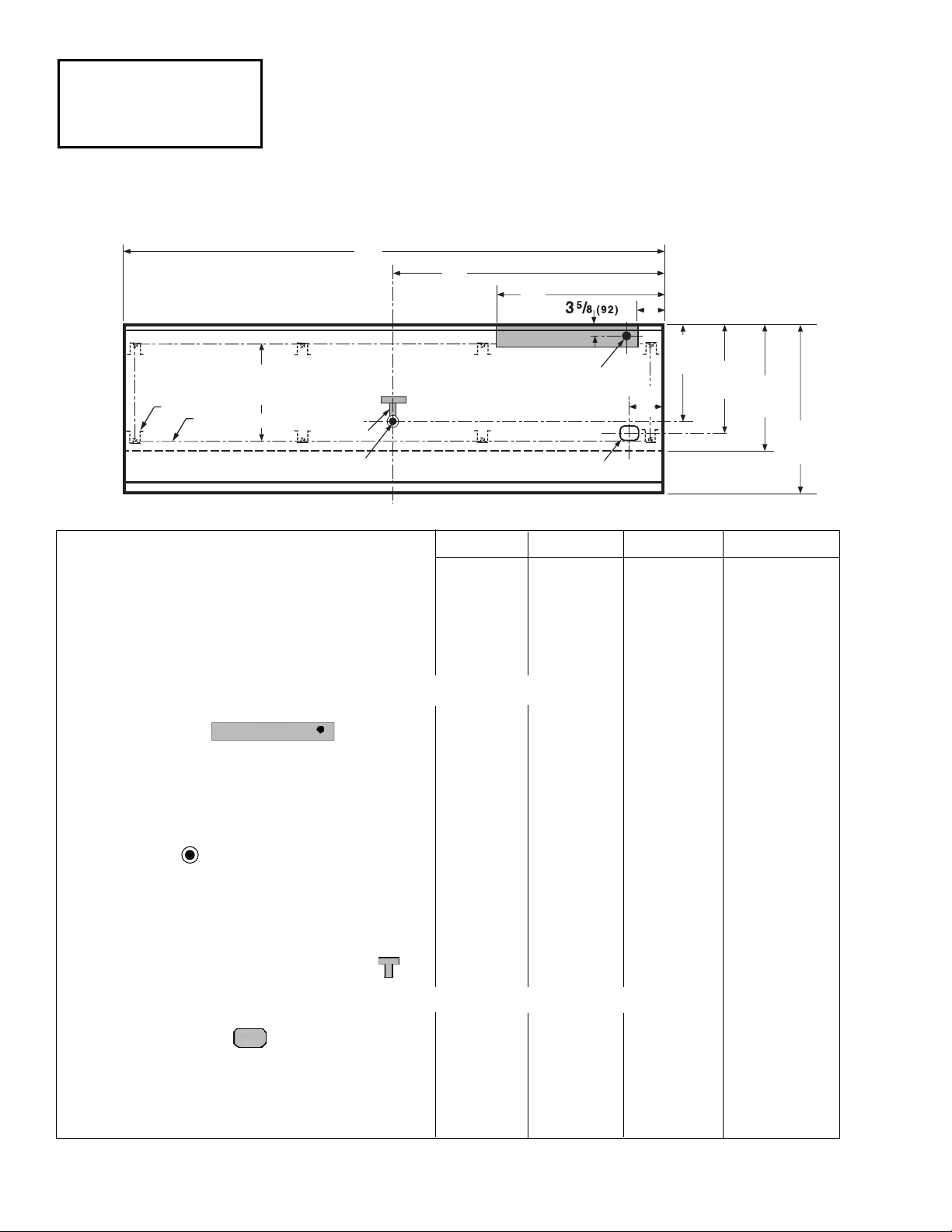

Meat & Delicatessen

Engineering

Plan Views

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

SMBT

Discharge Air (°F) 24

Evaporator (°F) 18

Unit Sizing (°F) 16

Btu/hr/ft SMBT

Parallel 420

Conventional 450

DEFROST DATA

SMBT

Frequency (hr) 12

Defrost Water (lb/ft/day) 0.20

(± 15% based on case configuration and

product loading).

OFFTIME SMBT

Temp Term (°F) 43°

Failsafe (minutes) 90

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

SMBT

CI/CO (Temp °F)*11°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

Not Recommended

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

4 ft 0.75

6 ft 1.0

8 ft 1.5

12 ft 2.0

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End/Partition (in.) 1 1/2

3 of 6P/N 0420063_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

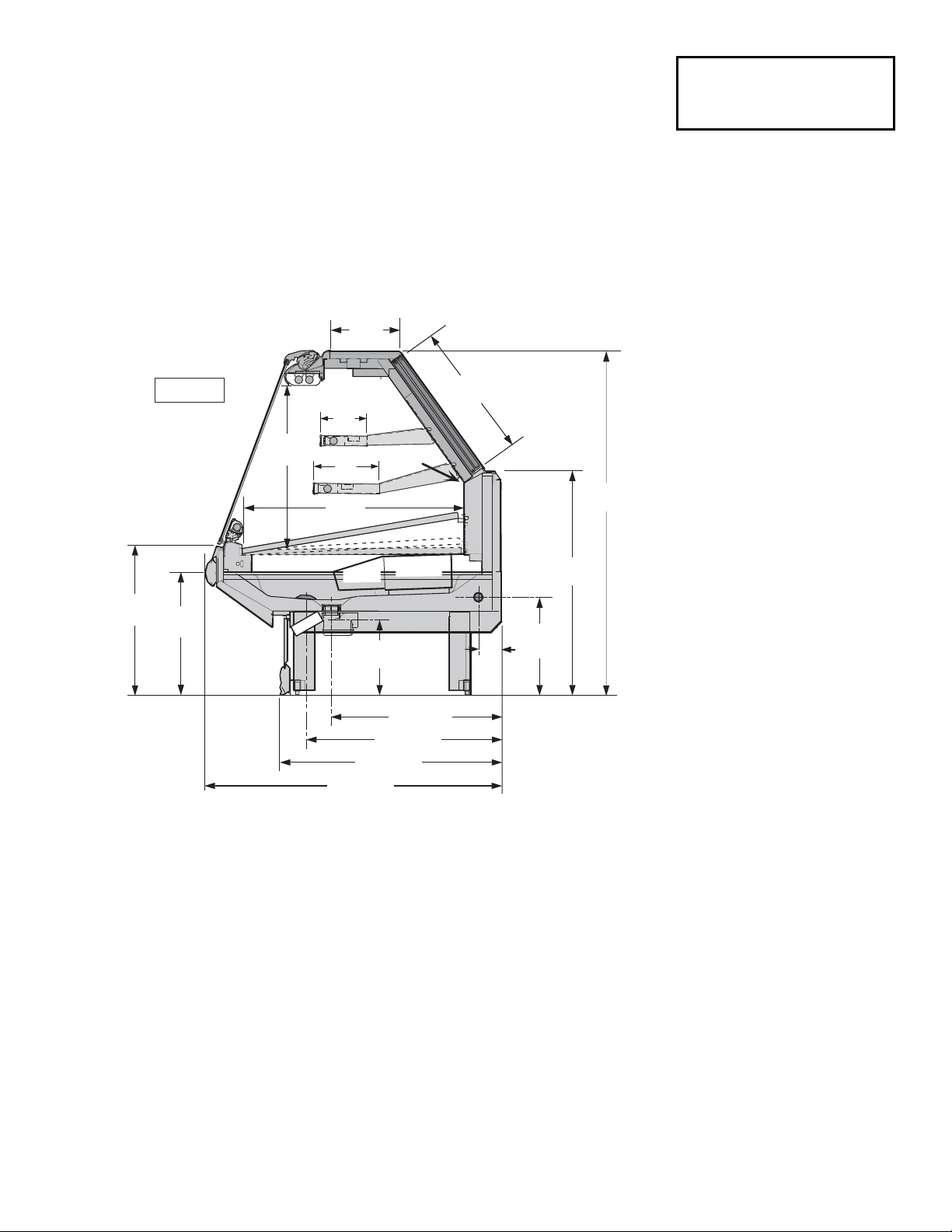

22 1/2

(572)

SMBT

(1321)

5/8

(854)

5/8(651)

28 3/4 (730)

(864)

(508)

24 1/4

(616)

3/4

(349)

33 3/8 (849)

44 5/8 (1133)

5/8

(92)

FAN COIL

11 3

(289)

10 1

(267)

(178)

(254)

Refrig.

Outlet

Elec.

FAN

24O

18 1/2

(470)

Dimensions shown as in. and (mm).

Impact SMBT

Meat & Delicatessen

Flat Hinged Glass, Blower, 3 Display Level

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. SMBT Technical Data Sheet4 of 6

Impact SMBT

Meat & Delicatessen

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration (120V 60hz) – 4W 1 2 2 3

Ambient Air Wipe – 15W 2 4 4 6

Export Refrigeration (230V 50 hz ) – 4W 1 2 2 3

Export Ambient Air Wipe – 15W 2 4 4 6

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Refrigeration Fans

Standard (120V 60hz) 0.31 0.62 0.62 0.93 24 48 48 72

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz 0.18 0.36 0.36 0.54 27 54 54 81

Ambient Air Wipe Fans

Standard (120V 60hz) 0.26 0.52 0.52 0.78 15 30 30 45

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz 0.13 0.26 0.26 0.39 15 30 30 45

Constant On Anti-sweat Heaters NA NA NA NA NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60hz) 0.77 1.34 1.34 1.91

With Energy Efficient Fans (120V 60hz) NA NA NA NA

With Export Fans (230V 50 hz ) 0.51 0.82 0.82 1.13

Maximum Over Circuit Protection 120V 20 20 20 20

Electric Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Gas Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Standard Lighting* (120V 60hz) 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

2 Row Canopy 0.49 0.80 0.98 1.42 58 92 116 170

1 Row Rail 0.49 0.40 0.49 0.71 58 46 58 85

Optional Lighting

1 Row Ledge 0.49 0.40 0.49 0.71 58 46 58 85

2 Row Shelves 0.49 0.80 0.98 1.42 58 92 116 170

115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 115V Lighting Circuit Total by 0.52do

5 of 6P/N 0420063_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

Fan Wiring

Offtime Defrost

Fans

Electric Service Receptacle Receptacles

120V N

EUTRAL

MAROON

BAND

120V P

OWER

N.E.C.

TAGS

MAROON

BAND

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Condensing Unit

}

(Field Installed)

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

Ambient Fan

Wiring

Glass Air Wipe

Fans

4 ft case has 1 Fan

6 ft case has 2 Fans

8 ft case has 2 Fans

12 ft case has 3 Fans

4 ft case has 2 Fans

6 ft case has 4 Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

SMBT Technical Data Sheet6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

connectors

Optional Shelf Harness

and Light Circuits

Standard Lighting 2 Row Canopy,

1 Row Interior Rail

Light Circuits

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

ORANGE OR TAN BAND

BL BL

Light

Switch

120V POWER

ORANGE OR TAN

BAND

77 7

GGG

77 7

Optional Ledge

Light Circuit

Rail Light Circuit

connectors
