HuTools HT02

Installation Guide

PLEASE KEEP THIS GUIDE

This guide contains important information about your lock.

Customer Service: [email protected]

backset

60 or 70 mm

35 mm to 50 mm

A B C D

25 mm

1Prepare the door and check dimensions

Measure to confirm that the hole in the door

is 2-1/8" (54 mm)

Measure to confirm that the backset is

either 2-3/8" or 2-3/4" (60 or 70 mm)

Measure to confirm that the the hole in

the door edge is 1" (25 mm)

Measure to confirm that the door is 1-3/8"

to 2" (35 mm or 50 mm)thick

Latch Exterior Assembly

Battery Cover

Strike

BCD

Parts List

Drive-In Collar

Latch and

Strike Screws

Mounting Plate

Interior Assembly

Screws

Interior

Assembly

Mounting Plate

Screws

Backup Key

1 / 6

2-3/8" or 2-3/4"

1-3/8" to 2"

54 mm

2-1/8"

Installation Guide

Latch/Strike

Screws(I)

Reinforcement

Screws(H)

Strike

Mounting

Screws(J)

Mounting

Plate

Screws(K)

Battery

Cover

Interior

assembly

Exterior

Assembly

Latch

A B C

2Install the latch and strike

Is the door edge chiseled?

Is the slotted hole centered in the door hole?

Hold the latch in front of the door hole, with

the latch face flush against the door edge

YES

Install latch in door with

supplied screws.

No adjustment is

required. Proceed

to next step.

Slotted hole is centered. Slotted hole is NOT centered.

Rotate and pull the

latch as shown

to extend latch.

Use a screwdirver to test if deadbolt works smoothy.

chiseled not

chiseled

IMPORTANT: Make sure hole in door frame

is drilled a minimum of 1" (25 mm) deep.

Use a flathead screwdriver to remove

Rectangular face from latch and install

drive-in collar.

Install strike on the door frame

φ2-3/4”

(70mm)

Install latch in door with wood

block and hammer.

Fingerprint

Sensor

2 / 6

3Install exterior assembly

AIMPORTANT: Before installation, make sure the latch is fully retracted (in the unlocked position) . Route the cable below the latch

Secure the mounting plate with the supplied screws.

Keep Parallel to door edge.

unlocked

Insert the torque blade

through the slot in the latch.

Send the cable through the bottom horizontal slot in the mounting plate.

Eunlocked

4Install interior assembly

Connect the cable and ensure tight cable connection.

BRotate the turnpiece in vertical position and the torque

blade in horizontal position, make sure the latch is

still fully retracted (in the unlocked position).

Test operation using backup key and thumbpiece

for smooth rotation.If turnpiece doesn’t rotate,

repeat step 4C, making sure the turnpiece in vertical

position, and touque blade in horizontal position.

IMPORTANT: Do not load batteries until lock is completely installed.

Remove the battery cover.

Locate the slot at the bottom and use your fingernail or a

flat head screwdriver to pry the cover up and pull it off.

Secure the interior assembly

with the supplied screws.

Horizontal

5Detect left/ right hand door installation

While the door is OPEN and UNLOCK, load 3 AA batteries

into the interior assembly. For best results, use new,

non-rechargeable Alkaline batteries only.

Press and hold the Reset button on the interior assembly

using a pen or a paper clip.

Reset the lock to teach the lock the orientation of the door.

APress and hold the Reset button on the interior assembly

using a pen or a paper clip.

BLoad the last battery and keep holding the reset button

for 3 seconds, until you hear the sound of “beep”. The

latch bolt will extend to learn the orientation of the door.

IMPORTANT: This step is required and crucial for the lock to operate properly.

unlocked

3 / 6

Information & Safety Warnings

Protect your User Codes and Master Code.

Restrict access to your lock’s interior assembly and routinely check your settings to ensure they have not been altered

without your knowledge.

This lockset is designed to provide the highest standard of product quality and performance. Care should be taken to ensure

a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner, caustic soaps, abrasive

cleaners or polishes could damage the coating and result in tarnishing.

IMPORTANT: Do not load batteries until lock is completely installed.

123456789

222222222

3865

D. If

Then

and

Forward number sequence

Backward number sequence

Repeat number sequence

38 1965

19 3865

Contain existing code sequence

1. Master Code( 4 to 10 digits) : The default Master Code is 12345678. It is required that you change it to a code of your

own before programming.

2. User Code(4 to 10 digits) : A total of 20 User Codes (and one temporary one-time User Code) may be programmed.

3. Both master and user pin codes don not support the following combination of numbers.

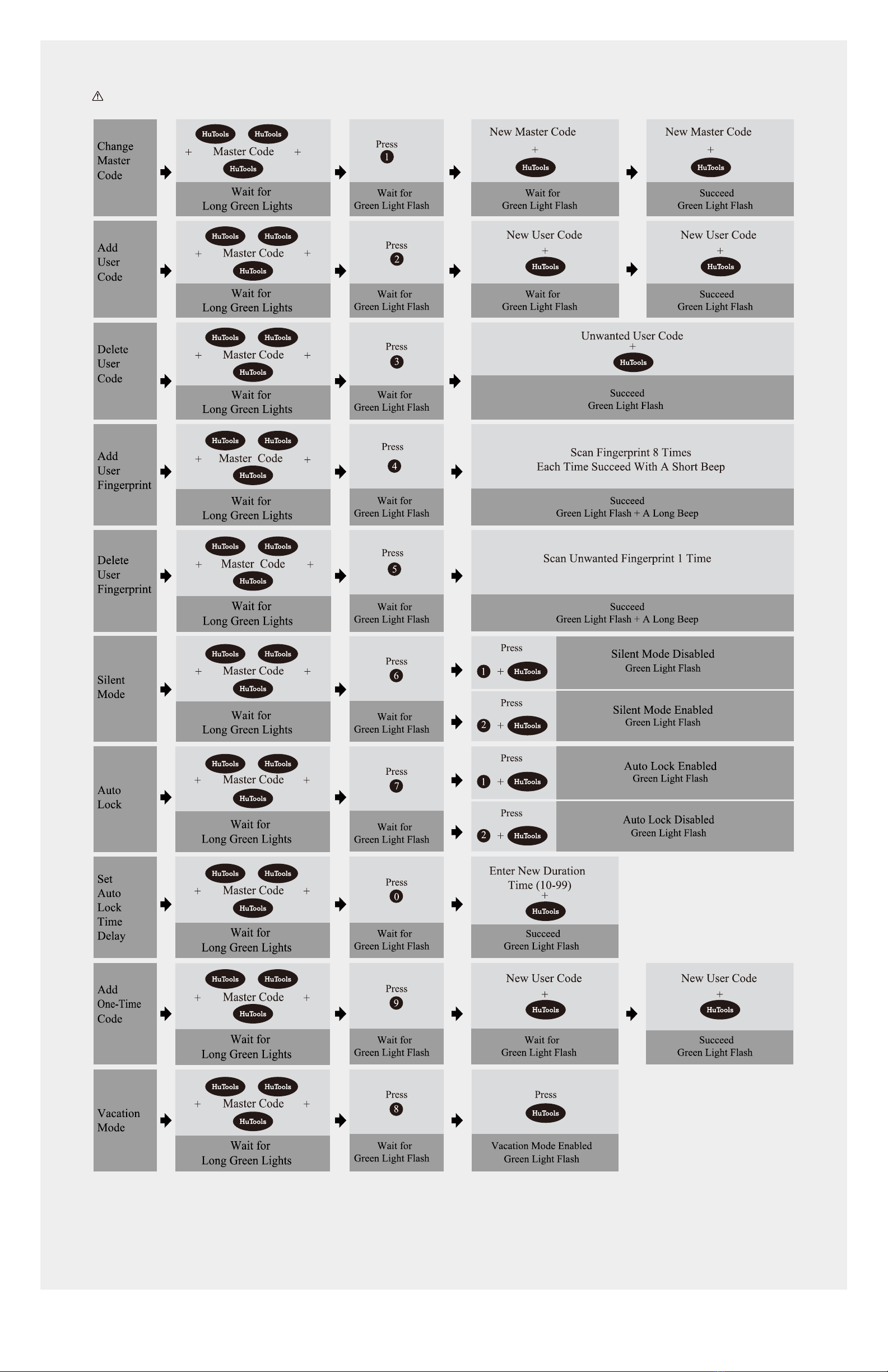

Programming Instructions

How To Use

UNLOCK the door with fingerprint ID

UNLOCK the door from outside LOCK the door from outside

LOCK the door from inside

Master/ User

code

Touch and hold the

Sensor with your finger

to unlock the lock.

Auto Re-lock Mode

In Auto re-lock mode, the bolt will

extend out automatically in 30 seconds

after unlocking.

Manual Mode

Press any key on keypad for 2 seconds.

Auto Re-lock Mode

In Auto re-lock mode, the device

will be locked automatically.

UNLOCK the door from inside

Rotate the thumb turn to

Unlock position.

Manual Mode

Rotate the thumb turn to Lock position.

Item Specifications Remarks

AA alkaline battery x4

(Operation voltage: 4.6~6.0V)

Last up to one year

(10 times open/close per day)

Parts Illustrations

The default Master Code is 12345678. It is required that you change it to a code of your own before programming.

4 / 6

Interior Assembly

Exterior Assembly

Keypad

Multi-function

Button

Fingerprint

Sensor

Battery Cover

Reset Button

Thumb Turn

Battery

(Use new, non-rechargeable

Alkaline batteries only.)

Definitions

Master Code

Required for programming and feature settings. Master

code can be used to unlock the door under vacation

mode. The default master code needs to be changed

before programming.

Property owner/ manager should keep this information

confidential.

Auto Lock

Automatically locks the deadbolt 30 seconds after

unlocking. This feature is off by default. You can set

the Auto Lock time delay between 10 and 99 seconds.

Wrong Entry Limit

After 10 unsuccessful attempts at entering a valid PIN

code, the unit will shut down for 3 minuets.

Silent Mode

The beep sounds when pressing keypad can be muted.

But you will still hear low battery and system alerts.

Vacation Mode

This is a security feature for you when you are leaving

your home for vacation or long trip. Enabling vacation

mode will restrict all user codes until master code is

entered on keypad. If the lock is unlocked by thumb

turn, the lock will sound an alarm.

One Time User Code

This code can only be used once and is automatically

deleted when used.

Unlock with Fake code

User can prevent pin code exposure from strangers by

entering random digits before or after pin code.

83618 137192 14710

password

Random digits

5 / 6

Quick Set Up

Notes:

When setting is unsuccessful, the indicator light will flash red.

IMPORTANT: The default Master Code is 12345678. It is recommended that you change it to a code of your own.

6 / 6

Factory Default Settings

The turnpiece cannot rotate or operate the lock.

Remove and re-install the lock, making sure that the turnpiece is in vertical position.

The lock cannot be locked or unlocked by the keypad.

Make sure that the codes are not disabled. If needed, restore the lock’s default settings.

The keypad doesn’t respond when touched ( no lights are visible and no beeping is heard) .

Make sure the cables are properly connected, and make sure the batteries are new and installed correctly.

After the installation of the batteries, there is no response when you press any button and no beeps are heard.

Check the cable connection and the polarity of the batteries. Also make sure the batteries are not dead.

I forgot my Master Codes.

Perform a reset in order to erase all passcodes. Once the reset is complete, all passcodes will be erased and the Master code

will return to the default value ( 12345678) .

Troubleshooting

Settings Factory Defaut

Master Code

Auto Lock

Silent Mode

Wrong Code Entry Limit

Shutdown Time

Vacation Mode

12345678

Disabled

10 times

3 mins

Disabled

1. Keep the door open and unlock.

2. Press and hold the Reset button, at the same time take out one battery and then place it back.

3. Keep holding the Reset button for 3 seconds, until you hear the sound of beep.

Restore To Factory Default Settings

This procedure will delete all User Codes associated with the lock.

1. Make sure that the Sensor and your finger are clean and dry;

2. Touch and hold the Sensor with your finger until you hear a short beep;

3. Lift and rest your finger, making small adjustments to the position of your finger each time;

3. The Sensor needs to scan your fingerprint 8 times and storages all the information locally and safely.

How to set up fingerprint ID

* If none of the above resolves your issue, check out our updated user manual by scanning the code below. You could also

contact Hutools customer service at [email protected].
