Hybrid+ Advantage Manuale utente

Before using your air conditioner, please read this manual carefully and keep it for future reference.

PACKAGED TERMINAL AIR CONDITIONER/HEAT PUMP

CONTENTS

SAFETY PRECAUTIONS................................................................................................................................................3

IMPORTANT SAFETY INSTRUCTIONS ...........................................................................................................................5

AIR CONDITIONER FEATURES .....................................................................................................................................7

CONTROL PANEL OPERATION .....................................................................................................................................9

DIP SWITCHES CONFIGURATIONS (Optional).............................................................................................................11

INSTALLATION .........................................................................................................................................................16

CARE AND CLEANING ...............................................................................................................................................20

TROUBLESHOOTING.................................................................................................................................................22

OPTIONAL WIRED/WIRELESS DIGITAL WALL STATS ...................................................................................................24

Read This Manual

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many

answers to common problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting Tips first,

you may not need to call for service at all.

This appliance can be used by children eight years or above as well as people with reduced physical, sensory or

mental capabilities or lack of experience and knowledge given the supervision concerning the safe usage and

hazard involved. (applicable to all European Countries)

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety. (applicable to all non-European

countries)

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified

persons in order to avoid any hazard.

The appliance shall be installed in accordance with national wiring regulations.

Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

The appliance with electric heater shall be kept at least 1 meter away from the combustible material.

Contact the authorized service technician for repair or maintenance of this unit.

Contact the authorized installer for installation of this unit.

SAFETY PRECAUTIONS

To prevent injury or property damage, the following instructions must be complied:

Incorrect operation due to non-compliance of instructions may cause personal harm or damage to property. The

seriousness is classified by the following indications.

Plug in power plug properly.

Otherwise, it may cause

electric shock or fire due to

excess heat generation.

Do not modify power cord

length or share the outlet

with other appliances.

It may cause electric shock or

fire due to heat generation.

Always ensure effective

earthing.

Incorrect earthing may cause

electric shock.

Unplug the unit if strange

sounds, smell, or smoke

comes from it.

It may cause fire and electric

shock.

Keep firearms away.

It may cause fire.

Ventilate room before

operating air conditioner if

there is a gas leakage from

another appliance.

It may cause explosion, fire

and, burns.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

It may cause electric shock or

fire due to heat generation.

Do not operate with wet

hands or in damp

environment.

It may cause electric shock.

Do not allow water to run

into electric parts.

It may cause failure of

machine or electric shock.

Do not use the socket if it is

loose or damaged.

It may cause fire and electric

shock.

Do not use the power cord

close to heating appliances.

It may cause fire and electric

shock.

Do not damage or use an

unspecified power cord.

It may cause electric shock or

fire.

Do not direct airflow at

room occupants only.

It may cause electric shock or

fire.

If the power cord is

damaged, it must be

replaced by the

manufacturer or an

authorized service center or

a similarly qualified person in

order to avoid a hazard.

Always install circuit breaker

and a dedicated power

circuit.

Incorrect installation may

cause fire and electric shock.

Do not open the unit during

operation.

It may cause electric shock.

Do not use the power cord

near flammable gas or

combustibles, such as

gasoline, benzene, thinner,

etc.

It may cause an explosion or

fire.

Do not disassemble or

modify unit.

It may cause failure and

electric shock.

When the air filter is to be

removed, do not touch the

metal parts of the unit.

It may cause an injury.

When the unit is to be

cleaned, switch off, and turn

off the circuit breaker.

Do not clean unit when

power is on as it may cause

fire and electric shock, it may

cause an injury.

Stop operation and close the

window in a storm or

hurricane.

Operation with windows

opened may cause wetting of

indoor and soaking of

household furniture.

Do not place obstacles

around air-inlets or inside of

air-outlet.

It may cause failure of

appliance or accident.

Do not use strong detergent

such as wax or thinner but

use a soft cloth.

Appearance may be

deteriorated due to change

of product color or

scratching of its surface.

Use caution when unpacking

and installing. Sharp edges

could cause injury.

Clean the evaporator once

every three months by

professional people.

Otherwise it may cause

failure of electric heating

feature.

Do not clean the air

conditioner with water.

Water may enter the unit

and degrade the insulation. It

may cause an electric shock.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

This could injure the pet or

plant.

Hold the plug by the head of

the power plug when

inserting in socket or taking

it out.

It may cause electric shock

and damage.

Ensure that the installation

bracket of the outdoor

appliance is not damaged

due to prolonged exposure.

If bracket is damaged, there

is concern of damage due to

falling of unit.

Do not place heavy object

on the power cord and

ensure that the cord is not

compressed in any way.

There is danger of fire or

electric shock.

Ventilate the room well

when used together with a

stove, etc.

An oxygen shortage may

occur.

Do not use for special

purposes.

Do not use this air

conditioner to preserve

precision devices, food, pets,

plants, and art objects. It

may cause deterioration of

quality, etc.

Turn off the main power

switch when not using the

unit for a long time.

It may cause failure of

product or fire.

Always insert the filters

securely. Clean filter once

every two weeks or

monthly.

Operation without filters

may cause failure.

Do not drink water drained

from air conditioner.

It contains contaminants and

could make you sick.

If water enters the unit, turn

the unit off at the power

outlet and switch off the

circuit breaker. Isolate

supply by taking the power-

plug out and contact a

qualified service technician.

IMPORTANT SAFETY INSTRUCTIONS

NOTE The power supply cord included contains

a current detection device designed to reduce

the risk of fire.

For your safety

Do not keep gasoline or other flammable

vapors and liquids in the vicinity of the unit or

Please refer to the operation section for more

details.

The power cord cannot be repaired. If the

power cord is damaged, a new one should be

obtained from manufacturer or its service

agent.

any other electrical appliance.

To avoid fire hazard or electric shock:

oDo not use an extension cord or an

adaptor plug.

oDo not cut or remove any prong from

the power plug or cord.

Electrical Information

Be sure the power cord is adequate for the

model you have chosen. This information can

be found on the serial plate, which is located

on the side of the cabinet and also behind the

grille.

Be sure the air conditioner is properly

grounded. To minimize shock and fire

hazards, proper grounding is important. The

power cord is equipped with a three-prong

grounding plug for protection against shock

hazards.

Your air conditioner must be used in a

properly grounded wall receptacle. If the wall

receptacle you intend to use is not

adequately grounded or protected by a time-

delay fuse or circuit breaker, have a qualified

electrician to properly install it.

Ensure the receptacle is accessible after the

unit installation.

Do not run air conditioner without a side

protective cover.

This could result in mechanical damage within

the air conditioner.

The appliance shall be installed in accordance

with national wiring regulations.

Do not use an extension cord or an adapter

plug.

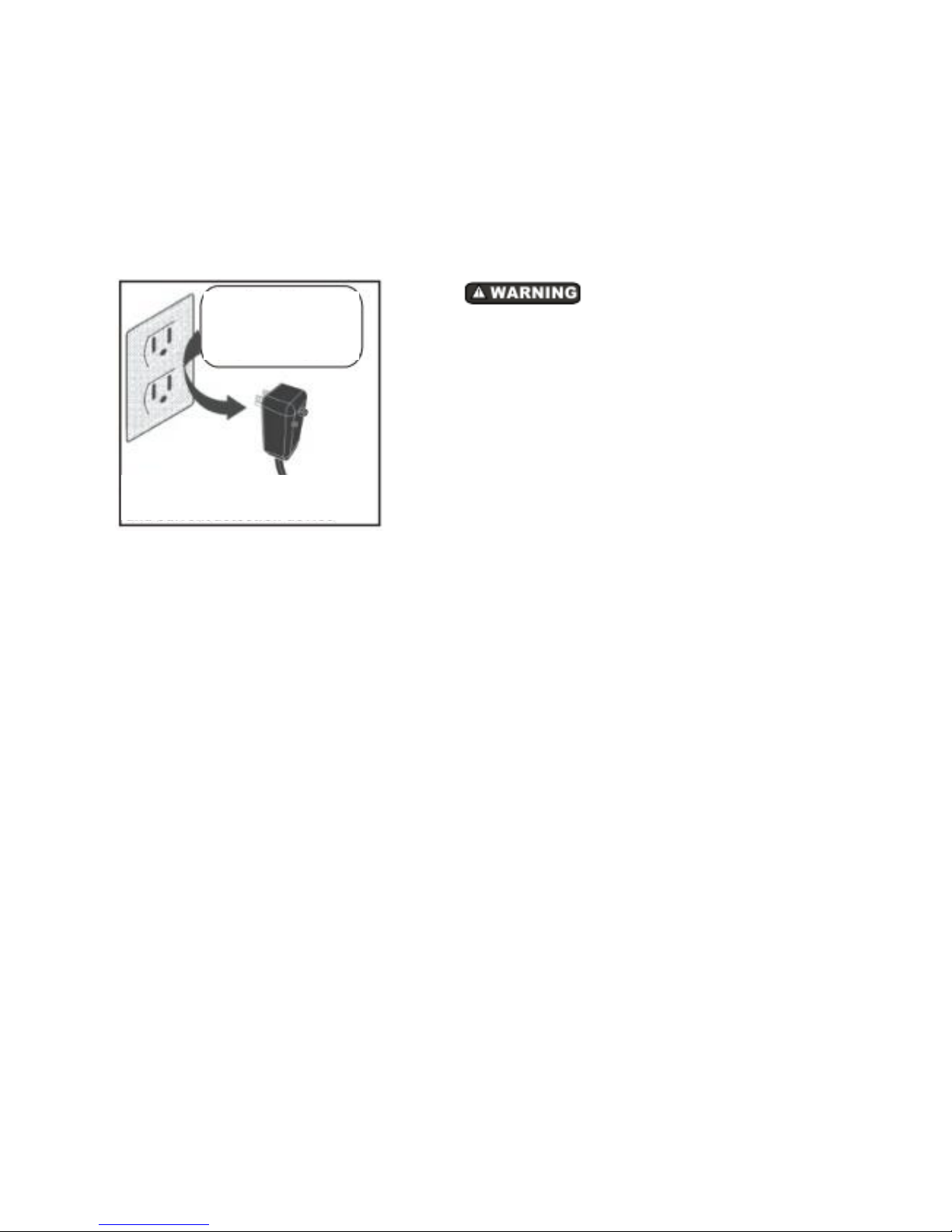

NOTE: The shape may be different according to its model:

Do not under any

circumstances, cut, remove

or bypass the grounding

prong

Power supply cord with 3-prong grounding plug

and current protection device

This unit has many features. The servicer must be familiar with these features in order to properly

Service the unit.

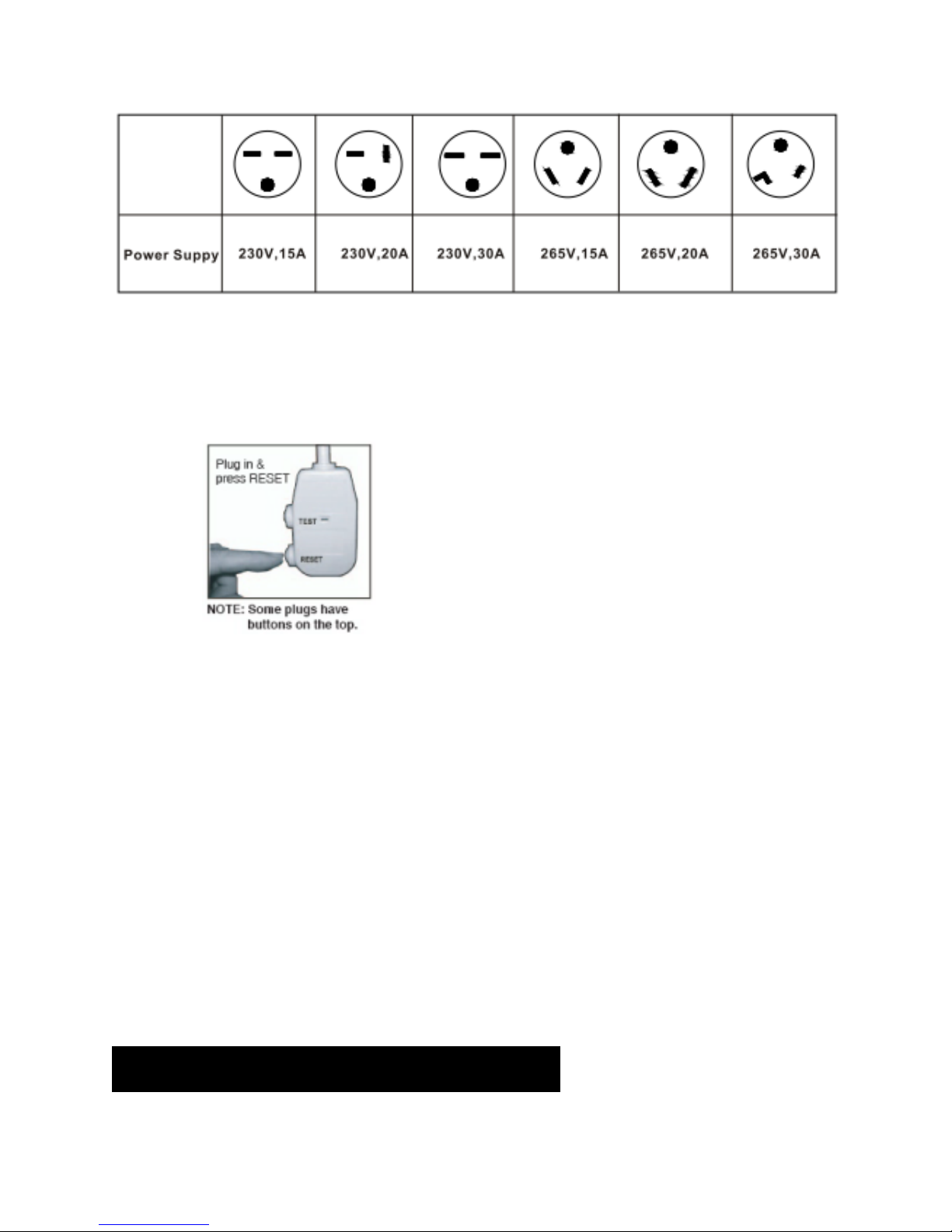

Operation of Current Device (optional)

The power supply cord contains a protection

device that senses damage to the power cord.

To test your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons

on the plug head. Press the TEST button; you will

notice a click as the RESET button pops out.

3. Press the RESET button, again you will notice a

click as the button engages.

4. The power supply cord is now supplying

electricity to the unit. (On some products this also

indicated by a light on the plug head.)

NOTES:

Do not use this device to turn the unit on or off.

Always make sure the RESET button is pushed in for proper operation.

The power supply must be replaced if it fails reset when either the TEST button is pushed, or it cannot

be reset. A new one should be obtained from the manufacturer.

The power cord cannot be repaired. If the power cord is damaged, a new one should be obtained from

manufacturer or its service agent.

When 265V units are to be installed, the power supply must be done through permanent wiring.

Permanent wiring may be done through the accessory sub-base. An exposed cord connection on 265V

units is not permitted.

AIR CONDITIONER FEATURES

This unit has many features. The servicer must be familiar with these features in order to properly

service the unit.

Compressor Restart Delay

This feature extends the overall life of compressor by preventing the short-cycling of the air conditioner.

When the compressor restarts, the unit is designed to give a minimum of three minutes delay to

equalize the refrigerant pressures and optimize the cycling of unit.

Memory

The unit has a memory system .If power is lost, all the control settings (mode, fan speed, on/off and

Configuration) are saved. When power is restored, the unit starts in the same mode (and configuration)

it was in before the power was lost.

Automatic Evaporator Freeze Protection

To keep the evaporator from freezing, this feature activates automatically in which the compressor is

turned off and the indoor fan is turned on when the evaporator temperature gets too low.

Automatic Quick Warm-up (for heat pump models only)

If the room temperature falls to 4.5 C/8 F below the set point temperature, the reverse cycle heat is

shut off and the electric strip heat is turned on for one cycle, until the set heat is attained.

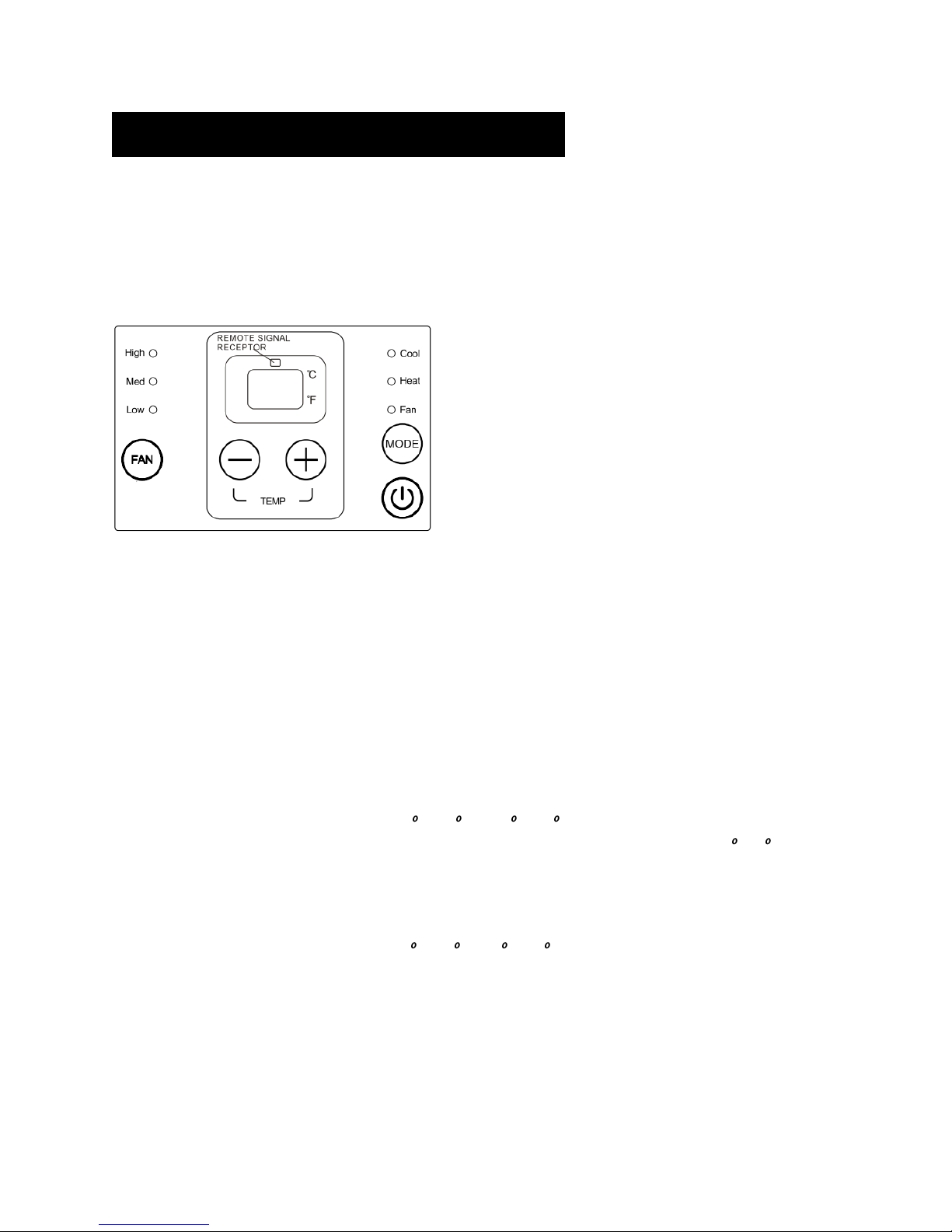

LED Indicators and Buttons

The touch pad has buttons for MODE, FAN, POWER, SETPOINT UP and SETPOINT DOWN.

It also has LEDs that correspond to the mode, fan speed, power and set point operation, to indicate the

unit s status. LEDs for HIGH, MED and LOW indicate the fan speed that is selected.

LEDs for FAN, COOL and HEAT indicate what operating mode is active. LED for POWER is the unit

ON/OFF status LED. If the unit is in ON mode, the LED will be green. If the unit is OFF, the LED will be off.

Unit Configuration

NOTE: HEAT mode is for Cooling & Heating models only.

High Temperature Protection in Heating

Operation

The compressor and (or) electric heater will be switched off to prevent damage in high indoor blow air

temperature or error indoor temperature sensor.

CONTROL PANEL OPERATION

The control panel keypad will look like the following:

For some models with REMOTE SIGNAL RECEPTOR, the unit can be controlled by the control panel alone

or by the remote wall stat.

No REMOTE SIGNAL RECEPTOR.

Fig.1

POWER

- Press the POWER button to turn the unit on or off.

When the unit is on, the power indicator light will be green. When the unit is off, the light will go out.

MODE

- Push this button to cycle through the modes from COOL-HEAT-FAN-COOL. The indicator light beside

the "MODE" option will illuminate, displaying the mode selected.

- COOL: The range of set temperature is 17 C/62 F ~30 C/86 F. Cooling begins automatically when

the room temperature is above the set point, and stops when the room temperature is 2 C(4 F) below

the set point. But the compressor will run 5 minutes at least in COOL mode before stopping. The fan

runs in continuous mode.

- HEAT: The range of set temperature is 17 C/62 F ~29 C/84 F. For heat pump models, the unit can

alternate to run between in reverse cycle heat mode and electric heater mode according to the

difference between the setting temperature and the room temperature. The fan motor cycles on and off

with the compressor and electric heater.

NOTE: The reverse cycle and electric heater cannot be run at the same time.

- FAN: Fan operation only without heating and cooling.

UP/DOWN BUTTONS (+ / -)

- Push the UP (or DOWN) button to increase (or decrease) the set temperature of the unit in cooling or

heating mode. The temperature can be set by increments of 1 C (1 F).The setting temperature appears

in the display.

NOTE: Press and hold and buttons together for 3 seconds will alternate the temperature display

between C & F scale.

FAN (FAN SPEED)

- Every time you push this button, the fan speed cycles through the settings as follows HIGH-MED-LOW-

HIGH.

DISPLAYS:

- Shows the set temperature in C or F. While on Fan only mode, it shows the room temperature.

Control code (on some models):

LC-Pads on the control panel is not available. The unit can be set by using wire controller only.

LF-Pads on the control panel and wire controller are not available. The unit can be set by using

FRONT DESK CONTROL only.

Error codes:

AS-Room temperature sensor error;

ES-Evaporator temperature sensor error;

CS-Condenser temperature sensor error;

OS-Outside temperature sensor error;

HS-Exhaust temperature sensor error;

LE-Wire controller error;

NOTE: When the error occurs, unplug the unit and plug it again. If the error repeats, call for assistance.

Other codes:

LO-Room temperature is lower than 0 C/32 F;

HI-Room temperature is higher than 37 C/99 F.

NOTE: This air conditioner is designed to be operated under condition as follows:

Indice

Altri manuali Hybrid+ Condizionatore d'aria

Hybrid+

Hybrid+ 52T Commercial Advantage Series Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
