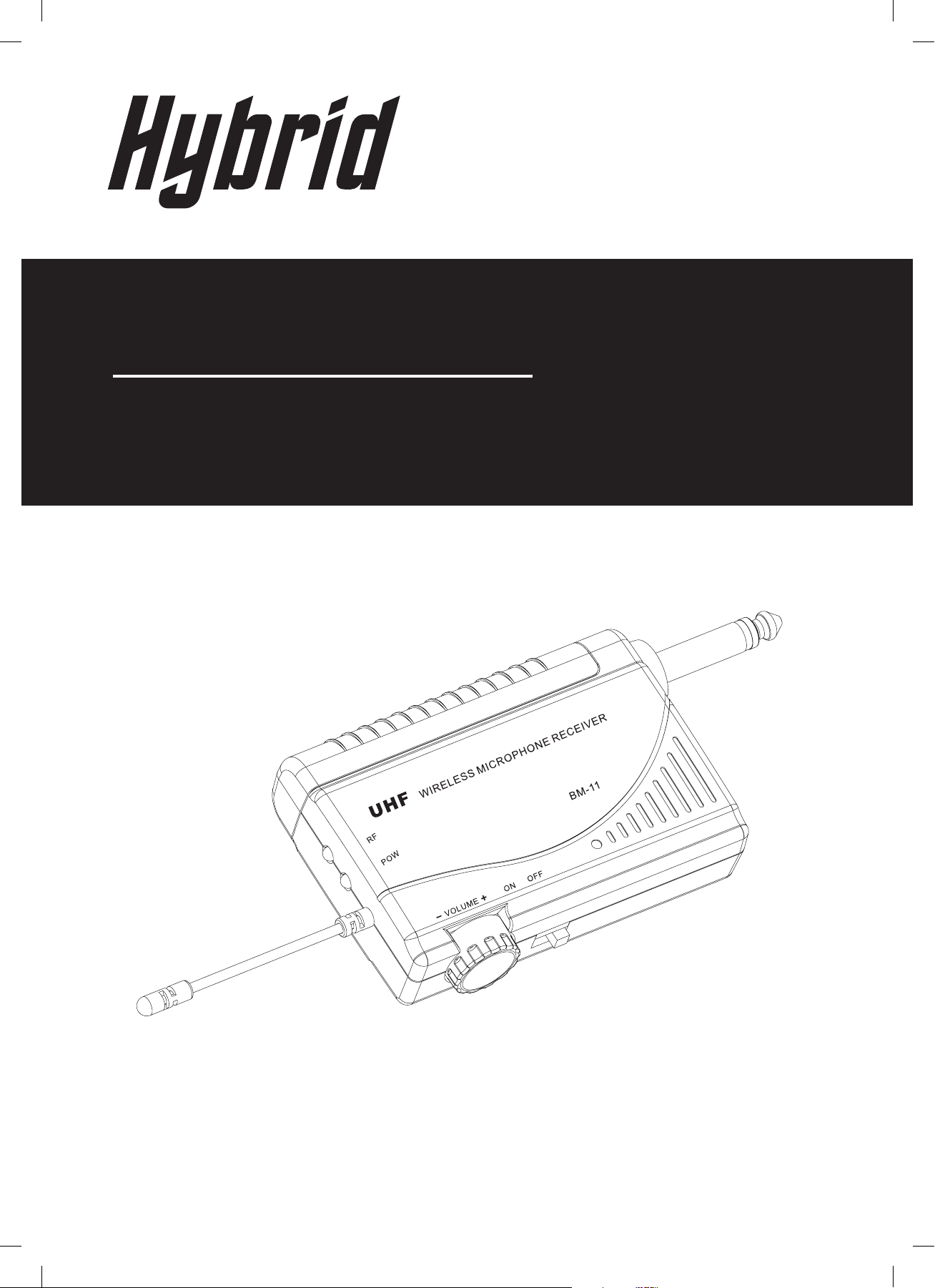

Hybrid+ U-AV Manuale utente
USER MANUAL
UHF WIRELESS
MICROPHONE SYSTEM
U-AV
PAGE 1
1. Power switch
2. Volume-controlling knob
3. Antenna
4. Power supply indicator
5. Signal and audio indicator
Please read these instructions carefully which includes important
information about the installation, operation and maintenance.
INTRODUCTION CHANNEL OPERATION SHOWING
RECEIVER OPERATION
MAIN FUNCTION
CONTROL AND FUNCTION
(RECEIVER)
Congratulations on your purchase of the new Hybrid
U-AV professional wireless microphone system, and thank
you for your confidence in the Hybrid brand. You are
amongst the growing number of audio professionals who
have made Hybrid one of Southern Africa’s leading brands
of professional and commercial audio systems.
Using UHF 700-870 MHz band to avert frequency
interference.
Automatic frequency scan feature searches for available
frequencies.
PLL System, preset 16 non-interfered channels.
SMT Technology.
Receiver use one 1,5V AA battery power supply.
Ideal distance is 30m
Small and useful, easy to carry, the receiver directly
connect to 6.35mm audio amplifier system to work.
It is suitable for luxury buses, outdoor activities and
church use etc.
Open the Receiver battery cover to insert 1*1.5V AA battery
with correct polarity.
Insert 1*1.5AA battery on the handhold mic or 2*1.5AA
battery on the bodypack on correct polarity.
Turn on the Receiver (open it with ON/OFF switch) choose
the frequency you want. (Used IR function for auto scan
chanels select or used the dip-switch by hand on your
own chooise)
Use the ACT SET function with transmitter
(when the light on the transmitter is getting green,
it means frequency is set)
The Receiver light will show Green when with the
frequency is the same as the transmitter,
then it can work.
6. Battery cover
7. ACT (Sync button)
8. Channel select switch
9. IR Window
10. Mix output plug
U-AV - UHF WIRELESS MICROPHONE SYSTEM
PAGE 2
1. POWER SWITCH: Slide in arrow direction to power
transmitter On.
2. POWER AND LOW BATTERY LED: Flashes once at power up,
Continuous flashing indicates battery needs replacement.
3. BATTERY COMPARTEMENT: Insert one AAA battery,
Observing correct polarity.
4. BATTERY: Single AAA alkaline or NiMH battery required
for operation.
5. BATTERY COMPARTMENT COVER: To cover AAA battery,
Slide open.
6. INPUT MIC: Inidirectional pickup for vocals.
7. FLEXIBLE HEADBAND: For mounting over the ears.
8. ANTENNA: Permanently attached flexible antenna.
9: IR RECEPTOR SENSOR/WINDOW: Infared LED sensor for
linking the TX to the RX during IR frequency download.
Frequency Response
Dynamic Range
Oscillating System
Total Harmonic Distortion (THD)
RF Carrier Frequency Range
Modulation
Operating Range
Controls
Frequency Select
Connectorts
LED Indicators
Antenna
Signal-to-Noise Ratio
Reciever Sensitivity
Squelch Sensitivity
Output Impedance
Power Consumption
Battery
Battery Life
Dimensions
Weight (w/o batteries)
Housing Constraction
- 50Hz-16kHz (-3dB)
- 120dB
- Phase Lock Loop (PLL)
- 0.8%
- 700 MHz - 870Hz
- FM (F3E), +/-30KHz normal
- Up to 250 feet (Typical, Depending on site conditions)
- Audio Level, Power ON/MUTE/OFF
- DIP-Switches, ASCTM IR sync button
- Unbalanced
1/4”, DC Adapter input jack
- Power ON (Red-Singer Flash), Low Battery (Red
flashing), RF Signal LED, IR Sync LED
- 1/4 Wave, Permanently attached
- 105dB (w/AC/DC power supply)
- -110dBm nominal, 12dB SINAD
- -95dBm (Normal)
- 2.0k
- DC: 1.5V.95mA
- One AA Alkaline or NiMH
- Up to 8 hours
- 2,4” Wx4.7” D x 0,9”H (6,1cm X 12,0cm x 2,3cm)
- 2,3 oz (65,2g)
- ABS Plastic
1. COMPREHENSIVE PERFORMANCE
2. RECEIVER
Congratulations on your purchase of the new Hybrid
U-AV professional wireless microphone system, and thank
you for your confidence in the Hybrid brand. You are
amongst the growing number of audio professionals who
have made Hybrid one of Southern Africa’s leading brands
of professional and commercial audio systems.
Head Worn Transmitter
TRANSMITTER OPERATION
SPECIFICATION
PAGE 3
RF Power Out
Harmonic and Spurious Emissions
Controls
LED Indicators
Input Impedance
Power Consumption
Battery
Battery Life
Antenna
Dimensions
Weight (w/o Batteries)
Housing Construction
- 25mW Nominal, 50mW Maximum
- -50dB
- Power ON/OFF
- Power ON (Red-Single Flash), Low Battery (Red Flashing)
- 5k
- DC 1.5V/90mA
- One AAA Alkaline or NiMH
- Up to 8 hours
- 1/4 Wave, Permanently Attached
- Dimensions (w/Mic) 6”w X 7”d X 2.5”h (15.3cm X 17.8cm X 6.4cm)
- 2.1 oz (59.6 )
- ABS Plastic
1. HD-1 TRANSMITTER
1. Receiver...............................................................................................................................x1
2. Converter (Headset Microphone).......................................................................................x1
3. Battery 1.5V.........................................................................................................................x2
4. Operation Manual................................................................................................................x1
SYSTEM COMPOSITION
U-AV - UHF WIRELESS MICROPHONE SYSTEM
PAGE 4
